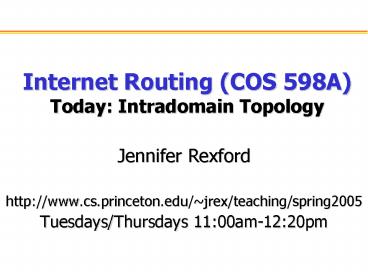

Internet Routing (COS 598A) Today: Intradomain Topology

1
Internet Routing (COS 598A)Today Intradomain
Topology

• Jennifer Rexford
• http//www.cs.princeton.edu/jrex/teaching/spring2
  005
• Tuesdays/Thursdays 1100am-1220pm

2
Outline

• Router architecture
• Line cards
• Switching fabric
• Router processor
• Network topology
• From hub-and-spoke to backbones
• Customer connecting to providers
• Measuring the topology
• Traceroute probes from many vantage points
• Associating an IP address with an AS
• Discussion of the papers

3
What is a Router?

• A computer with
• Multiple interfaces
• Implementing routing protocols
• Packet forwarding
• Wide range of variations of routers
• Small LinkSys device in a home network
• Linux-based PC running router software
• Million-dollar high-end routers with large
  chassis
• and links
• Serial line
• Ethernet
• Packet-over-SONET

4
Network Components
Links
Interfaces
Switches/routers
Ethernet card
Large router
Fibers
Wireless card
Coaxial Cable
Telephone switch
5
Inside a High-End Router
Processor
Switching Fabric
Line card
Line card
Line card
Line card
Line card
Line card
6
Router Components Line Cards

• Interfacing
• Physical link
• Switching fabric
• Packet handling
• Buffer management
• Link scheduling
• Packet filtering (ACLs)
• Packet forwarding (FIB)
• Rate-limiting
• Packet marking
• Measurement

to/from link
Transmit
FIB
Receive
to/from switch
7
Router Components Switching Fabric

• Deliver packet inside the router
• From incoming interface to outgoing interface
• A small network in and of itself
• Must operate very quickly
• Multiple packets going to same outgoing interface
• Switch scheduling to match inputs to outputs
• Implementation techniques
• Bus, crossbar, interconnection network,
• Running at a faster speed (e.g., 2X) than links
• Dividing variable-length packets into cells

8
Router Components Router Processor

• So-called Loopback interface
• IP address of the CPU on the router
• Control-plane software
• Implementation of the routing protocols
• Creation of forwarding table for the line cards
• Interface to network administrators
• Command-line interface for configuration
• Transmission of measurement statistics
• Handling of special data packets
• Packets with IP options enabled
• Packets with expired Time-To-Live field

9
Network Topology
10
Hub-and-Spoke Topology

• Single hub node
• Common in enterprise networks
• Main location and satellite sites
• Simple design and trivial routing
• Problems
• Single point of failure
• Bandwidth limitations
• High delay between sites
• Costs to backhaul to hub

11
Simple Alternatives to Hub-and-Spoke

• Dual hub-and-spoke
• Higher reliability
• Higher cost
• Good building block
• Levels of hierarchy
• Reduce backhaul cost
• Aggregate the bandwidth
• Shorter site-to-site delay

12
Backbone Networks

• Backbone networks
• Multiple Points-of-Presence (PoPs)
• Lots of communication between PoPs
• Need to accommodate diverse traffic demands
• Need to limit propagation delay

13
Abilene Internet2 Backbone
14
Points-of-Presence (PoPs)

• Inter-PoP links
• Long distances
• High bandwidth
• Intra-PoP links
• Short cables between racks or floors
• Aggregated bandwidth
• Links to other networks
• Wide range of media and bandwidth

Inter-PoP
Intra-PoP
Other networks
15
Deciding Where to Locate Nodes and Links

• Placing Points-of-Presence (PoPs)
• Large population of potential customers
• Other providers or exchange points
• Cost and availability of real-estate
• Mostly in major metropolitan areas
• Placing links between PoPs
• Already fiber in the ground
• Needed to limit propagation delay
• Needed to handle the traffic load

16
Customer Connecting to a Provider
Provider
Provider
1 access link
2 access links
Provider
Provider
2 access PoPs
2 access routers
17
Multi-Homing Two or More Providers

• Motivations for multi-homing
• Extra reliability, survive single ISP failure
• Financial leverage through competition
• Better performance by selecting better path
• Gaming the 95th-percentile billing model

Provider 1
Provider 2
18
Measuring the Topology
19
Motivation for Measuring the Topology

• Business analysis
• Comparisons with competitors
• Selecting a provider or peer
• Scientific curiosity
• Treating data networks like an organism
• Understand structure and evolution of Internet
• Input to research studies
• Network design, routing protocols,
• Interesting research problem in its own right
• How to measure/infer the topology

20
Basic Idea Measure from Many Angles
Source 2
Source 1
21
Where to Get Sources and Destinations?

• Source machines
• Get accounts in many places
• Good to have a lot of friends
• Use an infrastructure like PlanetLab
• Good to have friends who have lots of friends
• Use public traceroute servers (nicely)
• http//www.traceroute.org
• Destination addresses
• Walk through the IP address space
• One (or a few) IP addresses per prefix
• Learn destination prefixes from public BGP tables
• http//www.route-views.org

22
Traceroute Measuring the Forwarding Path

• Time-To-Live field in IP packet header
• Source sends a packet with a TTL of n
• Each router along the path decrements the TTL
• TTL exceeded sent when TTL reaches 0
• Traceroute tool exploits this TTL behavior

destination
source
Send packets with TTL1, 2, 3, and record
source of time exceeded message
23
Example Traceroute Output (Berkeley to CNN)
Hop number, IP address, DNS name
1 169.229.62.1 2 169.229.59.225 3
128.32.255.169 4 128.32.0.249 5 128.32.0.66
6 209.247.159.109 7 8 64.159.1.46 9
209.247.9.170 10 66.185.138.33 11 12
66.185.136.17 13 64.236.16.52
inr-daedalus-0.CS.Berkeley.EDU soda-cr-1-1-soda-br
-6-2 vlan242.inr-202-doecev.Berkeley.EDU gigE6-0-
0.inr-666-doecev.Berkeley.EDU qsv-juniper--ucb-gw.
calren2.net POS1-0.hsipaccess1.SanJose1.Level3.net
? ? pos8-0.hsa2.Atlanta2.Level3.net pop2-atm-P0-2
.atdn.net ? pop1-atl-P4-0.atdn.net www4.cnn.com
24
Problems with Traceroute

• Missing responses
• Routers might not send Time-Exceeded
• Firewalls may drop the probe packets
• Time-Exceeded reply may be dropped
• Misleading responses
• Probes taken while the path is changing
• Name not in DNS, or DNS entry misconfigured
• Mapping IP addresses
• Mapping interfaces to a common router
• Mapping interface/router to Autonomous System
• Angry operators who think this is an attack

25
Map Traceroute Hops to ASes
Traceroute output (hop number, IP)
1 169.229.62.1 2 169.229.59.225 3
128.32.255.169 4 128.32.0.249 5 128.32.0.66
6 209.247.159.109 7 8 64.159.1.46 9
209.247.9.170 10 66.185.138.33 11 12
66.185.136.17 13 64.236.16.52
Need accurate IP-to-AS mappings (for network
equipment).
26
Candidate Ways to Get IP-to-AS Mapping

• Routing address registry
• Voluntary public registry such as whois.radb.net
• Used by prtraceroute and NANOG traceroute
• Incomplete and quite out-of-date
• Mergers, acquisitions, delegation to customers
• Origin AS in BGP paths
• Public BGP routing tables such as RouteViews
• Used to translate traceroute data to an AS graph
• Incomplete and inaccurate but usually right
• Multiple Origin ASes (MOAS), no mapping, wrong
  mapping

27
Example BGP Table (show ip bgp at RouteViews)
Network Next Hop Metric
LocPrf Weight Path 3.0.0.0/8
205.215.45.50
0 4006 701 80 i
167.142.3.6
0 5056 701 80 i
157.22.9.7
0 715 1 701 80 i
195.219.96.239
0 8297 6453 701 80
i 195.211.29.254
0 5409
6667 6427 3356 701 80 i gt
12.127.0.249
0 7018 701 80 i
213.200.87.254 929
0 3257 701 80 i 9.184.112.0/20
205.215.45.50
0 4006 6461 3786 i
195.66.225.254
0 5459 6461 3786 i gt
203.62.248.4
0 1221 3786 i
167.142.3.6
0 5056 6461 6461
3786 i
195.219.96.239
0 8297 6461 3786 i
195.211.29.254
0 5409 6461 3786 i
AS 80 is General Electric, AS 701 is UUNET, AS
7018 is ATT AS 3786 is DACOM (Korea), AS 1221 is
Telstra
28
Refining Initial IP-to-AS Mapping

• Start with initial IP-to-AS mapping
• Mapping from BGP tables is usually correct
• Good starting point for computing the mapping
• Collect many BGP and traceroute paths
• Signaling and forwarding AS path usually match
• Good way to identify mistakes in IP-to-AS map
• Successively refine the IP-to-AS mapping
• Find add/change/delete that makes big difference
• Base these edits on operational realities

http//www.cs.princeton.edu/jrex/papers/sigcomm03
.pdf http//www.cs.princeton.edu/jrex/papers/info
com04.pdf
29
Extra AS due to Internet eXchange Points

• IXP shared place where providers meet
• E.g., Mae-East, Mae-West, PAIX
• Large number of fan-in and fan-out ASes

A
E
A
E
F
B
F
B
D
G
C
G
C
Traceroute AS path
BGP AS path
Ignore extra traceroute AS hop with high fan-in
and fan-out
30
Extra AS due to Sibling ASes

• Sibling organizations with multiple ASes
• E.g., Sprint AS 1239 and AS 1791
• AS numbers equipment with addresses of another

A
E
A
E
F
B
D
H
F
B
D
G
C
G
C
Traceroute AS path
BGP AS path
Merge sibling ASes belong together as if they
were one AS.
31
Unannounced Infrastructure Addresses
12.0.0.0/8
A
B
C does not announce part of its address space in
BGP(e.g., 12.1.2.0/24)
C
Fix the IP-to-AS map to associate 12.1.2.0/24
with C
32
Improving the IP-to-AS Mapping

• Algorithm for modifying the IP-to-AS map
• Small number of rules for modifying the map
• Making small changes that make a big difference
• Results of the algorithm
• Changes about 2.9 of mappings
• Much better agreement (95) with BGP AS paths
• Validation
• ATT router configuration data
• Whois queries to verify sibling ASes
• List of known Internet eXchange Points

33
Exploring the Remaining Mismatches

• Route aggregation
• Traceroute AS path longer in 20 of mismatches
• Different paths for destinations in same prefix
• Interface numbering at AS boundaries
• Boundary links numbered from one AS
• Verified cases where ATT (AS 7018) is involved

BGP path B C Traceroute path B C D
BGP path B C D Traceroute path B D
34
Discussion of the Two Papers

• Measuring ISP topologies with RocketFuel
• Measure judiciously
• First view of ISP topologies
• PoP structure, inter-PoP graphs, peering,
• Good? Bad? What areas for future work?
• First-principles of router-level topology
• Explain the high variability in router degree
• Technological limits on switching capacity
• Many low-speed links at edge, few large in core
• High variability at edge due to economics
• Good? Bad? What areas for future work?

35
Some Project Ideas

• Accuracy of router-level mapping
• Apply traceroute to map out the Abilene network
• Use PlanetLab nodes for many vantage points
• Verify against the actual topology of the network
• Influence of inaccuracy in router-level maps
• Characterize the types of inaccuracy that arise
• Determine the influence on key graph metrics
• Identify ways to limit the effects of inaccuracy
• Design better router support for measurement
• To support topology discovery, troubleshooting,
• Be cognizant of need to be efficient, not used
  for attacks, not reveal too-sensitive
  information, etc.

36
Reading for Thursday AS-Level Topology

• Two papers, and one video
• Toward capturing representative AS-level
  Internet topologies
• Interconnection, peering, and settlements
• NANOG video on evolution of Internet peering
• One-page review of first paper (hard-copy)
• Brief summary of the paper
• Reasons to accept the paper
• Reasons to reject the paper
• Three suggestions for future research directions
• Optional reading
• Should computer scientists experiment more?
