Internet Routing (COS 598A) Today: Router Software

1

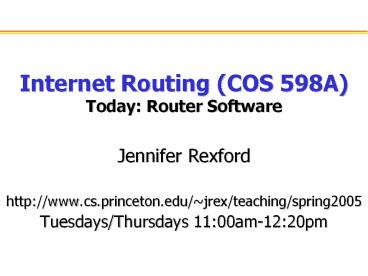

Internet Routing (COS 598A)Today Router Software

• Jennifer Rexford
• http//www.cs.princeton.edu/jrex/teaching/spring2
  005
• Tuesdays/Thursdays 1100am-1220pm

2
Outline

• Continuing discussion from last class
• Proposals for removing routing from routers
• Feasibility, collecting data, computing paths,
  etc.
• BGP implementation
• Storage overhead
• CPU overhead
• Recent proposals
• Graceful restart to limit effects of resets
• Tunneling to limit hot-potato changes
• Computing routes for groups of routers

3
Proposal 1 Routing As a Service

• Goal third parties pick end-to-end paths for
  clients to satisfy diverse user objectives
• Forwarding infrastructure
• Basic routing (e.g., default routing)
• Primitives for inserting routes
• Route selector
• Aggregates network information
• Selects routes on behalf of clients
• Competes with other selectors for customers
• End host
• Queries route selector to set up paths

4
Proposal 2 Routing Control Platform

• Goal Move beyond todays artifacts, while
  remaining compatible with the legacy routers
• Incentive compatibility phased evolution
• Intelligent route reflector in a single AS
• Learning eBGP routes directly from neighbor ASes
• Interdomain routing between RCPs
• Backwards compatibility internal BGP
• Using iBGP to push answers to the routers
• No need to change the legacy routers at all
• Keep message format and change decision rules

5
Proposal 3 Wafer-Thin Control Plane

• Goal Refactor the data, control, and management
  planes from scratch
• Management plane ? Decision plane
• Operates on network-wide view and objectives
• Directly controls the data plane in real time
• Control plane ? Discovery plane
• Responsible for providing the network-wide view
• Topology discovery, traffic measurement, etc.
• Data plane
• Queues, filters, and forwards data packets
• Accepts direct instruction from the decision plane

Simple routers that have no control-plane
configuration
6
How Does These Differ From Overlays

• Overlays circumventing the underlay
• Host nodes throughout the network
• Logical links between the host nodes
• Active probes to observe the performance
• Direct packets through good intermediate nodes
• Routing services controlling the underlay
• Servers collect data directly from the routers
• Servers compute forwarding tables for the routers
• Data packets do not go through the servers
• Like an overlay for managing the underlay

Maybe some combination of the two makes sense?
7
Practical Issues Feasibility

• Fast reaction to failures
• Routers are closer to the failures
• Can a service react quickly enough?
• Scalability with network size
• State and computation grow with the topology
• Can a service manage a large network?
• Reliability?
• Service is now a point of failure
• Is simple replication enough?
• Security?
• Service is now a natural point of attack
• Easier (or harder) to protect than the routers?

8
Practical Issues Collecting Measurement Data

• All three proposals make measurement a
  first-order part of running the network
• Routers have only two jobs
• Forward packets
• Collect measurement data
• What measurements?
• Topology discovery
• Traffic demands
• Performance statistics
• ?

9
Practical Issues Path-Computation Algorithms

• Selecting routes should be easier
• Complete view of network topology and traffic
• Possibility of using centralized algorithms
• Direct control over forwarding tables
• but what algorithms to use?
• Still need a separation of timescale, but how?
• Fast reaction to topological changes
• Semi-offline optimization of routing
• and how to compute end-to-end paths?
• Policy-based path vector protocol?
• Publish/subscribe system?
• Something else?

10
Practical Issues Solving Real Problems?

• Customer load-balancing
• Trading off load, performance, and cost
• Controlling inbound and outbound traffic
• Avoiding small subnets and BGP tweaks
• Preventing overloading router resources
• Minimum-sized forwarding table per router
• Minimum stretch while obeying memory limits
• Flexible end-to-end path selection
• Satisfy the goals of end users and providers
• Handle pricing/economics in the right way

11
Other Thoughts?
12
Router Software
13
Basic BGP Implementation
Import
Export
RIB
RIB-in-1
RIB-out-1
Import
Export
RIB-in-2
RIB-out-2
Import
Export
RIB-in-n
RIB-out-n
Decision process
14
Storage Overhead RIB-In

• Storing routes learned from each neighbor
• Before applying the import policy
• Advantages of keeping a RIB-In
• Verify receipt of routes that have been filtered
• Use as input to simulate import-policy changes
• Apply new policies directly on local RIB-In
• Alternatives for keeping a RIB-In
• Reset the session after any policy change
• Undesirable, unless policy changes are infrequent
• Route-refresh option to signal neighbor to resend
• Relatively new feature, so not universally
  supported

15
Storage Overhead Main RIB

• Storing all candidate routes
• All routes after import processing
• Keep track of the best route for each prefix
• Advantages
• Necessary to store at least one copy of each
  route
• since BGP is an incremental protocol
• Alternatives
• Store only the RIB-In for each neighbor
• Require rerunning import policies per decision

16
Storage Overhead RIB-Out

• Storing routes sent to each neighbor
• After applying the export policy
• Advantages of keeping a RIB-Out
• Verify sending of route to the neighbor
• Compare routes to suppress unnecessary updates
• No update message if all attributes are the same
• No withdrawal message if there was no
  advertisement
• Alternative to keeping a RIB-Out
• Reapply export policy to recompute the route
• or send some unnecessary update messages
• Single RIB-Out per export policy (peer groups)

17
BGP Peer Groups

• Group of BGP neighbors with same policies
• Avoid repetitive configuration
• Avoid reapplying the same policy
• Avoid duplicating the storage
• Example iBGP peer groups
• Route-reflector clients
• Route-reflector peers
• Example eBGP peer groups
• Customers
• Peers

18
CPU Overhead New BGP Update Message

• When receiving a new BGP update
• Apply import policy and update the RIB
• Re-run the BGP decision process for this prefix
• If best route changes, apply export policies and
  send update message to affected neighbors
• Running decision process
• Ideally, just compare with the best route
• Withdraw non-best route no change
• Update non-best route compare to current best
• But, BGP does not always form a total ordering
• MED attribute compared only for same next-hop AS
• Re-run decision process for deterministic outcome

19
CPU Overhead Events that Amplify Work

• BGP session failure
• Must discard all routes learned from this
  neighbor
• and run decision process for affected prefixes
• Policy change
• Must apply the new routing policy to all routes
  learned from (or sent to) this neighbor
• and run decision process for affected prefixes
• Intradomain change
• Must revisit BGP decision for affected prefixes
• Exclude routes with unreachable next-hop
• Prefer the route with the closest egress point

20
CPU Overhead Deferring Heavy Jobs

• Event-driven approach
• Process most events as they occur
• Defer heavy-load items to background task
• Make sure these tasks can run soon
• Example XORP handling session failures
• Timer-driven approach
• Periodic timer driving the operation
• Scan the data structures when the timer expires
• and identify and perform any needed work
• Example Cisco scan timer for IGP changes

21
Reducing Overhead Operational Practices

• Avoiding RIB-In storage
• Configuring router not to store RIB-In
• Convincing neighbors to support route-refresh
• Configuring peer groups
• Limiting the number of unique export policies
• or limiting the number of these per router
• Putting all possible sessions in same peer group
• Selecting good timer settings
• Allow grouping of update messages
• Avoid false detection of session failures

22
Reducing the Effects of Session Failures

• Separating control from data
• Suppose a routers BGP process fails
• but the data plane is just fine
• When the neighbors BGP process fails
• Do not delete routes learned from neighbor
• Continue to forward data packets
• When the neighbors process restarts
• Refresh the neighbor by re-sending BGP routes
• Neighbor re-builds its RIB and goes back to
  normal
• BGP Graceful Restart mechanism
• New BGP capability for neighbors to negotiate
• Mark routes from the neighbor as stale
• Refresh by resending RIB-Out with End-of-RIB
  marker

RIB
RIB
FIB
FIB
data
23
Reducing the Effects of IGP Changes

• Circumvent hot-potato routing
• Avoid small IGP changes leading to BGP changes
• and avoid the software overhead on BGP
• Tunneling between edge routers
• Create tunnel from ingress to egress router
• Assign a weight to the tunnel (e.g., air miles)
• Tunnel weight does not depend on IGP path

dst
24
Reducing Overhead for Groups of Routers

• Additional overhead in RCP-like approaches
• Computing routes on behalf of many routers
• Could lead to a linear increase in overhead
• Store a single copy of each BGP route
• One big global RIB for the network
• Plus, avoid repeating some of decision process
• Compute for groups of routers (e.g., PoP)
• One shared RIB-out for each group of routers
• Plus, avoid repeating the decision process
• Reduce the overhead of IGP changes
• E.g., by use of tunnel, as on previous slide

25
Conclusion

• Router software
• Very challenging systems problem
• New open-source software (Quagga, OpenBGPd)
• Improving scalability
• Scaling with of routers, sessions, and prefixes
• Trading off memory and CPU resources
• Avoiding events that create excessive work
• Newly active research area
• Importance of control plane in network
  performance, reliability, and security
• Creation of new platforms for router software

26
Next Time BGP Security

• Two papers
• Beware of BGP Attacks
• Secure Border Gateway Protocol (Secure-BGP)
• Review just of second paper
• Summary
• Why accept
• Why reject
• Future work
• Optional NANOG video
• See the Web site later today
