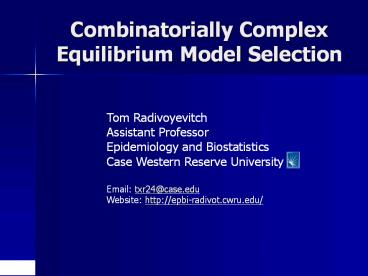

Combinatorially Complex Equilibrium Model
Selection
Tom Radivoyevitch Assistant Professor Epidemiology
and Biostatistics Case Western Reserve
University Email txr24_at_case.edu Website
http//epbi-radivot.cwru.edu/
2
Combinatorially Complex Equilibrium Model
Selection(overview/title breakdown)

• Combinatorially Complex Equilibria
• few reactants gt many possible complexes
• Generate the possible models Select or average
  the best
• Selection/Averaging Akaike Information Criterion
  (AIC)
• AIC decreases with P and then increases
• Billions of models, but only thousands near AIC
  upturn
• Challenge Generate 1P, 2P, 3P model space chunks
  sequentially
• 8GB RAM gt max of 5000 models at a time
• Models Hypotheses
• Spurs complete K 8 ? Complex0
• Grids binary K equal each other
• R package ccems (CRAN) implements the methods

3
Center Relevance

• Structures constrain minimal simplicity and
  maximal complexity of possible complexes and
  models in the model space
• Move prior knowledge of structures into enzyme
  models
• System Biology models integrate enzyme models
• Protein-Protein Protein-Ligand Interaction
  readouts
• Enzyme activities and DLS mass (i.e. average
  measures)
• Mass distributions of complexes (e.g. SEC and
  GEMMA)
• Validate omic-predicted interactions and model
  them
• PEPCC (Harry Gill) Systematically express,
  purify and characterize interaction suspects
  (e.g. of core wnt signaling proteins)

4
Ultimate Goal

• Better understanding gt better control
• Conceptual models help trial designs today
• Computer models of airplanes help train pilots
  and autopilots

• Safer flying airplanes with autopilots
• Ultimate Goal individualized, state feedback
  based clinical trials

Radivoyevitch et al. (2006) BMC Cancer 6104
5
dNTP Supply System
flux activation inhibition
nucleus
ADP
dATP
dA
GDP
dGTP
DNA
dCK
dG
dCTP
CDP
RNR
ATP or dATP
mitochondria
dC
dTTP
UDP
DCTD
cytosol
cytosol
5NT
TS
dA
dAMP
dATP
dUMP
dUDP
dGK
dT
dG
dGMP
dGTP
dU
dUTP
dUTPase
dC
dN
dCMP
dCTP
TK2
dT
dTMP
dTTP
NT2
dN
Figure 1. dNTP supply. Many anticancer agents act
on or through this system to kill cells. The most
central enzyme of this system is RNR.
6
Ribonucleotide Reductase (RNR)
ATP activates at hexamerization site??
dATP inhibits at activity site, ATP activates at
activity site?
R1
R1
R1
ATP, dATP, dTTP, dGTP bind to selectivity site
UDP, CDP, GDP, ADP bind to catalytic site
R1
R1
R2
R2

• 5 catalytic site states x 5 s-site states x 3
  a-site states x 2 h-site states 150 states
• (150)6 different hexamer complexes gt
  2(150)6 models 1 followed by a trillion
  zeros

RNR is Combinatorially Complex
7
Michaelis-Menten Model
E S ES
RNR no NDP and no R2 dimer gt kcat of complex is
zero, else different R1-R2-NDP complexes can have
different kcat values.
8
Michaelis-Menten Model S vs. ST

Substitute this in here to
get a quadratic in S which
solves as

Bigger systems of higher polynomials cannot be
solved algebraically gt use ODEs (above)



(3)
RR1 rR22 GGDP tdTTP
solid line Eqs. (1-2) dotted Eq. (3)
Data from Scott, C. P., Kashlan, O. B., Lear, J.
D., and Cooperman, B. S. (2001) Biochemistry
40(6), 1651-166
9
Enzyme, Substrate and Inhibitor
E ES EI ESI
Competitive inhibition
E EI ESI
E EI ESI
E ES EI
noncompetitive inhibition Example of KK Model

E ES EI ESI


uncompetitive inhibition if kcat_ESI0
E ES ESI
E ES ESI

E EI
E ESI
E ES
E
10
Rt Spur Graph Models
for dTTP induced R1 dimerization
(RR, Rt, RRt, RRtt)
JJJJ
JJIJ
JJJI
JIJJ
IJJJ
R
R
RR
R
RR
R
RR
R
RR
R R1 t dTTP
RRt
Rt
Rt
RRt
Rt
RRt
RRt
Rt
RRtt
RRtt
RRtt
RRtt
JIIJ
JIJI
IJIJ
IJJI
JJII
IIJJ
R
RR
R
RR
R
R
R
RR
R
RRt
RRt
Rt
RRt
Rt
Rt
RRtt
RRtt
RRtt
III0
IIII
II0I
0III
I0II
JIII
IJII
IIIJ
IIJI
R
RR
R
RR
R
R
R
R
R
R
R
Rt
RRt
Rt
RRt
RRtt
RRtt
Total number of spur graph models is 16420
Radivoyevitch, (2008) BMC Systems Biology 215
11
Rt Grid Graph Models
KR_R
Kd_R_R
R R t t
RR t t
R R t t
RR t t




?


KR_t
Kd_RR_t
Kd_R_t




KRt_R

Kd_Rt_R
Rt R t
RRt t
Rt R t
RRt t




?
KR_t
Kd_RRt_t
Kd_R_t




KRt_Rt
Kd_Rt_Rt


Rt Rt
RRtt

Rt Rt
RRtt

HDFF
HDDD
R R t t
RR t t





KR_R



KR_t
KRR_t


Rt R t
RRt t
HIFF






KRRt_t



RRtt
12
Application to Data
Scott, C. P., Kashlan, O. B., Lear, J. D., and
Cooperman, B. S. (2001) Biochemistry 40(6),
1651-166
Model Parameter Initial Value Optimal Value Confidence Interval
1 III0m m1 90.000 82.368 (79.838, 84.775)
  SSE 4397.550 525.178
  AIC 71.965 57.090
2 IIIJ R2t2 1.0003 2.7253 (2.0143, 3.6823)
  SSE 2290.516 557.797
  AIC 67.399 57.512
27 HDFF R2t0 1.000 12369.79 (0, 1308627507869)
  R1t0_t 1.000 1.744 (0.003, 1187.969)
  R2t0_t 1.000 0.010 (0.000, 403.429)
  SSE 25768.23 477.484
  AIC 105.342 77.423
R
III0m
IIIJ
RRtt
HDFF


AICc Nlog(SSE/N)2P2P(P1)/(N-P-1)
Radivoyevitch, (2008) BMC Systems Biology 215
13
ATP-induced R1 Hexamerization
25913 28 parameters gt 2282.5x108 spur
graph models via Kj8 hypotheses 28 models with
1 parameter, 428 models with 2, 3278 models with
3, 20475 with 4
R R1 X ATP
Kashlan et al. Biochemistry 2002 41462
Yeast R1 structure. Dealwis Lab, PNAS 102,
4022-4027, 2006
14
(No Transcript)
15
2088 Models with SSE lt 2 min (SSE)
Data from Kashlan et al. Biochemistry 2002
41462
Kolmogorov-Smirnov Test p lt 10-16 28 of top 30
did not include an h-site term 28/30 ? 503/2081
with p lt 10-16 This suggests no h-site. Top 13
included R6X8 or R6X9, save one, single edge
model R6X7 This suggests that less than 3
a-sites are occupied in hexamer.
16
Conclusions (so far)

1. The dataset does not support the existence of an
   h-site
2. The dataset suggests that 1/2 of the a-site are
   not occupied by ATP

flux activation inhibition
nucleus
ADP
dATP
dA
GDP
dGTP
DNA
dCK
dG
dCTP
CDP
RNR
ATP or dATP
dC
mitochondria
a
dTTP
UDP
DCTD
cytosol
a
5NT
cytosol
TS
dA
dAMP
dATP
dUMP
dUDP
dGK
dT
dG
dGMP
dGTP
dU
dUTP
dUTPase
dC
dN
dCMP
dCTP
TK2
dT
dTMP
dTTP
NT2
dN
ATP1000dATP So system prefers to have 3
a-sites empty and ready for dATP Inhibition
versus activation is partly due to differences in
pockets
17
Tetrameric Enzyme Models (e.g. Thymidine Kinase
1)
X
8 K Models x 8 k Models gt 64
Models
If S ST
18

Complete K vs. Binary K



19
K (0.85, 0.69, 0.65, 0.51) µM k (3.3,
3.9, 4.1, 4.1) sec-1
DFFF.DDDD DDLL.DDDD DDDM.DDDD DDDD.DFFF DDDD.DDLL
DDDD.DDDM
kmax 4.1/sec S50 0.6 µM h 1.1
20
(No Transcript)
21
8-parameter model fits to the datasets
22

• K (10-6, 10-3, 1, 103)
• k (100, 10, 40, 10)
  B) k (10, 10, 40, 100)
• With parameters initially at ½ their true values,
  A identified itself, B had difficulties (its 1st
  two K estimates were off 2-5-fold).
• Horizontal lines are k1/4, 2k2/4, 3k3/4 and 4k4/4

• Vertical lines are K1/4, 2K2/3, 3K3/2 and 4K4

23
SUMMARY
Combinatorially Complex Equilibrium Model
Selection (ccems, CRAN 2009)
Systems Biology Markup Language interface to R
(SBMLR, BIOC 2004)
Model networks of enzymes
Model individual enzymes
R1
R1
R1
R1
R1
R2
R2
24
Background Quake Lab Microfluidics
Figure 9. J. Melin and S. R. Quake Annu. Rev.
Biophys. Biomol. Struct. 2007. 3621331
Figure 8. T. Thorsen et al. (S. R. Quake Lab)
Science 2002
Figure 9 shows how a peristaltic pump is
implemented by three valves that cycle through
the control codes 101, 100, 110, 010, 011, 001,
where 0 and 1 represent open and closed valves
note that the 0 in this sequence is forced to the
right as the sequence progresses.
25
Adaptive Experimental Designs
Find best next 10 measurement conditions given
models of data collected. Need automated
analyses in feedback loop of automatic controls
of microfluidic chips
26
Simple example of a control system for a
single-input single-output (SISO) system
Kp

setpoint
water temperature
hot plate
?
S
Ki
-
27
Why Systems Biology
Model components (Deterministic signal)
(Stochastic noise)
Engineering
Statistics
Emphasis is on the stochastic component of the
model. Is there something in the black box or
are the input wires disconnected from the output
wires such that only thermal noise is being
measured? Do we have enough data?
Emphasis is on the deterministic component of the
model We already know what is in the box, since
we built it. The goal is to understand it well
enough to be able to control it. Predict the
best multi-agent drug dose time course schedules

Increasing amounts of data/knowledge
28
MMR- Cancer Treatment Strategy
Damage Driven or S-phase Driven
IUdR
dNTP demand is either
Salvage
dNTPs Analogs
DNA Drug-DNA
De novo
DNA repair
29
Conclusions

• For systems biology to succeed
• move biological research toward systems which are
  best understood
• specialize modelers to become experts in
  biological literatures (SB is not a service)

30
Acknowledgements

• Case Comprehensive Cancer Center
• NIH (K25 CA104791)
• Chris Dealwis (CWRU Pharmacology)
• Anders Hofer (Umea)
• Thank you

31
Indirect Approach pro-B Cell Childhood ALL

• T TEL-AML1 with HR
• t TEL-AML1 with CCR
• t other outcome
• B BCR-ABL with CCR
• b BCR-ABL with HR
• b censored, missing, or other outcome

Ross et al Blood 2003, 1022951-2959 Yeoh et
al Cancer Cell 2002, 1133-143


Radivoyevitch et al., BMC Cancer 6, 104 (2006)
32
NADP
NADPH
DHFR
Met
Hcys
10
MTR
THF
DHF
4
7
FAICAR
5
6
HCOOH
FDS
12
ATIC
11
ATP
ATIC
2R
2
FTS
CHODHF
Ser
ADP
HCHO
SHMT
AICAR
Gly
13
CH3THF
FGAR
GART
1
1R
GAR
NADP
NADPH
NADP
NADPH
MTHFD
CHOTHF
8
MTHFR
3
9
CH2THF
TS
dUMP
dTMP
Morrison PF, Allegra CJ Folate cycle kinetics in
human breast cancer cells. JBiolChem 1989,
26410552-10566.
33
library(ccems) Thymidine Kinase Example
topology list( headsc("E1S0"), E1S0
substrate free E siteslist(
clist( c for catalytic site
tc("E1S1","E1S2","E1S3","E1S4")
) t for tetramer ) ) TK1 is 25kDa
25mg/umole, so 1 mg .04 umoles g
mkg(topology, activityT,TCCF) ddsubset(TK1,(yea
r2000),selectc(E,S,v)) ddtransform(dd,
ETET/4,vETv/(.0460)) now uM/sec topsems(dd,g
,maxTotalPs8,kIC10,topN96)9 min on 1
cpu library(ccems) Ribonucleotide Reductase
Example topology lt- list( headsc("R1X0","R2X2
","R4X4","R6X6"), siteslist(
s-sites are already filled only in (jgt1)-mers
alist( a-site
thread
mc("R1X1"),
monomer 1
dc("R2X3","R2X4"),
dimer 2
tc("R4X5","R4X6","R4X7","R4X8"),
tetramer 3
hc("R6X7","R6X8","R6X9","R6X10", "R6X11",
"R6X12") hexamer 4 ), tails of
a-site threads are heads of h-site threads
hlist( h-site mc("R1X2"),
monomer
5 dc("R2X5", "R2X6"),
dimer 6
tc("R4X9", "R4X10","R4X11", "R4X12"),
tetramer 7 hc("R6X13",
"R6X14", "R6X15","R6X16", "R6X17", "R6X18")
hexamer 8 ) ) ) gmkg(topology,TCCT
RUE) ddsubset(RNR,(year2002)(fg1)(Xgt0),sel
ectc(R,X,m,year)) cpusPerHostc("localhost"
4,"compute-0-0"4,"compute-0-1"4,"compute-0-2"4)
top10ems(dd,g,cpusPerHostcpusPerHost,
maxTotalPs3, ptype"SOCK",KIC100)
K e?G/RT gt K (0, 8) maps to ?G (-8, 8)
Model weights e?AIC/?e?AIC
34
Comments on Methods
35
Bias in 1st four residuals gt Do not weight errors
Conjecture Greater X/R ratio dominates at
high Ligand concentrations In this limit the
system wants to partition As much ATP into a
bound form as possible
