Verification of Programs with Inspector Methods

1

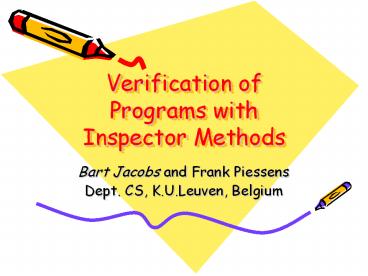

Verification of Programs with Inspector Methods

• Bart Jacobs and Frank Piessens
• Dept. CS, K.U.Leuven, Belgium

2
Goal

• Specification and verification
• Of object-oriented modules
• Using inspector methods
• For information hiding
• In method contracts and object invariants

3
Difficulties

• The combination of
• Aliasing
• Information hiding
• Method effect framing
• Sound first-order logic verification condition
  generation

4
Outline of the Talk

• Single-object inspector methods
• Object invariants and ownership
• Multi-dependent inspector methods
• Subclassing
• Related work, future work, conclusion

5
Outline of the Talk

• Single-object inspector methods
• Object invariants and ownership
• Multi-dependent inspector methods
• Subclassing
• Related work, future work, conclusion

6
Single-ObjectInspector Methods

• class Cell
• int x
• inspector int getX()
• return x
• Cell(int x)
• ensures getX() x this.x x

• Cell c1 new Cell(1)
• Cell c2 new Cell(2)
• assert c1.getX() 1

7
Background Predicates

• get(set(s,f,v),f) v
• f1!f2gtget(set(s,f1,v),f2) get(s,f2)
• get2(s,f1,f2) get(get(s,f1),f2))
• set2(s,f1,f2,v) set(s, f1, set(get(s, f1), f2,
  v))

8
Single-ObjectInspector Methods

• (forall H, o
• Cell_getX(o, get(H,o)) get2(H,o,Cell_x))
• gt
• H1 set2(H0,this,Cell_x,x)
• gt
• Cell_getX(this,get(H1,this)) x

class Cell int x inspector int getX()
return x Cell(int x) ensures getX()
x this.x x
9
Single-ObjectInspector Methods

• get2(H0,c1,alloc) false gt
• H1 set2(H0,c1,alloc,true) gt
• (forall o get2(H1,o,alloc) gtget2(H2,o,alloc)
  (o ! c1 gt get(H2, o) get(H1,o))) gt
• Cell_getX(c1,get(H2,c1)) 1 gt
• get2(H2,c2,alloc) false gt
• H3 set2(H2,c2,alloc,true) gt
• (forall o get2(H3,o,alloc) gt
  get2(H4,o,alloc) (o ! c2 gt get(H4,o)
  get(H3,o))) gt
• Cell_getX(c2,get(H4,c2)) 2 gt
• Cell_getX(c1,get(H4,c1)) 1

Cell c1 new Cell(1) Cell c2 new
Cell(2) assert c1.getX() 1
10
Single-ObjectInspector Methods

• When verifying mutator methods the abstraction
  relation is assumed
• When verifying client code frame conditions on
  object states are assumed
• Inspector method functions take the receivers
  state as an argument

11
Outline of the Talk

• Single-object inspector methods
• Object invariants and ownership
• Multi-dependent inspector methods
• Subclassing
• Related work, future work, conclusion

12
Object Invariantsand Ownership

• class List
• rep int elems
• int count
• invariant 0 lt count
• invariant count lt elems.length
• inspector int getCount()
• return count
• inspector int getItem(int index)
• requires 0 lt index
• requires index lt getCount()
• return elemsindex
• derived_invariant 0 lt getCount()

• void add(int x)
• requires !committed inv
• modifies this.
• ensures !committed inv
• ensures
• getCount() old(getCount()) 1
• ensures
• forallint i in old((0getCount()))
• getItem(i) old(getItem(i))
• ensures
• getItem(old(getCount())) x
• unpack this
• count
• EnsureCapacity(count)
• elemscount 1 x
• pack this

13
Object Invariants in the Boogie Methodology

• Each object gets an inv bit
• Updating o.f requires !o.inv
• pack o checks os declared invariant Inv(o) and
  sets o.inv true
• unpack o sets o.inv false
• It follows that if o.inv, then Inv(o)
• if o.inv is true, then o is valid otherwise o
  is mutable

14
Object Ownership in the Boogie Methodology

• Ownership allows inspector methods and object
  invariants to depend on objects other than the
  receiver
• The ownership relation is dynamic
• An object owns its rep objects (i.e. the objects
  pointed to by its rep fields) whenever it is
  valid
• pack o
• requires that os rep objects are not owned by
  any object
• causes o to take ownership of its rep objects and
  sets their committed bits
• unpack o causes o to release ownership of its
  rep objects and clears their committed bits
• It follows
• that an object has at most one owner
• that o.committed iff o has an owner

15
Object Ownership in the Boogie Methodology

• Committed objects can be unpacked and modified
  only by first unpacking their owner
• os inspector methods and object invariant may
  depend on os rep objects

16
Encoding of Inspector Method Calls

• List l1 new List()
• List l2 new List()
• l1.add(5)
• l2.add(6)
• assert l1.getItem(0) 5
• ... gt
• List_getItem(l1, get(H5,l1),0) 5 gt
• (forall o get2(H5,o,alloc) gt
• (get2(H6,o,alloc)
• (!get2(H5,o,committed) o ! l2 gt
• get(H6,o) get(H5,o)))) gt
• List_getItem(l1, get(H6,l1),0) 5

• unpack this
• count
• EnsureCapacity(count)
• elemscount 1 x
• pack this
• assert getItem(getCount() - 1) x
• assert !committed !inv
• assert !elems.committed elems.inv
• assert 0 lt count count lt elems.length
• inv true
• elems.committed true
• elems_state Helems
• (forall H,o,i Reachable(H) gt
• get2(H,o,alloc) gt get2(H,o,inv) gt
• 0 lt i i lt List_getCount(o,get(H,o)) gt
• List_getItem(o,get(H,o),i)
• get(get(get(H,o),List_elems_state),i))

17
Encoding of Inspector Method Calls

• To make method effect framing work, inspector
  method functions continue to take just the state
  of the receiver object as an argument
• However, they may depend on owned objects as well
• Solution When packing an object, the state of
  each rep object o.f is copied into a special
  field o.f_state

18
Outline of the Talk

• Single-object inspector methods
• Object invariants and ownership
• Multi-dependent inspector methods
• Subclassing
• Related work, future work, conclusion

19
Multi-dependent Inspector Methods

• class IntCell
• inspector int get() ...
• void set(int value) ...
• class IntSet
• inspector bool contains(state IntCell c)
  ...
• void add(IntCell c)
• ensures forallstate IntCell c2
• contains(c2)
• (old(contains(c2)) c2.get()
  c.get())
• ...

20
Termination of Inspector Methods

• An inspector methods receiver is implicitly
  unpacked for the duration of the call
• Also, object creations and explicit packs or
  unpacks are not allowed in inspector methods
• Therefore, the number of valid objects decreases
  at each nested call

21
Outline of the Talk

• Single-object inspector methods
• Object invariants and ownership
• Multi-dependent inspector methods
• Subclassing
• Related work, future work, conclusion

22
Subclassing

• class Cell
• int x
• invariant 0 lt x
• inspector int getX() return x
• derived_invariant 0 lt getX()
• dynamic_invariant 0 lt getX()
• void setX(int x)
• requires !committed inv
• requires 0 lt x
• modifies this.
• ensures !committed inv
• ensures getX() x
• unpack this this.x x pack this

• class MyCell extends Cell
• invariant 1 lt super.getX()
• inspector int getX()
• return super.getX() 1
• void setX(int x)
• requires !committed inv
• requires 0 lt x
• modifies this.
• ensures !committed inv
• ensures getX() x
• unpack this
• super.setX(x 1)
• pack this

23
Subclassing Encoding

• c1.x --gt get3(H,c1,Cell,Cell_x)
• c1.getX() --gt Cell_getX_dyn(c1,get2(H,c1,typeof(c1
  )))
• super.getX() --gt Cell_getX(c1,get2(H,c1,Cell))
• (forall o typeof(o) Cell gt
  Cell_getX_dyn(o,s) Cell_getX(o,s))
• (forall o typeof(o) MyCell gt
  Cell_getX_dyn(o,s) MyCell_getX(o,s))
• pack (MyCell)o --gt ... H set3(H,o,MyCell,supe
  r_state, get2(H,o,Cell))

24
Outline of the Talk

• Single-object inspector methods
• Object invariants and ownership
• Multi-dependent inspector methods
• Subclassing
• Related work, future work, conclusion

25
Related Work

• Boogie methodology
• Method calls in specifications
• State abstraction in ownership systems
• Ownership-free approaches

26
Relation toBoogie Methodology

• Based on Barnett, DeLine, Fähndrich, Leino,
  Schulte 2004
• Differences
• Heap maps object refs to object states
• pack o copies owned object states
• Frame conditions are object-granular
• inv and committed bits are per frame

27
Method Calls in Specifications

• Discussed by Darvas, Müller 2005
• Does not deal with framing issue

28
State Abstraction in Ownership Systems

• Read and write effects in ownership type systems
  (e.g. Boyapati 2004)
• Model fields and the Universe type system Müller
  2002
• Also supports visibility-based dependencies on
  peers
• Model fields on top of the Boogie methodology
  Leino, Müller 2006

29
Ownership-free Approaches

• Dynamic frames Kassios 2005
• Abstract predicates in separation logic
  Parkinson 2005
• More flexible
• Not implemented in automatic program verifier
  (but Smallfoot)

30
Future Work

• Soundness proof
• Visibility-based dependencies

31
Conclusion

• State abstraction for OO programs
• Supports standard coding pattern
• Implemented in automatic program verifier
• Supports multi-dependent inspector methods,
  quantification over object states, subclassing
