Title: Collision Resolution: Open Addressing

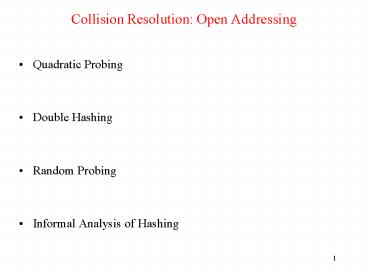

1
Collision Resolution Open Addressing
  • Quadratic Probing
  • Double Hashing
  • Random Probing
  • Informal Analysis of Hashing

2
Open Addressing Quadratic Probing
  • Quadratic probing Attempts to avoid cluster
    buildup.
  • In this method, c(i) is a quadratic function in
    i
  • c(i) ai 2 bi c
  • Quadratic probing is usually done using c(i)
    i2 .
  • We use the following slight modification to c
    (i)
  • c(i)i2, c(i) -i2, for i1,2,,(n-1)/2
  • Thus the probe sequence is
  • h(r)i2, h(r)- i2, for i1,2,,(n-1)/2

3
Example 2 Linear Probing
  • Use the hash function h(r) r.id 13 to load
    the following records into an array of size 13.
  • Al-Otaibi Ziyad 1.73 985926
  • Al-Turki, Musab Ahmad Bakeer 1.60 970876
  • Al-Saegh, Radha Mahdi 1.58 980962
  • Al-Shahrani, Adel Saad 1.80 986074
  • Al-Awami, Louai Adnan Muhammad 1.73 970728
  • Al-Amer, Yousuf Jauwad 1.66 994593
  • Al-Helal, Husain Ali AbdulMohsen 1.70 996321
  • Then insert the following records quadratic
    probing to resolve collisions, if any.
  • Al-Najjar, Khaled Ziyad 1.69 987615
  • Al-Ali, Amr Ali Zaid 1.79 987630
  • Al-Ramadi, Husam Yahya 1.58 987602

4
Example 1 Quadratic Probing (cont'd)
0 1 2 3 4 5 6
7 8 9 10 11 12

Husain
Yousuf
Radha
Amr
Musab
Adel
Husam
Louai
Ziyad
Khalid
5
Quadratic Probing Concluding Notes
  • In general, quadratic probing improves on linear
    probing but does not avoid cluster buildup.
  • Gives rise to secondary clusters which are less
    harmful than the primary clusters in linear
    probing.
  • Hash table size should not be an even number,
    otherwise
  • Property 2 will not be satisfied.
  • Ideally, table size, n, should be a prime,
    satisfying n4j3, for an integer j, which
    guarantees Property 2.

6
Quadratic Probing Concluding Notes (cont'd)
  • A disadvantage colliding keys at a given address
    follow the
  • same probe sequence.
  • This sequence of locations is called a secondary
    cluster.
  • Unlike primary clusters, secondary clusters
    cannot combine into
  • larger secondary clusters.
  • To eliminate secondary clustering, synonyms must
    have
  • different probe sequences.
  • Double hashing achieves this by having two hash
    functions that both depend on the hash key.

7
Open Addressing Double Hashing
  • Double hashing Best addresses secondary
    clustering.
  • Uses two hash functions, h and hp, with the
    usual probe
  • sequence
  • hi(r) (h(r) ihp(r)) mod n
  • We see that c(i) ihp(r) satisfies Property 2
    as well,
  • provided hp(r) and n are relatively prime.
  • To guarantee Property 2, n must be a prime
    number.

8
Open Addressing Double Hashing (cont'd)
  • Using two hash functions can be expensive.
  • In practice, a common definition for hp is
  • hp(r) 1 (r mod (n-1)).
  • Thus, the probe sequence for r hashing to
    position j is
  • j, j1hp(r), j2hp(r), j3hp(r),
  • Notice that if hp(r)1, the probe sequence for r
    is the same
  • as linear probing.
  • But if hp(r)2, the probe sequence examines every
    other
  • array location.

9
Example 2 Illustrating Double Hashing
  • Use double hashing to load the following records
    into a hash table
  • Al-Otaibi Ziyad 1.73 985926
  • Al-Turki, Musab Ahmad Bakeer 1.60 970876
  • Al-Saegh, Radha Mahdi 1.58 980962
  • Al-Shahrani, Adel Saad 1.80 986074
  • Al-Awami, Louai Adnan Muhammad 1.73 970728
  • Al-Amer, Yousuf Jauwad 1.66 994593
  • Al-Helal, Husain Ali AbdulMohsen 1.70 996321
  • Al-Najjar, Khaled Ziyad 1.69 987615
  • Al-Ali, Amr Ali Zaid 1.79 987630
  • Al-Ramadi, Husam Yahya 1.58 987602
  • Use the following pair of hash functions
  • h(r) r.id 13
  • hp(r) 1 (r.id (n-1)).

10
Example 2 Animating Double Hashing
0 1 2 3 4 5 6
7 8 9 10 11 12

Husain
Yousuf
Radha
Amr
Musab
Adel
Husam
Louai
Ziyad
Khalid
11
Open Addressing Random Probing
  • Random probing Uses a pseudo-random function
    to "jump
  • around" in the hash table.
  • Here, c(i) is defined so that it always produces
    a 'random
  • integer in the range 0, 1, ..., n - 1.
  • The function c(i) can be defined recursively as
    follows
  • c(0) 0
  • c(i) (ac(i-1) 1) mod n, i1,..n-1
  • We choose a to ensure Property 2, too.
  • This recursive definition of c() is a
    permutation of
  • 0, 1, ..., n - 1 iff a - 1 is a multiple of
    every prime
  • divisor of n, where 4 is considered as prime.

12
Example 3 Random Probing
  • Let n 16, a 3. We get the sequence for c(i)
  • 0 1 4 13 8 9 12 5 0 1 4 13 8 9 12 5 0 ...
  • which is not a permutation of 0,1,2, , 15.
  • The prime divisors of 16 are 2 and 4, so (a-1)
    must be a multiple of 4.
  • If we choose a 5, then, we get the sequence
  • 0 1 6 15 12 13 2 11 8 9 14 7 4 5 10 3 0 1 6 ...
  • which is a permutation of 0, 1, 2, , 15.
  • We could also select a to be 9, 13, 17, etc.

13
Random Probing Concluding Remarks
  • For our students records example, n 13 which
    has itself as its only prime divisor.
  • We can therefore select a 14. The probe
    sequence turns out to be 0 1 2 3 4 5 6 7 8 9 10
    11 12 0 1 ... which is the same as in linear
    probing.
  • Note that the name "random probing" is
    exaggerative.
  • Random probing does not eliminates the problem of
    secondary clusters.

14
Hashing Informal Analysis
  • In the best case, successful hash search requires
    one probe.
  • In the worst case, hash search becomes a
    sequential search.
  • For the average case, the number of probes
    depends on the load
  • factor.
  • The load factor in open addressing is less than 1
    while it
  • can be greater than 1 in chaining.
  • Note that some methods are worse than others at
    high load
  • factors.
  • Performance of open addressing methods about the
    same at
  • low load factors.

15
Exercises
  • 1. If a hash table is 25 full what is its load
    factor?
  • 2. Given that,
  • c(i) i2,
  • for c(i) in quadratic probing, we discussed
    that this equation
  • does not satisfy Property 2, in general. What
    cells are missed by
  • this probing formula for a hash table of size
    17? Characterise
  • using a formula, if possible, the cells that
    are not examined by
  • using this function for a hash table of size
    n.
  • 3. It was mentioned in this session that
    secondary clusters are less
  • harmful than primary clusters because the
    former cannot combine
  • to form larger secondary clusters. Use an
    appropriate hash table
  • of records to exemplify this situation.
  • 4.What value would you select for a given a hash
    table of size 100?
