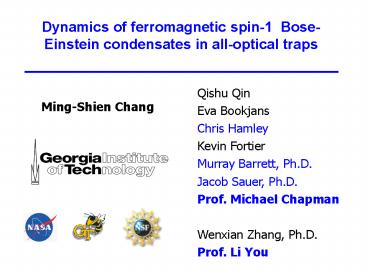

Dynamics of ferromagnetic spin1 BoseEinstein condensates in alloptical traps

1
Dynamics of ferromagnetic spin-1 Bose-Einstein
condensates in all-optical traps
Qishu Qin Eva Bookjans Chris Hamley Kevin
Fortier Murray Barrett, Ph.D. Jacob Sauer,
Ph.D. Prof. Michael Chapman Wenxian Zhang,
Ph.D. Prof. Li You

• Ming-Shien Chang

2
All Optical Bose-Einstein Condensation a simple,
fast technique
3
Optical Trap
-

• Far off-resonant lasers work as static field
• Focused laser beam form a 3D trap
• gaussian beam radial
• focus longitudinal
• Importance of optical trap
• State-Independent Potential
• Trapping of Multiple Spin States
• Evaporative Cooling of Fermions

4
A simple loading technique
CO2 trap loading
87Rb l 780 nm Natoms 200 x 106 T 30 mK

• - Sub-Doppler cooling
• Temporal dark MOT
• (Hänsch et al. PRA98)

Overlap of MOT and dipole trap
5
Cross trap
Loading from MOT 106 atoms loaded

• Two intersecting traveling waves
• Large loading volume provided by the wings
• Tight confinement provided at the intersection

600 ms later n gt 1014 cm-3 psd gt 0.001
tight confinement ? high density ? fast
evaporation
6
Filling a few lattice sites

• To load large number of atoms into lattice site
• Add traveling wave to funnel atoms into a few
  sites
• 106 atoms over a few sites

7
Filling a few lattice sites

• To load large number of atoms into lattice site
• Add traveling wave to funnel atoms into a few
  sites
• 106 atoms over a few sites

8
How many lattice sites are occupied?
Transfer to traveling wave for variable time and
releaseposition converted to momentum
Cool in lattice
9
Controlling the site loading
Vary funnel powers and lattice position during
transfer
10
Interference of condensates
If two condensates overlap during expansion,
they will interfere
Analogous to interference of two coherent
independent lasers
30,000 atoms
11
Dynamical Trap Compression
P 70 w
w0
30 µm
70
2.5 mm
Time
0
0.6 s
12
Crossing the BEC transition
300,000 atoms in final condensate 10-fold
improvement
lowering temperature
13

• All-optical BEC
• 3 simple and fast techniques
• Cross trap
• Large period (5 µm) 1-D lattice
• Single beam, variable focus trap

Common features 87Rb CO2 trapping
laser Simple MOT lt 2 s evaporation time
14
All Optical BEC2001

• Our experiment was first to provide
  simultaneously
• Good loading
• 106 atoms loaded
• gt 10-3 initial phase space density
• Fast evaporation
• gt 1014 atoms/cm3 spatial density
• Low heating rate in trap
• All optical BEC is fast (and simple)
• Load CO2 laser trap from simple vapor cell MOT of
  87Rb
• Ramp down CO2 laser trap beams in 2 sec
• Voila, BEC

Chapman et al., 01
15
Advantages of All-Optical Single-Focused Trap

• Really simple and robust
• 300,000 atom condensates from a modest MOT
• Evaporation in less than 2 seconds
• Requires only one CO2 laser beam

16
Multi-Component Quantum Gases- Studies of Spinor
Bose Condensates
17
Interacting Spin-1 BEC in an all-optical trap
Basic picture
F 0, 1, 2
Atomic Parameters
c2 ltlt c0
18
Hamiltonian -- Spin 1
Short-range interaction, transforms as scalar
under spin rotations generically of form
Spin interaction
Density interaction
87Rb -- c2lt0,
23Na -- c2gt0,
Only true when B lt 20 mB
Tin-Lun Ho, PRL 81, 742 (1998)
19
Spinor condensates in optical traps
Multi-component BEC with rotational symmetry
Hint
Ho, PRL98 Machida, JPS98
c2 ltlt c0
20
Spinor condensates in optical traps
Interacting Hamiltonian
Spin mixing
Ho, PRL98 Machida, JPS98
21
Coupled Gross-Pitaevskii Eqn. for Spin-1 Bose
Condensates
22
When c2 0
3 Zeeman components are decoupled.
23
Coherent spin mixing in a F 1 ferromagnetic
condensate
24
0
-1
1
0
-1
1
0
-1
1
0
25
Meta-stable spin configuration
At t0 (?1, ?0, ?-1) (0, 1, 0)
Spin mixing is noise driven.
GaTech (2002)
26
Spinor oscillations from a metastable state
B0.014G/cm
B0.14 G B0.020 G/cm
Noise driven dynamics at early timedifficult to
compare with theory
27
Spinors in a B field
quadratic Zeeman effect favors m0
28
Ferromagnetic behavior
Anti-ferromagnetic spinor
Ferromagnetic spinor
You, 03
Chapman, 04
29
Meta-stable spin configuration
At t0 (?1, ?0, ?-1) (0.5, 0, 0.5)
Spin mixing is noise driven.
Senstock et al. (2004)
30
Deterministically initiate coherent spin mixing
At t0 (?1, ?0, ?-1) (0, 0.75, 0.25)
31
Coherent Spin Mixing
Josephson dynamics driven only by spin-dependent
interactions A new macroscopic quantum system
Chapman, 05
32
Coherent Spin Mixing
Oscillation Frequency
Bigelow, 99
Direct measurement of c (c2)
33
First direct measuring the value of c2 (or a2 -
a0)
a2 - a0 -1.45(32) aB (this work) a2 - a0
-1.40(22) aB (spect. theory)
from oscillation frequency
rad/s.
from condensate expansion
cm3
34
Coupled Gross-Pitaevskii Eqn. for Spin-1 Bose
Condensates
35
Spin mixing is a nonlinear internal AC Josephson
effect
Under Single Mode Approximation (SMA) and define
You, 05
36
Nonlinear Josephson oscillator energy contour
37
AC Josephson Oscillations

• For high fields where d gtgt c, the system exhibits
  small oscillations analogous to AC-Josephson
  oscillations

Compare with weakly linked superconductors
38
Controlling spinor dynamics
Quadratic Zeeman energy
when
? (rad)
39
Controlling spinor dynamics
Change trajectories by applying phase shifts via
the quadratic zeeman effect
Ferromagnetic ground state
? (rad)
40
Demonstrating coherence of ferromagnetic ground
state
Restarting the dynamics by phase-shifting out of
the ground state at a later time
Spin coherence time condensate lifetime
41
Miscibility of spin-1 (3-component) superfluid
Goal minimize the total mean-field energy
1-fluid M-F
2-fluid M-F
3-fluid M-F
MIT, 98-99
42
Miscibility of two-component superfluids

• Total Energy of two-component superfluid
• If they are spatially overlapped with equal
  mixture
• If they are phase separated
• The condensates will phase separated if

43
Study miscibility m1 and m-1 states
At t0 (?1, ?0, ?-1) (0.5, 0, 0.5)
Apply 0.5 G to inhibit spin mixing (meta-stable
config).
44
Study miscibility of m0 and m-1 (m-1) states
At t0 (?1, ?0, ?-1) (0, 0.5, 0.5)
Apply 0.5 G to suppress spin mixing population
osc. lt 1.
45
Miscibility of two-component superfluid
After Stern-Gerlach Exp.
Ferromagnetic
MIT, 98-99
46
Beyond SMA fragmentation of BEC and spin domain
formation
Single Mode Approx. (SMA)
Condensate size (2rc,2zc) (7, 70) ?m
condensate is unstable along the z (axial)
direction.
weak B gradient during TOF
z
47
Validity of the SMA
Condensate should be physically smaller than spin
healing length
Spin healing length
1-D lattice
Cross trap
Single focus
cigar
disk
spherical
(2rc,2zc) (7, 70) ?m
(2rc,2zc) (1, 10) ?m
(2rc,2zc) (7, 7) ?m
Condensate size
48
Summary

• Formation of spinor condensates in all-optical
  traps
• Coherent spinor dynamics
• Coherent spin mixing
• internal AC Josephson effects, atomic four-wave
  mixing
• Incoherent spinor dynamics
• miscibility of spin components
• spin wave formation during coherent spin mixing
• modulation instability (MI) or dynamical
  instability induced spin domain formation.

49
Future directions and outlook for spinor
condensate researches

• Josephson oscillator
• SMA
• Shappiro levels (dynamics localization)
• Non-destructive imaging techniques to follow spin
  mixing.
• Spinor condensate of only 1000 atoms (in a mG
  environment)
• quantum noise
• complex ground state, SSS
• quantum atom optics
• Spin mixing of only two atoms
• two particles are inherently entangled after
  mixing.
• Optical Feshbach resonance
• to tune s-wave scattering length which
  subsequently tune the percentage of entanglement.

50
