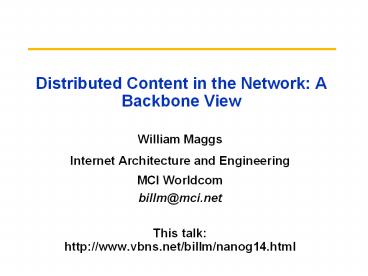

Title: Distributed Content in the Network: A Backbone View


1
Distributed Content in the Network A Backbone
View
  • William Maggs
  • Internet Architecture and Engineering
  • MCI Worldcom
  • billm_at_mci.net
  • This talk http//www.vbns.net/billm/nanog14.html

2
Why Not Cache Because
  • By volume, much content will be static, popular
  • Not true and networks do more of their work
  • Just another tool for traffic engineering
  • Reliable content switching/routing (soon)
  • Webtone, multimedia
  • Its something to sell
  • New services, new services, new services
  • No Future for Static Content (40-55 dynamic)
  • Content Providers dont care about cacheability
  • Against Internet model
  • No application servers in my POPs! f
  • Always easier to add BW
  • Technology in search of solution

3
Who Benefits?
  • End Users - Latency, maybe
  • Content Providers- Server load, availability,
    disaster recovery, performance to end users, slow
    network buildout, local markets, PR value, etc.
  • Content Aggregators (Hosting Centers)-
    distribution of content, server load balance, new
    value-added services from content switching
  • Regional Traffic Aggregators (ISPs, Cable Head
    Ends) - links to backbone, end user performance
  • Global Traffic Aggregators (backbones)-system-wide
    benefits, scaling economies
  • Biggest Single Benefit is to Content Provider
    but
  • Largest Total Benefit is to entity that
    aggregates both content and traffic, providing
    end-to-end service

4
Where
C
Content
Provider
C
Core/
Border
Routers
C
C
Core/
Core/
ISP/
Border
Border
Head
Routers
Routers
End
C
Core/
Border
Routers
C
5
Browser (cache discovery)
Content Provider
C
Core/
Border
Routers
C
C
Core/
Core/
US
ISP/
Border
Border
Head
Routers
Routers
End
C
Core/
Border
Routers
C
6
Transparent
Content
Provider
THEM
C
Core/
peer
Border
Routers
C
peer
C
Core/
Core/
US
ISP/
Border
Border
Head
Routers
Routers
End
C
Core/
Border
Routers
C
7
Distributed Content Hosting
  • A service for content providers, built on a
    content infrastructure
  • for any of the networks own customers with
    content to distribute
  • no complaints extends the relation between
    content provider and end user pays for improved
    performance, resilience, reach of content
    distributed close to requests
  • simple to implement and manage
  • Requirements
  • well-engineered big network
  • good management of IP address space
  • content engines well-placed in network, running a
    routing daemon such as gated
  • script-based tools for management
  • Routing does heavy lifting of getting requests to
    content collected in convenient places in network
  • Infrastructure forms basis of many new content
    services

8
How-Content Hosting
Content
Provider foo.com
166.5.20.8
166.5.20.8
foo.com
THEM
C
Core/
peer
Border
Routers
166.5.20.8
166.5.20.8
foo.com
foo.com
C
peer
C
Core/
Core/
US
ISP/
Border
Border
Head
Routers
Routers
End
C
foo.com
166.5.20.8
Core/
Border
Routers
C
foo.com
166.5.20.8
9
What-Optimum Content Distribution
  • Heterogeneous, Popular Content (Web)-pulled into
    caches
  • Homogeneous, Popular Content (Seinfeld)-pushed
    via MFTP or similar mechanism
  • Hot Spot Content Events (cigar incident)-
    network operators already doing metaMFTP

10
Examples - Custom Content
  • Advertiser wants to serve up content based on
    local markets
  • Database runs behind Ad server with non-personal
    user info
  • Today
  • http get goes to central location, returns a
    national ad
  • database crunches user info, kicks off request to
    local content engines, which return local ads
  • content engines filled by push
  • Future distributed database allows reverse proxy
    caching servers to receive routed requests
  • allows content to be developed and maintained in
    local markets
  • scales with distributed database performance to
    get ads in front of eyes as quickly as possible

11
Examples - Active Content
  • Large news content provider wants to distribute
    static elements of dynamic Web pages
  • requests routed to content engine .asps go to
    home server, everything else serviced locally
  • home server redirects .asp static elements to
    distributed content engines
  • content engines filled by caching supplemented by
    MFTP
  • timeouts, delays may be dealt with by content
    engines

12
Future Technology
  • Future is more or less here content engines, L4
    switches, and of course network events
  • new boxes L4 switch running gated or better
  • better caching server/routing daemon
    communications for failover
  • appliances that the backbones will allow in their
    POPs
