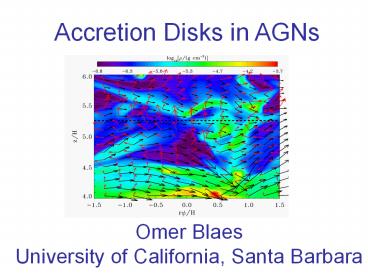

Accretion Disks in AGNs
Omer Blaes University of California, Santa Barbara
2
Collaborators

• Spectral Models Shane Davis, Ivan Hubeny
• Numerical Simulations Shigenobu Hirose, Neal
  Turner
• Simulation Analysis and Theory Julian Krolik

3
AGNSPEC
-Hubeny Hubeny 1997, 1998 Hubeny et al. (2000,
2001)
4

• The Good
• Models account for relativistic disk structure
  and relativistic
• Doppler shifts, gravitational redshifts, and
  light bending in
• a Kerr spacetime.
• Models include a detailed non-LTE treatment of
  abundant
• elements.
• Models include continuum opacities due to
  bound-free and
• free-free transitions, as well as
  Comptonization. (No lines
• at this stage, though.)

5

• The Bad --- Ad Hoc Assumptions
• Stationary, with no torque inner boundary
  condition.
• ?R???Ptot with ? constant with radius -
  determines surface
• density.
• Vertical structure at each radius depends only
  on height
• and is symmetric about midplane.
• Vertical distribution of dissipation per unit
  mass assumed
• constant.
• Heat is transported radiatively (and not, say,
  by bulk
• motions, e.g. convection).
• Disk is supported vertically against tidal field
  of black
• hole by gas and radiation pressure only.

6
LMC X-3 in the thermal dominant state
BeppoSAX
RXTE
-Davis, Done, Blaes (2005)
The same sort of accretion disk modeling that has
been attempted for AGN works pretty well for
black hole X-ray binaries (BHSPEC, Davis et al.
2005, Davis Hubeny 2006).
7
Some Recent Observational Developments That Have
Direct Bearing on Our Understanding Of Accretion
Disks in AGN

• Spectropolarimetry has succeeded in removing BLR,
  NLR,
• and dust emission in the optical and
  infrared, revealing the
• underlying broadband continuum shape for the
  first time
• (Kishimotos talk later in this session).

Ton 202
-Kishimoto et al. (2004)
8
(2) Microlensing observations have now placed
constraints on the physical size of the
optical continuum emitting region in many
QSOs.
0.33
0.1
-Pooley et al. (2006)
9
-Dai et al. (2006)
10
(3) Reverberation mapping leveraged by BLR
radius/continuum luminosity correlations has
given a method of getting approximate black
hole masses for the huge number of SDSS
quasars.
5100/4000
4000/2200
2200/1350
-Bonning et al. (2006)
11
5100/1350
-Bonning et al. (2006)
12
AGNSPEC
Blackbodies
-Davis et al. (2006)
13
SDSS data
(4000-2200)
(2200-1450)
AGNSPEC
AGNSPEC With E(B-V)0.04
-Davis et al. (2006)
14
? begone!!!
Thermodynamically consistent, radiation MHD
simulations of MRI turbulence in vertically
stratified shearing boxes are telling us a lot
about the likely vertical structure of accretion
disks.
Turner (2004) pradgtgtpgas Hirose et al. (2006)
pradltltpgas Krolik et al. (2006) pradpgas
15
Radiation
Magnetic times 10
Gas
16
(No Transcript)
17
Expect strong (but marginally stable) thermal
fluctuations at low energy and stable (damped)
fluctuations at high energy.
18
Gravity
Total
Magnetic
Radiation
Gas
19
CVI K-edge
With magnetic fields
No magnetic fields
-Blaes et al. (2006)
20
Complex Structure of Surface Layers
21
Spectral Consequences

• Magnetically supported upper layers decrease
  density at
• effective photosphere, resulting in increased
  ionization and
• a hardening of the spectrum.
• Strong (up to factor 100) irregular density
  inhomogeneities
• exist well beneath photosphere of horizontally
  averaged
• structure. They will soften the spectrum.
• Actual photosphere is therefore complex and
  irregular,
• which will reduce intrinsic polarization of
  emerging photons
• (Coleman Shields 1990). Magnetic fields may
  also
• Faraday depolarize the photons (Gnedin
  Silantev 1978)

22
Overall Vertical Structure of Disk with PradPgas
PmaggtPradPgas
PradPgasgtPmag
PmaggtPradPgas
