LREC 2004 2004-05-28

1

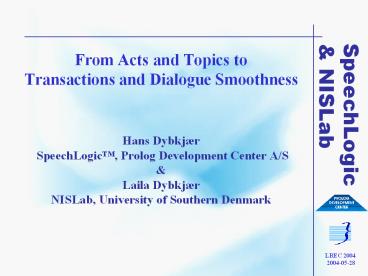

From Acts and Topics to Transactions and
Dialogue Smoothness Hans Dybkjær
SpeechLogic, Prolog Development Center
A/SLaila DybkjærNISLab, University of
Southern Denmark
2
Automating annotation

• Key concerns for commercial spoken dialogue
  systems (SDSs)
• high transaction success rate
• smooth dialogue
• Very time consuming and costly to measure
  manually
• Manual annotation more or less only possibility
  today
• Two-step approach towards automatic annotation
• annotate utterances with a basic act-topic
  structure
• can be automated using a parser
• transform act-topic patterns into transaction
  segments
• using rule engine

Automation only way to serious statistics
3
Background

• Over-the-phone FAQ SDS on holiday allowance
• General (non-person related) questions, e.g.
• is Saturday considered a holiday
• when unemployed who should sign my certificate
• 2700 lines of grammar, 800 (full) words in
  vocabulary
• 85 semantic concepts in input, 100 stories in
  output
• Contractual minimum transaction success rate, but
• transaction not clearly defined
• no baseline from human-human dialogues

Complex domain but simple tasks
4
Transaction success

• Dialogue level task completion?
• Works if task is well-defined and goal state
  clear
• But many independent tasks
• So no single clear goal state
• Need to define transaction at sub-task level
• What constitutes a transaction?
• Initiation and conclusion?
• Is miscommunication part of a transaction?
• Sub-task level transactions may also inform on
  which parts of the system may be problematic
• Start and end does not tell about dialogue
  smoothness

Provide users with required information
5
Our first, manual approach

• Created act-topic annotation scheme
• Transactions defined in terms of patterns of
  act-topics
• A transaction may either be a success or a
  failure
• PDC created web annotation tool
• 225 dialogues from test iterations and 217
  dialogues from production system were manually
  annotated
• Time consuming process
• Decided to investigate the following claims
• act-topic annotation at utterance level can be
  automated
• transactions can be derived from act-topic
  patterns
• act-topic patterns can inform on smoothness

Investigation still in progress
6
Simple act-topic annotation

• Simplest scheme distinguishes topic names T
• Distinguishes 6 acts
• accept, reject
• informT any topical information
• other e.g. Im talking to a computer!
• pause silence
• hangup the user or the system disconnects
• A pattern is a list of utterance level act-topics
• supplemented with set of conditions
• Acts added context-independently to utterances
• System utterances may be annotated at
  design-time, user utterances by using a parser

Extremely simple yet illuminating
7
First step annotation

• .u .inform T.student
• I am a student"
• .s .inform T.student, T.payment, T.money
• If you are a student living from a grant
  you may get your holiday allowance while still
  studying. If you also work you need to take
  holiday to get your money.
• .s .inform T.more
• Is there anything else you want to ask
  about?"
• .u .accept , .inform T.leave
• yes what about maternity leave"
• .s .inform T.leave
• You asked about - leave"

8
Second step Transformation

• Apply act-topic rules to step one annotated
  dialogues
• Transform basic acts into composite acts

.s .inform T.pay "Payment in general .u .accept "Yes"
rule select1 _y .select Ts_a lt-
_x .inform Ts_a _y .accept where
_x ! _y end rule
.u .select T.pay lt- select1 .s .inform T.pay .u .accept
Formal rules
9
Problem in only identifying topics

• Basically only distinguish between two composite
  acts
• select continue with same topic
• request change to new topic
• So cannot distinguish success and failure

No success .u .inform T.phone Your phone number? .s .inform T.phone Phone number" Success .u .inform T.phone Your phone number? .s .inform T.phone Phone [phone]"
More distinction needed
10
Name and value

• Solution distinguish
• topic name N the mentioning of a topic
• topic value V details about a topic

.u .inform N.phone Your phone number? .s .inform N.phone Phone number" .u .inform N.phone Your phone number? .s .inform V.phone Phone [phone]"
Simple yet powerful distinction may still be
parseable
11
Rule examples
rule select2 _y .select N_b lt- _x .inform N_b _y .inform N_b where _x ! _y end rule rule answer _y .request N_b _x .inform Vs_a lt- _y .inform N_b _x .inform V_b where _x ! _y end rule
(_x ! _y) rules out talking with yourself...
12
Transaction rules
rule success1 _y .success N_b lt- _x .select N_b _y .inform Vs_a where _b in Vs_a _x ! _y end rule rule success3 _y .success N_b lt- _x .request N_b _y .inform Vs_a where _b in Vs_a _x ! _y end rule
Examples of second level transformations
13
Status (1)

• 13 act-topic rules
• 9 success/failure rules
• Tested on 12 FAQ dialogues selected to be very
  different
• Further testing is of course needed
• Generalisability is an issue
• Quick test on a single flight ticket reservation
  dialogue
• sub-topics city name can relate to both
  departure and arrival so we added a sub-topic
  relation, e.g. from lt place
• composite tasks contrary to FAQ the sub-tasks in
  ticket reservation are hierarchically related to
  a super-task

No serious trouble yet
14
Status (2)

• Some rules in act-topic scheme produce acts
  pointing to problems (lack of smoothness), e.g.
• repair
• repeated requests for same information
• Transaction failure also contributes negatively
  to smoothness
• Open question if requests for repetition and
  system clarification questions count negatively
  to smoothness
• Further investigation needed of which negative
  contributors there are

Smoothness is related to transactions, but how?
15
What is still needed

• To obtain a fully automated annotation process
• parse dialogues to produce basic act-topic
  annotation
• combine parser and pattern transformer into
  automatic batch system
• test parser and pattern transformer on larger
  number of FAQ dialogues
• test on other kinds of dialogue
• Both theoretical conceptual work and practical
  tools work needed

Input and help from others welcome
16
Smooth dialogues

• More precise overview of problems and their
  causes and seriousness
• Same topic may fail and succeed in same call
• Few or many repairs
• Information blocks may contain more than asked
  for
• Distinguish unwanted and erroneous information
• Erroneous information is unacceptable (tomorrow
  is Friday, phone [phone])
• Other information than asked for may be more or
  less serious (fax instead of phone, fax instead
  of email)
• Misunderstanding a yes for a no is usually not so
  serious (repairable) but can be a nuisance
• Misrecognitions

Laila, you are beyond your time frame!
