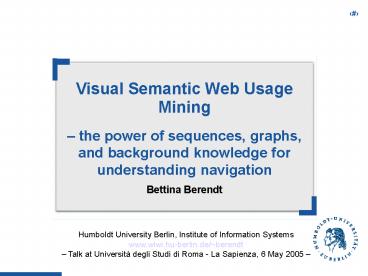

Visual Semantic Web Usage Mining

1
Visual Semantic Web Usage Mining the power of
sequences, graphs, and background knowledge for
understanding navigation
Bettina Berendt
Humboldt University Berlin, Institute of
Information Systems www.wiwi.hu-berlin.de/berendt
Talk at Università degli Studi di Roma - La
Sapienza, 6 May 2005
2
Acknowledgements

• Elke Brenstein
• Martin Eisend
• Jorge Gonzalez
• Sebastian Hinz
• Andreas Hotho
• Anett Kralisch
• Ernestina Menasalvas
• Bamshad Mobasher
• Daniel Oberle
• Myra Spiliopoulou
• Gerd Stumme
• Max Teltzrow
• Bert Wendland

3
Goals and top-level questions

• Make the worlds knowledge available to the world
• How do people discover knowledge on the Web?
• How can more knowledge sources contribute to the
  Web?

4
Approaches to the current Webs biggest
challenges lots of data, human-understandable
5
What is Web Mining?

• Despite its success, one problem of the current
  WWW is that much of this knowledge lies dormant
  in the data.
• Web mining tries to overcome these problems by
  applying data mining techniques to the content,
  (hyperlink) structure, and usage of Web resources.

• Goals include
• the improvement of site design and site
  structure,
• the generation of dynamic recommendations,
• and improving marketing.

6
Semantic Web usage mining
7
Agenda
8
Semantics andassigning senses
9
Semantics of requests Step 1 Domain ontology

• community portal ka2portal.aifb.uni-karlsruhe.de
• ontology-based
• Knowledge base in F-Logic
• Static pages annotations
• Dynamic pages generated from queries
• Queries also in F-Logic
• Logs contain these queries

10

• RESEARCHER
• PERSON
• PROJECT
• PUBLICATION
• RESEARCHTOPIC
• EVENT
• ORGANIZATION
• RESEARCHINTEREST
• LASTNAME
• TITLE
• ISABOUT
• EVENTS
• EVENTTITLE
• WORKSATPROJECT
• AUTHOR
• AFFILIATION
• ISWORKEDONBY
• PROGRAMCOMMITTEE
• EMPLOYS

11
Semantics of requests Step 2 Modelling
requests

• HOME www\.dermis\.net\/
• HOME dermis\.multimedica\.de
• DOIA \/doia/mainmenu\.asp\?zugrdlangdesp
• PEDOIA \/doia/mainmenu\.asp\?zugrplangdesp
• D_ALPH1 \/doia/abrowser\.asp\?zugrdlangdesp
• D_ALPH2 \/doia/abrowser\.asp\?zugrdlangdespb
  eginswithA-Z
• D_ALPH2 \/doia/abrowser\.asp\?zugrdlangdespb
  eginswithA-Zsize0-9
• D_LOKAL1 \/doia/dbrowser\.asp\?zugrdlangdesp
  benrA-Z
• D_LOKAL2 \/doia/dbrowser\.asp\?zugrdlangdesp
  benrA-Z_0-9
• D_LOKAL3 \/doia/dbrowser\.asp\?zugrdlangdesp
  benrA-Z_0-9_0-9
• D_LOKAL4 \/doia/dbrowser\.asp\?zugrdlangdesp
  benrA-Z_0-9_0-9_0-9
• SEARCH \/doia/abrowser\.asp\?zugrdlangdespbe
  ginswithA-Za-zA-Za-zA-Za-ztypesearch
  .
• SEARCH \/doia/abrowser\.asp\?zugrplangdespbe
  ginswithA-Za-zA-Za-zA-Za-ztypesearch
  .
• SEARCH \/doia/diagalphabrowser\.asp\?zugrdpla
  ngdesptypesearchbeginswith.
• D_DIAGNOSE \/doia/diagnose\.asp\?zugrdlangdeps
  .diagnr.
• P_DIAGNOSE \/doia/diagnose\.asp\?zugrplangdeps
  .diagnr.
• P_DIAGNOSE \/doia/diagnose\.asp\?langdepszugr
  pdiagnr. (and so on)

12
Semantics of requests Step 2 Modelling users
Web server log

• 200.x4.xx.xx - - 09/Apr/2002222835 0200
  "GET /cgi-bin/ivw/CP/doia/image. asp.
  ivw?zugrdlangecd14nr87diagnr757370
  HTTP/1.0" 200 735 "http//www.dermis.net/doia/imag
  e.asp?zugrdlangecd14nr87diagnr757370"
  "Mozilla/4.0 (compatible MSIE 5.0 Windows 98
  DigExt)"
• 200.x4.xx.xx ? IP address
• doia/ diagnr757370 ? requested page (also
  search modus)
• etc.

IP address Localization
Culture and Language
13
Pattern content,node labels,and sequence mining
14
Regular expressions in node labels, templates,
and the semantics of sequences pattern
discovery in WUM

• select t
• from node a b, template a b as t
• where a.url startswith "SEITE1-"
• and a.occurrence 1
• and b.url contains "1SCHULE"
• and b.occurrence 1
• and (b.support / a.support) gt 0.2

15
Similarities ...
16
Content transitions,edge labels,and sequence
mining
17
Semantics of sequences Step 3 Strategy pattern
discovery the miner STRATDYN

• An ontology of navigation strategies
• Define strategy templates as regular expressions
• Of requests (mapped to ontological entities)
• Of transitions (between ontological entities)
• Ex. .search . individual
• Discover strategies by learning a strategy trie

...
...
...
...
18
Semantics of sequences Step 4 Strategy pattern
evaluation

• Use strategy patterns statistics to
• Derive descriptive measures of patterns
• support, confidence
• popularity, effectiveness, efficiency
• Apply inferential statistics to compare patterns

19
Assigning sense to sequences URLs and
application events
URL
Web page with content
20
Visualization
21
Communication Visual data mining Step 5
Mapping an ontological relation over concepts
to a linear order and to visual variables
Concreteness
Reach goal
Refine search
Remain unspecific
Abandon search
Time
22
Communication Visual data mining Step 5
Example
23
Communication Visual data mining Step 6
Visual abstraction ? new semantic patterns
24
Pattern structureand graph analysis
25
Graph-based Web metrics (1) centrality
metrics
26
Graph-based Web metrics (2) - compactness
27
Graph-based Web metrics (3) intermediate
sociometric measures
28
Graph-based Web metrics (4) stratum
29
Semantics,pattern structure,and graph analysis
30
Sequence analysis Presence (or not) of linear
navigation patterns
31
(No Transcript)
32
linear
33
Unzooming the same pattern
marks diagnoses
34
Dto. Im Original
35
Nicht-linear
36
Agenda
37
Using results for site improvement
Name
38
Using results for personalization
39
A caveat Culture in the sense of Hofstede/Hall
may be a less reliable predictor than ...

• domain knowledge
• a different notion of culture?!
• language
• geographic regions
• (current work with Anett Kralisch and others)

40
Using the results for evaluation, site
improvement, and personalization

• Mining for the evaluation of sites and services
• Not-for-profit sites
• Multi-channel user contact
• Privacy attitudes and behaviour
• Differences in cognitive styles and abilities
• Internationalisation / localisation
• Behavioural patterns, user groups ? recommend (
  evaluate) changes in
• page design
• navigation design
• domain ontology

41
Agenda
42
Authoring support for document servers

• Surveys Web usage mining analysis of a digitial
  publishing service showed
• Metadata creation is one of the main barriers for
  contribution.
• Reasons include deficiencies in
• information flow
• understanding and use of structured search
• education in structured writing
• HCI aspects

43
Authoring support for document servers
44
Where does this take us?
45
Summary

• Semantics ? Web mining
• Data preparation for assigning possible senses
  (concepts) to terms (URLs)
• Sequence mining for finding patterns constrained
  by node labels
• Pattern content
• Sequence mining and visualization for finding
  patterns constrained by edge labels
• Pattern content and structure
• Graph analysis for finding quantitative measures
  of pattern structure
• The effect of content abstraction on pattern
  structure
• Web mining ? semantics

46
Outlook

• Usage mining
• Learning supplying integrating behavioural
• ontologies
• knowledge bases
• Understanding more about the implications of
  graph structure in interaction with content
• Authoring support
• More intelligent text analysis
• Personalisation
• Mining and metacognition / reflexivity

47
Semantic Web usage mining
48
Semantic Web usage mining
49
Semantic Web usage mining
50

• distance matrix, which allows us to adapt
  classical graph-based metrics to the educational
  context easily. An entry in the matrix is the
  length of the shortest path from a place A (a
  page) to a place B (another page) by counting
  places only. Metrics are derived from this matrix
  or from a so-called converted distance matrix
  where infinite values (pages not reachable) are
  replaced by a constant. Metrics in general
  express ideas such as compactness of the site, or
  centrality and accessibility of nodes. They are a
  means to validate the technical realisation of
  the course structure. These metrics can be
  derived automatically, but need to be interpreted
  manually 2.
• Metrics which apply to a single page are (with
  acronym, name, aspect and definition)
• COD - Converted Out Distance Centrality (sum of
  all entries in a row),
• CID - Converted In Distance Accessibility (sum
  of all entries in a column),
• ROC - Relative Out Centrality Relative
  Centrality (ROC CD/COD),
• RIC - Relative In Centrality Relative
  Accessibility (RIC CD/CID).
• Metrics which apply to a whole site are (with
  acronym, name and definition)
• CD - Converted Distance sum of all finite values
  in the matrix,
• CP - Compactness (Max CD) / (Max Min) with
  Max (n2 n)C , Min (n2 n), n is the number
  of pages, and C is the maximal distance in
  matrix.
• We can use metrics to classify pages in a course
  system. Hubs are central pages, i.e. have a high
  ROC, and are easy to find, i.e. have a high RIC.
  Examples are table of contents or index pages or
  any page part of the course portal. Content pages
  are less central, i.e. have a low ROC, with only
  a few links to other pages, i.e. a low RIC. The
  overall compactness of the site is one of the
  indicators for the degree of integration of a
  page. A high compactness indicates good
  navigability and good cross referencing, but also
  indicates a possibly poorly structured site.
• The stratum metric reveals to what degree the
  hypertext is organised, for example that some
  nodes must be read before others. The stratum
  metric is based on the non-converted distance
  matrix. Metrics such as OD (Out Distance) and ID
  (In Distance) are defined as the sum of all
  finite entries. D is the total sum of all finite
  distances. The prestige P of a page is defined as
  P OD ID for that page. The absolute prestige
  AP of the net is defined as the sum of all
  absolute values of prestiges of all pages. The
  stratum S is a normalised absolute prestige,
  typically normalised by the linear absolute
  prestige LAP - the absolute prestige of a linear
  sequence of pages.

51
Thank you for your attention!
52
Outlook

• Combine mining experimental methology
• Educational portal Berendt Brenstein, BRMIC
  2001
• eHealth portal Kralisch Berendt, GOR 2005
• Learning supplying integrating behavioural
• ontologies
• knowledge bases
• Patterns over time pattern monitoring, streams,
  Web dynamics
• Authoring support
• Personalisation
• Mining and metacognition / reflexivity
