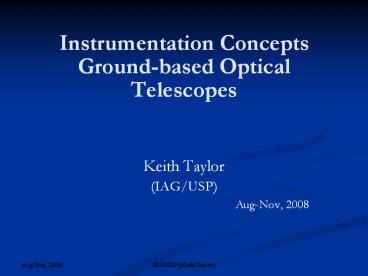

Instrumentation Concepts Ground-based Optical Telescopes

1
Instrumentation ConceptsGround-based Optical
Telescopes

• Keith Taylor
• (IAG/USP)
• Aug-Nov, 2008

Aug-Sep, 2008
IAG-USP (Keith Taylor)
2
Integral Field Units

• Three principal types of IFUs at UV, optical and
  near IR wavelengths
• Reflective
• Refractive (microlenses)
• Optical fibre
• Also combinations of microlenses and fibres.

3
Why do we want to use an image slicer?

• To get spatial information on resolved sources.
  Usually these image slicers are called Integral
  Field Spectrographs.
• To preserve light from extended sources and
  sources whose image profile is broadened by the
  atmosphere.

4
Image Slicers

• Slit spectrographs are inherently restricted
  because light from outside of a narrow slice of
  the sky does not enter the instrument.
• This entrance slit can be long and in some
  circumstances it can even be curved. However in
  one direction it is narrow.
• Many images, including in many cases the images
  of point sources (broadened by seeing) are wider
  than this.
• Image slicers reformat the image, allowing more
  of it to pass through the slit.

5
(No Transcript)
6
Lenslet array (example)
LIMO (glass) Pitch 1mm Some manufacturers use
plastic lenses. Pitches down to 50?m
Used in SPIRAL (AAT) VIMOS (VLT) Eucalyptus (OPD)
7
Integral Field Spectroscopy

• Extended (diffuse) object with lots of spectra
• Use contiguous 2D array of fibres or mirror
  slicer to obtain a spectrum at each point in an

8
Mirror Image Slicers
Pioneered by MPI (3D) (Gensel)
Compact Efficient Slicer of choice but Cannot
be retrofitted to existing spectrographs
9
Image Slicers
Principle of a simple image slicer, arranging
several slices of the sky in a line along the
entrance slit of the spectrograph.
10
Reflective Image Slicer
11
Reflective Image Slicer

• Consists of a stack of reflectors of rectangular
  aspect, tilted at different angles.
• Relay mirrors reimage the light reflected off
  these reflectors, and arrange them in a line to
  form a pseudo slit.
• The stacked reflectors need not be plane, often
  they have some power to keep the instrument
  compact.

12
3D spectroscopy

• Integral Field Unit
• How to have a projection of a 3D volume to a 2D
  plan?
• Spatial reformatting Slicers

X
13
How to slice the target?
14
Instrument Status

• New Optical design
• Dichroics earlier possible
• Smallest size (2mm)
• Better instrument optimization (sampling)
• Easier focal plane
• Shorter instrument (300mm)
• Implementation phase in a compact volume
• Shoehorn needed to enter in the shoebox

15
Optical design (IR Path)
Relay optics
Slicer Unit
Prism
Collimator
Camera
Detector
16
Slicer Design (IR)
Relay optics
Collimator
17
Optical design (IR Path)
Relay optics
Slicer Unit
Prism
Collimator
Camera
Detector
18
Hybrids Exotica

• PYTHEAS (Georgelin et al Marseille)
• Based on a cross between
• TIGER (lenslet array IFU)
• Fabry-Perot
• Tunable Echelle Imager (Bland Baldry)
• Based on a cross between
• Cross-dispersed Echelle
• Fabry-Perot

19
Fabry-Perot (reminder)

• Light enters etalon and is subjected to multiple
  reflections
• Transmission spectrum has numerous narrow peaks
  at wavelengths where path difference results in
  constructive interference
• need blocking filters to use as narrow band
  filter
• Width and depth of peaks depends on reflectivity
  of etalon surfaces finesse

20
Fabry Perot (reminder)What you see with your eye
Emission-line lab source (Ne, perhaps) note the
yellow fringes

• Orders
• m
• (m-1)
• (m-2)
• (m-3)

21
Tiger (Courtes, Marseille)

• Technique reimages telescope focal plane onto a
  micro-lens array
• Feeds a classical, focal reducer, grism
  spectrograph
• Micro-lens array
• Dissects image into a 2D array of small regions
  in the focal surface
• Forms multiple images of the telescope pupil
  which are imaged through the grism spectrograph.
• This gives a spectrum for each small region of
  the image (or lenslet)
• Without the grism, each telescope pupil image
  would be recorded as a grid of points on the
  detector in the image plane
• The grism acts to disperse the light from each
  section of the image independently

So, why dont the spectra all overlap?
22
Tiger (in practice)
Enlarger
Detector
Camera
Lenslet array
Collimator
Grism
23
Avoiding overlap
?-direction

• The grism is angled (slightly) so that the
  spectra can be extended in the ?-direction
• Each pupil image is small enough so theres no
  overlap orthogonal to the dispersion direction

Represents a neat/clever optical trick
24
Tiger constraints

• The number and length of the Tiger spectra is
  constrained by a combination of
• detector format
• micro-lens format
• spectral resolution
• spectral range
• Nevertheless a very effective and practical
  solution can be obtained

Tiger (on CFHT) SAURON (on WHT) OSIRIS (on
Keck)
True 3D spectroscopy does NOT use time-domain
as the 3rd axis (like FP IFTS) very limited
FoV, as a result
25
PYTHEAS

• PYTHEAS (Georgelin et al Marseille)
• Based on a cross between
• TIGER (lenslet array IFU)
• Fabry-Perot
• Goal
• True 3D imaging
• Given by a lenslet array IFU system
• Wide wavelength range
• Given by a classical Grating or Grism
• High Spectral resolution
• Given by a Fabry-Perot

26
Scientific Motivation

• Ideal 3D imager should have
• High Spatial Resolution
• Large telescope (with Adaptive Optics)
• Large Field-of-View (comparable with interesting
  sources)
• High Spectral Resolution
• Easily obtained with FPs
• Long wavelength coverage
• Easily obtained classical spectroscopy

27
(No Transcript)
28
PYTHEAS(Optical Scheme)

• Magnified field imaged onto a mirolens array
• FP dissects spectral information into multiple
  orders
• Grism disperses these orders in same way as TIGER
• FP is scanned over a FSR to give full wavelength
  coverage

29
PYTHEAS Combination of

• TIGERs true 3D capability
• Simultaneous 2D Spatial 1D Wavelength
• FPs quasi-3D capability
• through encoding wavelength with time
• In this way one achieves high spectral and
  spatial resolution over a wide wavelength range
• but not simultaneously

30
PYTHEAS How it works
31
(No Transcript)
32
PYTHEAS - Results
Enlargement of Na Doublet range. Local
Interstellar Globular components
33
Tunable Echelle Imager(TEI Baldry Bland)
Consider what a spectrograph does to this image
if it is placed at the input aperture of the
spectrograph
Assume galaxy is a continuum, then
becomes
Spectra from each point overlaps total
confusion This is why we use a slit
becomes
34
But what if the galaxy ismonochromatic?
Then
becomes
So lets move the slit at the spectrograph input
becomes
and, in fact
becomes
35
Crossing gratings with FPs

• So, if we want to do imaging and spectroscopy
  simultaneously
• ie Integral Field Spectroscopy
• We have to make objects appear monochromatic
• Crazy how can we do that?
• So how about making them multi-monochromatic?
• This is exactly what a Fabry-Perot does

36
Multi-monochromatic FP images dispersed by
grating spectrograph
becomes
Scan the FP and then
becomes
37
Reminder of X-dispersedEchelle

• X-dispersed echelle grating spectrometers
  allow high resolution and lots of spectral
  coverage
• Achieve this by having two orthogonal
  gratings
• One gives the high resolution (in y-axis) the
  other spreads the spectrum across the detector(in
  x-axis)
• Slit is consequently much shorter

38
X-dispersion

• Orders are separated by dispersing them at low
  dispersion (often using a prism).
• X-dispersion is orthogonal to the primary
  dispersion axis.
• With a suitable choice of design parameters, one
  order will roughly fill the detector in the
  primary dispersion direction.
• With suitable choices of design parameters it is
  possible to cover a wide wavelength range, say
  from 300-555nm, as shown in the figure, in a
  single exposure without gaps between orders.

• Illustrative cross-dispersed spectrum showing a
  simplified layout on the detector.
• m 10-16
• The vertical axis gives wavelength (nm) at the
  lowest end of each complete order.
• For simplicity the orders are shown evenly
  spaced in cross-dispersion.

39
So now replace grating with a cross-dispersed
echelle
Crossed with an FP gives
40
A TEI scan
41
TEI Option 1
42
TEI Option 2
43
TEI Option 3
44
TEI configurations(from Baldry Bland)
45
(No Transcript)
46
(No Transcript)
47
Highly efficient use of detector
48
The neatest trick
OH sky-line suppression imaging
In this example, 90 of OH energy is
suppressed. Huge gain in SNR against sky
continuum
