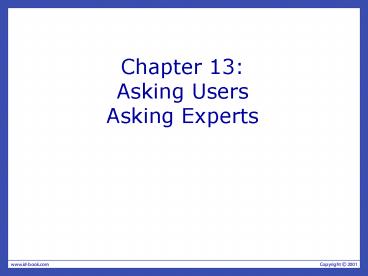

Chapter 13: Asking Users Asking Experts

1
Chapter 13Asking UsersAsking Experts
2
Asking users and experts the techniques

• Asking users
• Interviews
• questionnaires
• Asking experts
• Heuristics
• Cognitive walkthrough

3
Asking users Interviews

• Unstructured, Structured, or semi-structured
  Which approach?
• Depends on the evaluation goals and the questions
  to be addressed. e.g. if the goal is to gain
  first impressions about how users react to a new
  idea, then an informal, open-ended interview is
  often the approach. But if the goal is to get
  feedback about a particular design feature, such
  as layout of a new web browser, then a structured
  interview is often better.
• Remember the DECIDE framework
• Goals and questions guide all interviews

4
Asking users Interviews

• Unstructured the evaluator will have a list of
  questions but will pursue certain threads of
  discussion depending on the response of the user.
• Structured the evaluator will have a fixed list
  of questions which the user must answer
• Semi-structured - guided by a list of questions
  but interesting issues can be explored in more
  depth.

5
Things to avoid when preparing interview questions

• Long questions
• Compound sentences - split into two
• Jargon language that the interviewee may not
  understand
• Leading questions that make assumptions e.g., why
  do you like ?
• Unconscious biases e.g., gender stereotypes

6
Asking users Group interviews

• Also known as focus groups
• Typically 3-10 participants
• Provide a diverse range of opinions
• Need to be managed to- ensure everyone
  contributes- discussion isnt dominated by one
  person- the agenda of topics is covered
• Can be used as a debriefing session after the
  users have had some exposure to the system being
  evaluated.
• The facilitator has to prepare a list of topics
  for discussion. The topics should be introduced
  one at a time.

7
Asking users Group interviews

• e.g. topic 1 how did they get started with the
  first task?
• Topic 2 were they able to complete the first
  task, and if not, what difficulties did they
  have?
• Such open questions should trigger the group to
  discuss problems and share experiences.
• Focus groups will give the designer insights into
  how users think and what things are important to
  them. It is difficult to achieve this with other
  technique.

8
Asking users - Questionnaires

• Questionnaires need to be carefully designed.
• Types of questions vary between questionnaires.
  It depends according to the goals and the
  questions.
• Questionnaire format can include- yes, no
  checkboxes- checkboxes that offer many options-
  Likert rating scales- open-ended responses
• Pilot test questions - are they clear, is there
  sufficient space for responses
• Decide how data will be analyzed consult a
  statistician if necessary

9
Asking users- web-based questionnaires

• Can include check boxes, pull-down and pop-up
  menus, help screens and graphics.
• Can provide immediate data validation
• Can enforce rules such as select only one
  response, or certain types of answers such as
  numerical, which cannot be done in email or
  paper.

10
Asking users- web-based questionnaires

• Other advantages of online questionnaires
• Responses are usually received quickly
• No copying and postage costs
• Data can be collected in database for analysis
• Time required for data analysis is reduced
• Errors can be corrected easily
• Devise the questionnaire on paper first, only
  once the questionnaire has been reviewed and the
  questions refined adequately, then translate it
  to web-based version.

11
Problems with web-based questionnaires

• Preventing individuals from responding more than
  once

12
Questionnaire Tools

• SUMI (Software Usability Measurement inventory)
• MUMMS (Measuring the Usability of Multi-Media
  Systems)
• QUIS
• http//www.ucc.ie/hfrg/questionnaires

13
Asking experts

• Experts use their knowledge of users technology
  to review software usability
• Heuristic evaluation is a review guided by a set
  of heuristics to evaluate whether user interface
  elements such as dialog boxes, menus, navigation
  structure, etc conform to the principles
• Walkthroughs involve stepping through a
  pre-planned scenario noting potential problems
  that will be faced by the users

14
Heuristic evaluation

• Developed Jacob Nielsen in the early 1990s
• The original set of heuristics was derived from
  an analysis of 249 usability problems
• However, some of these core heuristics are too
  general for evaluating new products coming onto
  the market
• There is a strong need for heuristics that are
  more closely tailored to specific products

15
Heuristic evaluation

• Different sets of heuristics for evaluating toys,
  WAP devices, online communities, etc are needed.
• Evaluators must develop their own by tailoring
  Nielsens heuristics and by referring to design
  guidelines, market research, and requirements
  document.
• Expanding the heuristics to include some of the
  questions addressed when doing evaluation

16
3 stages for doing heuristic evaluation

• Briefing session to tell experts what to do
• Evaluation period of 1-2 hours in which- Each
  expert works separately- Take one pass to get a
  feel for the product- Take a second pass to
  focus on specific features
• Debriefing session in which experts work together
  to prioritize problems

17
Problems of heuristic evaluation

• Can be difficult expensive to find experts

18
Cognitive walkthroughs

• Walkthroughs are an alternative approach to
  heuristic evaluation for predicting users
  problems without doing user testing.
• They involve walking through a task with the
  system and noting problematic usability features.

• Cognitive walkthrough involve simulating a
  users problem-solving process at each step in
  the human-computer dialog, checking to see if the
  users goals and memory for actions can be
  assumed to lead to the next correct action
  (Nielsen and Mack, 1994).
• They focus on evaluating designs for ease of
  learning

19
Cognitive walkthroughs

• Steps involved
• The characteristics of typical users are
  documented and sample tasks are developed that
  focus on the aspects of the design to be
  evaluated
• A prototype of the interface is produced, along
  with a clear sequence of the actions needed for
  the users to complete the task
• The evaluators walk through the action sequences
  for each task, placing it within the context of a
  typical scenario and as they do this they try to
  answer the three questions

20
The 3 questions

• Will the user know what to do to achieve the
  task?
• Will the user notice that the correct action is
  available? (Will users see how to do it?)
• Will the user know from the feedback that they
  have made correct or incorrect choice of action?
• As the experts work through the scenario they
• note problems
• The design is then revised to fix the problems

21
Example of cognitive walkthrough

• A cognitive walkthrough of buying a book at
  Amazon.com
• Task to buy a copy of an interaction design
  book from Amazon.com
• Typical users students who use the web regularly
• The steps to complete the task are given below
• Step 1. Selecting the correct category of goods
  on the home page
• Q. Will users know what to do?
• Answer yes they know that they must find
  books
• Q. Will users see how to do it?
• Answer yes they have seen menus before and
  will know to select the appropriate item and
  click go.
• Q. Will users understand from feedback whether
  the action was correct or not?
• Answer yes their action takes them to a form
  that they need to complete to search for the book

22
Example of cognitive walkthrough

• Step 2. Completing the form
• Q. Will users know what to do?
• Answer yes the online form is like a paper so
  they know they have to complete it
• etc
