Subversion for collaborative software engineering

1

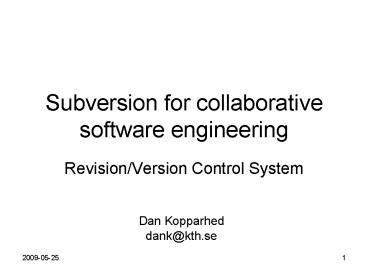

Subversion for collaborative software engineering

• Revision/Version Control System

Dan Kopparhed dank_at_kth.se
2
Version Control

• Management of multiple revisions of
  information/data
• Simple Keeping backups manually- Problems
• Advanced Use a Version Control System, like
  Subversion (SVN)

3
Subversion (SVN)

• Free software (Apache License)
• Started in 2000 by CollabNet
• Intended as successor to CVS
• Used by many open source projects
• Client-Server approach
• Clients for Linux, Windows, etc
• IDE integration

4
Basic Terminology

• Repository storage at server
• Trunk the main line of development
• Branch a fork in development
• Tag a snapshot of the development, e.g. a
  released version

5
SVN 3D Filesystem
6
Basic Terminology contd

• Conflict when a change cannot be reconciled
  automatically
• Resolve a user solves a conflict manually
• Merge merges two revisions into one, e.g. at
  update or to merge the changes in a branch with
  the trunk.

7
SVN project example
8
Basic Terminology contd

• Check-out get a local working copy from
  repository
• Update update local working copy with changes
  in repository
• Commit send changes to repository

9
Policies/Conventions

• Repository structure (trunk, branches)
• Trunk is always working
• Atomic commits
• Always write log messages
• Be careful dont break history (rename, copy,
  move, etc)
• Etc

10
Basic SVN usage

• Helpsvn help
• Checkoutsvn co https//svn1.ssvl.kth.se/repos/s
  tudent .- accept certificate, enter username/pw
• Edit file/dir
• Add file/dirsvn add Newfile
• See what has changedsvn status
• Commit changessvn commit -m Log message

11
Basic SVN usage contd

• Update local working copysvn up -r REVREV
• Differences per linesvn diff -r REVREV
• Infosvn info
• Print log messagessvn log
• Undo (most) local changessvn revert PATH

12
SVN features

• Automates much
• Precise tracking of history of changes- Per
  line, ownership, time
• Only differences btw revisions are stored
• Easy to roll back and restore
• Metadata properties support
• For text data, but also binary support
• Encryption over HTTPS/SSH
• Tagging, branching, renaming and merging
• Pre/Post hooks, e.g. for sending auto emails to
  lists
• Etc

13
Advanced use of SVN

• Barely scraped the surface dig the web for
  more.
• Server-side tricks.
• Tools, GUIs

14
References

• http//subversion.tigris.org/
• http//en.wikipedia.org/wiki/Subversion_(software)

• http//tortoisesvn.tigris.org/
