Distributed Source Coding and Recent Advancements in Practical Constructions

1

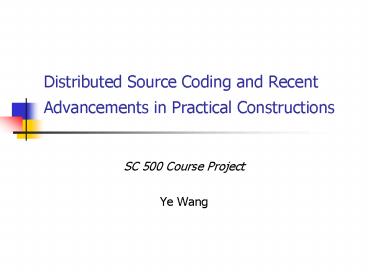

Distributed Source Coding and Recent Advancements
in Practical Constructions

• SC 500 Course Project
• Ye Wang

2
Outline

• Distributed source coding problem
• Slepian-Wolf results
• Proof outline
• Discussion of practicality
• Linear binning
• Linear channel codes
• LDPC codes
• Application to example problem
• Concluding Remarks

3
Distributed Source Coding

• X and Y are Correlated
• What are achievable rates R1 and R2 for conveying
  X and Y?

4
Slepian-Wolf Theorem

• Possible to convey X and Y with small probability
  of error If and Only If
• RX H(XY)
• RY H(YX)
• RX RY H(X,Y)

5
Random Binning Proof

• Assign each length-n sequence Xn a random index
  from (1, 2nRx) uniformly, I.I.D.
• Do same for Yn over indices (1, 2nRy)

• Send bin indices for Xn and Yn
• Decoder picks the jointly typical pair from the
  selected bin
• Pe lt e if Slepian-Wolf conditions met

xn
2nRx bins
yn
2nRy bins
jointly typical (xn, yn) pairs
6
Practicality of Random (Unstructured) Codes

• Need to store 2n (nRX nRY) bits to represent
  codebook
• Need to check joint typicality of 2n(1 Rx 1
  Ry) code words
• Exponential in complexity and memory
• Bad since in order to achieve a low probability
  of error, n must be large

7
Binning with Random Matrices

• Produce bin indicies by multiplying x, y with
  random matrices HX (n by nRX), HY (n by nRY)
• zX xHX zY yHY (mod 2 arithmetic)
• Elements of matrices are generated I.I.D.
  Bernoulli(1/2)
• Probability of two different x and x being in
  the same bin is 2nRx (similarly for y)
• All that is needed in Slepian-Wolf proof, proves
  that there exist matrices that work
• Reduces memory requirements and adds structure

8
Binary Linear Channel Code

• 2k codewords in the space 0,1n
• Forms k-dimensional subspace (k lt n)

Channel Codeword
Decoding Ball
9
Arithmetic Definition

• Collection of 2k code words in the space 0, 1n
• Forms k-dim subspace
• G (k X n) Generator Matrix, codeword subspace
• sn ukGk,n sn codeword, uk ? 0,1k
• H (n X n k) Parity Check Matrix, null space of
  code
• Produce coset labels called syndromes
• zn k rnHn,n k rn ? 0,1n, zn k syndrome

10
Properties of Syndromes

• z rH r ? 0,1n, z syndrome
• Code words have all-zero syndrome
• Only a function of the noise from a codeword
• rH (s n) H sH nH nH

0
s codewords r received words n noise words
r1H n1H n2H r2H
11
Decoding Procedures

• Received codeword r s n n s
• MAP rule pick most likely code word s given r
• Nearest code word for BSC, equiprob code words
• Pick most likely noise vector n given syndrome
  rH
• Shortest noise vector if BSC, flip prob lt 0.5

• Exhaustive search
• Not practical

12
Low Density Parity Check (LDPC) Codes

• Linear code with sparse parity check matrix
• Decoding algorithm Sum-Product-Algorithm (SPA)
• Approximates maximal likelihood (ML) decoding
• Iterative message passing algorithm
• Complexity related to sparseness of H matrix O(n
  log n)
• Provably approaches capacity
• SPA can be conceptualized in two ways
• Finds ML code word given received vector
• Finds ML noise vector given syndrome of noise
• More generally, finds ML word given prob and
  syndrome

13
Source Coding Example

• Xi I.I.D Bernoulli(q)
• Yi Xi Zi ? i Zi I.I.D. Bernoulli(p) plt0.5
• Operating at corner point
• RX H(X) h2(q), RY H(YX) H(Z) h2(p)
• Encoding
• Send X with entropy coder Send yH (syndrome of
  Y)
• Use H from LDPC code designed for BSC with flip
  prob p
• Decoding
• Decode X with entropy decoder
• Compute xH (syndrome of X)
• Compute xH yH zH
• Decode Z with LDPC SPA
• Compute Y X Z

14
Concluding Remarks

• Correlation channel between X and Y is like a
  transmission channel
• Strategic idea for corner point
• Convey X with entropy coder
• Serves as noisy version of Y
• Encoder for Y conveys additional channel code
  information
• Decoder acts like a channel decoder in order to
  recover Y
• Schonberg, Pradhan, Ramchandran propose
  generalized method to achieve the tradeoff points
