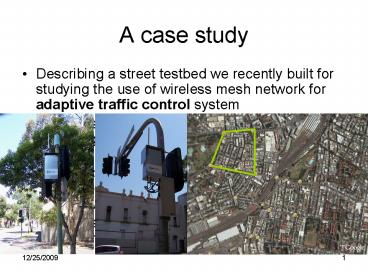

1A case study
- Describing a street testbed we recently built for
studying the use of wireless mesh network for
adaptive traffic control system - Discuss some initial measurement results
regarding link characteristics of - 802.11
- 900Mhz
- Ethernet over powerline
- and Unwired (a WiMax variant)
- Discuss some of our experience in building a
testbed in a real-life environment
- Describing a street testbed we recently built for
studying the use of wireless mesh network for
adaptive traffic control system - Discuss some initial measurement results
regarding link characteristics of - 802.11
- 900Mhz
- Ethernet over powerline
- and Unwired (a WiMax variant)
- Discuss some of our experience in building a
testbed in a real-world environment
2Adaptive Traffic Control
- How it works
- Road-side sensors detect the states of
vehicle/road - e.g loop detector under the pavement for vehicle
counting - Sensor data is fed to traffic light controller
- Sensor data can be also fed to variable speed
limit sign - the controller uses the sensor data to make
decision about the duration of green/red lights
3Traffic server (Regional Computer)
loop detector
Traffic controller
CC1
4Communication for traffic control system
- Traditionally rely on wired connections
- Private or leased lines
- High operating cost, inflexibility
- People have started looking at using public
shared network - eg. ADSL, GPRS
- Inconsistent delay jitter and reliability issues
- e.g. GPRS can have high RTT (gt1sec), fluctuating
bandwidth and occasional outage
5Sydney Coordinated Adaptive Traffic System (SCATS)
- A popular traffic management system (used by gt100
cities) - Created by Sydney RTA (Road and Transport
Authority) - Serial point-to-point communication over
voice-grade telephone line, using 300bps
modem - Hierarchical structure
- TMC (Traffic Management Center)
- Regional Computers (RC)
- Traffic controllers
TMC
RC
RC
RC
controller
controller
controller
6Second-by-second SCATS messages
Regional Computer
Controller
Loop detector
7SCATS protocol
- Periodic message exchanges every sec
- If RC does not receive ACK within 1 sec retry
- If the ACK fails to arrive the 2nd time link
failure - Controller enters self-controlling mode and
stays in this mode for 15 min - Uncoordinated traffic control
- extend by another 15 min if another communication
failure happens in this mode
control command
controller
RC
Sensor data ACK
8Summary for communication layer of traffic control
- Wired connections are typically used
- private or leased from public telecommunications
operators - Traffic signal data demand is light
- Low-bandwidth dial-up network is commonly used
- But reliability and latency are critical issues
9What are the problems?
- High cost
- High front-end cost
- RTA pays 14 millions each year to Telstra for the
leased lines - High maintenance cost
- Installation or relocation is expensive
- Very inflexible
- installation/relocation incur long delays
- Low bandwidth
- RTA uses 300 bps dial-up lines!
- Difficult to integrate other sensors/equipment
(e.g. video cameras)
10Wireless mesh network
- Getting increasing popularity recently
- Trial deployment in several major cities
- Strix, Tropos, LocustWorld, etc
- A competitive last-mile solution
- Application residential broadband, public safety
- Our research
- Using mesh network for a mission-critical system
such as traffic control - Can we use low-cost, standard-based wireless
technology (such as 802.11, 802.16) to build a
dedicated RTA wireless network? - Different requirement from prior work
- Trade throughput for latency and reliability
11Research Challenges
- Scalability
- Connecting numerous road-side devices to SCATS
- Reliability
- Mission-critical data (e.g. accident detection,
traffic signal control, etc) - Requires timely routing that is robust against
faults in nodes or links - Low latency
- SCATS is a real-time traffic control system (lt 1
sec)
12Todays talk The testbed
- Collaborate with New South Wales Road and Traffic
Authority (NSW RTA) - Study the feasibility of using wireless mesh
network for traffic control
13Outline
- Background
- Site survey for the testbed
- What is typical node distance?
- Traffic controller map
- Feasibility of using off-the-shelf hardware?
- Intersection-pair measurements
- Wireless mesh testbed
- Preliminary results
- Experience we learned and conclusion
14Typical distance between two adjacent traffic
lights?
- Q What is the degree of connectivity between
traffic controller for a given radio range? - Data source traffic controller map for Sydney
CBD area (2787 traffic controllers) - 354 traffic controllers have their closest
neighbors within 100m - 2407 traffic controllers have their closest
neighbors within 500m - 2701 traffic controllers have their closest
neighbors within 1000m
15Degree of connectivity between traffic controllers
to ensure that 90 (2500) nodes each has at
least 3 neighbours (e.g. for fault tolerance)
requires a radio range of at least 1km.
16Wireless survey
- Building a testbed in real world can involve lots
of - NTD 500K for only 7 nodes
- Not to mention the numerous man-hours
- To understand the feasibility of using
off-the-shelf 802.11 radios products - What is the performance of 802.11 with different
parameter settings?
17Experiment setup
- 20 intersection pairs
- Two linux laptop
- External antennas
- 8 dBi omni-directional
- 14 dBi directional
- Two wireless interfaces Intel Centrino (RFMON)
and Senao SL-2511CD (200mW) - Antenna height 4m
- signal loss over the coaxial cable 2.7dB
- Duration of each experiment 5 min (3 times for
consistency) - Use GPS to measure distance between intersections
18Factors that might affect the performance of
802.11
- Effect of
- Distance
- Transmission rate
- Number of MAC-layer retry
- Type of antenna
19Effect of the distance
- Pathloss attenuation experienced by a wireless
signal as a function of distance - Shadowing amount of variations in pathloos
between similar propagation scenarios - prior work suggested pathloss can range from 2 to
5 for outdoor urban environment - Using linear regression, we find our environment
has a pathloos 3.1 and shadowing 7.2 - significantly lower than the suggested urban
pathloss of 4 in the literature
20Effect of transmission rate
- Higher transmission rates
- allow high quality links to transmit more data
- but have a higher loss probability on lossy
links. - throughput is a function of transmission rate and
the delivery probability. - We tried 1Mbps, 2Mbps, 5.5Mbps,11Mbps
- Most of our links have a higher throughput when
using a higher transmission rate
21Effect of maximum retries
- MAX-RETRY is one of the wireless card parameters
- A higher retry limit
- Decrease the probability that a packet is dropped
due to a link error - potentially increase the probability of network
interface buffer overflow and the latency - A optimal setting depends on the channel
conditions and flow rate - MAX-RETRY10 seems to work best in our case
- MAC-layer re-transmissions is a norm
- our links have intermediate quality
22More than 50 are retransmitted at the MAC layer
Link distance 200m MAX-RETRY10
23Omni-directional vs. directional
- Directional antenna
- increased spatial reuse and improved signal
quality - less power consumption while maintaining a
similar link quality - higher cost
- Deployment
- Opportunistic forwarding
24Intersection selection (omni-directional, 11Mbps)
25Intersection selection (directional, 11Mbps)
26Outline
- Background
- Site survey for the testbed
- Wireless mesh testbed
- Hardware and software
- Preliminary results
- Experience we learned and conclusion
27Street testbed
CBD
200m
200m
400m
500m
200m
200m
300m
Univ. of Sydney
NICTA
28STaRCOMM testbed
- Cover 7 intersections in Sydney CBD (Central
Business District) - Inter-node distance 200m 500m
- 500m x 1000m area
- Currently extending to 15-20 nodes
- Nodes are custom-build embedded PCs
- NLOS for all the nodes
- Three types of nodes
- mesh nodes
- gateway node
- Curbside node
29Node
- mesh nodes
- Each node has 3 radio interfaces
- Two 2.4GHz (802.11) or one 2.4GHz one 900MHz
- One 3.5GHz (WiMax variant) for backhaul
- Connect to traffic controller via powerline
communication - gateway node
- located at Sydney U.
- Connect to mesh nodes via 802.11
- Connect to Regional Computer (at NICTA) via
AARNet - Curbside node
- Located in traffic controller housing
- One serial interface (to traffic controller) and
one IP interface (to mesh node via
ethernet-over-powerline) - Encapsulate SCATS data into IP packet and
decapsulate IP packet into serial data
30Traffic controller
413
414
415
c6
Motherboard
Ethernet switch
Unwired modem
521
522
523
524
m0
Unwired Net
Usyd Net
(Internet)
NICTA
Power line
Mesh node
Wired
RC
Testbed management
3.5GHz
Gateway node
2.4GHz
curbside node
900MHz
31Mesh node
- VIA MB770F motherboard
- Ubiquity SR2 (400mW)
- w/ 8dBi omni-directional ant.
- Ubiquity SR9 (700mW)
- w/ 6dBi omni-directional ant.
- Uniwred modem
- Diamond digital router
- Netgear powerLAN adapter
- Fault recovery
- Remote switch
- Watchdog timer
- Roof for water/heat proof
- Mosquito mesh for insect proof
32(No Transcript)
33Gateway Node
34Curbside Node
Power-over-ethernet adapter
35Software
- custom-built Linux OS image
- watchdog timer
- A daemon periodically update the timer to keep
system from rebooting - Software from Orbit project
- Including OML for measurement collection
36Outline
- Background
- Site survey for the testbed
- Wireless mesh testbed
- Preliminary results
- Experience we learned and conclusion
37Effect of hop numbers on losses
(2.4GHz)
One hop 521-522 Two hop 521-523
- Consecutive loss increases as the number of hops
increase - On the same link or from different links?
38Effect of distance on losses (with 2.4GHz)
521-522 200m 521-523 400m
losses become burstier as the distance increases
39Effect of number of hops on latency
Latency and its variation increase as the number
of hops increase
40Effect of distance on latency
Latency is not strongly correlated with distance
41Effect of distance on loss
Loss is not completely correlated with distance
location-dependant
42Effect of antenna location
Antenna location makes a difference
43900MHz vs. 2.4GHz
900MHz has a lower loss rate but higher latency
due to retry?
44Power-line communication
Powerline communication works pretty well when
distance is within Its operation region
45Throughput from different technologies
- Larger variation for 900 Hz
- powerline does better than radio when the
distance is short
46Latency of Unwired link(round-trip delay from
mesh node to unwired gateway)
A
- High latency
- Large variation
- Outage is common
A
B
47Latency of backhaul link(round-trip delay from
nicta to mesh node)
A
AB
AB
Almost half of the delay happens on the Unwired
wireless link
48Clear Diurnal Pattern
-
- More interference?
- Other user traffic causing network congestion?
49Outline
- Background
- Site survey for the testbed
- Wireless mesh testbed
- Preliminary results
- Experience we learned and conclusion
50Deployment
- Protection of antenna connectors is necessary
- Connectors often held on by weak glue or crimp.
- Gradual stress (e.g. vibration) could eventually
loosen the plug - degrade the signal before it is transmitted into
the air - Make sure that your wireless cards comply to the
specification before starting using them. - E.g. some of our Senao wireless cards does not
output 200mW as they should
51Deployment
- while the hardware can be identical, different
firmwares and drivers could introduce inaccuracy
in the measurement results. - compare against with a spectrum analyzer if you
can! - Antenna locations matter!
- At 2.4GHz, a quarter wavelength is approximately
30cm - when multiple antennas are deployed, it is
essential to have a means for independently
adjusting their position.
52Maintenance
- Remote management is important for an outdoor
testbed - Access the node
- Unwired link
- 802.11 link
- Ethernet port
- Serial port
- Reboot the node
- Remote switch
- Watchdog timer
- PXE network reboot (configured in BIOS)
- DHCP server by default does not provide PXE boot
info - Second image for fallback (via Grub)
53Security
- A major concern to to any wireless network
- Anybody can sniff the air
- Connected to the Internet via Unwired
- Its real!! Two nodes were hacked.
- integrated with the traffic control system
security model - segmentation to contain the damage of a attack
- multiple levels of fallback to local control
54Interference
- 2.4GHz/900MHz are shared channels
- We saw an average of 50 external APs at any time
of the day - A serious problem when WiFi becoming more and
more pervasive
55Conclusion
- It is feasible to build a wireless network with
off-the-shelf hardware/software to control
traffic lights - Signal quality and losses are location-dependent
(but not strongly correlated with distance) - For a good link, losses are in general uniformly
distributed - Larger variation in 900MHz than in 2.4GHz
- Powerline communication is excellent for a short
distance - Issues with using public shared network
- Large variations and outages is a norm
- Diurnal patterns
56Future work..
- By collaborating with NICTA and department of
transportation _at_ NCKU, we plan to a build a
similar testbed around NCKU campus - Vehicle-infrastructure communication
- Multimedia (Video/Audio) over mesh
- Hierarchical mesh-sensor networks
57..Future work
- Wireless data mining
- Loss Model for mesh links
- Outage prediction
- Dynamic channel assignment
- Multi-path routing
58Thank you!
59Why WMN for traffic control?
- Low installation cost
- Low front-end investment
- Easy maintenance
- Robust and reliable
- Reliability increases as the number of nodes
increase
60Effect of antenna
- directional antenna exhibits similar performance
as omni-directional antenna for most of the links
in our environment - But directional antenna does help for challenging
links
61Testbed location
- A typical suburban area with lots of traffic,
foliages, pedestrians and high-rise residential
buildings. - The 200-500m range is representative of 90 of
the distance between traffic controllers in the
Sydney CBD area - Close to NICTA (for on-site maintenance)
