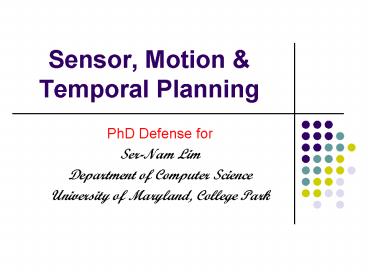

Sensor, Motion Temporal Planning
  • PhD Defense for
  • Ser-Nam Lim
  • Department of Computer Science
  • University of Maryland, College Park

2
Outline
  • Two-camera background subtraction
  • Invariant to shadows, lighting changes.
  • Multi-camera background subtraction and tracking
  • Occlusions.
  • Active camera
  • Predictive tracking.
  • Motion, temporal planning.
  • Camera scheduling.
  • Abandoned package detection
  • Severe occlusions.
  • Temporal analysis in a statistical framework to
    minimize reliance on thresholding.

3
1. Two-camera Background Subtraction
  • Details given during proposal.
  • "Fast Illumination-invariant Background
    Subtraction using Two Views Error Analysis,
    Sensor Placement and Applications", IEEE CVPR
    2005.

4
Problem Description
  • Single-camera background subtraction
  • Shadows,
  • Illumination changes, and
  • Specularities.
  • Disparity-based background subtraction
  • Can overcome many of these problems, BUT
  • Slow and
  • Inaccurate online matches.

5
Two-Camera Algorithm
  • Real time, two-camera background subtraction
  • Develop a fast two camera background subtraction
    algorithm that doesnt require solving the
    correspondence problem online.
  • Analyze advantages of various camera
    configurations with respect to robustness of
    background subtraction.

6
Fast Illumination-invariant Two-cameras Approach
  • Clever idea due to Ivanov et. al.
  • Yuri A. Ivanov, Aaron F. Bobick and John Liu,
    Fast Lighting Independent Background
    Subtraction, IEEE Workshop on Visual
    Surveillance, ICCV'98, Bombay, India, January
    1998.
  • Intuition
  • Established background conjugate pixels offline.
  • Color differences between conjugate pixels.
  • What are the problems?
  • False and missed detections caused by homogeneous
    objects.

7
Intuition
Color difference still small with shadow
Color difference of the image point in both
cameras are small when building the background
8
False Detections
Reference camera
Happens when object is close to background.
Big color difference even though its background!!
9
Missed Detections
Reference camera
Background occluded!! Both cameras see color on
the truck, so small color difference if
homogeneous
10
Eliminate False Detections
  • Place the two cameras vertical to each other with
    respect to the ground plane on which object moves

11
Reference camera
Now, whenever refcam sees background, the other
cam too
Big color difference even though its background!!
12
Reducing Missed Detections
  • Initial detection free of false detections.
  • And the missed detections form a component
    adjacent to the ground plane.
  • Utilize stereo matching of the initial detection
    to infer height and fill up the missed portion.

13
Refcam
Infer height through selective stereo
14
Advantages
  • FAST!! No online stereo matching.
  • Invariant to shadows, lighting changes.
  • Invariant to specularities
  • Through a height-inferring process.
  • Detect near-background object
  • Difficult problem with disparity-based background
    subtraction.
  • Accurate
  • Offline stereo matching can be computational
    intensive.
  • Human intervention can be used.

15
Experiments Lighting Changes
16
Experiments - Specularities
17
Experiments - Specularities
18
Experiments Near Background
19
Experiments - Indoor
20
2. Multi-camera Detection and Tracking Under
Occlusions
  • Preparing for submission.

21
Problem
  • Severe occlusions make detection and tracking
    difficult.
  • We often need to observe highly occluded places!!
  • Partial and full occlusions.

22
Algorithm Outline
  • Silhouette detection on a per-camera basis.
  • Count people in a top view.
  • Constrained stereo.
  • Sensor fusion particle filter.

23
Silhouette Detection background subtraction
24
People Counting
  • Project the foreground silhouettes onto a common
    ground plane do it for every available camera.
  • Intersect projections of different cameras.
  • Obtains a set of polygons, that possibly contain
    valid objects.
  • Number of polygons is a rough estimate of the
    number of people in the scene.

25
Phantom polygon
Camera 1
Camera 2
26
Selective Stereo
Correct vertical line
Epipolar line
Wrong vertical line
Good color matching
Phantom polygon.
Ground plane pixel
27
Constrained Stereo
Vertical line
Correct vertical line
Wrong vertical line
Foreground pixel
Good color matching
Bad color matching
Phantom polygon.
Epipolar line
Mapped candidate ground plane pixels
Candidate ground plane pixels
Camera 1 view
Camera 2 view
28
Note that only the visible foreground pixels are
successfully segmented based on selective stereo
with one pair.
Partial and full occlusions need to be dealt
with multiple camera fusion. How??
29
Additional Consideration Sensor Fusion
  • Choosing the best stereo pairs for performing
    stereo matching guided by particle filter.

30
Count people
  • Use
  • Danny Yang, Hector H. Gonzalez-BaĆ²nos, Leonidas
    J. Guibas, Counting People in Crowds with a
    Real-Time Network of Simple Image Sensors, ICCV,
    2003.
  • Notice the errors!!

31
Final Results
32
3. Active Camera
  • Submitted to ACM Multimedia System Journal.
  • Submitted to ACM Multimedia 2006.
  • Constructing Task Visibility Intervals for
    Surveillance Systems, VSSN Workshop, ACM
    Multimedia 2005.
  • A Scalable Image-based Multi-camera Visual
    Surveillance System, AVSS 2003.

33
Problem Description
  • Given
  • Collection of calibrated PTZ cameras and
  • Large surveillance site.
  • How to control cameras to acquire surveillance
    videos?
  • Why collect surveillance videos?
  • Collect k secs of unobstructed video from as
    close to a side angle as possible for gait
    recognition.
  • Collect unobstructed video of person near any ROI.

34
Project Goals - Visual Requirements
  • Targets have to be unobstructed in the collected
    videos during useful video collections.
  • Involves predicting object trajectories in the
    field of regard based on tracking.
  • Targets have to be in the field of view in the
    collected videos.
  • Constrains PT parameters for cameras as a
    function of time during periods of visibility.
  • Targets have to satisfy some task-specific
    minimum resolutions in the collected videos.
  • Constrains Z parameter.

35
Project Goals - Performance Requirements
  • Scheduling cameras to maximize task coverage.
  • Determine future time intervals within which
    visual requirements of tasks are satisfied
  • We first do this for each camera, task pair.
  • We then combine these solutions across tasks and
    then cameras to schedule tasks.

36
System Timeline
  • For every (camera, task, object) tuple
  • Detection and tracking using existing methods.
  • Predict future locations of objects.
  • Visibility analysis, to predict period during
    which objects are visible visibility intervals.
  • Determine allowable camera settings over time,
    within these visibility intervals to form Task
    Visibility Intervals (TVIs).
  • Composite TVIs to form Multiple Task Visibility
    Intervals (MTVIs) - scalability.
  • Scheduling scalability.

37
Predicting Future Location
  • Represent object as sphere.
  • For computational efficiency, each sphere
    represented as triplet of circular shadows on the
    projection planes for visibility analysis
  • Extrapolate the motion of each shadow for
    predicting their future locations.
  • Each shadow move in a straight line in the
    predicted path, and its radius is grows linearly
    to capture the positional uncertainty.

38
Predictive Tracking Experiments
39
Visibility Analysis
  • With the predicted locations, we can represent
    the extremal angle trajectories over time of each
    shadow in closed-form
  • Extremal angles are the angles subtended by the
    pair of tangent points.

Straight line trajectory
Shadows radius increases over time
Extremal angle of one tangent point
Camera center
40
  • The extremal angle trajectories of two different
    objects, are equated to find time intervals
    (intersections) when occlusion occurs occlusion
    intervals
  • Complements of occlusion intervals are the
    visibility intervals.
  • Can do this for every object pair. But can be
    more efficient using an optimal segment
    intersection algorithm (details given in
    dissertation).

41
Efficient Segment Intersection vs Brute Force
42
(No Transcript)
43
Task Visibility Intervals (TVIs)
  • Combine allowable camera settings over time with
    visibility intervals to form TVIs.
  • Allowable camera settings are determined at each
    future time step in the visibility interval
  • Iterates through range of pan, tilt and zoom
    settings, and determine time intervals during
    which PTZ ranges exist that satisfy task-specific
    resolution.
  • For efficiency, use a piecewise approximation to
    the PTZ range.
  • These TVIs must also satisfy the required length
    of collected video.

44
Multiple Task Visibility Intervals (MTVIs)
  • TVIs can be combined if
  • Common time intervals exist that are at least as
    long as the maximum required processing times
    among all the tasks involved.
  • Common camera settings exist in these common time
    intervals.
  • For efficiency, TVIs can be combined with a
    plane-sweep algorithm.

45
Zoom
46
Camera Scheduling
  • Scheduling based on the constructed (M)TVIs.
  • Two methods are compared
  • Branch and bound.
  • Greedy.

47
  • Define slack ? as
  • ? t?-, t? r, d p,
  • where d is the deadline, r is the earliest
    release time and p is the processing time
    (duration of task).
  • Let ? be t? - t?-.
  • It can be shown that if ?max lt pmin, then in
    any feasible schedule, the (M)TVIs must be
    ordered by r.

48
  • Each camera can then be modeled with a acyclic
    graph with source and sink, with the nodes being
    the (M)TVIs and the edge being the number of
    tasks covered on moving from one node to another.
  • The sink of the graph of one camera is linked to
    the source of the graph of another camera
    cascading.

49
Example
1
4
0
0
2
2
0
0
s1
t1
2
s2
t2
2
2
5
2
0
2
0
3
6
0
0
7
2
0
0
0
s3
t3
2
t
8
2
0
9
50
  • Dynamic Programming (DP) is run on the
    multi-camera graph
  • Equivalent to greedy algorithm, BUT
  • Branch Bound look at what are the tasks other
    cameras in the graph can potentially covered
    while running DP backtracking.

51
Approximation Factors Branch Bound vs Greedy
  • Given k cameras, the approximation factor for
    multi-camera scheduling using the greedy
    algorithm is 2 k??, where ? and ? are variables
    representing the distribution of tasks among the
    cameras.
  • Proof in dissertation.
  • Important depends on the number of cameras,
    i.e., does not scale well to large camera
    networks!!

52
  • For k cameras, the approximation factor of the
    branch and bound algorithm is
  • Proof in dissertation - ? and u are task
    distribution factors.
  • Important insensitive to number of cameras!!

53
Performance Simulations
54
Experiments Face Capture
55
Experiments Full Body Video
56
Experiments Lower Resolution
57
Experiments Higher Resolution
58
4. Abandoned Package Detection under Severe
Occlusions
  • A short overview.
  • Refer to dissertation for details.
  • Preparing for submission.

59
Constraints
  • No background frame available.
  • Constant foreground motion.
  • Constant occlusion.
  • Single camera.

60
Algorithm
  • PDF for motion detection, Pd
  • Observe successive frame differences.
  • Assume pdf is zero-mean extract the
    zero-centered mode.
  • PDF for background model, Pb
  • Histogram frequency computed based on joint
    probability with Pd.
  • Intuition true background pixels should observe
    no motion.

61
  • PDF of static pixels that are foreground,
    conditioned on Pb and Pd
  • Intuition pixels belonging to abandoned
    packages are static foreground pixels.
  • MRF to label these pixels. Avoid thresholding.
  • Evaluate the clusters based on temporal
    persistency of shape (Hausdorff) and intensities.

62
Experiments
63
(No Transcript)
64
(No Transcript)
65
Conclusions
  • The role of sensor placement in detections
  • Highlighted in two-camera background subtraction.
  • The role of sensor placement/selection in
    tracking under occlusions
  • Improve stereo matching by choosing different
    stereo pairs based on a particle filter.
  • Active camera system
  • A challenge to deploy in real world applications.
  • Depends a lot on predictive tracking, how can we
    improve it?
  • Left-baggage detection
  • What if the baggage is invisible (e.g., bomb left
    in trash can!!)?

66
Thanks!!
  • Prof. Larry Davis for his support and teachings.
  • Committee for taking their time.
Write a Comment
User Comments (0)
About PowerShow.com
