Oceanic Lithosphere Deformation

1
Oceanic Lithosphere Deformation

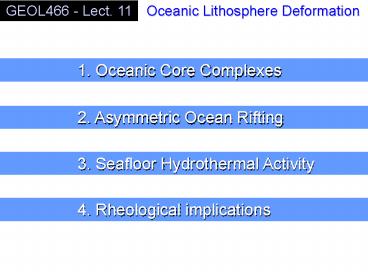

GEOL466 - Lect. 11
1. Oceanic Core Complexes
2. Asymmetric Ocean Rifting
3. Seafloor Hydrothermal Activity
4. Rheological implications
2
1. Oceanic Core Complexes

• Transform Zones cut Ocean Ridges at a right angle

• Extensional forces acting on oceanic plates near
  a spreading center produce a variety of seafloor
  morphologies.

• One of the yet unexplained seafloor morphologies
  consists in large, domal massifs that appear to
  form during periods when much of the extensional
  strain is localized along a detachment fault
  Oceanic Core Complexes

3
1. Oceanic Core Complexes

• Sustained relative motion along the fault
  results in the footwall being unroofed to expose
  lower crustal gabbro and upper mantle peridotite
  at the seafloor.
• Adjacent upper crustal blocks (hanging wall)
  show typical volcanic seafloor morphology.
• Such large domal massifs are often found at the
  inside corner of ridge-transform intersections
  (RTI)

inside corner
outside corner
outside corner
inside corner
4
1. Oceanic Core Complexes
Cross-section of an oceanic core complex

• detachment fault
• footwall
• hanging wall
• asymmetry

5
1. Oceanic Core Complexes
An outstanding example of an oceanic core complex
has been mapped at the eastern intersection of
the Mid-Atlantic Ridge and the Atlantis transform
fault.
MAR 30N
6
Northern Mid-Atlantic Ridge
MAR 30N
7
1. Oceanic Core Complexes
oceanic dome
8
1. Oceanic Core Complexes
9
Perspective view of MAR 30N core
complex vertical exageration 2x
10
1. Oceanic Core Complexes
Map view of MAR 30N core complex
11
1. Oceanic Core Complexes - The Atlantis Massif
12
2. Asymmetric Ocean Rifting
Is ocean rifting symmetric or asymmetric with
respect to ridge axis ?
fast
intermediate
slow
it depends on the spreading rate ...
13
2. Asymmetric Ocean Rifting
Multibeam bathymetry
Interpretation
Ze, Zw neovolcanics Be, Bw Brunhes M Matuyama F fa
ult
Magnetic profile
Magmatic accretion is extremely asymmetric at the
ends of slow-spreading ridges (Allerton et al.,
2000)
14
2. Asymmetric Ocean Rifting
Magmatic accretion history - past 0.7
Myr (Allerton et al., 2000)
15
2. Asymmetric Ocean Rifting
Symmetric accretion model - segment
center (Allerton et al., 2000)
16
2. Asymmetric Ocean Rifting
Asymmetric accretion model - segment
ends (Allerton et al., 2000)
17
3. Seafloor Hydrothermal Activity
Hydrothermal activity off ridge axis (Kelley et
al., 2001)
18
3. Seafloor Hydrothermal Activity
19
3. Seafloor Hydrothermal Activity

• A huge new type of hydrothermal vent field has
  been discovered at 30 North near the
  Mid-Atlantic Ridge.
• These structures stand up to 60 metres above the
  seafloor, making them the largest hydrothermal
  chimneys of their kind ever observed.
• Most known hydrothermal fields are found on
  young crust, driven by hot basaltic material, but
  the newly discovered 'Lost City' field is located
  on 1.5-million-year-old crust and fuelled by vent
  fluids much cooler than the norm for 'black
  smokers'.
• This discovery implies that the area of oceanic
  crust supporting hydrothermal activity and
  abundant microbial life is much greater than was
  previously thought.

20
4. Rheological implications
21
4. Rheological implications
22
4. Rheological implications
23
4. Rheological implications
24
4. Rheological implications
