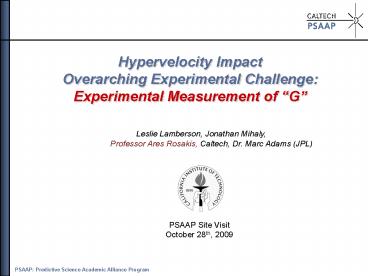

Hypervelocity Impact Overarching Experimental
Challenge Experimental Measurement of G
Leslie Lamberson, Jonathan Mihaly,
Professor Ares Rosakis, Caltech, Dr. Marc Adams
(JPL)
PSAAP Site Visit October 28th, 2009
2
The Experiment
Hypervelocity Impact a HIGH ENERGY DENSITY
EVENT
Important Physics
3
The Experimental Facility
4
Facility
TARGET TANK
PUMP TUBE
LAUNCH TUBE
FLIGHT TUBE
BREECH
STAGE 1
STAGE 2
5
Facility
TARGET TANK
PUMP TUBE
LAUNCH TUBE
FLIGHT TUBE
BREECH
STAGE 1
STAGE 2
6
Facility
TARGET TANK
PUMP TUBE
LAUNCH TUBE
FLIGHT TUBE
BREECH
STAGE 1
STAGE 2
7
Facility
TARGET TANK
PUMP TUBE
LAUNCH TUBE
FLIGHT TUBE
BREECH
STAGE 1
STAGE 2
Launch Package Examples
Mylar Burst Disk
3 mil (1x103 in) thick 11/16 diameter
8
Facility
TARGET TANK
PUMP TUBE
LAUNCH TUBE
FLIGHT TUBE
BREECH
STAGE 1
STAGE 2
9
Facility
TARGET TANK
PUMP TUBE
LAUNCH TUBE
FLIGHT TUBE
BREECH
STAGE 1
STAGE 2
10
PSAAP Experiment Impactor Target
Front Spall Cloud
Debris Cloud

• Impactor
• Material (SS, Ta, nylon)
• Speed (V)
• Size

Witness Plate/Capture Media

• Target
• Material (SS, Ta)
• Thickness (h)
• Impact Obliquity (a)

Controllable Input Parameters
Current Experiment Results (output)

• Target material
• Target thickness (h)
• Impact Obliquity (a)
• Impact Mass (m)
• Impact Material

• Impact Velocity (V)
• Target Deformation
• Perforation Area (A)
• Ejecta characterization

11
Typical Experimental Configuration
Witness Plate
Target
aluminum witness plates replaced by capture media
Impactor

• Target Materials
• Steel
• Aluminum
• Tantalum

Ø 71 mil (1x10-3 in) launch tube bore

• Impactor Materials
• Steel
• Nylon
• Aluminum
• Tantalum

• Impact Speeds 2 to 10 km/s
• Impact Obliquities 0 to 80 degrees
• Impactor Mass 1 to 50 mg

11
12
SPHIR Experiment Demonstration

12
13
The Experimental FacilityGun Performance
14
The Experimental FacilityGun Performance
SPHIR smooth-bore design maximizes launch
package velocity but prevents use of conventional
sabot technology
15
The Experimental FacilityGun Performance
New sabot technology must be developed to launch
small SS Ta spheres to ultra high velocities
?10km/s

• Objectives
• Achieve impact speed - 10 km/s
• Clean launch (only impactor hits target)
• Accurate launch
• Reliable launch

16
Velocimetry Method 2 4 km/s

• Impact speed determined from time of flight
  between mylar sheet and target
• Target and mylar 0.60 m apart
• Mylar 12.7 mm thick (min effect on impactor)


2D Static Side View
17
Capturing Impact Velocity 2 4 km/s
Launch Package 440 C Steel Sphere L/D 1, D
1.8 mm, M 24 mg H2 Pressure 150 psi Vacuum
15 Torr
Target 304 Stainless Steel 150 x 150 x 2.7
mm 0º Obliquity Shot Velocity 2.5 km/s
18
Capturing Impact Velocity 4 km/s
Launch Package Nylon Slug L/D 1, D
0.070 H2 Pressure 150 psi Vacuum 1 Torr
Target 304 SS, 6x6x0.073 0 Obliquity
Shot Velocity 6.0 km/s
Higher velocities (V gt 4 km/s) produce streak

18
19
SPHIR Optical Diagnostics

• Analysis in Transmission
• to understand materials under hypervelocity
  impact induced dynamic behavior

20
Optical Methodologies I
Mylar 1.5 MPa

• Caustics - Transmission

CAUSTIC
CRACK
D
21
Optical Methodologies II

• Dynamic Photoelasticity

Isochromatic Fringe Data
22
Experimental Configuration

• Birefringent Materials Mylar Homalite100
• Tension Loads 0.5 4 MPa
• Impact Speeds 3-6 km/s

Optical distortions removed from images for
analysis in MATLAB via control point selection
using the image toolbox
(Above) Optical Path (Right) Target loaded in
tension with collimated laser light illumination
23
Homalite 100 In-situ Behavior
Unloaded
Loaded 3.75 MPa, Circular Hole
Nylon Slug, Impact Velocity 5.5 km/s
24
General Behavior HOMALITE 100

• Brittle behavior Extent of crack growth depends
  on pre-load, stress concentration, hypervelocity
  impact speed, and relation of impact site to
  stress concentration
• Lower crack tip speeds (lt300 m/s) result in crack
  growth during wave reflections and interactions
• KINKED FRACTURE SURFACE

Impact Site
(1)

• 3.75 MPa pre-load, multiple crack propagation
  sites (with branching), 5.7 km/s impact

(2)
(2) 1.8 MPa pre-load, 5.9 km/s impact
25
Mylar In-situ Behavior
Unloaded
Loaded 3.75 MPa, Pre-crack
Nylon Slug, Impact Veloctiy 5 km/s (left), 4.5
km/s (right)
26
General Behavior - Mylar

• Extensive crack growth beyond impact location
  exhibited only under pre-loaded (tension)
  conditions
• Under pre-load, if hypervelocity impact location
  was within approximately 1 diameter of the
  pre-stress concentration location, cracks would
  propagate from the concentration location instead
  of impact site
• High crack tip speeds (gt 500 m/s) allow cracks to
  more closely follow initial dilatational waves
  from impact
• FLAT FRACTURE SURFACE

(1)
(2)

• Loaded before impact (no stress concentration)
• 100 µs after impact at 4.7 km/s

27
Instrumentation - Conoscope

• Conoscope
• VISAR
• CGS (in situ)
• Backlighting
• Spectroscopy

• Optimet MiniConoscan 3000
• highest resolution available (microns) laser
  reflectance profilometer
• Scans 4 x 4 area with 6-10 mm precision in x,
  y, z
• Produces surface map as x,y,z coordinate table

Metric Provided to Analysts Accurately measured
post-test target deformation features for
comparison with numerical simulation

• G Data Provided
• Target Perforation area
• Post-test slope map (Surface Slope f(x,y)

Delivery Nov 2009 Operational Dec 2009 PSAAP
Data Collection Dec 2009
Image courtesy of Optimet Optical Metrology
27
Image courtesy of Optimet Optical Metrology
28
Conoscope Performance Measure
Previously used microscope images to create mask
of perforated area
Conoscope improves uncertainty of measurement and
allows flexibility in selecting measured quantity
1/32
x,y,z
MiniConoscan Image courtesy of Optimet Optical
Metrology
29
Conoscope Performance Measure
Replicated tests have exhibited large scatter in
the perforation area
Consider area interior to defined critical
height/slope?
x,y,z
MiniConoscan Image courtesy of Optimet Optical
Metrology
30
Instrumentation - VISAR
Continuous Measurement of Target Surface
Velocity at selected points during impact

• Conoscope
• VISAR
• CGS (in situ)
• Backlighting
• Spectroscopy

• High temporal definition (entire impact event
  with lt1 ms resolution)
• Limited spatial resolution (data taken at 4
  points, can be expanded to 7)

Metric Provided to Analysts Normal surface
velocity of entire deformation event at 4
selected points with high lt1 ms resolution
Valyn Multi-Beam VISAR
Delivery Feb 2010 Operational Mar 2010 PSAAP
Data Collection May 2010
Image courtesy of Valyn
30
31
Instrumentation - CGS
Continuous Measurement of Full-field Target
Surface Slope in X and Y directions during impact

• Conoscope
• VISAR
• CGS (in situ)
• Backlighting
• Spectroscopy

• Limited temporal definition (8 selectable
  camera exposure times from ns to ms)
• High spatial resolution (entire target)

Metric Provided to Analysts Contour maps of
entire target describing slope in x and y
directions at 8 selectable times
Coherent Gradient Sensing (CGS)

• currently have post mortem CGS capability

Delivery Jan 2010 Operational Jun 2010 PSAAP
Data Collection Aug 2010
31
32
Post-mortem CGS

• Surface slope maps utilizing a shearing
  interferometry technique Coherent Gradient
  Sensing (CGS)

Interferogram Digitized Slope Map
Sample CGS results, 304 stainless steel disc 10
mm thick, nylon cylindrical slug 2 mm length L/D
1, Stern (rear side), impact velocity 5.5 km/s,
un-penetrated target

32
33
Post mortem CGS II

• 3-D topological deformation mapping of
  post-impacted specimen

33
34
Instrumentation - Back Lighting

• Continuous imaging of entire impact event in 5ns
  to 1 ms intervals

• Conoscope
• VISAR
• CGS (in situ)
• Backlighting
• Spectroscopy

Metric Provided to Analysts Continuous
silhouette images (5ns to 1ms) resolution of
impact event with collimated laser or white light
Flashlamp /or Collimnated Laser
Delivery Jan 2010 Operational Sep 2010 PSAAP
Data Collection Oct 2010
34
