Homology modelling

1

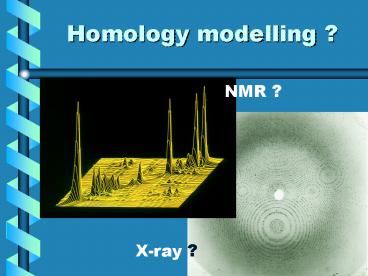

Homology modelling ?
NMR ?

X-ray ?
2
Homology Modelling !

3
Helices are Helices

4
Strands are Strands

5
StructureConservation

6
StructureConservation

7
Modelling beats X-ray

8
Data infinite

9
What can be Modelled ?

10
What can be Modelled ?

11
The 8 Steps of Modelling
1 Detect template 2 Get alignment 3 Optimize
alignment 4 Optimize template 5 Exchange side
chains 6 Deal with insertions/deletions 7
Optimize model 8 Validate 9 Iterate

12
The 8 Steps of Modelling
1 Detect template 2 Get alignment 3 Optimize
alignment 4 Optimize template 5 Exchange side
chains 6 Deal with insertions/deletions 7
Optimize model 8 Validate 9 Iterate

13
Template detection
Normally BLAST is good enough. If BLAST doesnt
find a template, You should not want to build a
model. When desperate, use PSI-BLAST (on PDB
SwissProt), or use threading.
14
Threading
Threading means Use information from the
template structure to detect homology, or to
improve an alignment.
15
Threading
Small residues
16
Threading
Alcoholic residues
17
Threading
The folded protein
18
Threading
Two aligned proteins
19
The 8 Steps of Modelling
1 Detect template 2 Get alignment 3 Optimize
alignment 4 Optimize template 5 Exchange side
chains 6 Deal with insertions/deletions 7
Optimize model 8 Validate 9 Iterate

20
Alignment
Run BLAST on model sequence Run BLAST on template
sequence Select 50-100 representatives Do
multiple sequence alignment Keep only model and
template
21
How to align
ASASASASASAS YPYPYPYPYPYP (three ways)
22
How to align
ASASASASASAS- AYAYAYAYAYAY- -YPYPYPYPYPYP (two
ways)
23
The 8 Steps of Modelling
1 Detect template 2 Get alignment 3 Optimize
alignment 4 Optimize template 5 Exchange side
chains 6 Deal with insertions/deletions 7
Optimize model 8 Validate 9 Iterate

24
Alignment optimization
1 Use threading techniques. 2 Shift gaps around
25
The 8 Steps of Modelling
1 Detect template 2 Get alignment 3 Optimize
alignment 4 Optimize template 5 Exchange side
chains 6 Deal with insertions/deletions 7
Optimize model 8 Validate 9 Iterate

26
Select best template

27
Deal with errors

28
The 8 Steps of Modelling
1 Detect template 2 Get alignment 3 Optimize
alignment 4 Optimize template 5 Exchange side
chains 6 Deal with insertions/deletions 7
Optimize model 8 Validate 9 Iterate

29
Exchange side chains
Keep template rigid Determine best rotamer Do NOT
optimize rotamers If best rotamer doesnt fit,
start thinking. If the model is bad, you had the
wrong template, or the wrong alignment. Make sure
your model exists

30
Position specific rotamers

31
Position specific rotamers

32
Position specific rotamers

33
The 8 Steps of Modelling
1 Detect template 2 Get alignment 3 Optimize
alignment 4 Optimize template 5 Exchange side
chains 6 Deal with insertions/deletions 7
Optimize model 8 Validate 9 Iterate

34
Insertions - Deletions
Insertions are impossible Deletions Move gap
around in template till end point distance is
short. If this is not possible, you have either
the wrong template, or the wrong alignment.

35
The 8 Steps of Modelling
1 Detect template 2 Get alignment 3 Optimize
alignment 4 Optimize template 5 Exchange side
chains 6 Deal with insertions/deletions 7
Optimize model 8 Validate 9 Iterate

36
Model Optimization
Do NOT use molecular dynamics

37
Model Optimization

Use 25 50 steps energy minimization, or use a
force field that has been especially designed for
the optimization of homology models.
38
The 8 Steps of Modelling
1 Detect template 2 Get alignment 3 Optimize
alignment 4 Optimize template 5 Exchange side
chains 6 Deal with insertions/deletions 7
Optimize model 8 Validate 9 Iterate

39
The 8 Steps of Modelling
1 Detect template 2 Get alignment 3 Optimize
alignment 4 Optimize template 5 Exchange side
chains 6 Deal with insertions/deletions 7
Optimize model 8 Validate 9 Iterate
