Crystal collimation for LHC

1

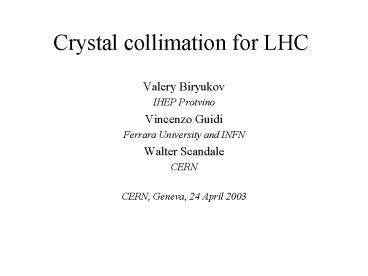

Crystal collimation for LHC

• Valery Biryukov
• IHEP Protvino
• Vincenzo Guidi
• Ferrara University and INFN
• Walter Scandale
• CERN
• CERN, Geneva, 24 April 2003

2
Borrowed from Ray Flillers talk at Paris EPAC
2002
3
Crystal Channeling
4
Beam line (70 m long) made of 3 crystals, IHEP
5

• Beam focusing by crystal

6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
Crystal design as used at IHEP Protvino and RHIC
Crystal is 3 to 5 mm along the beam
12
(No Transcript)
13
Crystal
SQUEEZE
Beam Direction
5mm
Crystal Courtesy of IHEP, Protvino
14
New crystal design (strip) gave 85 efficiency
at IHEP
15
(No Transcript)
16
Typical beam phase space at crystal location, IHEP
17
1- circulating beam, 2- extracted beam, IHEP
18
Crystal extraction efficiency as measured since
Dec 1997.85 is measured even when all stored
beam is dumped onto crystal
19
(No Transcript)
20
Deflected (left) and incident (right) beams as
seen downstream of the crystal

• Prior to the test, the crystal was exposed in the
  ring to 50-ms pulses of very intense beam (about
  1014 proton hits per pulse).
• No damage of crystal was seen in the test, after
  this extreme exposure.

21
Beam profile at collimator face with NO crystal,
70 GeV
22
Misaligned x
23
Crystal collimation
24
Effy vs Energy
25
45 GeV
26
12 GeV
27
Crystal lifetime is order of 51020 proton/cm2
28
RHIC Crystal Collimator Setup
8 Upstream PIN diodes
4 Downstream PIN diodes
Data fill focus on upstream PIN diodes
29
Layout of RHIC experiment on crystal collimation
30
(No Transcript)
31
RHIC measurements, EPAC 2002
32
Simulations of LHC crystal collimation
33
Simulations with smaller bending, 0.1 mrad
34
Two bending options compared 0.2 and 0.1 mrad
35
Efficiency vs bending angle
36
Background suppression factor vs crystal bending
37
FNAL simulations for Tevatron crystal scraping,
PAC 1999
38
Conclusion

• Simulations and experiments promise
• 10-fold improvement in backgrounds
• at TeV accelerators if bent crystal is used as
  primary scraper.
• No problems with high intensity or lifetime.

39
Extraction parameters

• Protons
• Energy at 1.3-70 GeV
• Intensity 1012 protons in spills of 2 s duration
• Efficiency greater than 85
• Equivalent to 1000 T dipole magnetic field

Extraction efficiency vs. crystal length at 70
GeV
40
Structure of the bending crystal

• Dimensions 0.5?2?50mm3
• 1/R? is the curvature experienced by channelled
  protons

41
Bending device

• Bending exploits anticlastic effects due to
  anysotropy of crystalline Si
• For the (111) direction the sample takes the
  shape of a saddle

42
Preparation of the Si samples I

• Starting material is prime-grade, (111) oriented
  525-?m-thick silicon wafer
• In previous runs there came out that a surface
  layer as thick as 30 ?m was rich in scratches,
  dislocations, line defects and anomalies that
  would reduce channelling efficiency
• Such a layer originated in the mechanical cutting
  for manufacturing the samples
• Thus we attempted removal of the layer

43
Preparation of the Si samples II

• Preliminary cleaning to organic and metallic
  impurities from the surface of the wafers by
  H2O2, NH4OH, HF, HCl,...
• Coverage of the largest surfaces by Apiezon wax
• Cutting of the samples by a diamond-blade saw
  avoiding alignment with major crystalline axes.
• Planar etching (HF, HNO3 and CH3COOH, 2155)
  with a timing set for 30 ?m thinning.

More info in Rev. Sci. Instrum. 73 (2002)
3170-3173
44
Images of the beam deflected through
mechanically treated (left) and chemically
polished crystals (right)
