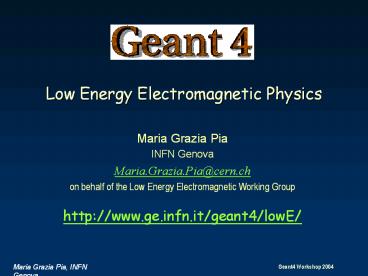

Low Energy Electromagnetic Physics

1
Low Energy Electromagnetic Physics

• Maria Grazia Pia
• INFN Genova
• Maria.Grazia.Pia_at_cern.ch
• on behalf of the Low Energy Electromagnetic
  Working Group

http//www.ge.infn.it/geant4/lowE/
2
Overview of physics

• Compton scattering
• Rayleigh scattering
• Photoelectric effect
• Pair production
• Bremsstrahlung
• Ionisation
• Polarised Compton
• atomic relaxation
• fluorescence
• Auger effect
• following processes leaving a vacancy in an atom

• In progress
• More precise angular distributions (Rayleigh,
  photoelectric, Bremsstrahlung etc.)
• Improved PIXE
• Development plan
• Driven by user requirements
• Schedule compatible with available resources

• in two flavours of models
• based on the Livermore Library
• à la Penelope

3
Advanced Examples
Low Energy Electromagnetic Physics

• Stefano Agostinelli
• Henrique Araujo
• Pablo Cirrone
• Giacomo Cuttone
• Maria Catarina Espirito Santo
• Franca Foppiano
• Stefania Garelli
• Patricia Goncalves
• Alex Howard
• Ana Keating
• Susanne Larsson
• Jakub Moscicki
• Michela Piergentili
• Alberto Ribon
• Giovanni Santin
• Bernardo Tome

• Stéphane Chauvie
• Susanna Guatelli
• Vladimir Ivanchenko
• Francesco Longo
• Alfonso Mantero
• Barbara Mascialino
• Petteri Nieminen
• Luciano Pandola
• Sandra Parlati
• Luis Peralta
• Andreas Pfeiffer
• Maria Grazia Pia
• Pedro Rodrigues
• Simona Saliceti
• Andreia Trindade
• Paolo Viarengo

4
Activities

• Recent physics developments
• Testing
• Open issues and concerns
• Plans

5
Processes based on the Livermore Library

• Physics models are stable
• Small improvements in parameterisations
• Main effort on systematic validation
• Photon cross sections, stopping powers,
  fluorescence done
• Next round (already started) final state
  distributions
• Feedback from users
• Complementary to our own validation
• Major project for the future design iteration
• Needs stable physics models, sound physics and
  regression testing system
• Performance is an issue
• Will be addresses together with the design
  iteration, based on quantitative evaluations

6
Recent development Penelope processes
7
Processes à la Penelope

• Physics models by F. Salvat et al., implemented
  in a FORTRAN Monte Carlo code
• the physics models have been specifically
  developed and a great care was devoted to the low
  energy description (atomic effects, etc.)
• the (declared) lower limit is 100 eV
• The whole physics content of the Penelope Monte
  Carlo code has been re-engineered into Geant4
  (except for multiple scattering)
• processes for photons June 2003 release, for
  electrons December 2003 release (Luciano
  Pandola)
• Alternative approach w.r.t. the processes based
  on the Livermore Library

8
Gamma conversion
Mean free path in Si
e- angular distr. 5 MeV g on Si
log (mfp/cm)
Livermore-based Penelope
Livermore-based Penelope
log (Energy/MeV)
Angle (degrees)
9
Rayleigh scattering
Mean free path in Pb
Angular distr. 100 keV g on Pb
log (mfp/cm)
Low Energy Penelope
Low Energy Penelope
log (Energy/MeV)
Angle (degrees)
10
Photoelectric effect
Mean free path in Cu
Mean free path in water
log (mfp/cm)
log (mfp/cm)
Low Energy Penelope
Low Energy Penelope
log (Energy/MeV)
log (Energy/MeV)

• The cross sections are read from the database
• Interfaced with Livermore-based atomic relaxation

11
Compton scattering
e- angular distr. 1 MeV g on water
Mean free path in water
log (mfp/cm)
Low Energy Penelope
Low Energy Penelope
Angle (degrees)
log (Energy/MeV)

• Analytical parametrisation for the cross section
• The model also predicts which atomic level is
  ionised
• ? fluorescence generation (not present in
  Livermore-Compton)

12
Bremsstrahlung (electrons)
g angular distr. 1 MeV e- on Pb
g energy distr. 1 MeV e- on Pb
Low Energy Penelope
Low Energy Penelope
Angle (degrees)
Relative g energy

• g energy spectrum f(Z,Eel) ? database (as in
  G4LowEnergyBremsstrahlung, but 32 points instead
  of 15)
• Also the angular distribution is data-driven
• Recent developments by V. I. not shown here

13
Bremsstrahlung (positrons)
Mean free path in water

• It is assumed
• g(Z,E) ? parameterised correction function,
  independent from the g energy W

log (mfp/cm)
Electrons Positrons
log (Energy/MeV)
The g energy spectrum and the angular
distribution are the same as for electrons, only
the cross section changes
14
Validation

• Relative comparison LowE-Livermore/Penelope only
  for curiosity
• helpful to understand effects of different
  modeling approaches
• and to identify software bugs!
• Validation against reference data
• LowE-Livermore and Penelope processes both
  subject to the same validation process
• See EM Validation talk by Barbara on Tuesday

15
New branch of development Precise angular
distributions
16
Bremsstrahlung Angular Distributions
Three LowE generators available in GEANT4 6.0
release G4ModifiedTsai, G4Generator2BS and
G4Generator2BN G4Generator2BN allows a correct
treatment at low energies (lt 500 keV)
17
Bremsstrahlung Angular Distributions

• Open issues and news
• Large initialization time for G4Generator2BN (see
  Physics Manual for details)
• use of pre-calculated data (reduces
  initialization time to zero)
• introduced in Geant4 6.1
• Switching mechanism between different generators
• design iteration for final state needed
• time scale for re-implementation and test under
  discussion

18
Photoelectric Angular Distributions

• Current status of photoelectric angular
  distributions in GEANT4
• G4 LowE and LowE PENELOPE processes
• The incident photon is absorbed and one electron
  is emitted in the same direction
• as the primary photon
• G4 Standard (à la GEANT3)
• The polar angle of the photoelectron is sampled
  from an approximate Sauter-Gavrila
• cross-section (for K-shell)
• PENELOPE
• The polar angle is sampled from K-shell
  cross-section derived from Sauter
• The same cross-section is used for other
  photoionisation events
• EGSnrc Controlled by a master flag IPHTER
• IPHTER 0 (similar to G4 LowE)
• IPHTER 1 (Sauter distribution valid for K-shell)

Both assume that azimuthal angle distribution is
uniform (no polarisation)
19
Photoelectric Angular Distributions
in progress

• Sauter formalism is valid for light-Z, K-shell
  photoelectrons and non-polarised photons
• In progress use a more generalized approach
  based on Gavrila theory
• Valid for all elements
• For photoelectrons emitted from K and L shells
  also includes the effect of the polarisation of
  the incident photon

This enhancement is of significance importance
for the design of experiments that aim to measure
the polarisation of X-rays emitted from black
holes and neutron stars
20
New development PIXE
21
PIXE

• Calculation of cross sections for shell
  ionisation induced by protons or ions
• Based on a theoretical model for the calculation
  of cross sections
• M. Gryzinski, Two-Particle Collision. I. General
  Relations for Collisions in the Laboratory
  System,   Phys. Rev. vol. 138, no. 2A, 19 April
  1965
• M. Gryzinski, Two-Particle Collision. II. Coulomb
  Collisions in the Laboratory System of
  Coordinates, Phys. Rev. vol. 138, no. 2A, 19
  April 1965
• Implementation in Geant4 in 2002
• Verified to be intrinsically inadequate
• New data-driven model
• based on evaluated data library by Paul Sacher,
  1989 (compilation of experimental data
  complemented by calculations from EPCSSR model by
  Brandt Lapicki)
• Incident proton energy between 5 KeV and 500 MeV
• Elements from C to U
• Generation of X-ray spectrum based on EADL
• Uses the common de-excitation package

22
PIXE Cross section model

• Fit to Paul Sacher data library results of the
  fit are used to predict the value of a cross
  section at a given proton energy
• allow extrapolations to lower/higher energy than
  data compilation
• First iteration, Geant4 6.2 (June 2004)
• The best fit is with three parametric functions
  for different groups of elements
• 6 Z 25
• 26 Z 65
• 66 Z 99

• Second iteration, Geant4 7.0
• Refined grouping of elements and parametric
  functions, to improve the model at low energies

23
Quality of the PIXE model

• How good is the regression model adopted w.r.t.
  the data library?
• Goodness of model verified with analysis of
  residuals and of regression deviation
• Multiple regression index R2
• ANOVA
• Fishers test
• Results (from a set of elements covering the
  periodic table)
• 1st version (Geant4 6.2) average R2 0.998
• 2nd version (Geant4 7.0) average R2 improved to
  0.999 at low energies
• p-value from test on the F statistics lt 0.001 in
  all cases

Test statistics
Fisher distribution
24
PIXE status and future developments

• First implementation for protons, K-shell
• Geant4 6.2
• preliminary model
• Second iteration
• improved model currently under test
• Geant4 7.0
• Third iteration protons, L-shell
• time scale subject to availability of resources
• Fourth iteration ions, K-shell
• compilations of cross-sections limited to K-shell

25
Ongoing...

• Regular maintenance and improvements in many
  areas
• improved, precise calculation of range for
  hadrons and ions
• extension of parameterised models for hadrons up
  to 8 Mev
• improved treatment for some materials (i.e.
  graphite)
• etc.
• The physics testing project helped fixing bugs,
  identifying small problems, improving many
  details
• Thanks to systematic and quantitative tests

26
Lower energy extensions

• Old requirement (still from RD44)
• Recurrent in interactions with users
• Last User Workshop requirement to reach 10 eV
• We are interested (of course)
• We are aware it is difficult
• An entire new set of phenomena to take into
  account
• Are there any data available? How good are they?
• Project for lower energy extensions currently
  explored together with ESA
• More at next Geant4 Workshop

27
Current major activity Validation
See Barbaras talk on Tuesday
28
Main concern SPI

• Software Process Improvement
• Huge investment in SPI
• Excellent response from most of the WG
• Many young collaborators grown to appreciate
  rigorous SP
• But also occasional spells of SPD
• Coding without design
• Maintaining private code, dropping regular
  maintenance
• Undocumented test cases
• Physics/algorithm documentation lies in the mind
  of individual developers
• Difficult change management
• etc.
• Peer reviews
• We would like to do more
• Very much needed code review
• Limitation time availability and geographical
  spread

but not worse than the rest of Geant4!
29
Summary

• Validation
• Major effort, with significant results
• Highlighted some problems (solved or solutions
  planned)
• Triggered various physics improvements
• Sound testing system essential for planned design
  iteration
• Recent developments
• Penelope re-engineering
• Precise angular distributions (Bremsstrahlung,
  photoelectric)
• PIXE
• Outlook
• Lower E requirements to be addressed
• Validation of existing models
• Design and code reviews
• SPI (continuous education to a rigorous software
  process)
