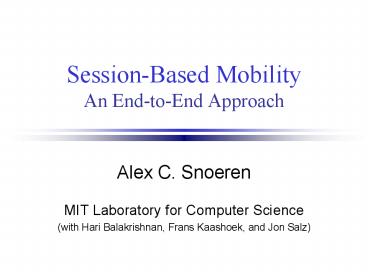

Session-Based MobilityAn End-to-End Approach

• Alex C. Snoeren
• MIT Laboratory for Computer Science
• (with Hari Balakrishnan, Frans Kaashoek, and Jon
  Salz)

2
An Example SSH Session

• Remote log in / port forwarding
• Provides secure remote communication
• Data compressed and encrypted as a stream

3
Todays Network Abstraction
SSH Client
TCP
IP
SSH Server
TCP
IP
lt18.31.0.139, 2345gt
lt169.229.60.64, 22gt
Each application must perform ad-hoc recovery and
disconnection management, or fail

• System provides a connection service
• Binds ltIP, portgt, ltIP, portgt tuple
• Any change invalidates the connection
• No support for periods of disconnectivity

4
Mobile Networking Challenges

• Changing end points
• Change in node attachment point
• Multi-homing (multiple network interfaces)
• Readdressing DHCP renewal, NAT crash, etc.
• Internet Suspend/Resume
• Wireless device goes out of range
• Save device power or connectivity costs
• Transient Internet connectivity outage

Complete solution needs to address both
5
Current Approaches

• Only solve half the problem
• Mobile IP, VIP, Physical Media Independence,
• MSOCKS, SLM, Application check-pointing,
• Dont support intelligent adaptation
• Rocks, Mobile sockets, Mobile file systems,
• Use application-specific point solutions
• RTSP, SCTP, SIP multimedia calls,
• Web shopping carts, J2EE servlets,
• HTTP range requests, FTP restart points,

6
Reconsider System Abstraction

• Many applications create sessions
• Long-lived collections of connections
• Entity of processing and resource allocation
• Can we provide a useful system abstraction?
• Flexible enough for different users, applications
• Efficient to implement, leverage shared resources
• Easy to use, but backwards compatible

Session is the salient mobility entity
7
1, 2, 3 Mobility

• System Session Abstraction SBK01
• Collaborative management of end point changes
• Support for unmodified legacy apps SaSB02
• Preserving Reliable Connections
• TCP connection migration SB00
• Session Continuations SSaBK02
• Application-guided disconnection handling
• System support for long-lived sessions SAB01

8
Goals Minimally Invasive

• Overhead only on mobility events
• As secure as non-mobile situations
• Require no infrastructure support
• Demonstrate pure end-to-end solution
• Deployable via proxies if desired
• Enable intelligent session adaptation

Transparency is always an option
9
Managing Changing End Points

• Applications handle discovery
• Lots of ways to resolve to ltIP, portgt pair
• User specifies local network policy
• Different users, different choices
• System manages tracking
• Clear semantics, scalable, and efficient

10
End-to-End Session Tracking
Discovery Update (e.g., DNS Update)
Discovery Query (e.g., DNS Lookup)
Session Initiation
ltyyy.yyy.yyy.yyy, Qgt
ltxxx.xxx.xxx.xxx, Pgt
Session Update
Correspondent Node
xxx.xxx.xxx.xxx
yyy.yyy.yyy.yyy
11
System Session Abstraction

• Set of network connections to remote end point
• All involved in single collaborative activity
• Application identifies end points, initiates
  connections
• System manages tracking
• Maintains semantics of reliable protocols
• Exposes changes to apps that register interest

• / Find remote end point /
• dhost gethostbyname(dst)
• / Validate remote end point /
• daddr valid_address(dhost)
• / Create a new session /
• sid session_create(flags, )
• / Specify end points discovery /
• set_lookupfunc(sid, gethostbyname,
  dst, hostname)
• / Create two connections /
• connect(a, daddr, )
• add_connection(sid, a)
• connect(b, daddr, )
• add_connection(sid, b)
• / Register interest in changes /
• register_handler(sid, mobhandler)

12
Robust Session Management
Session Layer
App
Policy Engine
session_create()
add_connection()
Challenge/Response Protocol
Diffie-Hellman Key Exchange
Mobility Daemon
Established
Lost
Connecting
Migrating
C, P
C, P
Frozen
Not Supported
13
Dynamic Library Interposition

• Intercept POSIX API
• Wrap each connection in its own session

Legacy Application
Migrate Daemon
fd
sid session_create() add_connection(sid, )
libmigrate
libc
Session Establishment
Kernel
14

• PART 1
• Problem Track changing end points
• Solution System session abstraction
• PART 2
• Problem Preserve reliable connections
• Solution TCP Migrate Options
• PART 3
• Problem Internet Suspend/Resume
• Solution Session continuations

15
Connection Preservation
Kernel
App
Kernel
App
Session Layer
Session Layer

• Provide stable view of dynamic kernel socket
• But what about reliable connections?
• User level Double buffer, session layer re-sync
• Full access Extend transport protocol

16
Transmission Control Protocol

• The reliable protocol
• 91 of all bytes, 83 of all packets CAIDA 00
• SSH, FTP, HTTPS, telnet, IMAP, SMTP, etc.
• SYN/ACK handshake
• Negotiates options, sequence space
• Reliable transport
• In-order delivery
• Retransmits lost data

17
TCP Connection Migration

• Resume previous connection with new one
• Provide special Migrate TCP option
• Sent on SYN packets of new connection
• Preserve buffers and sequence space
• Retransmission engine just works
• Compatible with SACK, FACK, Snoop
• Entirely backwards compatible

18
TCP ConnectionMigration
fixed
mobile
1.
(MigrateOK, )
2.
SYN 0 / ACK 1
(MigrateOK, )
3.
1. Initial SYN 2. SYN/ACK 3. ACK (with
data) 4. Normal data transfer 5. Migrate
SYN 6. Migrate SYN/ACK 7. ACK (with data)
4.
DATA 47
ACK 23
19
TCP StateMachineChanges

• 2 new transitions between existing states
• - and -
• 1 new state handles pathological race condition

appl migrate send SYN (migrate T, R)
recv SYN (migrate T, R) send SYN, ACK
recv SYN (migrate T, R) send SYN, ACK
recv RST
2MSL timeout
MIGRATE_WAIT
20
Migration Trace
Buffered Packets (old address)
Migrate SYN
21
A Lossy Trace with SACK
Buffered Packets (old address)
ACK w/SACK
Migrate SYN
22

• PART 1
• Problem Track changing end points
• Solution System session abstraction
• PART 2
• Problem Preserve reliable connections
• Solution TCP Migrate Options
• PART 3
• Problem Internet Suspend/Resume
• Solution Session continuations

23
Internet Suspend/Resume

• Intelligent disconnection handling
• Buffer otherwise lost communications
• Emulate remote services locally
• Release resources while disconnected
• Graceful resumption handling
• Reallocate resources and restore state
• Adapt to new network conditions
• Indicate how to resume processing

24
Motivating Continuations

• Observation complete context inappropriate
• Some previous state irrelevant, or, even worse,
• Invalidated due to change in conditions
• (C.f. TCP Connection state)
• Similar problem in programming languages
• Block when state and context is complex
• Pass continuation if state and context is small
• Continuations can request blocking behavior

25
Using Continuations

• Expand session notion
• Align with application
• Annotate state, resources,
• associated computation
• Include system state
• Provide synchronization and preservation
  assistance
• Shared attribute/value store
• Persist local system IPC, file descriptors
• System invokes continuation at session resumption
• Generated in response to disconnection
  notification

App
User level
SL
Kernel
26
Conserving Session Resources
Resources dedicated to active session
emacs
gtgt Resources dedicated to suspended session
SSHd
Socket Buffers
Open Files
Release system resources as well
Network Ports
Kernel
Continuation generation is recursive!
27
SSH Continuation

• Dont suspend until its convenient
• Process pending data, deliver to app or network
• Only a minimum of state to preserve
• Auth, crypto, and compression state
• Preserve IPC to child processes
• Notify child processes of disconnection
• Tunneled apps share connectivity fate

Added 250 LOC in an afternoon
28
Continuation Efficiency
SSHd
FTPd
SSHd
FTPd
Anecdotal evidence of size and speed
29
Continuation Solution Spectrum

• Fast TCP handoff
• One RTT
• Normal movement
• Four RTTs re-sync
• Suspend/Resume
• Complete flexibility

Request
Challenge
Response
Continuation Info

Data SYN
Data SYN/ACK
Resumed connection
30
Conclusion Future Directions

• Sessions are viable system abstractions
• Useful, flexible, and easy to use
• Admit robust, efficient implementation
• Continuations enable suspend/resume
• Useful for mobility across hosts?
• Continuations eliminate dependencies
• An area for future exploration

31

• PART 1
• Problem Changing end points
• Solution System session abstraction
• PART 3
• Problem Internet Suspend/Resume
• Solution Session continuations

32
System Session Tracking

• Directly notify remote end point
• Subject to same delays as communication
• Discovery service update is off path
• No impact on handoff performance
• Rediscover only if necessary
• Simultaneous moves of both end points

33
Solution Session Continuations

• Need explicit disconnection directive
• What to do if disconnected
• What to do upon resumption
• App needs to answer first question
• Perform necessary disconnection duties
• Prepare an answer for question 2

part of 1
Answer to 2 is a session continuation
34
Migrate Architecture
Session Creation
Mobility Events
Connectivity Updates
Policy Decisions
Application
Connectivity Monitor
Policy Engine
Session Layer
Kernel
35
Session Continuations

• Goal suspend/resume operation
• Perform needed cleanup on disconnect
• Specify what to do on resumption
• How encapsulate rest of the session
• Package together remaining computation and the
  state, context resources necessary to execute
  it
• Generate default continuations for sessions that
  dont provide their own

36
Deploying a New Abstraction

• Legacy Apps deal in connections, not sessions
• Managed through the standard POSIX API

Legacy Application
libc
Kernel
37
An Example SSH Session
server
client

• Remote log in / port forwarding
• Provides secure remote communication
• Data compressed and encrypted as a stream

38
TCP Overview

• Connection-oriented
• Binds two end points
• Specified by IP Address
• SYN/ACK handshake
• Negotiates options, sequence space
• Reliable transport
• In-order delivery
• Retransmits lost data

39
Transmission Control Protocol

• Internet standard for reliable transport
• 91 of all bytes, 83 of all packets CAIDA 00
• Transport for many session protocols
• SSH, FTP, HTTPS, telnet, imap, SMTP, etc.

40
Current Approaches

• Systems bundle discovery and tracking
• System does both (e.g. Mobile IP)
• Limits granularity of tracking
• or
• Application does both
• Makes tracking unnecessarily expensive
• Interface selection is pre-determined

41
Managing Changing End Points

• Discover remote end points of interest
• DNS, service location, resource discovery,
• Select appropriate local end point
• Ethernet, 802.11, cellular, Bluetooth,
• Communications track both as they move
• Enhanced Mobile IP, Persistent connections,

42
Flexible Separate Each Activity

• Applications handle discovery
• Lots of ways to resolve to ltIP, portgt pair
• User specifies local network policy
• Different users, different choices
• System manages tracking
• Follows the application-specified end point
• Clear semantics, scalable, and efficient

43
Eliminating Per-Packet Overhead

• Double buffering takes time, memory
• Unify session/connection buffers, or
• Preserve connection buffers
• Synchronization adds latency
• Eliminate need to synchronize connections
• Needs to be entirely backwards-compatible
