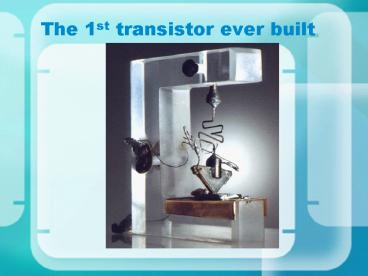

The 1st transistor ever built
2
Transistor operation
3
Chapter 4 DC biasing-BJTs
Faculty of Electrical and Electronic Engineering
4
Topics objectives
  • Youll learn
  • Q-point of a transistor operation
  • About DC analysis of a transistor circuit
  • About Transistor biasing configuration
  • Other available transistor biasing circuits
  • Stability factor for transistor
  • Transistor switching

5
  • INTRODUCTION
  • BJTs amplifier requires a knowledge of both the
    DC analysis (LARGE-signal) and AC analysis (small
    signal).
  • For a DC analysis a transistor is controlled by
    a number of factors including the range of
    possible operating points.
  • Once the desired DC current and voltage levels
    have been
  • defined, a network must be constructed that will
    establish the
  • desired operating point.
  • BJT need to be operate in active region used as
    amplifier.
  • The cutoff and saturation region used as a
    switches.
  • For the BJTs to be biased in its linear or
    active operating
  • region the following must be true
  • a) BE junction ? forward biased, 0.6 or 0.7V
  • b) BC junction ? reverse biased

6
  • INTRODUCTION(CONTINUED)
  • DC bias analysis ? assume all capacitors are
    open cct.
  • AC bias analysis
  • 1) Neglecting all of DC sources
  • 2) Assume coupling capacitors are short cct. The
    effect of these capacitors is to set a lower
    cut-off frequency for the cct.
  • 3) Inspect the cct (replace BJTs with its small
    signal model).
  • 4) Solve for voltage and current transfer
    function and i/o and o/p impedances.
  • For transistor amplifiers the resulting DC
    current and voltage establish an operating point
    that define the region that can be employed for
    amplification process.

7
Various operating points within the limits of
operation of a transistor
  • Q-point C
  • Concern on
  • nonlinearities due to IB
  • curves is rapidly changes
  • in this region.
  • Q-point B
  • The best operating point
  • for linear gain and largest
  • possible voltage and current
  • It is a desired condition for
  • a small signal analysis
  • Q-point A
  • I0A, V0V
  • Not suitable for
  • transistor to operate

8
FIXED-BIAS CCT
AC ANALYSIS
DC ANALYSIS
9
EMITTER-STABILIZED BIAS CCT
10
Voltage divider bias
11
  • Forward Bias of Base-Emitter
  • Refer to fig. 5.1. This cct also known as input
    loop.

12
  • Collector-Emitter Loop
  • Refer to fig. 5.2. Also known as output loop.

The value of IC, IB and VCE shows the position of
Q-point at o/p graph. The notation of this value
changes to ICQ, IBQ and VCEQ.
13
Example 1 Determine the following for the fixed
bias configuration of Fig 5.3. a) IBQ and ICQ b)
VCEQ c) VB and VC d) VBC
14
Solution
15
Example 2 Determine the following for the fixed
bias configuration of Fig 5.4. a) IBQ and ICQ b)
VCEQ c) VB d)VC e) VE
16
Solution
17
  • Transistor Saturation
  • Saturation means the level of systems have
    reached their maximum values.
  • For a transistor operating in the saturation
    region, the current is maximum value for a
    particular design.
  • Saturation region are normally avoided because
    the B-C junction is no longer reverse-biased and
    the o/p amplified signal will be distorted.
  • Fig 5.5 shows the schematic diagram to determine
    ICsat for the fixed-bias configuration.

18
The saturation current for the fixed bias
configuration is
19
Example 3 By refering to example 1 and Fig. 5.3
determine the saturation level. Solution
20
Example 4 Find the saturation current for the
fixed-bias configuration of Fig. 5.4. Solution
21
  • Load line analysis
  • By refering to Fig. 5.2 (output loop) one
    straight line can be draw at output
    characteristics. This line is called load line.
  • This line connecting each separate of Q-point.
  • At any point along the load line, values of IB,
    IC and VCE can be picked off the graph.
  • The process to plot the load line as follows
  • Step 1
  • Refer to fig. 5.2, VCEVCC ICRC (1)
  • Choose IC0 mA. Subtitute into (1), we get
  • VCEVCC (2) ? located at X axis

22
Step 2 Choose VCE0V and subtitute into (1), we
get ICVCC/RC (3) ? located at Y-axis Step 3
Joining two points defined by (2) (3), we get
straight line that can be drawn as Fig. 5.6.
23
  • Case 1
  • Level IB changed by varying the value of RB.
  • Q-point moves up and down

24
  • Case 2
  • VCC fixed and RC change the load line will shift
    as shown in Fig 5.8
  • IB fixed, the Q-point will move as shown in the
    same figure.

25
  • Case 3
  • RC fixed and VCC varied, the load line shifts as
    shown in Fig. 5.9

26
Example 5 Given the load line of Fig. 5.10 and
defined Q-point, determine the required values of
VCE, RC and RB for a fixed bias configuration.
27
Solution
28
Example 6 Determine the value of Q-point for
Fig. 5.11. Also find the new value of Q-point if
? change to 150.
29
Solution
The change of ?? cause the big change of Q-point
value. This shows that fixed biased configuration
is NOT stable
30
  • EMITTER-STABILIZED BIAS CCT
  • The DC bias network of Fig 5.12 contains an
    emitter resistor to improve the stability level
    of fixed-bias configuration.
  • The analysis consists of two scope
  • Examining the base-emitter loop (i/p loop)
  • Use the result to investigate the
    collector-emitter loop (o/p loop)

31
  • Base-Emitter Loop (i/p loop)
  • Refer to fig. 5.12.

32
  • Collector-Emitter Loop (o/p loop)
  • Refer to fig. 5.13.

33
Example 7 For the emitter-bias network fo
Fig.5.14 determine a)IB b)IC c)VCE d)VC e)VE
f)VB g)VBC
34
Solution
35
Improved Bias Stability Issues Comparison
analysis for example 1 and example 7.
Data from example 1 (fixed-bias configuration)
Data from example 7 (emitter-bias configuration)
36
Takehome exercise For the emitter-stabilized
biase cct of Fig. 5.15, determine IBQ, ICQ, VCEQ,
VC, VB, VE.
37
Saturation
The saturation current for an emitter-bias
configuration is
38
Example 8 Determine the saturation current for
the network of example 7. Solution ?
This value is about three times the level of ICQ
(2.01mA? ?50) for the example 7. Its indicate
the parameter that been used in example 7 can be
use in analysis of emitter bias network.
39
  • Load line analysis
  • The process to plot the load line as follows
  • Step 1
  • Refer to fig. 5.13, VCEVCC IC(RCRE) (1)
  • Choose IC0 mA. Subtitute into (1), we get
  • VCEVCC (2) ? located at X axis
  • Step 2
  • Choose VCE0V, subtitute into (1) gives

40
Step 3 Joining two points defined by (2)
(3), we get straight line that can be drawn as
Fig. 5.17
41
VOLTAGE-DIVIDER BIAS
Data from example 7
  • ICQ and VCEQ from the table of example 7 is
    changing
  • dependently the changing of ?.
  • The voltage-divider bias configuration such as in
    Fig.
  • 5.18 is designed to have a less dependent or
    independent of
  • the ?.
  • If the cct parameter are properly choosen, the
    resulting
  • levels of ICQ and VCEQ can be almost totally
    independent
  • of ?.

42
  • Two method for analyzed the voltage-divider bias
    configuration
  • Exact method
  • Approximate method

43
  • Exact Analysis
  • Step 1
  • The i/p side of the network of Fig. 5.18 can be
  • redrawn as shown in Fig. 5.19 for DC analysis.
  • Step 2
  • Analysis of Thevenin equivalent network to the
    left of
  • base terminal

44
Exact Analysis Step 2(a) Replaced the voltage
sources with short-cct equivalent as shown in
Fig 5.20 and gives us the value of RTH
45
Exact Analysis Step 2(b) Determining the ETH by
replaced back the voltage sources and open cct
Thevenin voltage as shown in Fig. 5.21. Then
apply the voltage-divider rule.
46
Exact Analysis Step 3 The Thevenin network is
then redrawn as shown in Fig. 5.22 and IBQ can be
determined by KVL
47
Example 9Determine the DC bias voltage VCE and
current IC for the voltage-divider configuration
of network below
48
Solution
49
Example 10 For the voltage-divider bias
configuration of Fig. 5.23, determine IBQ, ICQ,
VCEQ, VC, VE and VB.
50
Solution
51
Approximate Analysis Step 1 ?RE ? 10R2 Step
2 The i/p section can be represented by the
network of Fig. 5.24. R1 and R2 can be considered
in series by assuming I1?I2 and IB 0A .
52
Approximate Analysis Step 3
53
NPN Transistor simulation
54
Example 11Repeat the analysis of example 9 using
the approximate technique and compare solution
for ICQ and VCEQ. Solution
55
ICQ and VCEQ are certainly close.
56
Example 12Repeat the exact analysis of example 9
if ? is reduced to 70. Compare the solution for
ICQ and VCEQ. Solution
57
Solution (continued)
Conclusion Even though ? is drastically half,
the level ICQ and VCEQ are essentially same.
58
Example 13Determine the levels of ICQ and VCEQ
for the voltage-divider configuration fo Fig.
5.25 using the exact and approximate analysis.
Compare the solution.
59
Solution
60
Solution (continued)
61
Solution (continued)
62
The saturation collector-emitter cct for the
voltage-divider configuration has the same
appearance as the emitter-biased configuration as
shown in Fig. 5.27
63
  • Load line analysis
  • The similarities with the o/p cct of the
    emitter-biased configuration result in the same
    intersections for the load line of the
    voltage-divider configuration.
  • The load line therefore have the same appearance
    with

64
DC Bias with Voltage Biasing
Another way to improve the stability of a bias
circuit is to add a feedback path from collector
to base. In this bias circuit the Q-point is only
slightly dependent on the transistor Beta ?.
65
Base-Emitter Loop
Applying Kirchoffs voltage law VCC IC?RC
IBRB VBE IERE 0 Note IC? IC IB -- but
usually IB ltlt IC -- so IC? ? IC Knowing IC ?IB
and IE ? IC then VCC ?IB RC IBRB VBE
?IBRE 0 Simplifying and solving for IB

66
Collector-Emitter Loop
Applying Kirchoffs voltage law IE VCE
IC?RC VCC 0 Since IC? ? IC and IC ?IB
IC(RC RE) VCE VCC 0 Solving for VCE

67
Transistor Saturation Level
Load Line Analysis
It is the same analysis as for the voltage
divider bias and the emitter-biased circuits.
68
Simulation of a NPN type common-emitter transistor
69
Design Operation
  • We are able to design the transistor circuit
    using the ideas that we have learnt before during
    analyzing dc biasing circuit.
  • How?
  • Understand the Kirchofs Law and other electric
    circuit law such as Ohms Law, Thevenin Laws etc
  • Identify the parameters given
  • Analyze into the input/output for the system and
    build a loop using electric circuits law.

70
Miscellaneous configuration
71
Examples
72
Examples
73
Examples of design
  • Design of a bias circuit with an emitter feedback
    resistor
  • Design of a current-gain-stabilized circuit (beta
    independent)

74
Design of a bias circuit with an emitter feedback
resistor
The emitter resistor is ¼ to 1/10 of the supply
voltage
75
Design of a current-gain-stabilized circuit (beta
independent)
76
Transistor as switching networks
  • Transistor works as an inverter in computer
    circuits.
  • Operating point switch from cut-off to saturation
    along the load line for proper inversion.
  • In order to understand, we assume that
  • ICICEO0mA
  • VCEVsat0V
  • One must understand the transistor graph output
    and load-line analysis to describe and discuss
    about the transistor switching networks.

77
Transistor as a switch
78
Time interval
79
Time interval continued
80
Troubleshooting?
  • How to define and encounter transistor circuit
    problem?

81
PNP configuration
82
Bias stabilization
  • Stability of a system is a measure of the
    sensitivity of a network to variation in its
    parameter.
  • ß increases with increase in temperature
  • VBE decreases 7.5mV every degree celcius
  • ICO doubles every 10 oC increase in temperature

83
Effect of non-stability circuit/system
Room temperature
100oC temperature
Well find that ß increase after 100OC, base
current is same but not suitable to use due it is
very near to the saturation region.
84
Stability factors
S(ICO)
  • Emitter bias configuration

85
(No Transcript)
86
S(ICO)
  • Fixed bias configuration
  • Voltage divider bias configuration

87
S(ICO)
  • Feedback bias configuration
  • Physical impact

Fixed bias configuration ICßIB(ß1)ICO...IC
increase but IB maintain, so its not
stable Emitter bias configuration Increase IC
will increase ICO. It affect VE since
VEIEREICRE. In turn, the output loop will
inform that IB will decrease if VE is increase,
thus affect to reduce the collector
current. Feedback bias configuration same as
result of emitter bias configuration where IB
will decrease if IC increase. (IC proportional to
VRC) Voltage divider bias configuration Most
stable where as long as 10R2gtgt ßRE, VB remain
constant for any changing in IC.
88
S(VBE)
S(ß)
89
  • References
  • Thomas L. Floyd, Electronic Devices, Sixth
    edition, Prentice Hall, 2002.
  • Robert Boylestad, Electronic Devices and
    Circuit Theory, Eighth edition, Prentice Hall,
    2002.
  • 3. Puspa Inayat Khalid, Rubita Sudirman, Siti
    Hawa Ruslan,
  • ModulPengajaran Elektronik 1, UTM, 2002.
  • 4. Website http//www2.eng.tu.ac.th
Write a Comment
User Comments (0)
About PowerShow.com
