Title: MVPN PE-PE Signaling


1

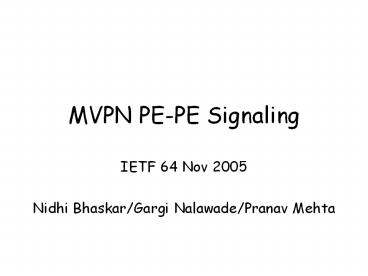

MVPN PE-PE Signaling
  • IETF 64 Nov 2005
  • Nidhi Bhaskar/Gargi Nalawade/Pranav Mehta

2
PE-PE signaling for Multicast VPNs
  • Multicast VPN PE-PE signaling deployed using PIM
    LAN procedures
  • Push for replacing PIM with BGP
  • This is an analysis of the BGP enhancements and
    impact on BGP/PIM.

3
Enhancements required in BGP
  • draft-nalawade-l3vpn-mcast-signaling-bgp-00.txt
  • Multicast PE-PE (Overlay) SAFI
  • NLRI - RDGFlagsS/RPU-PED-PE
  • RT/RD Import/Export
  • Filtering
  • PIM/BGP Interaction
  • Inter-AS
  • New functions in BGP like aggregating D-PE, U-PE
    based filtering, RPF lookup on ASBR and probably
    others.
  • No extensions for Unicast Reachability. Rely on
    existing VPNv4 Unicast for that.

4
Transit for VPN SSM - BGP
RR BGP State RD232.1.1.1SPT1.1.1.1PE-4PE-2 R
D232.1.1.1SPT1.1.1.1PE-4PE-3 RD232.1.1.1SPT
1.1.1.1PE-4Label200
PE-2 BGP State RD232.1.1.1SPT1.1.1.1PE-4PE-2
RD232.1.1.1SPT1.1.1.1PE-4Label200
PE-4 BGP State RD232.1.1.1SPT1.1.1.1PE-4PE-2
RD232.1.1.1SPT1.1.1.1PE-4PE-3 RD232.1.1.1S
PT1.1.1.1PE-4Label200
RR
PE-1
PIM-V4 VRF JOIN1.1.1.1, 232.1.1.1
e0
e1
PIM-V4 VRF JOIN1.1.1.1, 232.1.1.1
PE-2
PE-4
PE-3
PE-3 BGP State RD232.1.1.1SPT1.1.1.1PE-4PE-3
RD232.1.1.1SPT1.1.1.1PE-4Label200
e0
CE-3
Receiver2
5
BGP- Issue w/ Re-using unicast RTs
PE-2 Red VRF RD2 Import RT RT1 Export RT
RT2 Blue VRF RD3 Import RTRT1 Export RTRT3
P
PE-1 Red VRF RD1 Import RTRT2 Export RTRT1
e0
e1
PE-2
PE-1
PE-3
e0
CE-Z
Receiver2
6
ABSR Exchange VPNv4 Routes - Option B
Update Sent to PE1 PE1GSSMSASBR1 Update Sent
to ASBR1 ASBR1GSSMSLabel100FEC-Y
Update sent to ASBR2 ASBR2GSSMSPE2 Update
sent to PE2 ASBR2GSSMSLabel20FEC-X
vpnv4 RDS NHPE1
vpnv4 RDS NHASBR1
ASBR2 Update to ASBR1 ASBR1GSSMSASBR2Label1
0
vpnv4 RDS NHASBR2
ASBR1
ASBR2
PE1
AS 2
PE2
AS 1
next-hop-self towards iBGP neighbors
CE1
CE4
CE2
CE3
S
7
BGP - Multicast Routing State
  • RR Stores 1 multicast route as NNLRI where N is
    of D-Pes interested in stream. And stores all
    mroutes in the AS.
  • If there are N messages/minute on M PEs, RR
    processes NM messages/minute.
  • Multicast J/P or route change frequency is
    different from unicast. Potential load on RR
    processing a large number of multicast route
    changes.
  • Filtering semantics required to meet the MVPN
    requirements fundamentally different from
    filtering techniques available in BGP today

8
BGP - Multicast Routing State (contd)
  • PIM today uses already converged routing state
    established by unicast routing
  • Putting PIM Join/Prune in BGP requires PIM
    Join/Prune to be routed as a BGP NLRI
  • This has latency implications on PIM
  • Potential load on RR has further implications for
    multicast.

9
BGP lt-gt PIM Futures/Open Issues
  • PIM State machine changes to interact with BGP.
  • No PIM hellos for option negotiation. Might be
    good to allow options to be carried in BGP.
  • No Join suppression or Prune override in PIM.
    Requires explicitly tracking downstream joiners
    in either PIM or BGP.
  • No support for Bidir DF Election.
  • No support for PIM Assert resolution.

10
BGP lt-gt PIM Futures/Open Issues
  • PIM-SM shared tree pruning. Cannot preserve the
    full state nature of (,G),(S,G,R) prunes in BGP.
    NLRI are not associated with each other gt
    Re-flooding of the shared tree for pruned
    sources.
  • BSR mappings require full state update as well.
  • G/mask, RP1, RP2, RP3 For proper operation PIM
    needs all three RPs before it can make a decision
    based on the mapping.
  • Mappings carry holdtimes/priorities for RPs,
    where to put these, BGP attributes ?

11
BGP Futures/Open Issues
  • BGP will not restrict Binding state to multicast
    tree.
  • Not enough bits to encode SAFI length for IPv6!!
  • Need to define transition from LAN procedures to
    BGP.

12
  • Comments / Questions ?

13
Differences from other document
  • Differences from draft-raggarwa-l3vpn-2547bis-mcas
    t-bgp-00.txt
  • Separate RTs for Multicast VPNs (required for
    correct functioning of extranets)
  • Tracking of Downstream PEs (required for SGR
    Joins/Prunes)
  • Does not require RT configuration on ASBRs
  • Aggregation done on ASBR
  • Differences in NLRI
