Why Computer Security

1
Why Computer Security

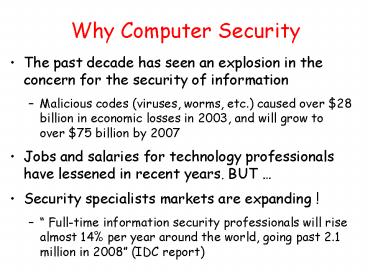

• The past decade has seen an explosion in the
  concern for the security of information
• Malicious codes (viruses, worms, etc.) caused
  over 28 billion in economic losses in 2003, and
  will grow to over 75 billion by 2007
• Jobs and salaries for technology professionals
  have lessened in recent years. BUT
• Security specialists markets are expanding !
• Full-time information security professionals
  will rise almost 14 per year around the world,
  going past 2.1 million in 2008 (IDC report)

2
Why Computer Security (contd)

• Internet attacks are increasing in frequency,
  severity and sophistication
• Denial of service (DoS) attacks
• Cost 1.2 billion in 2000
• 1999 CSI/FBI survey 32 of respondents detected
  DoS attacks directed to their systems
• Thousands of attacks per week in 2001
• Yahoo, Amazon, eBay, Microsoft, White House,
  etc., attacked

3
Why Computer Security (contd)

• Virus and worms faster and powerful
• Melissa, Nimda, Code Red, Code Red II, Slammer
• Cause over 28 billion in economic losses in
  2003, growing to over 75 billion in economic
  losses by 2007.
• Code Red (2001) 13 hours infected gt360K machines
  - 2.4 billion loss
• Slammer (2003) 10 minutes infected gt 75K
  machines - 1 billion loss
• Spams, phishing
• New Internet security landscape emerging BOTNETS
  !

4
Outline

• History of Security and Definitions
• Overview of Cryptography
• Symmetric Cipher
• Classical Symmetric Cipher
• Modern Symmetric Ciphers (DES and AES)
• Asymmetric Cipher
• One-way Hash Functions and Message Digest

5
The History of Computing

• For a long time, security was largely ignored in
  the community
• The computer industry was in survival mode,
  struggling to overcome technological and economic
  hurdles
• As a result, a lot of comers were cut and many
  compromises made
• There was lots of theory, and even examples of
  systems built with very good security, but were
  largely ignored or unsuccessful
• E.g., ADA language vs. C (powerful and easy to
  use)

6
Computing Today is Very Different

• Computers today are far from survival mode
• Performance is abundant and the cost is very
  cheap
• As a result, computers now ubiquitous at every
  facet of society
• Internet
• Computers are all connected and interdependent
• This codependency magnifies the effects of any
  failures

7
Biological Analogy

• Computing today is very homogeneous.
• A single architecture and a handful of OS
  dominates
• In biology, homogeneous populations are in danger
• A single disease or virus can wipe them out
  overnight because they all share the same
  weakness
• The disease only needs a vector to travel among
  hosts
• Computers are like the animals, the Internet
  provides the vector.
• It is like having only one kind of cow in the
  world, and having them drink from one single pool
  of water!

8
The Spread of Sapphire/Slammer Worms
9
The Flash Worm

• Slammer worm infected 75,000 machines in lt15
  minutes
• A properly designed worm, flash worm, can take
  less than 1 second to compromise 1 million
  vulnerable machines in the Internet
• The Top Speed of Flash Worms. S. Staniford, D.
  Moore, V. Paxson and N. Weaver, ACM WORM Workshop
  2004.
• Exploit many vectors such as P2P file sharing,
  intelligent scanning, hitlists, etc.

10
The Definition of Computer Security

• Security is a state of well-being of information
  and infrastructures in which the possibility of
  successful yet undetected theft, tampering, and
  disruption of information and services is kept
  low or tolerable
• Security rests on confidentiality, authenticity,
  integrity, and availability

11
The Basic Components

• Confidentiality is the concealment of information
  or resources.
• E.g., only sender, intended receiver should
  understand message contents
• Authenticity is the identification and assurance
  of the origin of information.
• Integrity refers to the trustworthiness of data
  or resources in terms of preventing improper and
  unauthorized changes.
• Availability refers to the ability to use the
  information or resource desired.

12
Security Threats and Attacks

• A threat/vulnerability is a potential violation
  of security.
• Flaws in design, implementation, and operation.
• An attack is any action that violates security.
• Active adversary
• An attack has an implicit concept of intent
• Router mis-configuration or server crash can also
  cause loss of availability, but they are not
  attacks

13
Friends and enemies Alice, Bob, Trudy

• well-known in network security world
• Bob, Alice (lovers!) want to communicate
  securely
• Trudy (intruder) may intercept, delete, add
  messages

Alice
Bob
data, control messages
channel
secure sender
secure receiver
data
data
Trudy
14
Eavesdropping - Message Interception (Attack on
Confidentiality)

• Unauthorized access to information
• Packet sniffers and wiretappers
• Illicit copying of files and programs

B
A
Eavesdropper
15
Integrity Attack - Tampering With Messages

• Stop the flow of the message
• Delay and optionally modify the message
• Release the message again

B
A
Perpetrator
16
Authenticity Attack - Fabrication

• Unauthorized assumption of others identity
• Generate and distribute objects under this
  identity

B
A
Masquerader from A
17
Attack on Availability

• Destroy hardware (cutting fiber) or software
• Modify software in a subtle way (alias commands)
• Corrupt packets in transit
• Blatant denial of service (DoS)
• Crashing the server
• Overwhelm the server (use up its resource)

18
Classify Security Attacks as

• Passive attacks - eavesdropping on, or monitoring
  of, transmissions to
• obtain message contents, or
• monitor traffic flows
• Active attacks modification of data stream to
• masquerade of one entity as some other
• replay previous messages
• modify messages in transit
• denial of service

19
Outline

• Overview of Cryptography
• Symmetric Cipher
• Classical Symmetric Cipher
• Modern Symmetric Ciphers (DES and AES)
• Asymmetric Cipher
• One-way Hash Functions and Message Digest

20
Basic Terminology

• plaintext - the original message
• ciphertext - the coded message
• cipher - algorithm for transforming plaintext to
  ciphertext
• key - info used in cipher known only to
  sender/receiver
• encipher (encrypt) - converting plaintext to
  ciphertext
• decipher (decrypt) - recovering ciphertext from
  plaintext
• cryptography - study of encryption
  principles/methods
• cryptanalysis (codebreaking) - the study of
  principles/ methods of deciphering ciphertext
  without knowing key
• cryptology - the field of both cryptography and
  cryptanalysis

21
Classification of Cryptography

• Number of keys used
• Hash functions no key
• Secret key cryptography one key
• Public key cryptography two keys - public,
  private
• Type of encryption operations used
• substitution / transposition / product
• Way in which plaintext is processed
• block / stream

22
Secret Key vs. Secret Algorithm

• Secret algorithm additional hurdle
• Hard to keep secret if used widely
• Reverse engineering, social engineering
• Commercial published
• Wide review, trust
• Military avoid giving enemy good ideas

23
Cryptanalysis Scheme

• Ciphertext only
• Exhaustive search until recognizable plaintext
• Need enough ciphertext
• Known plaintext
• Secret may be revealed (by spy, time), thus
  ltciphertext, plaintextgt pair is obtained
• Great for monoalphabetic ciphers
• Chosen plaintext
• Choose text, get encrypted
• Pick patterns to reveal the structure of the key

24
Unconditional vs. Computational Security

• Unconditional security
• No matter how much computer power is available,
  the cipher cannot be broken
• The ciphertext provides insufficient information
  to uniquely determine the corresponding plaintext

• Only one-time pad scheme qualifies
• Computational security
• The cost of breaking the cipher exceeds the value
  of the encrypted info
• The time required to break the cipher exceeds the
  useful lifetime of the info

25
Brute Force Search

• Always possible to simply try every key
• Most basic attack, proportional to key size
• Assume either know / recognise plaintext

Key Size (bits) Number of Alternative Keys Time required at 1 decryption/µs Time required at 106 decryptions/µs
32 232 4.3 ? 109 231 µs 35.8 minutes 2.15 milliseconds
56 256 7.2 ? 1016 255 µs 1142 years 10.01 hours
128 2128 3.4 ? 1038 2127 µs 5.4 ? 1024 years 5.4 ? 1018 years
168 2168 3.7 ? 1050 2167 µs 5.9 ? 1036 years 5.9 ? 1030 years
26 characters (permutation) 26! 4 ? 1026 2 ? 1026 µs 6.4 ? 1012 years 6.4 ? 106 years
26
Outline

• Overview of Cryptography
• Classical Symmetric Cipher
• Substitution Cipher
• Transposition Cipher
• Modern Symmetric Ciphers (DES and AES)
• Asymmetric Cipher
• One-way Hash Functions and Message Digest

27
Symmetric Cipher Model
28
Requirements

• Two requirements for secure use of symmetric
  encryption
• a strong encryption algorithm
• a secret key known only to sender / receiver
• Y EK(X)
• X DK(Y)
• Assume encryption algorithm is known
• Implies a secure channel to distribute key

29
Classical Substitution Ciphers

• Letters of plaintext are replaced by other
  letters or by numbers or symbols
• Plaintext is viewed as a sequence of bits, then
  substitution replaces plaintext bit patterns with
  ciphertext bit patterns

30
Caesar Cipher

• Earliest known substitution cipher
• Replaces each letter by 3rd letter on
• Example
• meet me after the toga party
• PHHW PH DIWHU WKH WRJD SDUWB

31
Caesar Cipher

• Define transformation as
• a b c d e f g h i j k l m n o p q r s t u v w x y
  z
• D E F G H I J K L M N O P Q R S T U V W X Y Z A B
  C
• Mathematically give each letter a number
• a b c d e f g h i j k l m
• 0 1 2 3 4 5 6 7 8 9 10 11 12
• n o p q r s t u v w x y Z
• 13 14 15 16 17 18 19 20 21 22 23 24 25
• Then have Caesar cipher as
• C E(p) (p k) mod (26)
• p D(C) (C k) mod (26)

32
Cryptanalysis of Caesar Cipher

• Only have 25 possible ciphers
• A maps to B,..Z
• Given ciphertext, just try all shifts of letters
• Do need to recognize when have plaintext
• E.g., break ciphertext "GCUA VQ DTGCM"

33
Monoalphabetic Cipher

• Rather than just shifting the alphabet
• Could shuffle (jumble) the letters arbitrarily
• Each plaintext letter maps to a different random
  ciphertext letter
• Key is 26 letters long
• Plain abcdefghijklmnopqrstuvwxyz
• Cipher DKVQFIBJWPESCXHTMYAUOLRGZN
• Plaintext ifwewishtoreplaceletters
• Ciphertext WIRFRWAJUHYFTSDVFSFUUFYA

34
Monoalphabetic Cipher Security

• Now have a total of 26! 4 x 1026 keys
• Is that secure?
• Problem is language characteristics
• Human languages are redundant
• Letters are not equally commonly used

35
English Letter Frequencies
Note that all human languages have varying letter
frequencies, though the number of letters and
their frequencies varies.
36
Example Cryptanalysis

• Given ciphertext
• UZQSOVUOHXMOPVGPOZPEVSGZWSZOPFPESXUDBMETSXAIZ
• VUEPHZHMDZSHZOWSFPAPPDTSVPQUZWYMXUZUHSX
• EPYEPOPDZSZUFPOMBZWPFUPZHMDJUDTMOHMQ
• Count relative letter frequencies (see text)
• Guess P Z are e and t
• Guess ZW is th and hence ZWP is the
• Proceeding with trial and error finally get
• it was disclosed yesterday that several informal
  but
• direct contacts have been made with political
• representatives of the viet cong in moscow

37
One-Time Pad

• If a truly random key as long as the message is
  used, the cipher will be secure - One-Time pad
• E.g., a random sequence of 0s and 1s XORed to
  plaintext, no repetition of keys
• Unbreakable since ciphertext bears no statistical
  relationship to the plaintext
• For any plaintext, it needs a random key of the
  same length
• Hard to generate large amount of keys
• Have problem of safe distribution of key

38
Transposition Ciphers

• Now consider classical transposition or
  permutation ciphers
• These hide the message by rearranging the letter
  order, without altering the actual letters used
• Any shortcut for breaking it?
• Can recognise these since have the same frequency
  distribution as the original text

39
Rail Fence Cipher

• Write message letters out diagonally over a
  number of rows
• Then read off cipher row by row
• E.g., write message out as
• m e m a t r h t g p r y
• e t e f e t e o a a t
• Giving ciphertext
• MEMATRHTGPRYETEFETEOAAT

40
Product Ciphers

• Ciphers using substitutions or transpositions are
  not secure because of language characteristics
• Hence consider using several ciphers in
  succession to make harder, but
• Two substitutions make another substitution
• Two transpositions make a more complex
  transposition
• But a substitution followed by a transposition
  makes a new much harder cipher
• This is bridge from classical to modern ciphers

41
Rotor Machines

• Before modern ciphers, rotor machines were most
  common complex ciphers in use
• Widely used in WW2
• German Enigma, Allied Hagelin, Japanese Purple
• Implemented a very complex, varying substitution
  cipher

42
Outline

• Overview of Cryptography
• Classical Symmetric Cipher
• Modern Symmetric Ciphers (DES/AES)
• Asymmetric Cipher
• One-way Hash Functions and Message Digest

43
Block vs Stream Ciphers

• Block ciphers process messages in into blocks,
  each of which is then en/decrypted
• Like a substitution on very big characters
• 64-bits or more
• Stream ciphers process messages a bit or byte at
  a time when en/decrypting
• Many current ciphers are block ciphers, one of
  the most widely used types of cryptographic
  algorithms

44
Block Cipher Principles

• Most symmetric block ciphers are based on a
  Feistel Cipher Structure
• Block ciphers look like an extremely large
  substitution
• Would need table of 264 entries for a 64-bit
  block
• Instead create from smaller building blocks
• Using idea of a product cipher

45
Ideal Block Cipher
46
Substitution-Permutation Ciphers

• Substitution-permutation (S-P) networks Shannon,
  1949
• modern substitution-transposition product cipher
• These form the basis of modern block ciphers
• S-P networks are based on the two primitive
  cryptographic operations
• substitution (S-box)
• permutation (P-box)
• provide confusion and diffusion of message

47
Confusion and Diffusion

• Cipher needs to completely obscure statistical
  properties of original message
• A one-time pad does this
• More practically Shannon suggested S-P networks
  to obtain
• Diffusion dissipates statistical structure of
  plaintext over bulk of ciphertext
• Confusion makes relationship between ciphertext
  and key as complex as possible

48
Feistel Cipher Structure

• Feistel cipher implements Shannons S-P network
  concept
• based on invertible product cipher
• Process through multiple rounds which
• partitions input block into two halves
• perform a substitution on left data half
• based on round function of right half subkey
• then have permutation swapping halves

49
Feistel Cipher Structure
50
Feistel Cipher Decryption
51
DES (Data Encryption Standard)

• Published in 1977, standardized in 1979.
• Key 64 bit quantity8-bit parity56-bit key
• Every 8th bit is a parity bit.
• 64 bit input, 64 bit output.

64 bit M
64 bit C
DES Encryption
56 bits
52
DES Top View
56-bit Key
64-bit Input
48-bit K1
Generate keys
Permutation
Initial Permutation
48-bit K1
Round 1
48-bit K2
Round 2
...
48-bit K16
Round 16
Swap 32-bit halves
Swap
Final Permutation
Permutation
64-bit Output
53
DES Standard

• Cipher Iterative Action
• Input 64 bits
• Key 48 bits
• Output 64 bits

• Key Generation Box
• Input 56 bits
• Output 48 bits

One round (Total 16 rounds)
54
DES Box Summary

• Simple, easy to implement
• Hardware/gigabits/second, software/megabits/second

• 56-bit key DES may be acceptable for non-critical
  applications but triple DES (DES3) should be
  secure for most applications today
• Supports several operation modes (ECB CBC, OFB,
  CFB) for different applications

55
Avalanche Effect

• Key desirable property of encryption alg
• Where a change of one input or key bit results in
  changing more than half output bits
• DES exhibits strong avalanche

56
Strength of DES Key Size

• 56-bit keys have 256 7.2 x 1016 values
• Brute force search looks hard
• Recent advances have shown is possible
• in 1997 on a huge cluster of computers over the
  Internet in a few months
• in 1998 on dedicated hardware called DES
  cracker by EFF in a few days (220,000)
• in 1999 above combined in 22hrs!
• Still must be able to recognize plaintext
• No big flaw for DES algorithms

57
DES Replacement

• Triple-DES (3DES)
• 168-bit key, no brute force attacks
• Underlying encryption algorithm the same, no
  effective analytic attacks
• Drawbacks
• Performance no efficient software codes for
  DES/3DES
• Efficiency/security bigger block size desirable
• Advanced Encryption Standards (AES)
• US NIST issued call for ciphers in 1997
• Rijndael was selected as the AES in Oct-2000

58
AES

• Private key symmetric block cipher
• 128-bit data, 128/192/256-bit keys
• Stronger faster than Triple-DES
• Provide full specification design details
• Evaluation criteria
• Security effort to practically cryptanalysis
• Cost computational efficiency and memory
  requirement
• Algorithm implementation characteristics
  flexibility to apps, hardware/software
  suitability, simplicity

59
AES Shortlist

• After testing and evaluation, shortlist in
  Aug-99
• MARS (IBM) - complex, fast, high security margin
• RC6 (USA) - v. simple, v. fast, low security
  margin
• Rijndael (Belgium) - clean, fast, good security
  margin
• Serpent (Euro) - slow, clean, v. high security
  margin
• Twofish (USA) - complex, v. fast, high security
  margin
• Then subject to further analysis comment

60
Outlines

• Symmetric Cipher
• Classical Symmetric Cipher
• Modern Symmetric Ciphers (DES and AES)
• Asymmetric Cipher
• One-way Hash Functions and Message Digest

61
Private-Key Cryptography

• Private/secret/single key cryptography uses one
  key
• Shared by both sender and receiver
• If this key is disclosed communications are
  compromised
• Also is symmetric, parties are equal
• Hence does not protect sender from receiver
  forging a message claiming is sent by sender

62
Public-Key Cryptography

• Probably most significant advance in the 3000
  year history of cryptography
• Uses two keys a public a private key
• Asymmetric since parties are not equal
• Uses clever application of number theoretic
  concepts to function
• Complements rather than replaces private key
  crypto

63
Public-Key Cryptography

• Public-key/two-key/asymmetric cryptography
  involves the use of two keys
• a public-key, which may be known by anybody, and
  can be used to encrypt messages, and verify
  signatures
• a private-key, known only to the recipient, used
  to decrypt messages, and sign (create) signatures
• Asymmetric because
• those who encrypt messages or verify signatures
  cannot decrypt messages or create signatures

64
Public-Key Cryptography
65
Public-Key Characteristics

• Public-Key algorithms rely on two keys with the
  characteristics that it is
• computationally infeasible to find decryption key
  knowing only algorithm encryption key
• computationally easy to en/decrypt messages when
  the relevant (en/decrypt) key is known
• either of the two related keys can be used for
  encryption, with the other used for decryption
  (in some schemes)
• Analogy to delivery w/ a padlocked box

66
Public-Key Cryptosystems

• Two major applications
• encryption/decryption (provide secrecy)
• digital signatures (provide authentication)

67
RSA (Rivest, Shamir, Adleman)

• The most popular one.
• Support both public key encryption and digital
  signature.
• Assumption/theoretical basis
• Factoring a big number is hard.
• Variable key length (usually 512 bits).
• Variable plaintext block size.
• Plaintext must be smaller than the key.
• Ciphertext block size is the same as the key
  length.

68
What Is RSA?

• To generate key pair
• Pick large primes (gt 256 bits each) p and q
• Let n pq, keep your p and q to yourself!
• For public key, choose e that is relatively
  prime to ø(n) (p-1)(q-1), let pub lte,ngt
• For private key, find d that is the
  multiplicative inverse of e mod ø(n), i.e., ed
  1 mod ø(n), let priv ltd,ngt

69
RSA Example

• Select primes p17 q11
• Compute n pq 1711187
• Compute ø(n)(p1)(q-1)1610160
• Select e gcd(e,160)1 choose e7
• Determine d de1 mod 160 and d lt 160 Value is
  d23 since 237161 101601
• Publish public key KU7,187
• Keep secret private key KR23,17,11

70
How Does RSA Work?

• Given pub lte, ngt and priv ltd, ngt
• encryption c me mod n, m lt n
• decryption m cd mod n
• signature s md mod n, m lt n
• verification m se mod n
• given message M 88 (nb. 88lt187)
• encryption
• C 887 mod 187 11
• decryption
• M 1123 mod 187 88

71
Why Does RSA Work?

• Given pub lte, ngt and priv ltd, ngt
• n pq, ø(n) (p-1)(q-1)
• ed 1 mod ø(n)
• xe?d x mod n
• encryption c me mod n
• decryption m cd mod n me?d mod n m mod n
  m (since m lt n)
• digital signature (similar)

72
Is RSA Secure?

• Factoring 512-bit number is very hard!
• But if you can factor big number n then given
  public key lte,ngt, you can find d, hence the
  private key by
• Knowing factors p, q, such that, n pq
• Then ø(n) (p-1)(q-1)
• Then d such that ed 1 mod ø(n)
• Threat
• Moores law
• Refinement of factorizing algorithms
• For the near future, a key of 1024 or 2048 bits
  needed

73
Symmetric (DES) vs. Public Key (RSA)

• Exponentiation of RSA is expensive !
• AES and DES are much faster
• 100 times faster in software
• 1,000 to 10,000 times faster in hardware
• RSA often used in combination in AES and DES
• Pass the session key with RSA

74
Outline

• History of Security and Definitions
• Overview of Cryptography
• Symmetric Cipher
• Classical Symmetric Cipher
• Modern Symmetric Ciphers (DES and AES)
• Asymmetric Cipher
• One-way Hash Functions and Message Digest

75
Confidentiality gt Authenticity ?

• Symmetric cipher ?
• Plaintext has to be intelligible/understandable
• Asymmetric cipher?
• Straightforward use provides no authenticity
• Coupled encryption
• Too expensive
• Requires intelligible text, otherwise message
  size doubles

76
Hash Functions

• Condenses arbitrary message to fixed size
• h H(M)
• Usually assume that the hash function is public
  and not keyed
• Hash used to detect changes to message
• Can use in various ways with message
• Most often to create a digital signature

77
Hash Functions Digital Signatures
78
Requirements for Hash Functions

• Can be applied to any sized message M
• Produces fixed-length output h
• Is easy to compute hH(M) for any message M
• Given h is infeasible to find x s.t. H(x)h
• One-way property
• Given x is infeasible to find y s.t. H(y)H(x)
• Weak collision resistance
• Is infeasible to find any x,y s.t. H(y)H(x)
• Strong collision resistance

79
Birthday Problem

• How many people do you need so that the
  probability of having two of them share the same
  birthday is gt 50 ?
• Random sample of n birthdays (input) taken from k
  (365, output)
• kn total number of possibilities
• (k)nk(k-1)(k-n1) possibilities without
  duplicate birthday
• Probability of no repetition
• p (k)n/kn ? 1 - n(n-1)/2k
• For k366, minimum n 23
• n(n-1)/2 pairs, each pair has a probability 1/k
  of having the same output
• n(n-1)/2k gt 50 ? ngtk1/2

80
How Many Bits for Hash?

• m bits, takes 2m/2 to find two with the same hash
• 64 bits, takes 232 messages to search (doable)
• Need at least 128 bits

81
Using Hash for Authentication

• Assuming share a key KAB
• Alice to Bob challenge rA
• Bob to Alice MD(KABrA)
• Bob to Alice rB
• Alice to Bob MD(KABrB)
• Only need to compare MD results

82
Using Hash to Encrypt

• One-time pad with KAB
• Compute bit streams using MD, and K
• b1MD(KAB), biMD(KABbi-1),
• ? with message blocks
• Is this a real one-time pad ?
• Add a random 64 bit number (aka IV)
  b1MD(KABIV), biMD(KABbi-1),

83
General Structure of Secure Hash Code

• Iterative compression function
• Each f is collision-resistant, so is the
  resulting hashing

84
MD5 Message Digest Version 5
input Message
Output 128 bits Digest

• Until recently the most widely used hash
  algorithm
• in recent times have both brute-force
  cryptanalytic concerns
• Specified as Internet standard RFC1321

85
MD5 Overview
86
MD5 Overview

• Pad message so its length is 448 mod 512
• Append a 64-bit original length value to message
• Initialise 4-word (128-bit) MD buffer (A,B,C,D)
• Process message in 16-word (512-bit) blocks
• Using 4 rounds of 16 bit operations on message
  block buffer
• Add output to buffer input to form new buffer
  value
• Output hash value is the final buffer value

87
Processing of Block mi - 4 Passes
mi
MDi
ABCDfF(ABCD,mi,T1..16)
A
C
D
B
ABCDfG(ABCD,mi,T17..32)
ABCDfH(ABCD,mi,T33..48)
ABCDfI(ABCD,mi,T49..64)




MD i1
88
Secure Hash Algorithm

• Developed by NIST, specified in the Secure Hash
  Standard (SHS, FIPS Pub 180), 1993
• SHA is specified as the hash algorithm in the
  Digital Signature Standard (DSS), NIST

89
General Logic

• Input message must be lt 264 bits
• not really a problem
• Message is processed in 512-bit blocks
  sequentially
• Message digest is 160 bits
• SHA design is similar to MD5, a little slower,
  but a lot stronger

90
SHA-1 verses MD5

• Brute force attack is harder (160 vs 128 bits for
  MD5)
• A little slower than MD5 (80 vs 64 steps)
• Both work well on a 32-bit architecture
• Both designed as simple and compact for
  implementation
• Cryptanalytic attacks
• MD4/5 vulnerability discovered since its design
• SHA-1 no until recent 2005 results raised
  concerns on its use in future applications

91
Revised Secure Hash Standard

• NIST have issued a revision FIPS 180-2 in 2002
• Adds 3 additional hash algorithms
• SHA-256, SHA-384, SHA-512
• Collectively called SHA-2
• Designed for compatibility with increased
  security provided by the AES cipher
• Structure detail are similar to SHA-1
• Hence analysis should be similar, but security
  levels are rather higher

92
Backup Slides
93
Bit Permutation (1-to-1)
1 2 3 4 32
.

0 0 1 0 1
Input
1 bit
..
Output
1 0 1 1 1
22 6 13 32 3
94
Per-Round Key Generation
Initial Permutation of DES key
C i-1
D i-1
28 bits
28 bits
Circular Left Shift
Circular Left Shift
One round
Round 1,2,9,16 single shift Others two bits
Permutation with Discard
48 bits Ki
C i
D i
28 bits
28 bits
95
A DES Round
32 bits Ln
32 bits Rn
E
One Round Encryption
48 bits
Mangler Function
48 bits Ki
S-Boxes
P
32 bits
32 bits Ln1
32 bits Rn1
96
Mangler Function
The permutation produces spread among the
chunks/S-boxes!
97
Bits Expansion (1-to-m)
1 2 3 4 5 32
.
Input

0 0 1 0 1 1
Output
..
1 0 0 1 0 1 0 1
1 0
1 2 3 4 5 6 7 8
48
98
S-Box (Substitute and Shrink)

• 48 bits gt 32 bits. (86 gt 84)
• 2 bits used to select amongst 4 substitutions for
  the rest of the 4-bit quantity

99
S-Box Examples
Each row and column contain different numbers.
0 1 2 3 4 5
6 7 8 9. 15
0 14 4 13 1 2
15 11 8 3
1 0 15 7 4 14
2 13 1 10
2 4 1 14 8 13
6 2 11 15
3 15 12 8 2 4
9 1 7 5
Example input 100110 output ???
100
Padding Twist

• Given original message M, add padding bits 10
  such that resulting length is 64 bits less than a
  multiple of 512 bits.
• Append (original length in bits mod 264),
  represented in 64 bits to the padded message
• Final message is chopped 512 bits a block

101
MD5 Process

• As many stages as the number of 512-bit blocks in
  the final padded message
• Digest 4 32-bit words MDABCD
• Every message block contains 16 32-bit words
  m0m1m2m15
• Digest MD0 initialized to A01234567,B89abcdef,C
  fedcba98, D76543210
• Every stage consists of 4 passes over the message
  block, each modifying MD
• Each block 4 rounds, each round 16 steps

102
Different Passes...

• Each step i (1 lt i lt 64)
• Input
• mi a 32-bit word from the message
• With different shift every round
• Ti int(232 abs(sin(i)))
• Provided a randomized set of 32-bit patterns,
  which eliminate any regularities in the input
  data
• ABCD current MD
• Output
• ABCD new MD

103
MD5 Compression Function

• Each round has 16 steps of the form
• a b((ag(b,c,d)XkTi)ltltlts)
• a,b,c,d refer to the 4 words of the buffer, but
  used in varying permutations
• note this updates 1 word only of the buffer
• after 16 steps each word is updated 4 times
• where g(b,c,d) is a different nonlinear function
  in each round (F,G,H,I)

104
MD5 Compression Function
105
Functions and Random Numbers

• F(x,y,z) (x?y)?(x ? z)
• selection function
• G(x,y,z) (x ? z) ?(y ? z)
• H(x,y,z) x?y? z
• I(x,y,z) y?(x ? z)

106
Basic Steps for SHA-1

• Step1 Padding
• Step2 Appending length as 64 bit unsigned
• Step3 Initialize MD buffer 5 32-bit words
• Store in big endian format, most significant bit
  in low address
• ABCDE
• A 67452301
• B efcdab89
• C 98badcfe
• D 10325476
• E c3d2e1f0

107
Basic Steps...

• Step 4 the 80-step processing of 512-bit blocks
  4 rounds, 20 steps each.
• Each step t (0 lt t lt 79)
• Input
• Wt a 32-bit word from the message
• Kt a constant.
• ABCDE current MD.
• Output
• ABCDE new MD.
