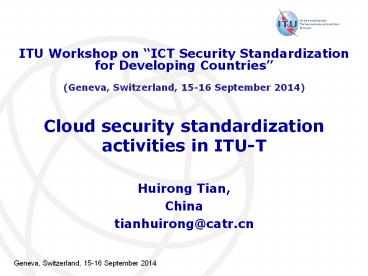

Cloud security standardization activities in ITU-T

1
Cloud security standardization activities in ITU-T
ITU Workshop on ICT Security Standardizationfor
Developing Countries (Geneva, Switzerland,
15-16 September 2014)

• Huirong Tian,
• China
• tianhuirong_at_catr.cn

2
Contents
3
Work of ITU-T FG-CC
4
ITU-T Focus Group (FG) on Cloud Computing

• Objective
• To collect and document information and concepts
  that would be helpful for developing
  Recommendations to support cloud computing
  services/applications from a telecommunication/ICT
  perspective.

5
ITU-T Focus Group (FG) on Cloud Computing

• Management team
• Chair Victor Kutukov (Russia) Vice-Chairman
  Jamil Chawki (France) Vice-Chairman Kangchan
  Lee (Korea)Vice-Chairman Mingdong Li
  (China)Vice-Chairman Monique Morrow (USA)
  Vice-Chairman Koji Nakao (Japan)
  Vice-Chairman Olivier Corus (France)

6
ITU-T FG-Cloud deliveries
2010.2

• FG Cloud
• Eight meetings,7 deliverables

2011. 12
FG Cloud established
FG Cloud concluded

• FG Cloud TR1Introduction to the cloud ecosystem
  definitions, taxonomies, use cases and high level
  requirements
• FG Cloud TR2Functional Requirements and
  Reference Architecture
• FG Cloud TR3Requirements and framework
  architecture of Cloud Infrastructure
• FG Cloud TR4Cloud Resource Management Gap
  Analysis
• FG Cloud TR5Cloud security
• FG Cloud TR6Overview of SDOs involved in Cloud
  Computing
• FG Cloud TR7Benefits from telecommunication
  perspectives

7
FG Cloud TR5Cloud Security

• 11 study subjects on cloud security
• Security architecture/model and framework
• Security management and audit technology
• Business continuity planning (BCP) and disaster
  recovery
• Storage security
• Data and privacy protection
• Account/identity management
• Network monitoring and incident response
• Network security management
• Interoperability and portability security
• Virtualization security
• Obligatory predicates

8
Standardization activities in SG17 and SG13
9
Cloud computing security tasks collaboration
between SG13 and SG17
10
SG17 cloud security related questions
1. Security architecture/model and framework
2.Security management and audit
technology 3. BCP/disaster recovery and storage
security 4.Data and privacy protection 5.Account/i
dentity management 6.Network monitoring and
incidence response 7.Network security 8.Interopera
bility security 9.Service portability
Q3/17
Q10/17
Q4/17
Q8/17
Management
CyberSecurity
(Main)cloud
IdM/Bio
11
SG17 cloud security work items
Published in 2014.1
Common text with ISO/IEC
12
X.1601 Security framework for cloud computing
13
X.1601 Security framework for cloud computing
14
X.16017. Security threats for cloud computing
15
X.16018. Security challenges for cloud computing
16
X.1601 9.Cloud computing security capabilities

• 9.1 Trust model
• 9.2 Identity and access management (IAM),
  authentication, authorization, and transaction
  audit
• 9.3 Physical security
• 9.4 Interface security
• 9.5 Computing virtualization security
• 9.6 Network security
• 9.7 Data isolation, protection and privacy
  protection

• 9.8 Security coordination
• 9.9 Operational security
• 9.10 Incident management
• 9.11 Disaster recovery
• 9.12 Service security assessment and audit
• 9.13 Interoperability, portability, and
  reversibility
• 9.14 Supply chain security

17
X.1601 10. Framework methodology
18
X.cc-control

• Scope
• This International Standard provides guidelines
  supporting the implementation of Information
  security controls for cloud service providers and
  cloud service customers of cloud computing
  services. Selection of appropriate controls and
  the application of the implementation guidance
  provided will depend on a risk assessment as well
  as any legal, contractual, or regulatory
  requirements. ISO/IEC 27005 provides information
  security risk management guidance, including
  advice on risk assessment, risk treatment, risk
  acceptance, risk communication, risk monitoring
  and risk review.

19
X.sfcse

• Scope
• This Recommendation provides a generic functional
  description for secure service oriented Software
  as a Service (SaaS) application environment that
  is independent of network types, operating
  system, middleware, vendor specific products or
  solutions. In addition, this Recommendation is
  independent of any service or scenarios specific
  model (e.g., web services, Parlay X or REST),
  assumptions or solutions. This Recommendation aim
  to describe a structured approach for defining,
  designing, and implementing secure and manageable
  service oriented capabilities in
  telecommunication cloud computing environment.

20
X.goscc

• Scope
• This Recommendation provides guideline of
  operational security for cloud computing, which
  includes guidance of SLA and daily security
  maintenance for cloud computing. The target
  audiences of this recommendation are cloud
  service providers, such as traditional telecom
  operators, ISPs and ICPs.

21
X.idmcc

• Scope
• This Recommendation provides use-case and
  requirements analysis giving consideration to the
  existing industry efforts. This Recommendation
  concentrates on the requirements for providing
  IdM as a Service (IdMaaS) in cloud computing. The
  use of non-cloud IdM in cloud computing, while
  common in industry, is out of scope for this
  Recommendation.

22
SG17 cloud security Recommendation structure


23
SG13 cloud security plans

• Y.inter-cloud-sec
• Y.cloudtrustmodels
• Y.cloudusereq
• Y.cloudSECasaservice

24
Conclusions and Recommendations

• Cloud computing will change the ICT industry.
• The security capabilities will affect how cloud
  computing could be used.

• Work item proposals on trust models, security
  controls, best practices, etc. are solicited.

25
Thanks for listening!
