Athena Rover

1

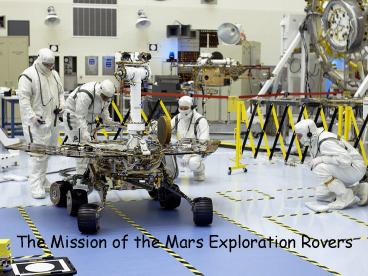

The Mission of the Mars Exploration Rovers
2
The Athena Science Payload
Remote Sensing Package Pancam Mast Assembly
(PMA) Pancam Mini-TES
Magnetic Properties Experiment
In-Situ Package Instrument Deployment Device
(IDD) Microscopic Imager Alpha Particle
X-Ray Spectrometer Mössbauer Spectrometer
Rock Abrasion Tool
3
Driving on Mars from National Air and Space
Museum
4
Landing in Gusev Crater
5
The View From the Surface
6
Adirondack
7
Normative Mineralogy from APXS
8
Mini-TES Mineralogy
9
On to the Columbia Hills
10
(No Transcript)
11
The Hills are Alive
12
Tetl
13
Descartes
14
Examples of Rock Types of Husband Hill
High P
High Ti
Low Cr
Some Rock Types, including Voltaire Class are Not
Shown
15
(No Transcript)
16
Rock Counts along Spirits traverse in Gusev
Counts categorized by geomorphic surface (sol
numbers labeled). White arrows indicate the
average azimuth (i.e. "look direction") of scene.
17
Size-Frequency Consistent Fragmentation
18
Difference Related to Minor Burial/Stripping
Local Burial by Drift
Stripping of 10s of cm
Larger and more numerous rocks on Bonneville
crater rim
19
Bedrock Influences Distribution on Husband Hill
Float Matches Ejecta Size Distribution, but shows
interesting compositional variability on Husband
Hill e.g., Backstay Rocks that may be
contributions from Pre-Plains Ejecta?
Voltaire Outcrops
View east towards the crest of Husband Hill
20
Dust Devils and Dust Removal
21
Home Plate
sol 776
22
(No Transcript)
23
Home Plate
24
Bomb Sag In Coarser Lower Unit
25
Fine-Grained Upper Unit
26
Silica Valley
27
(No Transcript)
28
Si
91 SiO2! (also enriched in Ti)
29
(No Transcript)
30
A Solar Eclipse
31
A Lunar Eclipse
32
Meridiani Planum
33
(No Transcript)
34
Opportunity Ledge
35
Hematite Distribution
36
Spherical Granules (Blueberries)
37
MI on Stone Mountain
38
Spherule Distribution
Volume distribution is more uniform than random,
as expected for concretions
39
(No Transcript)
40
Outcrop Chemistry 40 Sulfates
41
Mössbauer Mineralogy
2
2
42
(No Transcript)
43
Current Ripples On Earth
Courtesy of Dave Rubin, USGS
44
Endurance Crater
45
The Trek Into Endurance
46
Chemical Changes With Depth
Depth
47
Stratigraphic Column
Legend
48
Geologic History

• All rocks composed of sulfate-rich sandstone
• Environment Sulfate-rich eolian deposits (dunes
  and sand sheets), and probable interdune playas
  fed by acidic groundwater.
• Groundwater fluctuations led to dissolution of
  some minerals, and formation of concretions
• Conditions were habitable, but could have posed
  significant challenges to life
• Oxidizing
• Acidic
• Saline
• Arid and only intermittently wet

49
Heading South.
50
Hello, Sponge Bob!
51
(No Transcript)
52
HiRISE Images Victoria
53
HiRISE Images Victoria
54
Cape Verde
Duck Bay
55
Opportunity
Cape Verde
Duck Bay
56
Opportunity
Cape Verde
Duck Bay
57
(No Transcript)
58

59
Impact Breccia
Fractured In Place
Pre-Impact Surface
Bedrock
60
Cape St. Vincent
7-meter thick climbing eolian bedform
Paleo wind direction is north to south
61
North of Victoria Rock With No Berries
62
Near Victoria Big Berries Galore!
63
Did We Traverse Up Section?
1. Layered Sediments Deposited
64
Did We Traverse Up Section?
2. Concretions Precipitated From Groundwater
65
Did We Traverse Up Section?
3. Water Drains
66
Did We Traverse Up Section?
4. Surface Planed Off By Eolian Erosion
67
Did We Traverse Up Section?
5. Victoria Crater Forms
68
Did We Traverse Up Section?
Landing Site
69
Did We Traverse Up Section?
Landing Site
No Berries
70
Did We Traverse Up Section?
Big Berries Again
Landing Site
No Berries
71
Did We Traverse Up Section?
Big Berries Again
Landing Site
No Berries
???
72
Guadarrama
Madrid
1 m
73
Eroded or Pristine? Primary or Secondary?

• D/d ratio of 0.1
• Serrated, low rim
• Interior dune field
• Eroded Primary, not Pristine Secondary

74
How Much Erosion?

• Compare to pristine craters 500-700 m across
• 500 m crater produces rim of all ejecta
• 700 m crater produces rim of all uplift
• 625-650 m crater produces expected rim, ejecta

75
How Much Erosion?

• Compare to pristine craters 500-700 m across
• 500 m crater produces rim of all ejecta
• 700 m crater produces rim of all uplift
• 625-650 m crater produces expected rim, ejecta

76
What Processes of Erosion?
77
Bay Profiles

• Bays display low gradients
• (average 19 degrees)
• Rounded bays are more
• uniform and similar
• Profiles are smooth to
• slightly concave up (head
• averages 5 degrees steeper)
• Some bays less steep
• towards head
• Include deepest (Bottomless
• and Duck)

Rounded Bays
Less Rounded Bays
78
The roll of the Wind
Rounded Bays

• Eolian Signatures Ubiquitous, Enable Mass
  Wasting of Capes
• Dunes/Fill, Ventifacts, Narrow/Buried Talus,
  Rounded Forms

79
Eolian Processes Most Important

• Smooth, rounded bays (ventifacts,
• talus-poor) support eolian
• Deepest, Smoothest, and Roundest
• Bays Align with Wind
• Rocks easily eroded by wind (talc to
• chalk, Sullivan 2007)
• Victoria enlarged 120-125 m (50 m
• wider/prevailing winds)
• Exploit Structure (Tear Faults
• probs. matching strat.)
• Wind Streaks and dunes reflect
• transport into, out of crater
• Infilling dominates (2X more in
• crater than from rim)

80
1 m
