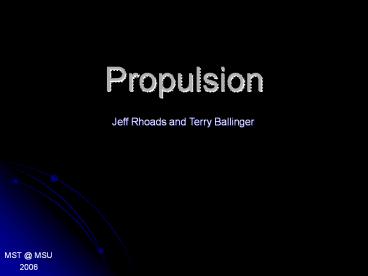

Propulsion

1
Propulsion
Jeff Rhoads and Terry Ballinger
MST _at_ MSU 2006
2
What is Propulsion?
3
What is Propulsion?

• The science of propelling (pushing) an object
  forward

4
What is Propulsion?

• The science of propelling (pushing) an object
  forward

Mechanical Motion
Fuel
The Process
5
Propulsion Systems

• Internal Combustion Engines
• Steam Engines
• Electric Motors
• Nuclear Propulsion
• Jet Propulsion

6
Propulsion Systems

• Internal Combustion Engines
• Steam Engines
• Electric Motors
• Nuclear Propulsion
• Jet Propulsion

Most relevant to todays activity.
7
Internal Combustion Engines
8
Internal Combustion Engines
How it Works
9
Steam Engines
10
Steam Engines
How it Works
11
Nuclear Propulsion
How it Works
12
Nuclear Propulsion
13
Jet Propulsion

• Involves the acceleration of a fluid through
  (from) an engine

What does this do?
14
Jet Propulsion

• Involves the acceleration of a fluid through
  (from) an engine

Produces Thrust
15
Jet Propulsion
Combustion
Oxygen
Thrust
Fuel
Rocket Engine
(Outer Space)
16
Jet Propulsion
Combustion
Oxygen
Thrust
Oxygen
Fuel
Combustion
Fuel
Turbojet
(High Altitudes)
17
Cool Movies
18
Cool Movies
Jet Blast
19
Cool Movies
Rocket Launch
20
Todays Activity
21
Todays Activity
CO2 Propelled Boat
Objective Create a CO2 propelled boat that
travels the greatest distance in the minimum
amount of time.
22
Materials

• Other Materials
• Baking soda
• Vinegar
• Clear plastic tape
• Pennies
• Graduated cylinders
• Exact-o Knifes

23
Todays Activity
CO2 Propelled Boat
Objective Create a CO2 propelled boat that
travels the greatest distance in the minimum
amount of time.
Mechanical Motion
Fuel
Propulsion
24
Todays Activity
CO2 Propelled Boat
Objective Create a CO2 propelled boat that
travels the greatest distance in the minimum
amount of time.
Baking Soda and Vinegar
Mechanical Motion
Fuel
Propulsion
25
The Combustion Process
26
The Combustion Process
27
The Combustion Process
28
Design Considerations

• Best ratio of baking soda to vinegar
• (How can you systematically optimize it?)
• Method to seal the reaction chamber without
  mixing the baking soda and vinegar
• Size/placement of exhaust hole(s) for CO2 to
  escape
• Appropriate weight and its distribution
