Paging Through a Data Table

1

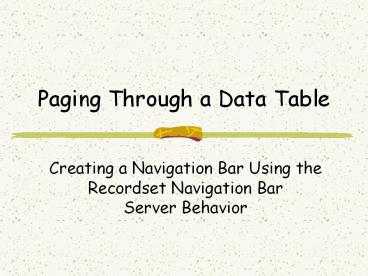

Paging Through a Data Table

• Creating a Navigation Bar Using theRecordset
  Navigation BarServer Behavior

2
Paging Through a Data Table

• When a data table contains too many records to
  display onscreen at once, you need a way to page
  through the data.
• To help you do this, Dreamweaver has an
  Application object called the Recordset
  Navigation Bar server behavior.
• The following tutorial steps you through the
  process of creating a Recordset Navigation Bar
  that the user can use to page through a data
  table onscreen.

3
Create an ASP Page

• Pull down the File menu and choose New to bring
  up the New Document dialog.
• Select the Dynamic Page category to make the
  Dynamic Page options appear.
• Select ASP JavaScript and click the Create
  button the new page appears.
• Pull down the File menu, choose Save, and save
  the file in your sites local root folder in
  this example, make the name of the page be
  DataTablePaging.asp.

4
Defining the Data Source

• If you have not already defined the data source
  containing your table, follow these steps
• Click to position your cursor in the Databases
  window. If the Databases window is not visible,
  pull down the Window menu and choose Databases.
• Click the plus-sign button and choose Custom
  Connection String.
• When the Custom Connection String dialog appears,
  enter the name of the connection and your
  connection string.

5
Entering the Connection String

• In this course, the connection string
  is"DBQC\webs.oet.udel.edu\fthstudents\databa
  ses\lastname\TopSecret.mdbDRIVERMicrosoft
  Access Driver (.mdb)
• -or-
• "ProviderMicrosoft.Jet.OLEDB.4.0Data
  SourceC\webs.oet.udel.edu\fthstudents\databases
  \lastname\TopSecret.mdb
• If you are running your own Web server, you can
  use the my.udl wizard to create the connection
  string.

6
Create a Recordset Data Binding

• Click the Bindings tab of the Application window,
  or pull down the Window menu and choose Bindings.
• Click the plus sign button and choose recordset
  to make the recordset dialog appear.
• Customize the Name field to suit your
  application. If this is a list of users, for
  example, make the Name field say UsersRecordset.
• Choose the connection that contains the table.
• Select the data table containing your data.
• Select the data fields you want displayed.
• Click OK.

7
Select the Application Toolbar

• If the Insert toolbar is not already set to
  Application, pull down the Insert bar and choose
  Application to make the Application toolbar
  appear

8
Display the Data Table

• Click to position the cursor at the spot on the
  page where you want to display the data table.
• From the Application category of the Insert bar,
  choose Dynamic Data?Dynamic Table

9
Define the Dynamic Table

• When the Dynamic Table dialog appears, choose the
  recordset you want to display, set the number of
  records to show at a time, and click OK

10
Test the Page

• Press F12 to test the page and make sure it works
  so far. F12 publishes and tests the page all in
  one step.
• When the page appears in your browser, you should
  see the table onscreen.
• If you do not see the table, troubleshoot the
  problem until you get this test to succeed.

11
Insert the Recordset Navigation Bar

• Click to position the cursor at the spot on the
  page where you want to display the navigation
  bar.
• Pull down the Recordset Paging menu and choose
  Recordset Navigation Bar

12
Set the Recordset Navigation Bar Options

• When the Recordset Navigation Bar dialog appears,
  choose the recordset you want to display, and set
  the option to display the navigation options as
  text or images, as you wish, and click OK

13
Test the Page

• Press F12 to test the page. You should now have
  buttons you can use to page back and forth
  through the data table

14
Adjust the Page Layout

• Stylize the page elements as you wish.
• Use a surrounding table, for example, to make the
  navigation bar and the table appear centered with
  respect to each other as follows
