Title: Vibrating Strings and Air Columns


1

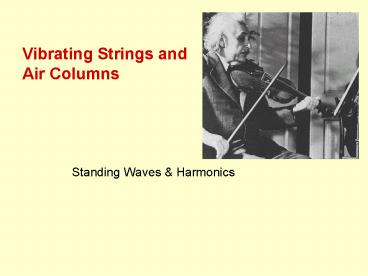

Vibrating Strings and Air Columns
  • Standing Waves Harmonics

2
Source of sound (Animation)
  • The source of sound is a vibrating object.
  • Standing waves are produced in musical
    instruments by striking, blowing, plucking,
    bowing
  • Pitch - Frequency
  • Amplitude - Loudness (Energy)
  • Sound Quality - Wave form
  • Vibrating strings (Violin, Guitar)
  • Vibrating columns of air (Flute, trumpet, pipe
    organ)

3
Standing Wave
  • When a wave reflects off of something, it can
    interfere with its own reflection. The
    interference is alternately constructive or
    destructive as the two waves move past each
    other. This creates a standing wave.

4
Node Antinode
  • Certain points along the standing wave never
    move. These points are called nodes. The points
    that move the most are called antinodes.

5
Fundamental and Harmonics n
  • Fundamental - the lowest resonance frequency
  • Harmonics n (overtones)- multiples of the
    fundamental frequency
  • The closed end must be a node and the open end is
    an anti node

6
Standing waves on a string
Harmonics in violin string (always nodes at the
ends)
7
Closed on both ends (Piano)

8
Piano Guitar
  • Notes are just standing waves of a specific
    frequency.

9
Tube Open on both ends (Flute)
Tube Open at Both Ends

10
Tube Open Closed (Pipe organ)
  • Only odd harmonics n 1, 3, 5, 7, (We need a
    node at the closed end and an antinode at the
    open end)

Tube Closed at One End

11
(No Transcript)
12
Timbre (French, from tambourine)
  • If notes are just waves of different
    frequencies, why do all the different instruments
    sound different when they play the same notes?
  • An instrument always plays several frequencies at
    once.
  • This spectrum of frequencies is called the
    instruments timbre (tone color).

13
Sound Color- Timbre
14
Beat frequency (Interference)
  • Beats
  • A "wah wah" is heard when two close frequencies
    are heard. The number of Beats equals the
    difference between the frequencies
  • Example
  • 230 HZ 232Hz
  • Beat frequency is 2Hz

15
Sound intensity level decibel dB
  • Intensity of a sound was is defined as the energy
    carried by the wave per unit time across unit
    area. Intensity is measured in watts per square
    meter (W/m2). The intensity is proportional to
    the square of the amplitude.
  • Sound level intensity is related to the perceived
    loudness of a sound, measured in decibel (dB). A
    logarithmic scale is measured for this quantity.

16
Sound intensity in dB
17
dB Calculations
18
Audible range of frequencies
  • Good human ears can detect sound from about 20 Hz
    to about 20,000Hz (20 kHz)
  • This can be called the audible range of
    frequencies.
  • As people grow older, we loose our ability to
    detect high frequencies.

19
Ultrasound - Above Hearing
20
Infrasound- Below human hearing - sound of
seismology
  • 10 Hz to 0.001 Hz
  • Earthquakes, Auroras , Tornados, Tsunamis
  • Brown University seismic
  • Uni Fairbanks Infrasound Page
  • Tsunami Columbia Uni
