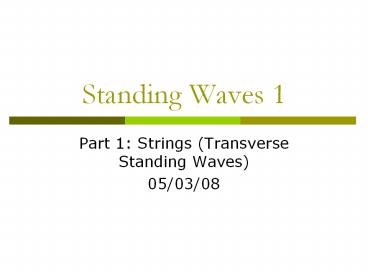

Standing Waves 1

1
Standing Waves 1

• Part 1 Strings (Transverse Standing Waves)
• 05/03/08

2
Standing Waves

• A standing (or stationary) wave occurs when two
  waves of the same frequency pass through each
  other in opposite directions.

3
Formation of a Standing Wave
4
Waves Travelling in Opposite Directions

• The diagram shows two waves (in green and blue)
  travelling in opposite directions on a string,
  setting up a standing wave (in black).
• Note that the standing wave is the sum of the two
  travelling waves.

5
Energy in a Standing Wave

• No energy is transferred by a standing wave.
• Energy is trapped in the wave, changing between
  kinetic and potential energy as particles vibrate
  back and forth.
• Standing waves is a resonance effect, because the
  superposition of the two waves of identical
  frequency results in an increased amplitude of
  oscillation.

6
Properties II

• Nodes are points on the standing wave that remain
  stationary at all times.
• Antinodes are points on the standing wave that
  have the greatest displacement.

7
Harmonics in a String

• The 1st harmonic in a string has a wavelength of
  twice the length of the string.
• The 2nd harmonic has a wavelength equal to the
  length of the string.
• The 3rd harmonic has a wavelength equal to 2/3
  the length of the string.

8
Problem 1

• Telephone wires often resonate and hum in high
  winds. When the wind blows in a particular
  direction, some wires are heard to resonate at 50
  Hz. The telephone poles are 25 m apart.
• Sketch such a telephone wire vibrating at its
  fundamental frequency.
• Calculate the wavelength of the fundamental.
• 50 m
• Calculate the wave speed.
• 2500 ms-1
• Sketch the wave pattern of the second harmonic.

9
Problem 2

• A guitar string is 75.0 cm long. It is made to
  vibrate at its fundamental frequency.
• What is the wavelength of the vibration?
• 1.50 m
• The frequency of the note is 465 Hz. Calculate
  the speed of the wave in the guitar string.
• 698 m s-1
• What is the frequency of the third harmonic?
• 1395 Hz
• Calculate the wavelength of the third harmonic.
• 0.50 m
• The string is shortened to 35.0 cm as the
  players fingers move down the fret board.
  Calculate the new fundamental frequency.
• 996 Hz

10
Demonstrations

• Slinky transverse waves
• Guitar identify the first, second, third,
  fourth harmonics by forcing nodes.

11
Standing Waves

• Part 2 Pipes
• (Longitudinal Standing Waves)

12
Longitudinal Standing Waves

• When we blow across a bottle, we set up a
  standing wave that is at the natural frequency of
  the bottle.
• If we add water to the bottle, we have reduced
  the amount of space available for the wave to be
  set up in. The wavelength of the fundamental is
  also reduced.

13
Longitudinal Waves

• A column of air inside a pipe can vibrate these
  vibrations are longitudinal they behaves like
  compressions in a spring.

14
Open and Closed Pipes

• As demonstrated in the diagram below, the closed
  end of a pipe acts much like the fixed point of a
  string here a node forms.
• The open end of a pipe, however, forms an
  antinode.

15
Problem 3

• An organ pipe is closed at one end and open at
  the other.
• Sketch the wave pattern of the fundamental
  resonance inside the pipe.
• The pipe is tuned to 50.0 Hz for its fundamental
  note. Calculate the wavelength of this note,
  given that the speed of sound is 320 m s-1.
• 6.4 m
• Calculate the length of the organ pipe.
• 1.6 m
• Sketch the wave pattern when the third harmonic
  is set up in the pipe.
• Calculate the frequency of the third harmonic.
• 150 Hz

16
Problem 2

• Some physics students use a speaker (loudspeaker)
  to resonate a pipe that is open at both ends.
  The pipe is 1.20 m long.
• Calculate the wavelength of the fundamental
  resonance.
• 2.40 m
• One end of the pipe is now closed off. Does the
  speaker need to be changed to a higher or lower
  pitch in order to re-tune the pipe to the new
  fundamental? Explain.
• Assuming that the speed of sound is 320 m s-1,
  calculate the new resonant frequency.
• 67 Hz

17
Practice

• Complete problems 1, 3, 4, 5
• Complete worksheet 3 on standing waves.
