Title: Enhanced Counter Air Projectile IPT 2004

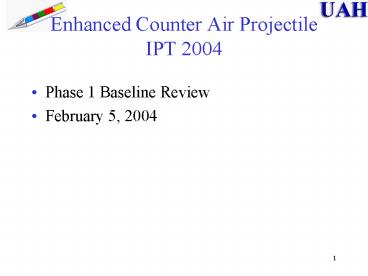

1
Enhanced Counter Air ProjectileIPT 2004
  • Phase 1 Baseline Review
  • February 5, 2004

2
ECAP Operational Concept
3
Outline
  • Part 1 Concept Description Document
  • Present a summary of the CDD
  • Part 2 Baseline Design
  • Describe Technical Features
  • Part 3 Baseline / CDD Assessment
  • Evaluate the Baseline Design with requirements
    brought forth in the CDD

4
Part 1 Concept Description Document
  • Introduction to the Concept Description Document

5
Characteristics of CDD
  • Concept Description Document (CDD)
  • Defines Enhanced Counter Air Projectile (ECAP)
  • The communication between the customer and the
    Project Office
  • The rule book for our designs
  • To be signed on Feb 9,2004

6
Performance Requirements
  • Maximum range of 2km, with a minimum range of
    500m and a preferred maximum range of 4km
  • Handle up to a 83km/hr wind gust and sustained
    winds of up to 65km/hr
  • Environmental and safety considerations
  • Must meet standard environmental requirements
  • No toxic materials
  • 90 probably of kill with 10-15 round burst
  • Baseline Target
  • 240mm rocket
  • Head on
  • 100-1000m high
  • 500m/sec

7
Functional Requirements
  • 40mm diameter
  • Must interface seamlessly with current systems
  • No new handling requirements
  • Function with current weapons platforms
  • Must meet all current storage and shelf life
    requirements

8
Requirement Compliance Matrix
PERFORMANCE ATTRIBUTE Possible Configuration States Possible Configuration States Possible Configuration States Possible Configuration States Possible Configuration States
Threat Rockets Mortars Artillery Aerial Comb.
Max Range lt 1km 2 km 4km gt4km Comb.
Shots Per Kill 1 2-10 11-15 gt15 Comb.
Mobility Human Wheeled Vehicle Tracked Vehicle Other Comb.
Simultaneous Targets (Assumed) 1 5 10 gt10 Comb.
Launch Detection Range (Derived) 1 km 2 - 5 km 6 - 10 km gt 10 km Comb
Shots per second (Derived) lt20 20 21 80 gt80 Comb
Shots Before Reload (Derived) lt 150 150 151 -300 gt 300 Comb
Cost per Kill (Assumed) low med high Very high Comb.
9
Systems Examined
Bofors
MK44
THEL
Phalanx
Patriot PAC 3
10
Evaluation
11
Part 2Baseline Design
12
Systems Engineering

13
Baseline Concept Overview
  • Fall 2003 study by graduate students
  • Baseline based on preliminary CDD
  • Constructed from recommendations by each
    discipline area
  • The ECAP projectile was assumed to be a fire and
    forget round

14
Baseline Guidelines and Assumptions
  • Guidelines
  • Head-on Target Engagement
  • Cost not an Important Factor
  • One Target Engagement
  • Maximum roll rate of 40 Hz
  • 240 mm cross-section target
  • Incoming target at 500 m/s
  • Assumptions
  • Muzzle Velocity of 1500 m/s
  • No radar errors
  • 10,000 g shock load
  • No Gravity

15
(No Transcript)
16
Discipline Areas
  • Seekers and Guidance
  • Controls
  • Navigation and Power
  • Modeling and Simulation
  • Launch Platform

17
Seekers and Guidance
18
Seekers and Guidance
  • The sensor section of a missile is responsible
    for finding, detecting, acquiring, and tracking a
    target until missile-target intercept.
  • Target seekers are categorized as either
  • - active Generates, transmits and
    receives energy
  • - semi-active Receives signal from ground
    base
  • - passive Depends on energy radiating
    from the target
  • The sensor section of a missile is responsible
    for finding, detecting, acquiring, and tracking a
    target until missile-target intercept.

19
Baseline Seeker
  • The seeker system recommended was a millimeter
    wave (MMW) strap-down seeker.
  • The guidance system recommended was a semi-active
    homing with proportional navigation.

20
Controls
21
Aerodynamic Configuration
  • Design Possibilities(Assuming Spinning Bullet)
  • Propulsive Control
  • Thrusters
  • Aerodynamic Control
  • Bent-Nose, Fins
  • Baseline Design Decisions
  • Bent-Nose Control
  • Cone
  • Low drag, packaging

22
Aerodynamic Analysis
  • Objective
  • To Determine if Bent-Nose Control Provides
    Sufficient Forces to Adequately Steer the Bullet
  • Datcom Inputs
  • Mach Number Range
  • Angle of Attack Range
  • Nose and/or Body Characteristics
  • Datcom Outputs
  • Force Coefficients and Body Pressures
  • Excel
  • Integration of Pressure Coefficients to Obtain
    Normal and Axial Forces

23
Considerations
  • Datcom
  • Cannot Model Bent-Nose
  • Non-Spinning Bullet
  • No Connection Between Analysis and Simulation
  • Smart Materials could have limited deflection (lt1
    degree)

24
Navigation and Power
25
Technical Considerations
  • Time of Flight 8 to 10 seconds
  • Activation Time 0.2 to 0.3 seconds
  • Power Required

Seeker Control TOTAL
Power (W) 1 0.028 1.028
Nominal Voltage (V) 10 1 - 118 11- 119
Nominal Current (A) 0.1 - -
26
Thermal Batteries--Pros
  • For this application a thermal battery should be
    used.
  • Already commonly used in missile applications.
  • Proven to have an acceptable shelf life.
  • Tested and proven to withstand harsh temperature
    and acceleration conditions
  • There are existing thermal batteries that are
    within ECAP size constraints.

27
Thermal Batteries--Cons
  • Power requirements posed a problem when sizing
    battery.
  • Controls required a huge range of voltages which
    demanded larger batteries.
  • Power requirement for controls was excluded from
    baseline design.

28
Modeling and Simulation
29
Simulation
  • Simulation of missile launched at a
    non-maneuverable target.
  • Simulation takes into account
  • Atmosphere- Speed of Sound, Density
  • Aerodynamics Drag Forces
  • Propulsion Thrust Force
  • Mass properties
  • Motion - Missile velocity and position
  • Target Velocity and Position

30
Simulation Inputs
  • cRocket code Takes into account
    3-Degrees-of-Freedom
  • Target Inputs
  • Initial Range 4000m
  • Initial Altitude 500m
  • Initial Velocity 500m/s (incoming)
  • Projectile Inputs
  • Muzzle Velocity 1500 m/s
  • Mass 1.383 kg
  • Intercept
  • Range 2817 m
  • Altitude 473 m
  • Closing Velocity 1466 m/s
  • Time of Flight 2.368 s

31
Simulation Output
32
Simulation
Pros - Able to duplicate results for the
baseline. - cRocket code
provides a simple model for first order
simulations. - The code is modular and
portable, hence it is easy to use. Cons -
Only 3 degrees of freedom, -
non-maneuvering target, - no wind and gust
models, - no propulsion model
using thrust table, - does not take into
account the rotation of the bullet
- launched from the launch platform.
33
Simulation
  • Recommendations
  • - In order to take into account the
    rotation of the bullet and the forces that effect
    it, a better simulation software (PRODAS) is
    needed to provide higher fidelity models of the
    missile and the target

34
Advanced AnalysisESTACA
35
ESTACA Team Members
  • Martin ALEXANDER
  • Marielle RUFIN
  • Romain MONNERY
  • Clement DUCASSE
  • Michael MEUNIER
  • Baptiste QUINQUET
  • Thibault RICOURG
  • Francis ZADRONZYNSKI

36
ESTACA
CURRENT PROGRESS
  • Task 1 ESTACA students will review 1 European
    Gun system and return 3 PowerPoint slides by Feb.
    9
  • Task 2 Structures Stress analysis will be
    performed on the baseline design. Files will be
    sent to UAH by March 1 to begin construction of a
    rapid prototype model
  • Task 2 Fluids Detailed CFD aerodynamic
    analysis of the Baseline Design will be sent to
    UAH by March 1.
  • Weekly Tele-conferences scheduled starting
    Monday, February 9 to discuss status of tasks.

37
Launch Platform
38
Baseline Launch Platform Description
  • No gun system was considered for the Baseline
    Design.
  • A microwave radar system was selected for the
    Baseline Design and it was assumed to be perfect.

39
3-D Prototype
The 3D model was produced from a CAD model using
a 3D printer at the Prototype Integration
Facility at AMRDEC.
40
Part 3
  • Baseline Assessment

41
Baseline Assessment
  • This assessment addresses, compares and contrasts
    the baseline design requirements and the CDD
  • This assessment also provides a brief analysis of
    possible launch systems

42
Baseline AssessmentSimilarities
  • Can attain required hit/kill ratio, depending on
    fragment impact speed.
  • 40mm diameter.
  • The baseline design has the ability to kill the
    baseline threat.
  • Chosen seeker is all-weather capable.
  • Bent-nose guidance system can operate within
    specified roll-rates.
  • Offers no atypical EM and/or radioactive
    emissions.
  • No chemical emissions also battery chosen to
    extend shelf life.

43
Baseline AssessmentDissimilarities and Issues
  • Length of the baseline design 259 mm (about 10
    in). The ATK MK44, for example, employs bullets
    that are 170 mm (6.7 in) in length.
  • Battery does not supply enough voltage to run all
    of the on-board systems.
  • Bent-nose control design has the potential to
    interfere with the forward-mounted seeker.
  • Previously mentioned length issue can also
    conflict with storage and operational
    requirements.

44
Baseline AssessmentLaunch Platform
  • The following slide compares the CDD requirements
    (for firing rate, etc.) to a baseline gun
    system.
  • The baseline launch system does not fully meet
    the CDD requirements.
  • Therefore, rate-of-fire requirements would need
    to met through either a modification of the
    baseline or another existing system, or through
    increasing per-round accuracy such that the
    rate-of-fire requirement is effectively nullified.

45
Baseline Assessment
