Title: Aromaticity


1

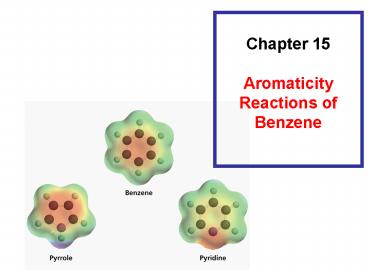

Chapter 15 Aromaticity Reactions of Benzene
2
Criteria for Aromaticity
1. A compound must have uninterrupted cyclic
cloud of p electrons above and below the
plane of the molecule
2. The p cloud must contain an odd number of
pairs of p electrons
3
Hückels Rule
For a planar, cyclic compound to be aromatic, its
uninterrupted p cloud must contain (4n 2) p
electrons, where n is any whole number
4
Monocyclic hydrocarbons with alternating single
and double bonds are called annulenes
Cyclobutadiene is not aromatic because it has an
even number of electron pairs
Cyclooctatetraene is not aromatic because it is
nonplanar
5
Neither cyclopropene nor the cyclopropenyl anion
is aromatic
6
sp3
sp3
cyclopentadiene
cycloheptatriene
2 pairs of p electrons not aromatic
interrupted p cloud not aromatic
7
These compounds are aromatic
8
Aromatic Heterocyclic Compounds
A heterocyclic compound is a cyclic compound in
which one or more of the ring atoms is an atom
other than carbon
9
Pyridine Is Aromatic
10
Pyrrole Is Aromatic
11
Furan Is Aromatic
12
Examples of Heterocyclic Aromatic Compounds
13
The Effect of Aromaticity on the pKa Values of
Some Compounds
14
(No Transcript)
15
Aromaticity influences chemical reactivity
16
A compound is antiaromatic if it is a planar,
cyclic compound with an uninterrupted ring of p
cloud, but it contains even number of pairs of p
electrons
17
A Molecular Orbital Description of Aromaticity
and Antiaromaticity
18
(No Transcript)
19
(No Transcript)
20
All CC bond distances 140 pm
140 pm is the average between the CC single
bond distance and the double bond distance in
1,3-butadiene.
21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
Huckel Rule or 4n 2 Rule
An oromatic compound must have an odd number of
pairs of p electrons
25
The Chemistry
26
  • Five common electrophilic aromatic substitution
    reactions
  • Halogenation a Br, Cl, I substitutes for
    hydrogen
  • Nitration a NO2 group substitutes for hydrogen
  • Sulfonation a SO3H group substitutes for
    hydrogen
  • Friedel Crafts acylation a RCO group
    substitutes for
  • hydrogen
  • 5. Friedel Crafts alkylation a alkyl group (R)

27
Chemistry of Aromatic Compounds
Remember
28
(No Transcript)
29
Benzene is a nucleophile that reacts with an
electrophile
30
Reaction Coordinate Diagrams for the Two Benzene
Reactions
31
General Mechanism for Electrophilic Aromatic
Substitution of Benzene
slow
fast
B
32
Halogenation of Benzene
33
(No Transcript)
34
(No Transcript)
35
Nitration of Benzene
36
Sulfonation of Benzene
37
Principle of Microscopic Reversibility
38
Principle of Microscopic Reversibility
39
Principle of Microscopic Reversibility
The forward and reverse reactions must have the
same intermediates and the rate determing is the
the same in both directions
40
FriedelCrafts acylation must be carried out with
more than one equivalent of AlCl3
41
Acylation-Reduction
permits primary alkyl groups to be attachedto an
aromatic ring
RCCl
AlCl3
  • Reduction of aldehyde and ketonecarbonyl groups
    using Zn(Hg) and HCl is called the Clemmensen
    reduction.

42
A problem with Acylation of Benzyne
A solution use only 1 equivalent of AlCl3
43
Alkylation of Benzyne
44
The carbocation will rearrange to a more stable
species
45
(No Transcript)
46
(No Transcript)
47
alkylation of benzene by an alkene
48
It is not possible to obtain a good yield of an
alkylbenzene containing a straight-chain group
via FriedelCrafts alkylation
49
However, a FriedelCrafts acylationreduction
works well
This method avoids using a large excess of
benzene in the reaction
50
Methodologies Used for the Reduction Step
51
One needs to consider an alternative if there is
another functional group present in the compound
