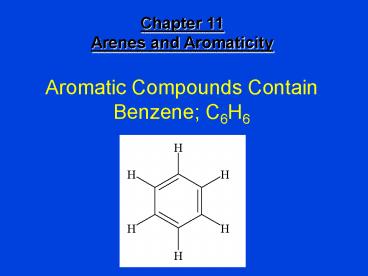

Aromatic Compounds Contain Benzene; C6H6

1
Aromatic Compounds Contain Benzene C6H6
Chapter 11Arenes and Aromaticity
2
Chapter 11 Arenes and Aromaticity

• Nomenclature
• Physical Properties
• Boiling Point
• Resonance Stabilization of Benzene
• Aromaticity Requirements
• Rules
• Aromatic ions
• Aromatic heterocycles
• Aromatic allotropes Polycyclic Aromatic
  Hydrocarbons

3
Chapter 11 Arenes and Aromaticity

• Reactions of Substituted Alkyl Benzenes
• Free Radical Halogenation
• Oxidation
• Nucleophilic Substitution

4
(No Transcript)
5
Examples of Aromatic Hydrocarbons
Benzene
Toluene
Naphthalene
6
Resonance Formulation of Benzene

• The structure of benzene is a resonancehybrid of
  the two Lewis structures. Electrons arenot
  localized in alternating single and double
  bonds,but are delocalized over all six ring
  carbons.

7
Orbital Hybridization Model of Bonding in Benzene
Each carbon has a p orbital Six p orbitals
overlap to give cyclic ? system

• Planar ring of 6 sp2
• hybridized carbons

8
Nomenclature

• 1) Benzene is considered as the parent andcomes
  last in the name.

9
Nomenclature

• If two groups come off benzene ring
• List substituents in alphabetical order and
  number
• ring in direction that gives lowest locant at
  first point
• of difference OR use ortho, para, meta notation.

10
Ortho, Meta, and Para
alternative locants for disubstitutedderivatives
of benzene
1,2 ortho(abbreviated o-)
11
Examples
NO2
CH2CH3
12
Certain monosubstituted derivatives of benzene
have unique names
Benzoic acid
Benzaldehyde
NH2
OCH3
Aniline
Anisole
13
Acetophenone
Anisole
Phenol
14
Names in Table 11.1 can be used as parent
Anisole
p-Nitroanisoleor4-Nitroanisole
15
Nomenclature

1. Aromatic compounds with more than two groups
   coming off the ring are named by giving groups
   the lowest possible combination of numbers (Dont
   use ortho, meta, para nomenclature)

2-bromo-1-chloro-4-fluorobenzene
16
Easily confused names
R group an alkyl group contains only C H
and has only single bonds
Ar group an arene group contains a benzene ring
17
Nomenclature

1. If an alkyl group off a benzene ring has more
   than 6 carbons the benzene ring is a substituent
   rather than the parent chain and the compound is
   named as a phenylalkane.

18
Physical Properties

• Arenes (aromatic hydrocarbons) resembleother
  hydrocarbons. They are
• nonpolar
• insoluble in water
• less dense than water

19
Boiling Point
11.9 Physical Properties of Arenes
C6H14 BP 69 C
C6H6 BP 80.1 C
20
Boiling Point
170C
181C
173C
21
Special Stability of Aromatic Compounds Shown by
DH

22
Figure 11.2 (p 429)
3 x cyclohexene

• observed heat of hydrogenation is 152 kJ/mol
  less than "expected"
• which means benzene is more stable
  thanexpected.
• 152 kJ/mol is the resonance energy of benzene

360 kJ/mol
208 kJ/mol
23
Cyclic conjugation versus noncyclic conjugation
3H2
Pt
heat of hydrogenation 208 kJ/mol
3H2
Pt

heat of hydrogenation 337 kJ/mol
24
Requirements for Aromaticity
Aromaticity Unusual Stability Associated with
Fully Conjugated Cyclic Systems

• Cyclic Compound
• Planar Compound
• Fully Conjugated System
• 4n 2 p electrons (Huckels Rule)
• n integer (1,2,3,)

25
Aromatic IonsCycloheptatrienyl Cation
26
Aromatic IonsCyclopentadienide Anion
27
Electron Delocalization in Cyclopentadienide Anion


28
Cyclooctatetraene Dianion
H
H
H
H

H
H
H
H

alsowritten as
2

H
H
H
H

H
H
H
H

• n 2
• 4n 2 10?? electrons

29
11.22Heterocyclic Aromatic Compounds
Furan
Thiophene
Pyrrole
Pyridine
Isoquinoline
Quinoline
30
Pyridine
Heterocyclic Aromatic Compounds

• 6 ? electrons in ring
• lone pair on nitrogen is in ansp2 hybridized
  orbitalnot part of ??system of ring

31
Pyrrole

• lone pair on nitrogen must be
• part of ring ? system if ring
• is to have6 ? electrons
• lone pair must be in a p orbitalin order to
  overlap with ring ?system

32
Furan

• two lone pairs on oxygen
• one pair is in a p orbital and
• is part of ring ? system
• other is in an sp2 hybridized
• orbital and is notpart of ring ? system

33
Aromatic Allotropes of Carbon
34
Polycyclic Aromatic Hydrocarbons (PAH)
n4
n 2
Naphthalene
35

• 11.10 Reactions of Arenes A Preview
• Some reactions involve the ring.
• a) Electrophilic aromatic substitution (Chapter
  12)
• b) Nucleophilic aromatic substitution (Chapter
  23)
• In other reactions the ring is a substituent.
• (Sections 11.12-11.17)

36
Benzylic Hydrogens are Reactive Sites

• Free Radical Halogenation of Alkyl Benzenes
• Oxidation of Alkyl Benzenes
• Nucleophilic Substitution of Benzylic Halides

37
Free Radical Substitution Reactions
38
Free-radical chlorination of toluene
Cl2
CH3
CH2Cl
lightorheat
39
Bond-dissociation energies of propene and toluene
368 kJ/mol
H2C
CH
-H
356 kJ/mol
-H
40
Resonance in Benzyl Radical

• unpaired electron is delocalized between
  benzylic carbon and the ring carbons that are
  ortho and para to it

41
Site of Oxidation is Benzylic Carbon
Oxidation of Alkylbenzenes
or
or
42
(No Transcript)
43
A Benzylic Hydrogen is Required for Oxidation
44
11.14 Nucleophilic Substitutionin Benzylic
Halides

• R-L Nu -gt R-Nu L

45
Solvolysis
CH3CH2OH
(87)
46
SN1 Substitution Reactions
Relative solvolysis rates in aqueous acetone
600
1

• tertiary benzylic carbocation is formedmore
  rapidly than tertiary carbocationtherefore,
  more stable

47
SN1 MechanismStep 1 Leaving Group Leaves
Carbocation FormedStep 2 Product is formed
Relative rates of formation
CH3
CH3


CH3
C
C
CH3
CH3
more stable
less stable
48
Resonance in Benzyl Cation
H
H
H
H
H
H
H
H


H
H
H
H
H
H

• positive charge is delocalized between benzylic
  carbon and the ring carbons that are ortho and
  para to it
