The North Atlantic

1

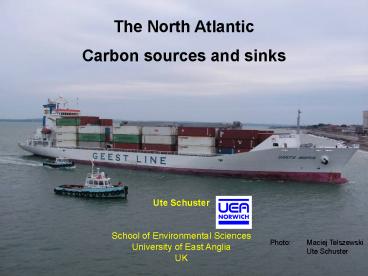

The North Atlantic Carbon sources and sinks
Ute Schuster School of Environmental
Sciences University of East Anglia UK
Photo Maciej Telszewski Ute Schuster
2
On behalf of

• Truls Johannesen, Are Olsen, Abdiraman Omar
• Arne Körtzinger, Tobias Steinhoff, Doug Wallace
• Ute Schuster, Andy Watson, Dorothee Bakker,
  Maciej Telszewski
• Jon Olafsson
• Antoine Corbière, Nicolas Metzl, Nathalie
  Lefèvre, Aymeric Chazottes, Cyril Moulin
• Aida Ríos, Fiz Pérez, Martina Álvarez
• Melchor González-Dávila, Magdalena
  Santana-Casiano
• Nick Bates
• Heike Lüger, Rik Wanninkhof, Dennis Pierrot,
  Richard Feely, Robert Castle, Betty Husss, Kevin
  Sullivan
• and many others

3
Anthropogenic carbon in the oceans in 1994
from Sabine et al (2004) Science 305 367 - 371
4
Air-sea flux climatology for 2000
0
5
9
-5
-9
mol m -2 year -1
from Takahashi et al (2007) in preparation
5
The North Atlantic observing system
6
ESTOC
From 1995 sea surface pCO2 1.66
µatm/year atmospheric xCO2 1.58 ppm/year
Data courtesy Magdalena Santana-Casiano and
Melchor González-Dávila (Santana-Casiano et al.
(2007), GBC)
7
BATS
From 1990 sea surface pCO2 1.81
µatm/year atmospheric xCO2 1.58 ppm/year
Data courtesy Nick Bates (Bates (2007), in press)
8
Explorer of the Seas
From 2002 sea surface fCO2 1.66
µatm/year atmospheric xCO2 1.58 ppm/year
Data courtesy Rik Wanninkhof (Wanninkhof et al.
(2007), in press)
9
Prince of Seas and Santa Lucia / Santa Maria
From 1994/1995 and since 2002 sea surface pCO2
1.68 µatm/year atmospheric xCO2 1.58 ppm/year
Data by Ute Schuster and Andrew Watson (Schuster
and Watson (2007), in review)
10
Prince of Seas and Santa Lucia / Santa Maria
From 1994/1995 and since 2002 sea surface pCO2
3.00 µatm/year atmospheric xCO2 1.58 ppm/year
Data by Ute Schuster and Andrew Watson (Schuster
and Watson (2007), in review)
11
Suratlant project
From 1993 sea surface pCO2 3.76
µatm/year atmospheric xCO2 1.58 ppm/year
Data courtesy Antoine Corbière and Nicolas Metzl
(Corbière et al. (2007) in press)
12
Towards drawing it all together for flux estimates

• The 2004 to 2006 data set
• contains over 680 000 data points
• from June 2004 to October 2006

Sea surface pCO2 maps by Neural
network Multilinear regression (MLR)
13
Sea surface pCO2 maps µatm by neural network
Neural network maps by Aymeric Chazottes, Maciek
Telszewski, Cyril Moulin
14
Sea surface pCO2 maps µatm by MLR
15
Air-sea flux estimate for 2005
North Atlantic, from 10 to 66 north, 75 west to
10 east, using the 2005 data set, give by
neural network 0.36 Gt year-1 by MLR 0.33 Gt
year-1 WITHIN 10
16
Air-sea flux estimate for 2005
North Atlantic, from 10 to 66 north, 75 west to
10 east, using the 2005 data set, give by
neural network 0.36 Gt year-1 by MLR 0.33 Gt
year-1 WITHIN 10 In comparison,
recalculation in the same way gives for the
1995 climatology 0.47 Gt year-1
17
Thanks to

• Truls Johannesen, Are Olsen, Abdiraman Omar
• Arne Körtzinger, Tobias Steinhoff, Doug Wallace
• Ute Schuster, Andy Watson, Dorothee Bakker,
  Maciej Telszewski
• Jon Olafsson
• Antoine Corbière, Nicolas Metzl, Nathalie
  Lefèvre, Aymeric Chazottes, Cyril Moulin
• Aida Ríos, Fiz Pérez, Martina Álvarez
• Melchor González-Dávila, Magdalena
  Santana-Casiano
• Nick Bates
• Heike Lüger, Rik Wanninkhof, Dennis Pierrot,
  Richard Feely, Robert Castle, Betty Husss, Kevin
  Sullivan
• and many others
