Busses and Addressing

1

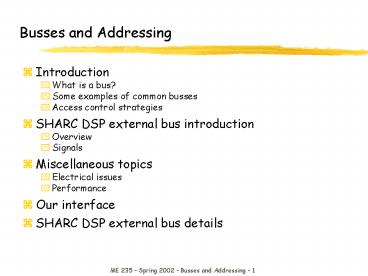

Busses and Addressing

• Introduction
• What is a bus?
• Some examples of common busses
• Access control strategies
• SHARC DSP external bus introduction
• Overview
• Signals
• Miscellaneous topics
• Electrical issues
• Performance
• Our interface
• SHARC DSP external bus details

2
What is a bus?

• Shared wire(s) that allow two or more devices to
  be connected?
• Two uses are common
• Bus internal to a computer
• Network
• Computers regularly have multiple busses
• Why is it called a bus?
• Origin was probably from electrical busbar
• Start thinking on the bus or off the bus.

3
Examples

• PCI bus in your PC (separate address and data)
• RS-485 serial bus (single data bit, S/W
  addressing)
• Ethernet
• SHARC external bus

4
Wide range of busses

• Many engineering tradeoffs
• Speed
• Cost
• Convenience of access
• Availability of wires
• Many design constraints results in many
  optimization points.

5
Wide range of types

• Internal vs. external
• Internal typically wider
• Internal typically higher speed
• Internal typically higher performance
• Widths
• Modern designs often have multiple internal
  busses, with different widths
• Variety of access control
• More than one way to keep devices off the bus.

6
Wide range of speed

• Low speed
• Echelon networking over power wiring
• 100s of bits per second
• High speed
• VME
• PCI
• Speed typically measured in bits or bytes per
  second
• 32 bits wide, 66 MHz -gt 250 Mbytes/sec
• Much more on speed later - electrical speed is
  not the only issue

7
Access control

• Important to keep multiple device from
  transmitting at the same time
• Many possible strategies, but all must limit
  access to shared resources
• Software and hardware both may be used to control
  access
• Examples
• Token passing, multi-master
• Master/slave
• Collision detect

8
Violation of access control

• Result is system dependent
• Ethernet handles gracefully - this condition is
  designed in.
• PCI - can be handled gracefully
• SHARC external bus - will possibly crash the
  system. Will certainly not be handled gracefully.

9
Token passing access control

• Whoever has the token owns the shared resource
• Token may be passed between any two nodes
• Software token passing example
• RS-485
• Electrical description
• Software addressing
• Very low performance, but very cheap!
• Hardware token passing example
• Token Ring
• Electrical description
• High performance, deterministic

10
Collision detect access control

• When the bus is detected as idle, any node may
  attempt to sieze it
• When you want the bus and no one competes for it,
  you get it
• Collisions occur when two notes attempt to sieze
  simultaneously
• Ethernet as an example
• Addressing scheme
• Hubs
• Switches
• Performance (can be either high or low).

11
Master/slave example

• SHARC DSP external bus
• Single node masters the bus, granting access to
  slaves according to some scheme (time slice,
  prioritized, software flow, etc.)
• Access may be either synchronous or asynchronous.

12
Synchronous bus

• Generally higher performance
• Devices on the bus must respond within a certain
  amount of time
• Clock is used to synchronize the devices on the
  bus clock is used to validate each signal
• Once clock speed is set, it is fixed for the life
  of the bus (or at least the backward compatible
  life of the bus).

13
Asynchronous bus

• A clock IS NOT used to synchronize slave devices
  with the master
• Slave devices must drive an acknowledge signal to
  alert another node that the data on the wires is
  stable
• Higher speed devices may be added to the bus as
  technology progresses without violating backward
  compatibility.

14
Picture of our system

• Signals involved
• Address lines
• Data lines
• Chip select
• Write
• Read
• Acknowledge
• Interrupt

15
Address bus

• 24 bits, ADDR(230), 0 contains LSB of address
• Addressing overview
• LSB specifies one byte
• Examples
• Start thinking hex because of direct translation
  to driven wires
• Driven from SHARC side only

16
Data bus

• Can be driven from any node
• How can this work - think of a typical CMOS
  buffer configuration
• Tri-state output
• Must use output with enable for driving these
  lines.

17
Tri-state output buffer
18
Chip select

• Perhaps most confusing signal
• Selects the chip on the board as either the
  source for a read or the target for a write
• Older systems generated CS from ADDR using
  external logic (e.g. PAL)
• More modern systems have CS generated in CPU
  fixed to an address range
• Current devices often have programmable CS
  address range.

19
Read

• Asserted when master wants to read data from
  slave
• Results in OE from selected driver being driven
  active
• ACK must be driven back in an asynchronous bus to
  signal that data is stable on the data wires
• Data is multiplexed onto wires from the slave - 8
  bits of data correspond to 8 pins on the FPGA
  have 8 internal tri-state buffers, even though we
  will have many logical registers.

20
Write

• Asserted when master wants to write data to a
  slave
• Dont need demultiplexers off of the bus -
  connect the data bus to all registers, then
  generate a load signal with an address
• To how many registers can the output fan out? Is
  buffering needed?

21
Acknowledge

• Must be driven low immediately after RD or WR is
  driven active in order to hold the DSP
• Will be driven back high to let the DSP know I
  have gotten the data off of the data bus (in the
  case of a read) or the data you want is on the
  data bus (in the case of a write
• When the DSP drives RD or WR inactive, the Xilinx
  part must tri-state the ACK output.

22
Issues

• Fanout
• Speed
• Signal stability over long wires.

23
Performance

• System we are designing is relatively low
  performance
• Some thoughts about performance
• Build system all on one PCB to keep wire delays
  short
• Multi-master can allow higher performance
• Device prepares data and pushes it across bus
  before interrupt is generated.

24
System level design

• 4 kHz clock drives cycle
• Xilinx copies transient data into stable
  registers
• Xilinx triggers INTR to SHARC, signalling that
  new data is available
• Processor reads input registers
• Processor can perform calculations
• Processor writes output registers
• Everything must happen in less than 200
  microseconds check this with the scope.

25
Software side

• Processor nominal word size is 32 bit wide
• We are only providing 8 bits of data
• Our registers will be located 32 bits apart
  (0x04)
• Only 8 bits of the 32 bit read will contain valid
  data.

26
Read register 3

• Code
• unsigned int r3raw
• unsigned char r3
• r3raw (unsigned int )0x2000000b
• r3 r3raw 0xff
• What happens?
• CS and address are driven onto address bus
• RD is driven
• FPGA sees RD, drives ACK low
• FPGA selects register, drives data bus using ADDR
  controlled mux and OE for data bus controlled by
  RD CS
• When data is stable, FPGA drives ACK high
• When RD goes away, ACK and OE must go hi-Z
  quickly.

27
Write register 1

• Code
• unsigned int r1raw
• r1raw (unsigned int )0x20000004
• r1raw 0xab
• What happens?
• CS and address are driven onto address bus
• WR is driven
• FPGA sees WR, drives ACK low
• FPGA takes data from data bus and stores it into
  register selected by ADDR lines
• When data has been stored to register, FPGA
  drives ACK high
• When WR goes away, ACK and OE must go hi-Z
  quickly.

28
Details

• SHARC 21065L data sheet
• Page 16 for read
• Page 17 for write

29
Summary

• Addresses
• Have to start thinking in hex
• Addressing on FPGA and DSP sides are different
• Busses
• Make sure the wiring is correct
• Dont let FPGA and DSP handle registers at the
  same time.
