Faculty Scheduling Using Genetic Algorithms

1

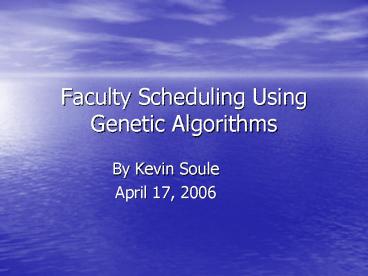

Faculty Scheduling Using Genetic Algorithms

• By Kevin Soule
• April 17, 2006

2
Problem Defined

• Many classes to schedule.
• Limited resources (professors, rooms ..).
• Unhappy professors, students.
• Successful solution may not exist.
• Very large search space.

3
Search Space

• Assume a small problem of 10 courses, 5 rooms, 3
  professors and 10 time periods
• Search space becomes
• 150 choices for first class (5x3x10)
• 149 choices are then left for second, and so on
• Final number of total search space
• 150! / 140! Or 6.0 x 1023
• You can imagine a large problem would be huge

4
Needed to Represent an Individual Class

• Class name
• Section number (multiplies of same class)
• Professor name
• Starting time
• Location
• Days of the week
• Hours of class time per week

5
Inputs Required

• Courses to schedule-all sections
• Room availability and restrictions
• Professor availability and preferences

6
Input Creation and Organization

• Random and Manually Entered
• Program created to handle each
• Data Stored in Three Integer Files
• Course
• Professor
• Room
• Random Input Data created based on actual
  values/trends noticed on college schedules

7
Random Input Proportions Used

• Number of different courses ½ total number of
  sections offered
• Number of professors 1/5 total sections
• Number of rooms ½ total number of professors
• 50 chance a room can hold a given course
• 33 chance a professor has a preference on when
  they teach

8
Course Input Data
9
Professor Input Data
10
Main Problems - Conflicts

• Room
• Certain rooms unavailable for certain classes
• (I.E. Computer lab needed and no computers in
  room)
• Professor
• Professor not trained to teach certain courses
• Time
• Some classes should not be taught at same time
• (Calculus 101 and CS 101)
• Combinations of the above
• Professor cant be in two places at once
• Rooms cant hold two classes at same time

11
Minor Problems

• Professor Preferences
• No early/late classes
• Teach many of same class to limit prep time
• Doesnt like certain classes
• Wants to teach certain number/ Cant teach too
  many
• Student Needs
• Different sections of same class should be at
  different times
• Most classes in prime time of day

12
Schedule Representation

• Each class stores 7 unique parameters
• A programming object is created
• Each schedule has potentially hundreds of classes
• An array of class objects is formed
• Each trial run will create a population of
  schedules
• An array of arrays is set up
• Usually about 50 schedules worth

13
Determining a Good Schedule

• A list of constraints to our solution is decided
  up front
• These constraints are weighted on how important
  they are to the final solution
• Two basic constraint categories
• Hard constraints
• Soft constraints
• Hard constraints are impossible situations
• Soft constraints are usually preferences and
  annoying schedule quirks

14
Comparing Schedules in Population

• Each created schedule is searched to find any
  failed constraints
• Each failed constraint found will give that
  schedule a weighted demerit value
• The sum of all demerits for each schedule is
  called its fitness.
• The fitness value can be used to compare
  schedules with one another

15
GA Programming Steps

• Load in all input data
• Build initial population of schedules
• Hold tournaments to find good genetic material
• Creation of new schedule with crossover
  techniques
• Mutation of schedules to infuse new genetic
  material
• Replace tournament losers with newly created
  schedules.
• Hold next tournament and repeat until solved

16
Genetic Programs Attempted

• Base program as explained (control)
• Base program with greedy procedure
• Ordered Greed Program
• Ordered Greed/Base Hybrid
• Mutation only

17
Base with Greedy Procedure

• Greedier attempt at building the population
• Placing classes into the schedule is still
  random, but multiple random attempts are tried
  and only the best is placed
• Gives a much better initial population with only
  slightly more processing time

18
Ordered Greed Program

• Instead of a population of schedules, a
  population of permutations is created instead
• To place each course into a schedule, lists of
  possible professors and viable rooms are created
  and methodically tested for every time slot
• Courses are only placed into the schedule once a
  location is found that breaks no hard constraints

19
Ordered Greed Continued

• Since this is a population of permutations,
  regular crossovers can not be done
• Crossovers that generate new permutations were
  tried and tested amongst each other
• Partially-Matched
• Ordered
• Merging
• Mutations were also different- a small swap of
  values inside the permutation

20
Hybrid Program

• Born out of the tendencies of Ordered Greed to
  solve all hard constraints, and the basic program
  doing better with most soft constraints
• Starts Ordered Greed
• Ends Base program

21
Mutation Only Program

• Generational type program
• Mutation seemingly had such a powerful effect in
  the results of the other programs
• Discarding tournaments and crossover procedures
  altogether

22
Optimizing Parameters

• Crossover (both base and OG)
• Population Size
• Tournament Size
• Mutation Rates (both base and OG)
• Greedy Parameter

23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
Final Comparison of Programs

• All five programs were then set up with best set
  of parameters
• Hundreds of trials were done comparing each of
  them on many sets of inputs.
• Results were a little misleading

32
(No Transcript)
33
(No Transcript)
34
Summary of Final Results
35
Possible Improvements

• Retest parameters for longer times with same sets
  of input data.
• Adding seniority of Faculty to the Mix
• Using more efficient pre-built GAs
• Such as GA-LIB
• Using Bit Streams to store schedules
• Inputting a real world example
• Fixing the sharing of resources problem

36
Questions?

• Thanks for coming

37
Hard Constraints

• Professor signed up for two classes at the same
  time
• Room scheduled for two classes at the same time
• Professor teaching a class they are not trained
  for
• Professor teaching more classes then their
  maximum load
• Room holding a class that it can not accommodate

38
Soft Constraints

• Professor preferences for evening or morning
  classes
• Professor teaching both on same day
• Professor teaching class they do not wish to
  teach
• Professor teaching more or less credits then they
  wish
• Different sections of the same class being held
  the same time
• Different section of the same class being taught
  by different professors

39
Build Initial Population of Schedules

• Decide on Random Build or Ordered Greed
• Random Build creates each schedule by randomly
  picking all needed information for every class
  with no regard to constraints
• Ordered Greed attempts to place classes into
  schedules only if they do not violate constraints
• Ordered Greed gives a much better initial
  population while Random Build is much quicker

40
Tournaments

• Randomly pick a handful of schedules from the
  array
• Pick the two best and two worst from this
  selection
• Use the two best to create new schedules using
  crossover
• The two worst will be replaced with the newly
  created ones

41
Crossover

• Method that takes parts from two schedules in
  order to create new ones, much like a child is
  formed by taking DNA pieces from both parents.
• Regular Crossover types
• Uniform
• One-point
• Two-point
• Ordered Greed Crossover types
• Partially-Matched
• Ordered
• Merging

42
Mutations

• Regular mutations are needed on newly created
  schedules in order to introduce genetic diversity
• When mutation is done one class is randomly
  given a new room, professor, and time
• Experimentation was done to determine rate of
  mutation for both how often a schedule is
  mutated and how many classes of that schedule are
  changed
