ECE3055 Computer Architecture and Operating Systems Lecture 1 Introduction

1

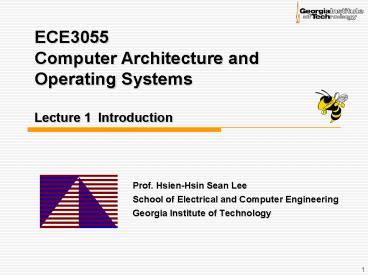

ECE3055 Computer Architecture and Operating
SystemsLecture 1 Introduction

• Prof. Hsien-Hsin Sean Lee
• School of Electrical and Computer Engineering
• Georgia Institute of Technology

2
Objectives ? To Learn

• Core concepts of microprocessor architecture
• ISA (review of 2030)
• Pipelining
• Hazards
• Cache/Memory hierarchy
• Memory management
• Core concepts of operating systems
• Processes/threads
• Protection
• Resource Management
• Scheduling
• File System

3
Course Information

• Web page http//www.ece.gatech.edu/leehs/ECE3055

• Will be constantly updated, so check it out
  regularly
• Prerequisite ECE2031 Digital Design Lab
• Textbooks
• Patterson and Hennessey, Computer Organization
  Design The Hardware/Software Interface (3rd
  edition), Morgan Kaufmann, 2004. ISBN
  1-55860-604-1.
• Silberschatz, Galvin, and Gagne, Operating System
  Concepts with Java (6th edition), John Wiley,
  2004. ISBN 0471489050.

4
Grading Policy

• 5 Programming Assignments 35 (5, 10, 10, 5, 5)
• Individual work, no collaboration
• Due in the first 5 min before class starts
• No late turn-in will ever be accepted
• Exams
• 3 in-class exams 45 (15 each, dates TBD)
• Final 20 (date on Oscar)
• Final Grade is relative to your peer in class

5
Part I Patterson Hennessy book
6
Introduction

• Rapidly changing field
• vacuum tube -gt transistor -gt IC -gt VLSI (see
  section 1.4)
• doubling every 1.5 years memory capacity
  processor speed (Due to advances in
  technology and organization)
• Things youll be learning
• how computers work, a basic foundation
• how to analyze their performance (or how not to!)
• issues affecting modern processors (caches,
  pipelines)
• Why learn this stuff?
• you want to call yourself a computer scientist
• you want to build software people use (need
  performance)
• you need to make a purchasing decision or offer
  expert advice

7
Moores Law
Core 2 Duo (Conroe) 291 millions, July 2006
P4 Extreme Ed. 178 millions w/ 2MB L3
IBM latest POWER5 has 276 million
transistors Intel Dual-Core Xeon (P4-based
Tulsa) w/ 16MB unified L3 1.328 billion, 2006
42 millions
Exponential growth
2,250
Transistor count will be doubled every 18 months
? Gordon Moore, Intel co-founder
8
Integrated Circuits Capacity
9
Feature Size
We are currently at 0.09µm and moving towards
0.065µm
10
Average Transistor Cost Per Year
11
What is a computer?

• Components
• Processor(s)
• Co-processors (graphics, security)
• Memory (disk drives, DRAM, SRAM, CD/DVD)
• input (mouse, keyboard, mic)
• output (display, printer)
• network
• Our primary focus the processor (datapath and
  control)
• implemented using millions of transistors
• Impossible to understand by looking at each
  transistor
• We need...

12
Abstraction

• Delving into the depths reveals more information
• An abstraction omits unneeded detail, helps us
  cope with complexity
• What are some of the details that appear in these
  familiar abstractions?

ISA
13
A Typical PC System Architecture
14
A Typical PC Motherboard (D975XBX)
15
A Typical PC Motherboard (D975XBX)
16
Instruction Set Architecture

• A very important abstraction
• interface between hardware and low-level software
• standardizes instructions, machine language bit
  patterns, etc.
• advantage different implementations of the same
  architecture
• disadvantage sometimes prevents using new
  innovationsTrue or False Binary compatibility
  is extraordinarily important?
• Modern instruction set architectures
• 80x86 (aka iA32), PowerPC (e.g. G4, G5)
• Xscale, ARM, MIPS
• Intel/HP EPIC (iA64), AMD64, Intels EM64T,
  SPARC, HP PA-RISC, DEC/Compaq/HP Alpha

17
Where we are headed

• Performance issues
• A specific instruction set architecture
• Arithmetic and how to build an ALU
• Constructing a processor to execute our
  instructions Pipelining to improve performance
• Memory caches and virtual memory
• I/O
• I will try to cover as much as possible, but do
  not forget we have another half of the semester
  for OS
