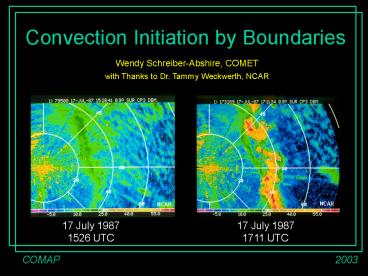

Convection Initiation by Boundaries

1
Convection Initiation by Boundaries
Wendy Schreiber-Abshire, COMET with Thanks to Dr.
Tammy Weckwerth, NCAR
NCAR
NCAR
2
Overview

• Progression of relative science
• Boundary types
• Gust fronts
• Sea breeze fronts
• Drylines
• Horizontal convective rolls
• Geographic specific boundaries
• To convect, or not convect ?

3
Convergence Convection Initiation

• The Thunderstorm. Byers and Braham, 1949
• The role of surface divergence and vorticity in
  the life cycle of convective rainfall. Part I.
  Observations and analysis. Ulanski and Garstang,
  JAS, 1978
• The relationship between total area divergence
  and convective precipitation in south Florida.
  Watson and Blanchard, MWR, 1984

4
Boundaries from Satellite

• Satellite Cloud Arc Lines
• Meso-highs and satellite imagery. Purdom, MWR,
  1973
• Subjective interpretations of geostationary
  satellite data for nowcasting. Nowcasting,
  Purdom, K. Browning, Ed. Academic Press, 1982
• Thunderstorm trigger mechanisms over the
  southeast U.S., Purdom and Marcus, 12th Conf.
  SLS, 1982

5
Wilson and Schreiber Results

• No apparent rhyme or reason to convective
  storm initiation locations along the Front Range
  of Colorado!

6
Wilson and Schreiber Results (cont.)

• Storm initiation NOT random when viewed
  relative to boundary-layer convergence zones!

7
Wilson and Schreiber Results (cont.)

• 79 of storms gt 30 dBZ that were not advected
  into study area formed along a boundary
• 92 of storms gt 60 dBZ that were not advected
  into study area formed along a boundary

8
Known Convergence Lines

• Synoptic Fronts
• Sea Breeze/Land Breeze Circulation (Lake
  Breezes)
• Davis et al., 1889
• Gust Fronts
• Fujita, JM, 1959

9
Density Currents

• Laboratory
• Forced ascent at head
• Mixing at interface

Simpson, 1987
10
Gust Front Conceptual Model
Droegemeier and Wilhelmson, 1987

• Leading edge of low-level thunderstorm cold-air
  outflow
• Outflow depth 1 km
• Forced ascent at head

11
Storm Initiation by Gust Front

• Cells initiated by gust front
• Not continuous convective line
• Organized by Kelvin-Helmholtz instability
  internal gravity waves

NCAR
Weckwerth and Wakimoto, 1991
12
Known Convergence Lines (cont.)

• Urban Heat Island Circulation
• Changnon, Meteor. Monogr. 40, 1981
• Cloud Shading Boundaries
• Purdom and Gurka, 5th Conf. WFA, AMS, 1974
• Segal et al., MWR, 1986
• Soil Moisture/Vegetation Inhomogeneities
• Ookouchi et al., MWR, 1984
• Nice review of all these in Meso. Met. and
  Fcsting, Chap. 23, Ray, 1984

13
Known Convergence Lines (cont.)

• Slope/Valley Circulations
• COMET module on mtn./valley winds available at
  http//meted.ucar.edu/mesoprim/mtnval/index.htm
• Cloud Streets
• (Visual Observations) Kuettner, Tellus, 1971
• Longitudinal/Horizontal Rolls
• (Aircraft) Lemone, JAS, 1973
• (Radar) Kelly, JAS, 1984

14
Horizontal Convective Rolls
The COMET Program

• Counter-rotating horizontal vortices in CBL
• Aligned along mean wind direction
• Due to combination of surface heat flux and wind
• Clouds often above updraft branches

15
Sea Breeze Front and Rolls

• Sea breeze convection initiation impacted by
  coast shape
• Pielke 1974 Laird et al. 1995

16
Storm Initiation by SBF and Rolls

• Rolls lifted at sea breeze front
• Deeper, stronger updrafts at intersection points
  ? increased likelihood of convection initiation

Atkins et al., 1995
17
Animation of Storm Initiation by Rolls
Weckwerth, 2000

• Rolls alone initiate storms some days
• Accurate measure of stability imperative to be
  able to forecast

18
Specific Geographic CZs

• The Dryline
• Beebe, JM, 1958
• The San Fernando Convergence Zone
• Edinger and Helvey, BAMS, 1961
• The Puget Sound Convergence Zone
• Mass, Weatherwise, 1980
• Denver Convergence Vorticity Zone
• Szoke et al., MWR, 1984

19
The Dryline

• Zone between warm, moist maritime air and hot,
  dry continental air
• Occurs 40 of the time over Plains region
• Also occurs in India and Central West Africa
• CI Rhea, 1966

Bluestein,1993

• Series of papers by Hane, MWR, 2001 and 2002

20
Storm Initiation by Dryline

• Intense, deep mesoscale lifting leads to CI
• Requires lifting depth be gt the LFC height
• Need to the know boundary depth and moisture to
  accurately forecast CI

Ziegler and Rasmussen, 1998
21
Clear-air Radar Echo Example

• The Denver Convergence Vorticity Zone
• We can see why it is called that!

22
Clear-air Radar Boundaries and Convection
Initiation

• Nowcasting with Doppler radar The
  forecaster-computer relationship.
• Wilson and Carbone, Nowcasting II, K. Browning,
  Ed., 1984
• Initiation of convective storms at radar-observed
  boundary-layer convergence lines.
• Wilson and Schreiber, MWR, 1986

23
Cumulus Cloud Echoes

• First radar echoes from cumulus clouds. Knight
  and Miller, BAMS, 1993 and JAS 1998
• radar used to study entrainment and mixing (via
  Bragg scattering) as well as precipitation
  formation (via backscatter from hydrometeors)
• Mantle Echoes from Bragg scattering
  rediscovered
• Developing thunderstorm forecast rules utilizing
  first detectable cloud radar-echoes. Henry and
  Wilson, 5th Conf. Av. Wx. Sys., AMS, 1993

24
Research by Community 1

• Mesoanalysis of summertime convergence zones in
  central and eastern North Carolina. Koch and Ray,
  WF, 1997

• A boundary in NC is much more likely to initiate
  convection and is twice as likely to interact
  with another boundary than a boundary in Colorado
  is!

25
Research by Community 2

• A numerical investigation of the Las Vegas
  convergence zone. Runk and Schreiber-Abshire, 8th
  Conf. on Meso. Proc., 1999
• Key role in the 9 July 1999 major flooding event
  in Las Vegas

26
Factors Influencing Convection Initiation and
Evolution

• Updraft Source
• Boundary-layer forcing
• Stability
• Changes in moisture, CIN
• Shear (Updraft Tilt)
• Lifting depth at boundary and boundary-relative
  motions

27
Shear Balance
From Weisman, after Rotunno et al., 1988

• No shear gust front moves away from storm
• Shear balances gust front optimal for long-lived
  systems

28
Steering Level Winds

• Deep, vertical updrafts
• Boundary motion storm motion
• Observations supported by
• Moncrieff and Miller,1976 and Weisman and
  Klemp,1986

Wilson and Megenhardt, 1997
29
Automating this Knowledge to Produce a Forecast

• Various Regional, Mesoscale and especially
  Storm-scale Modeling Efforts
• The Auto-nowcaster ? SCAN
• Local Mesonet Data (stability)
• High Resolution Satellite (Cu boundary
  information)
• Radar (Cu, boundary, and wind field information)
• High Resolution Model
• Numerous Algorithms

30
Storm Initiation Logic

• Prior to Storms
• No Convergence Line
• Fair Weather Cu
• Initiation
• Convergence Line Present
• LI lt 0
• Cu in Lifting Zone
• Deep Erect Updrafts
• (Depending on convergence strength, LL Shear,
  Boundary relative cell speed)

31
Storm Initiation Logic (cont.)

• Growth/Merger
• Boundary Motion Storm Motion
• Convergence Strong and Deep
• LI lt 0
• Dissipation
• Convergence Line Moving Away from Storms
• LI gt 0

32
Summary

• Convection Initiation is favored by
• 1) Strong, deep, low-level convergence
• 2) Convergence line moving into existing cumulus
  clouds
• 3) Deep vertical updrafts (moderate low-level
  shear)
• Storm Merger, Organization, and Longevity is
  favored by
• 1) The above for initiation and
• 2) Boundary relative steering flow near zero

33
Summary (cont.)

• Dissipation is favored by
• 1) Convergence line moving away from cell
• 2) Convergence line moving into stable region

34
The Bottom Line

• Low-level boundaries may and often do initiate
  convection, but
• Not all boundaries initiate storms
• Storms not uniform and continuous along
  boundaries
• Sensitivity of moist convection forced by
  boundary layer processes to low-level
  thermodynamic fields. Crook, MWR, 1996
• 1oC, 1 g/kg can make the difference!
• Thermodynamic variability within the convective
  boundary layer due to horizontal convective
  rolls. Weckwerth, Wilson and Wakimoto, MWR, 1996
• Natural variability and limits of observing
  systems are at least this magnitude!

35
This Science is Now Commonplace ?

• NORTHEAST AND NORTH CENTRAL CO AREA FORECAST
  DISCUSSION
• 258 PM MDT THU AUG 5 1999
• ltsnipgt
• CURRENTLY RADAR AND SATELLITE PICTURES ARE
  INDICATING A FEW THINGS. THERES A CONVERGENCE
  AREA GOING ACROSS WASHINGTON AND ELBERT
  COUNTIESWITH A WEAK BROAD CIRCULATION CENTERED
  IN MORGAN COUNTY. SOUTH-SOUTHEASTERLY FLOW ON THE
  INCREASE SOUTH OF THE LINE. THE CURRENT RADAR IS
  SHOWING A DECENT LINE OF STORMS DEVELOPING ALONG
  THE CONVERGENCE ZONE AND WEAKER SCATTERED RETURNS
  COVERING THE MOUNTAINS AND FOOTHILLS. THE LOWER
  CLOUD DECK IS ALSO DISSIPATING OVER A GOOD
  PORTION OF THE PLAINS WITH SUNSHINE ON THE
  INCREASE. EXPECT BOUNDARIES TO GET GOING WITH
  LIKELY TO WIDESPREAD PRECIPITATION A GOOD BET IN
  MOST AREAS.
• ltsnipgt

36
Boundaries and Convection Initiation Reference
List

• Atkins N.T., R.M. Wakimoto, and T.M. Weckwerth,
  1995 Observations of the Sea-Breeze Front during
  CaPE. Part II Dual-Doppler and Aircraft
  Analysis. Mon. Wea. Rev., 123, 944969.
• Beebe, R. G., 1958 An instability line
  development as observed by the tornado research
  airplane. J. Atmos. Sci., 15, 278282.
• Bluestein, H.B. and S.S. Parker, 1993 Modes of
  Isolated, Severe Convective Storm Formation along
  the Dryline. Mon. Wea. Rev., 121, 13541372.
• Browing, K. A., 1982 Nowcasting. Academic Press,
  256 pp.
• Byers, H.R. and R.R. Braham, 1949 The
  Thunderstorm, U.S. Govt. Printing Office,
  Washington DC, 287 pp.
• Changnon, S.A. Jr., 1981 METROMEX A Review and
  Summary. Meteor. Monogr.,18, 181 pp.
• Collier, C. G., and R. B. E. Lilley, 1994
  Forecasting Thunderstorm Initiation in North-west
  Europe using Thermodynamic Indices, Satellite and
  Radar Data. Meteor. Appl., 1, 75-84.
• Crook, N.A., 1996 Sensitivity of Moist
  Convection Forced by Boundary Layer Processes to
  Low-Level Thermodynamic Fields. Mon. Wea. Rev.,
  124, 17671785.
•

37
Reference List (continued)

• Crook, N.A., J.B. Klemp, 2000 Lifting by
  Convergence Lines. J. Atmos. Sci., 57, 873890.
• Davis, W.M., L.G. Schultz and R.D. Ward, 1889 An
  Investigation of the Sea-breeze. New Engl.
  Meteor. Soc. Obser., 21, 214264.
• Droegemeier, K. K., and R. B. Wilhelmson, 1985
  Three-dimensional Numerical Modeling of
  Convection Produced by Interacting Thunderstorm
  Outflows. Part II Variations in Vertical Wind
  Shear. J. Atmos. Sci., 42, 24042414.
• Droegemeier, K.K. and R.B. Wilhelmson, 1987
  Numerical Simulation of Thunderstorm Outflow
  Dynamics. Part I Outflow Sensitivity Experiments
  and Turbulence Dynamics. J. Atmos. Sci., 44,
  11801210.
• Edinger, J.G. and R.A. Helvey, 1961 The San
  Fernando Convergence Zone. Bull. Amer. Met. Soc.,
  42, 626635.
• Fankhauser, J. C., N. A. Crook, J. Tuttle, L. J.
  Miller, and C. G. Wade, 1995 Initiation Of Deep
  Convection Along Boundary Layer Convergence Lines
  in a Semitropical Environment. Mon. Wea. Rev.,
  123, 291313.
• Fox, N., R. Webb, J. Bally, M. Sleigh, C. Pierce,
  D. Sills, J. Wilson, and C. Collier, 2004 The
  Impact of Advanced Nowcasting Systems on Severe
  Weather Warnings during the Sydney 2000 Forecast
  Demonstration Project 3 November 2000, Wea.
  Forecasting, in press

38
Reference List (continued)

• Fujita, T. T., 1959 Precipitation and Cold Air
  Production in Mesoscale Thunderstorm Systems. J.
  Meteor., 16, 454466.
• Hane, C.E., M.E. Baldwin, H.B. Bluestein, T.M.
  Crawford, and R.M. Rabin 2001 A Case Study of
  Severe Storm Development along a Dryline within a
  Synoptically Active Environment. Part I Dryline
  Motion and an Eta Model Forecast. Mon. Wea.
  Rev.,129, 21832204.
• C.E. Hane, R.M. Rabin, T.M. Crawford, H.B.
  Bluestein and M.E. Baldwin, 2002 A Case Study of
  Severe Storm Development along a Dryline within a
  Synoptically Active Environment. Part II
  Multiple Boundaries and Convective Initiation.
  Mon. Wea. Rev., 130, 900920.
• Henry, S. G., and J. W. Wilson, 1993 Developing
  thunderstorm forecast rules utilizing first
  detectable cloud radar echoes. Preprints, 5th
  Conf. on Aviation Weather Systems, Vienna, VA,
  Amer. Meteor. Soc., 304307.
• Henry, S. G., and J. W. Wilson, 1995 The
  Automatic Thunderstorm Nowcasting System.
  Preprints, 27th Conf. on Radar Meteorology, Vail,
  CO, Amer. Meteor. Soc., 397399.
• Jorgensen, D. P. and T. M. Weckwerth, 2003
  Forcing and Organization of Convective Systems.
  Radar and Atmospheric Science A collection of
  essays in honor of David Atlas. Amer. Meteor.
  Soc., Publication, 75-103.
• Keenan, T., and co-authors, 2003 The Sydney 2000
  World Weather Research Programme Forecast
  Demonstration Project, Overview and Current
  Status. Bull. Amer. Meteor. Soc., 84, 1041-1054.


39
Reference List (continued)

• Kelly, R.D., 1984 Horizontal Roll and
  Boundary-Layer Interrelationships Observed over
  Lake Michigan. J. Atmos. Sci., 41, 18161826.
• Kingsmill, D.E., 1995 Convection Initiation
  Associated with a Sea-Breeze Front, a Gust Front,
  and Their Collision. Mon. Wea. Rev., 123,
  29132933.
• Knight, C.A. and L.J. Miller, 1993 First Radar
  Echoes from Cumulus Clouds. Bull. Amer. Met.
  Soc., 74, 179188.
• Knight, C.A. and L.J. Miller, 1998 Early Radar
  Echoes from Small, Warm Cumulus Bragg and
  Hydrometeor Scattering. J. Atmos. Sci., 55,
  29742992.
• Koch S.E. and C.A. Ray, 1997 Mesoanalysis of
  Summertime Convergence Zones in Central and
  Eastern North Carolina. Wea. Forecasting, 12,
  5677.
• Kuettner, J. P., 1971 Cloud bands in the earths
  atmosphere. Tellus, 23, 404425
• Laird, N.F., D.A.R. Kristovich, R.M., Rauber,
  H.T., Ochs and L. J. Miller, 1995 The Cape
  Canaveral Sea and River Breezes Kinematic
  Structure and Convective Initiation. Mon. Wea.
  Rev., 123, 29422956

40
Reference List (continued)

• Lemone, M.A., 1973 The Structure and Dynamics of
  Horizontal Roll Vortices in the Planetary
  Boundary Layer. J. Atmos. Sci., 30, 10771091.
• Mass, C., 1980 Puget Sound convergence zone,
  Weatherwise, 33, 272274.
• Moncrieff, M. W., and Liu, C., 1999 Convection
  initiation by density currents Role of
  Convergence, Shear, and Dynamical Organization.
  Mon. Wea. Rev., 127, 24552464
• Mueller, C., T. Saxen, R., Roberts, J., Wilson,
  T., Betancourt, S., Dettling, N., Oien, and J.
  Yee, 2003 NCAR Auto-Nowcast System. Wea.
  Forecasting, 18, 545561.
• Mueller, C.K., J.W. Wilson and N.A. Crook, 1993
  The Utility of Sounding and Mesonet Data to
  Nowcast Thunderstorm Initiation. Wea.
  Forecasting, 8, 132146.
• Ookouchi, Y., M. Segal, R.C. Kessler and R.A.
  Pielke, 1984 Evaluation of Soil Moisture Effects
  on the Generation and Modification of Mesoscale
  Circulations. Mon. Wea. Rev., 112, 22812292.
• Pielke, R.A. 1974 A Three-Dimensional Numerical
  Model of the Sea Breezes Over South Florida. Mon.
  Wea. Rev., 102, 115139.

41
Reference List (continued)

• Pierce C., E. Ebert, A. Seed, N. Fox, M.
  Sleigh, C. Collier, N. Donaldson, J. Wilson, R.
  Roberts, C. Mueller, 2004 The Nowcasting of
  Precipitation during Sydney 2000 An Appraisal of
  the QPF Algorithms. Wea. Forecasting, in press
• Purdom, J. F. W., 1976 Some Uses of High
  Resolution GOES Imagery in the Mesoscale
  Forecasting of Convection and its Behavior. Mon.
  Wea. Rev., 104, 1474-1483.
• Purdom, 1982 Subjective Interpretations of
  Geostationary Satellite Data for Nowcasting.
  Nowcasting, K. Browning, Ed., Academic Press,
  149166.
• Purdom, J.F.W., 1973 PICTURE OF THE MONTH
  Meso-Highs and Satellite Imagery. Mon. Wea. Rev.,
  101, 180181.
• Ray, P. S., Ed., 1986 Mesoscale Meteorology and
  Forecasting. Amer. Meteor. Soc., 793 pp.
• Rhea, J. O., 1966 A study of thunderstorm
  formation along dry lines. J. Appl. Meteor., 5,
  5863.
• Roberts, R. D., and S. Rutledge, 2003 Nowcasting
  Storm Initiation and Growth Using GOES-8 and
  WSR-88D Data. Wea. Forecasting., 18, 562584.

42
Reference List (continued)

• Roberts, R., T. Saxen, C. Mueller, J. Wilson, A.
  Crook, J. Sun, and S. Henry, 1999 Operational
  Application and Use of NCAR's Thunderstorm
  Nowcasting System. Preprints, 15th Int. Conf. on
  Interactive Information and Processing Systems
  (IIPS) for Meteorology, Oceanography, and
  Hydrology, Dallas, TX, Amer. Meteor. Soc.,
  158161.
• Runk, K.J. and W. Schreiber-Abshire, 1999 A
  Numerical Investigation of the Las Vegas
  Convergence Zone. Preprints, 8th Conf. on
  Mesoscale Processes, Boulder, CO, Amer. Meteor.
  Soc., 454458.
• Segal, M., Purdom, J.F.W., Song, J.L., Pielke,
  R.A., Mahrer, Y., 1986 Evaluation of Cloud
  Shading Effects on the Generation and
  Modification of Mesoscale Circulations. Mon. Wea.
  Rev., 114, 12011212.
• Sun, J. and N. A. Crook, 2001 Real-time
  low-level wind and temperature analysis using
  single WSR-88D data. Wea. Forecasting, 16,
  117-132.
• Szoke, E.J., Weisman, M.L., Brown, J.M.,
  Caracena, F., Schlatter, T.W., 1984 A
  Subsynoptic Analysis of the Denver Tornadoes of 3
  June 1981. Mon. Wea. Rev.,112, 790808.
• Ulanski, S.L. and M. Garstang, 1978 The Role of
  Surface Divergence and Vorticity in the Life
  Cycle of Convective Rainfall. Part I Observation
  and Analysis. J. Atmos. Sci., 35, 10471062.

43
Reference List (continued)

• Watson, A.I. and D.O. Blanchard, 1984 The
  Relationship between Total Area Divergence and
  Convective Precipitation in South Florida. Mon.
  Wea. Rev.,112, 673685.
• Weckwerth, T.M., 2000The Effect of Small-Scale
  Moisture Variability on Thunderstorm Initiation.
  Mon. Wea. Rev., 128, 40174030.
• Weckwerth, T.M., Wakimoto, R.M. 1992 The
  Initiation and Organization of Convective Cells
  atop a Cold-Air Outflow Boundary. Mon. Wea. Rev.,
  120, 21692187.
• Weckwerth, T.M., J.W. Wilson, and R.M. Wakimoto,
  1996 Thermodynamic Variability within the
  Convective Boundary Layer Due to Horizontal
  Convective Rolls. Mon. Wea. Rev.,124, 769784.
• Weisman, M. L., and J. B. Klemp, 1986
  Characteristics of isolated convective storms.
  Mesoscale Meteorology and Forecasting, P. S. Ray,
  Ed., Amer. Meteor. Soc., 331358.
• Wilson J.W. and R. Carbone, 1984 Nowcasting with
  Doppler Radar The ForecasterComputer
  Relationship. Nowcasting II, K. Browning, Ed.,
  European Space Agency, 177186.
• Wilson J.W. and Meganhardt, 1997 Thunderstorm
  initiation, organization and lifetime associated
  with Florida boundary layer convergence lines.
  Mon. Wea. Rev., 125, 15071525.

44
Reference List (The End)

• Wilson J.W. and C.K. Mueller, 1993 Nowcasts of
  thunderstorm initiation and evolution. Wea.
  Forecasting, 8, 113131.
• Wilson J.W. and W. E. Schreiber, Initiation of
  Convective Storms at Radar-Observed
  Boundary-Layer Convergence Lines. 1986 Mon. Wea.
  Rev., 114, 25162536.
• Wilson J.W., G.B Foote, N.A. Crook, J.C
  Fankhauser, C.G. Wade, J.D Tuttle, C.K Mueller,
  and S.K. Krueger, 1992 The Role of
  Boundary-Layer Convergence Zones and Horizontal
  Rolls in the Initiation of Thunderstorms A Case
  Study, Mon. Wea. Rev.,120, 17851815.
• Wilson J.W., N.A. Crook, C.K Mueller, J. Sun, M.
  Dixon, 1998 Nowcasting Thunderstorms A Status
  Report. Bull. Amer. Met. Soc., 79, 20792100.
• Wilson, J.W., E. Ebert, T. Saxen, R. Roberts, C.
  Mueller, M. Sleigh, C. Pierce, A. Seed, 2004
  Sydney 2000 Forecast Demonstration Project
  Convective Storm Nowcasting, Wea. Forecasting, in
  press.
• Ziegler C.L., and E.N. Rasmussen, 1998 The
  Initiation of Moist Convection at the Dryline
  Forecasting Issues from a Case Study Perspective.
  Wea. Forecasting, 13, 11061131.
