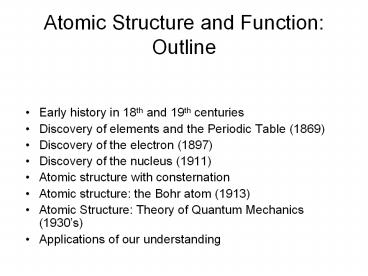

Atomic Structure and FunctionOutline

• Early history in 18th and 19th centuries
• Discovery of elements and the Periodic Table
  (1869)
• Discovery of the electron (1897)
• Discovery of the nucleus (1911)
• Atomic structure with consternation
• Atomic structure the Bohr atom (1913)
• Atomic Structure Theory of Quantum Mechanics
  (1930s)
• Applications of our understanding

2
Atomic Structure and FunctionTake Home Message

• Science as a evolutionary, incremental process
  over decades (e.g., exploring the structure of
  atom)
• Role of hypothesis development and testing in the
  sciences
• Demystification of physics and chemistry
  structure of the atom is a simple concept
• Understanding of atomic structure underpins
  future course topics (e.g., geology,
  biochemistry, environmental sciences, binding of
  chemicals)
• Applications some examples

3
Early History in 18th and 19th Century

• Atomic Theory of Dalton
• Atoms
• Elements
• Molecules/compounds (e.g., water or H2O)
• Atoms as basis for understanding chemistry but
  without electrons, protons and neutrons (analogy
  to a marble)

4
Early History in 18th/19th CenturyDiscovery of
Elements

• 30 elements known in early 1800s
• Mendeleev and the Periodic Table (1869)
• 63 elements known w/o any organization
• Ordering of elements
• Mass from low to high
• Chemical property by column (all behave similarly
  in a chemical sense) examples
• Column I react with chlorine (11 ratio)
• Hydrogen (H), Lithium (Li), Sodium (Na),
  Potassium (K)
• Column VII react with chlorine in (21 ratio)
• Helium (He), Neon (Ne), Argon (Ar), Krypton (Kr)

5
Draft of Mendeleevs Table of Elements
6
Mendeleevs Contribution

• Arrange elements from light to heavy
• Arranged elements by chemical behavior
• Spatial ordering via rows and columns
• Product Periodic Table of Elements
• Predictive tool
• Immensely creative insight (informatics)
• Example of missing elements and predictive
  capability of Table

7
Atomic Structure and FunctionOutline

• Early history in 18th and 19th centuries
• Discovery of the electron (1897)
• Discovery of the nucleus (1911)
• Atomic structure with consternation
• Atomic structure the Bohr atom (1913)
• Atomic Structure Theory of Quantum Mechanics
  (1930s)
• Applications of our understanding

8
Thompsons Experiment Discovery of the Electron

• Idea that there may be some smaller components
  that comprise atoms
• Hypothesis Atoms consist of some subcomponents,
  one of which is negatively charged
• Experiment to test hypothesis

9
Atomic Structure and FunctionOutline

• Early history in 18th and 19th centuries
• Discovery of the electron (1897)
• Discovery of the nucleus (1911)
• Atomic structure with consternation
• Atomic structure the Bohr atom (1913)
• Atomic Structure Theory of Quantum Mechanics
  (1930s)
• Applications of our understanding

10
Rutherfords Experiment Discovery of a Nucleus

• Idea that there may be some smaller components
  that comprise atoms, including negative and
  positive charges components
• Hypothesis Atoms consist of multiple
  subcomponents, some negative and some positive
• Experiment to test hypothesis
• Alpha particles (), gold foil, bullets, and
  tracks

11
Rutherfords Experiment
12
Explanation
13
Observations, Hypothesis and Conclusion

• Observations
• Almost all alphas passed through foil unaffected
• Very small number of alphas deflected _at_ small
  angle
• 1/1000 deflected at large angle (struck head
  on)
• Hypothesis Atoms consist of some positive and
  negative subcomponents
• Accept or reject

14
New Model of Atom

• Small, dense center, positively charged called
  the nucleus (later to be called the proton)
• Small, light (w/o mass) negative charged
  subcomponent circles the nucleus (electron)
• Later additions (1932)
• Neutrons
• Protons
• Charge (neutrality calls for and charges)

15
Atomic Structure and FunctionOutline

• Early history in 18th and 19th centuries
• Discovery of the electron (1897)
• Discovery of the nucleus (1911)
• Atomic structure with consternation
• Atomic structure the Bohr atom (1913)
• Atomic Structure Theory of Quantum Mechanics
  (1930s)
• Applications of our understanding

16
Atomic Structure with Consternation

• Logic of consternation with Rutherford Model
• Electrons moving, so must give off energy
• 2nd Law of Thermodynamics
• Electrons should collapse
• Yet atoms are billions of years old
• Conclusions Model violated fundamental laws of
  physics

17
Atomic Structure and FunctionOutline

• Early history in 18th and 19th centuries
• Discovery of the electron (1897)
• Discovery of the nucleus (1911)
• Atomic structure with consternation
• Atomic structure the Bohr atom (1913)
• Atomic Structure Theory of Quantum Mechanics
  (1930s)
• Applications of our understanding

18
Atomic Structure Bohr Atom

• Observations (1913)
• Heated hydrogen gas and light is emitted as a
  discrete wavelength (not continuous spectrum)
• Other gases behave the same in producing discrete
  wavelength, but each gas unique in wavelengths
  produced

19
Atomic Structure Bohr Atom

• Hypothesis
• Electrons circle the nucleus at specific
  distances from the nucleus in defined orbits
• Diagram

20
Atomic Structure Bohr Atom

• Explanation of light in discrete wavelengths
• As excited/heated electrons drop back from
  orbit, a packet of energy is lost as a function
  of distance from the nucleus
• Packet of energy is called photon (light)

21
Atomic Structure Bohr Atom

• Key aspects of the Bohr atom
• No space between the orbits for electrons to be
  so jump has to be all or none quantum
  levels of electrons
• Excited electrons in outer orbit has 2 options
• Drop down to next lower orbit and emit a packet
  of energy (light) unique for that distance
• Drop back to even lower level (ground state) and
  emit packet of energy (light) unique for that
  that distance
• Energy release is unique for each element and is
  a window on atomic structure
• Ideas verified two decades later using quantum
  mechanics

22
Atomic Structure and FunctionOutline

• Early history in 18th and 19th centuries
• Discovery of the electron (1897)
• Discovery of the nucleus (1911)
• Atomic structure with consternation
• Atomic structure the Bohr atom (1913)
• Atomic Structure Theory of Quantum Mechanics
  (1930s)
• Applications of our understanding

23
Theory of Quantum Mechanics

• Observations
• Behavior of electrons in heated hydrogen gas were
  consistent with Bohr Model (orbits, etc.)
• Behavior of other heavier gases could not be
  explained by Bohr Model
• Investigators
• Heisenberg, Shrodinger, etc.
• Key Integrated mechanisms of waves and
  particles, focusing on fuzzy electron clouds
• Product new model of atomic structure and
  function
• Quantum mechanics

24
Quantum Mechanics Model

• Key Principles
• Electron behaves as a wave not a particle
• Energy of electron behaves as a spread-out wave
  not discrete bundle of energy
• Description is based on quantum numbers
• Distance from nucleus
• Energy level and sublevel
• Orientation of electrons in space
• Direction of electron spin

25
Quantum Mechanics Model Principle Energy Level

• Main energy level of electrons
• Distance from nucleus
• n 1 (lowest energy level)
• n 2
• n 3
• n 4 (highest energy level)
• etc.

26
Quantum Mechanics Model Sub-energy Levels

• Electrons in fuzzy probability distribution
  called an orbital
• e.g., n 1 has I sub-energy level/orbital (2
  electron orientations)
• Electrons in an orbital can only exist in pairs
  (2) and the pair spin in opposite directions
• Pauli Exclusion Principle

27
Quantum Mechanics Model Electron Configuration

• Electrons always adopt most energetically stable
  energy levels/orbitals consistent with Laws of
  Thermodynamics and previous conditions (above)
• n 1 with 2 electrons in 1 orbital (s orbital)
• n 2 with 8 electrons in 4 orbitals (p orbitals)
• pw has 2 electrons
• px has 2 electrons
• py has 2 electrons
• pz has 2 electrons

28
Atomic Structure and FunctionOutline

• Early history in 18th and 19th centuries
• Discovery of the electron (1897)
• Discovery of the nucleus (1911)
• Atomic structure with consternation
• Atomic structure the Bohr atom (1913)
• Atomic Structure Theory of Quantum Mechanics
  (1930s)
• Applications of our understanding

29
Applications of Our Understanding of Atomic
Structure

• Spectroscopy quantum differences in light
  emitted or absorbed result in unique signature
  for each element (fingerprint)
• LASER (Light Amplification by Stimulated Emission
  of Radiation)
• Binding of elements to create compounds
• Neurotransmitters in the brain
• Allergy reactions
• Etc..

30
Atomic Structure and FunctionTake Home Message

• Science as a evolutionary, incremental process
  over decades (e.g., exploring the structure of
  atom)
• Role of hypothesis development and testing in the
  sciences
• Demystification of physics and chemistry
  structure of the atom is a simple concept
• Understanding of atomic structure underpins
  future course topics (e.g., geology,
  biochemistry, environmental sciences, binding of
  chemicals)
• Applications some examples
