Title: Fabrication: between C and rhino scripting

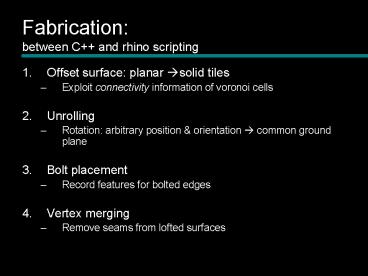

1
Fabricationbetween C and rhino scripting
  • Offset surface planar ?solid tiles
  • Exploit connectivity information of voronoi cells
  • Unrolling
  • Rotation arbitrary position orientation ?
    common ground plane
  • Bolt placement
  • Record features for bolted edges
  • Vertex merging
  • Remove seams from lofted surfaces

2
User Interfacecreating and visualizing tiles
- tile depth - unroll - save as - visualize

3
User Interfacecreating and visualizing tiles
- tile depth - unroll - save as - visualize

4
User Interfacecreating and visualizing tiles
- tile depth - unroll - save as - visualize

5
Voronoi Propertiessmart cells ? connected and
planar
  • Cells planar
  • Constraint
  • All vertices lie on a plane
  • General case
  • Always true for 3 vertices
  • Rarely true for gt3 vertices
  • Only 3 cells meet at a point
  • 2 planes intersect on a line
  • 3 planes intersect at a point
  • gt 3 planes do not
  • Intelligent each cell knows
  • Neighboring cells
  • Plane normal
  • Edges and vertices

6
Voronoi Propertiessmart cells ? connected and
planar
  • Cells planar
  • Constraint
  • All vertices lie on a plane
  • General case
  • Always true for 3 vertices
  • Rarely true for gt3 vertices
  • Only 3 cells meet at a point
  • 2 planes intersect on a line
  • 3 planes intersect at a point
  • gt 3 planes do not
  • Intelligent each cell knows
  • Neighboring cells
  • Plane normal
  • Edges and vertices

7
offset surfaceexploit connectivity of voronoi
cells
  • back face vertices
  • give all cells constant thickness
  • back face also planar
  • for (every cell)
  • for (every vertex)
  • // find 3 neighbor cells sharing vertex
  • // offset planes along normal vector
  • // create new vertex at intersection pt
  • Special case cell on surface boundary
  • only 2 neighbor cells
  • new vertex along line intersection
  • Offset along average of 2 normals

8
unroll tilesarbitrary orientation ? common
ground plane
  • Rotate each cell
  • ? align normal with z-axis
  • the math
  • axis of rotation
  • ( z-axis ) x ( normal )
  • vector perpendicular to both
  • angle of rotation
  • angle between z-axis, normal


9
Bolt placementembedding edge information for
rhino scripting
  • Extra geometry in obj file
  • Triangle on each bolted edge
  • Vertex 1 midpoint
  • Vertex 2 normal to tile face
  • Vertex 3 normal to tile edge
  • Size ¼ edge length
  • Boundary of surface
  • Test number of neighbor cells to recognize
    boundary
  • No bolt, no triangle

10
Seam removalmerging vertices on loft surfaces

Lofted surfaces create copied vertices ? 2 copies
of each vertex Case 1 Start and end curve Case
2 Curve midway through loft Result Interpreted
as a boundary
11
Seam removalmerging vertices on loft surfaces

Obj file format list of vertices ? each with
x,y,z coordinate list of faces ? References
vertex index v 0.2761 1.1840 0.5920 v
0.2546 1.0462 0.5291 f v v
v f 10 24 15 f
11 24 15
