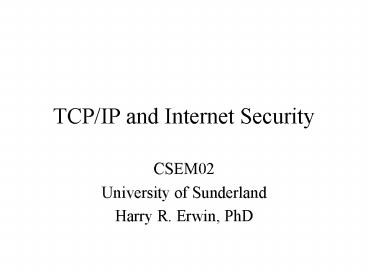

TCP/IP and Internet Security

1
TCP/IP and Internet Security

• CSEM02
• University of Sunderland
• Harry R. Erwin, PhD

2
Resources

• Garfinkel and Spafford, 1996, Practical UNIX and
  Internet Security, OReilly, ISBN 1-56592-148-8
• B. Schneier, 2000, Secrets and Lies, Wiley, ISBN
  0-471-25311-1.
• Daniel J. Barrett and Richard E. Silverman, 2001,
  SSH, the Secure Shell, OReilly, ISBN
  0-596-00011-1
• Eric Rescorla, 2001, SSL and TLS Designing and
  Building Secure Systems, Addison-Wesley, ISBN
  0-201-61598-3

3
TCP/IP

• The most general packet and message-level
  protocol in use.
• Operates on LANs, WANs and other network
  protocol.
• We will discuss IPv4
• There will be some overlap with lecture 6b.

4
Internet Addresses

• Dotted quartile
• 4 8-bit integers
• Unique in some sense (except that a local LAN may
  have only one address visible to the outside)
• Multiple address classes mean that not all
  addresses are usable. Classless InterDomain
  Routing (CIDR) has been introduced to address
  this.

5
Routing

• Routing is transparent
• Local hosts send packets to their gateway.
• The gateway is a router and handles matters from
  that point.
• The architecture routes around outages and
  failures.

6
Hostnames

• The name of the computer (not its address).
• Hostnamelt--gtIP Addresses may be many to many!
• Hostnames begin with an alphanumeric character
  and may contain letters, numbers, and a few
  symbols. Case is ignored.
• Two parts machine name and domain. The first
  period is the separator.

7
Packets and Protocols

• ICMPfor control
• TCPfor connection-oriented service
• UDPfor connectionless service
• IGMPfor multicasting control

8
ICMP

• In-band control of internet operations.
• Examples
• Echo request and echo reply
• Destination unreachable
• Source quench
• Redirect
• Etc

9
TCP

• Reliable, ordered, connection-oriented service.
• Connects (16 bit) ports at (32 bit) IP addresses.
• SYN and ACK bits in the packet header are used to
  negotiate new connections.
• SYN set to request the connection
• SYN and ACK set to ack the request
• ACK set to confirm the connection
• Three-way handshake
• This protocol allows unfriendly outsiders to
  detect which ports are being listened to.

10
UDP

• Unreliable connection-less service
• 10 times more throughput than TCP
• 53dns
• 69tftp
• 111sunrpc
• 137windows blithering
• 161snmp

11
Clients and Services

• Clients initiate connections to servers.
  Sometimes this is logically backwards as in
  X-Windows, where the client is the sender of the
  information, and the server is the machine
  requesting the information.
• Daemons are servers that wait for user requests.

12
Name Service

• The conversion from a name to an address is
  handed by a domain name server (DNS).
• UDP is used, so a workstation may need to make
  multiple requests.
• In UNIX systems, DNS is usually handled by bind.
• Alternatives
• NIS
• NetInfo
• DCE

13
TCP Services

• 21ftp
• 23telnet
• 25smtp
• 42nameserver
• 43whois
• 79finger
• 80http
• 109, 110pop
• 113auth
• 119nntp

14
TCP/IP Security

• Risks include
• Sniffers
• IP spoofing
• Connection hijacking
• Data spoofing

15
Causes of Weak Internet Security

• Underestimation of the hostility of the internet
  environment
• Overriding importance of message/packet transfer
• Evolution

16
Alternatives

• Encrypt the link
• Protect the link
• Encrypt the packets
• Encrypt the message
• Encrypt the session
• Peter Dunne has discussed this.

17
Limitations of Encryption

• Does not protect against deletion
• Trapdoors may exist in the encryption program
• Data can be accessed when not encrypted.
• Encryption can be broken.
• Keys can be weak.

18
The Problem

• IPv4 is insecure. Most TCP/IP services are
  unencrypted. This allows anyone to monitor and
  reconstruct connection traffic on the internet.
• Requirements for the following can be identified
• Encrypted connections between parties known to
  each other.
• Third-party authentication and encrypted
  connection establishment when parties are not
  known to each other.

19
Solutions

• SSH to support encrypted sessions
• SSL to provide trusted third-party authentication
  and to support encrypted sessions.

20
SSH

• Secure shell
• Transparent encryption.
• Modern, secure encryption algorithms
• Reliable, fast, and effective
• Client/server interaction
• Eliminates .rhosts and hosts.equiv

21
Services Provided

• Replaces
• rsh and telnet with ssh
• rlogin with slogin
• rcp with scp
• ftp with sftp
• Protocols
• ssh-1
• ssh-2

22
SSH1 Authentication Mechanisms

1. Kerberos
2. Rhosts (trusted host authentication, insecure)
3. RhostsRSA (trusted host authentication, insecure)
4. Public-key (RSA)
5. TIS
6. Password (various flavors, relatively insecure)

23
SSH2 Authentication Mechanisms

1. Public-key (DSA, RSA, OpenPGP)
2. Hostbased
3. Password

24
Ciphers

• SSH1
• 3DES, IDEA, ARCFOUR (alleged RC4), DES
• SSH2
• 3DES, Blowfish, Twofish, CAST-128, IDEA, ARCFOUR

25
Port Forwarding

• SSH can forward or tunnel ports, allowing you to
  run insecure services securely.
• ssh -L 3002localhost119 news.yoyo.com

26
A Simple Example

• ssh -l harry harry.sunderland.ac.uk
• This allows me to log into harry_at_harry.sunderland.
  ac.uk
• Another way of doing the same thing is
• ssh harry_at_harry.sunderland.ac.uk

27
Using scp

• scp harry_at_harry.sunderland.ac.ukmyfile afile
• This transfers myfile from my home directory on
  harry.sunderland.ac.uk to afile locally.
• You can also use sftp similarly to ftp.

28
Threats Countered by SSH

• Eavesdropping
• DNS and IP Spoofing
• Connection Hijacking
• Man-in-the-Middle Attacks
• Insertion Attack

29
SSL

• Secure Sockets Layer
• An authentication and encryption technique that
  provides security services to TCP by a
  socket-style API.
• Relies on certificates issued by a trusted third
  party.
• Invented by Netscape.
• Is being replaced by TLS (Transport Layer
  Security)

30
Services Provided

• Secure http
• pop
• imap
• smtp
• ftp
• rmi
• corba
• iiop
• telnet
• ldap

31
SSL Functions

• Confidential transmission
• Message integrity
• Endpoint authentication

32
How It Works

• An understanding of how SSL works is necessary to
  use it safely.
• Uses public key cryptography.
• Trusted third parties (Certificate Authorities)
  provide the certificates that contain the public
  keys.
• Supports many encryption algorithms.

33
SSL-Enabled UNIX Clients

• curl,
• ethereal,
• ettercap,
• lynx,
• stunnel,
• gabber,
• links,
• mutt,

• xchat,
• bitchx,
• lftp,
• neon,
• openldap,
• openslp,
• pine,
• various database managers.
