Xin Chen

1

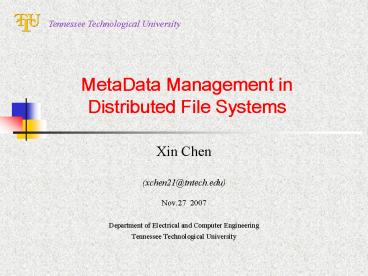

MetaData Management in Distributed File Systems

• Xin Chen
• (xchen21_at_tntech.edu)
• Nov.27 2007
• Department of Electrical and Computer Engineering
• Tennessee Technological University

2
Outline

• Introduction
• Metadata Management in Distributed File Systems
• Case Study Dynamic Metadata Management for
  Petabyte-scale File Systems
• Conclusions

3
What is Metadata?

• Two common definitions of metadata are
• Data about data
• Data needed to make other data useful

4
How to Find Books in the Library?
5
Types of Metadata

• File System Metadata
• Timestamps, file attributes, and some
  special-purpose information.
• Image Metadata
• Subjects, related emotions, and other descriptive
  phrases
• Program Metadata
• Company that published the program, the date the
  program was created, the version number.
• Digital library metadata
• Descriptive - Information describing the
  intellectual content of the object
• Structural - Information that ties each object to
  others to make up logical units
• Administrative - Information used to manage the
  object or control access to it.

6
Outline

• Introduction
• Metadata Management in Distributed File Systems
• Case Study Dynamic Metadata Management for
  Petabyte-scale File Systems
• Conclusions

7
Metadata Management in Distributed File Systems

• In short, Metadata Management is the act of
  imposing
• management discipline on the collection and
  control of
• Metadata 2
• Create/delete metadata
• Manage file system namespace (directory
  structure)
• Control inconsistencies and redundancies of
  metadata

8
Importance of Metadata Management

• Good metadata performance is critical to overall
  system performance.
• Efficient metadata management leads to efficient
  use of storage resources.
• Efficient metadata management leads to long term
  scalability of the system.

9
A Typical Distributed File System Architecture
10
Issues of Metadata Management in Distributed File
Systems

• Consistency
• Workload Partitioning
• Traffic Management
• Metadata Storage

11
Consistency

• Updates must be consistent within MDSs clients
• should have consistent view of file system.

Distributed Locking vs. Centralized Management
12
Workload Partition

• Balance MDS loads, maximize efficiency and
  throughput

13
Traffic Management

• Effectively adapt to a changing workload.

• Ideal case
• Unpopular items clients directly contact the
  corresponding MDS.
• Popular items those items are replicated across
  several nodes.

14
Metadata Storage

• Fast commits and efficient reads

• Ideally, the MDS memory is
• able to satisfy most reads.

15
Outline

• Introduction
• Metadata Management in Distributed File Systems
• Case Study Dynamic Metadata Management for
  Petabyte-scale File Systems
• Conclusions

16

• Dynamic Metadata Management for Petabyte-scale
  File Systems
• Sage Weil, Kristal T. Pollack, Scott A. Brandt
  and Ethan L. Miller
• University of California, Santa Cruz
• SC '04 Proceedings of the 2004 ACM/IEEE
  conference on
• Supercomputing, 2004

17
Overview

• Introduction
• Background
• Dynamical Metadata Management
• Evaluation

18
Motivations

• In petabyte-scale distributed file system, the
  behavior
• of the metadata server is critical to overall
  system
• performance and scalability.
• More than 50 of all file system operations are
  metadata operations, making the performance of
  the MDS cluster of critical importance.
• Metadata exhibit a higher degree of
  interdependence, making the design of a scalable
  system much more challenging.

19
Issues
Goal MDSs should be able to continually adapt to
current demands to maintain high system
performance and long-term scalability.
20
Main Contribution

• In this paper, a dynamic sub-tree partitioning
• and adaptive metadata management system
• is designed to efficiently manage metadata
• workloads that evolve over time.

21
Overview

• Introduction
• Background
• Dynamical Metadata Management
• Evaluation

22
System Overview

• Petabytes of storage (1018 bytes, millions of
  gigabytes)
• Billions of files ranging from bytes to terabytes
• 10,000 to 100,000 clients
• 10 Metadata servers
• 1,000 object-based storage devices (OSDs)

Storage system Architecture 4
23
Metadata Workloads

• More 50 of all file system operations are about
  metadata
• Open, close
• Readdir, setattr, ls
• Hot spots
• Directories near root of hierarchy are
  necessarily popular
• Popular files many opens of same file (e.g.
  /lib/)
• Popular directories many creates in same
  directory, (e.g. /tmp)

24
Current Partitioning Approaches

• Static sub-tree partitioning
• Coarse distribution
• Imbalanced distribution
• Hash-based partitioning
• Finer distribution
• Ignores hierarchical structure
• Hot spots still exist
• Eliminates all hierarchical locality

25
Overview

• Introduction
• Background
• Dynamical Metadata Management
• Evaluation

26
Dynamic Sub-tree Partitioning

• Sub-tree based partitioning
• Greater MDS independence
• Greater locality of reference within the workload
• Dynamic partitioning strategy
• Metadata storage
• Traffic control
• Flexible resource utilization policies

27
Example

• Whether a directory is hashed is dynamically
  determined.

28
Load Balancing

• The metadata partition is modified over time by
  allowing MDS nodes to transfer authority for
  subtrees of the directory hierarchy.

• If a directory is large or busy,
• its contents can be selectively hashed
• across the cluster.

29
Overview

• Introduction
• Background
• Dynamical Metadata Management
• Evaluation

30
Evaluation

• The authors implemented their dynamic metadata
  management system within an event-driven
  simulation environment.
• The Purpose is to validate the design hypotheses
• To show the relative performance and scalability
  of the different metadata management
• To show subtree partitioning is efficient
• To show the benefit of exploiting directory
  locality
• To show the ability of a dynamic partitioning in
  traffic control.

31
Simulation

• The focus of the simulation efforts
• is on MDS behavior and workload
• generation, and not on underlying
• disk storage behavior.

32
Results Performance and Scalability
33
Results Traffic control
34
Outline

• Introduction
• Metadata Management in Distributed File Systems
• Case Study Dynamic Metadata Management for
  Petabyte-scale File Systems
• Conclusions

35
Conclusions

• Metadata management is critical to overall system
  performance and scalability.
• Several aspects should be taken into account in
  the design of metadata management
• Consistency
• Partitioning
• Traffic control
• Metadata storage
• Dynamic subtree partitioning shows its advantages
  for load balancing.

36
References

• Metadata From Wikipedia, http//en.wikipedia.org/
  wiki/MetadataDefinitions
• Metadata Management An Essential Ingredient for
  information Lifecycle Management,
  http//www.sun.com/storagetek/white
  papers/Metadata_Management.pdf
• S. A. Brant, E. L. Miller, D. E. Long, and L.
  Xue. Efficient metadata management in large
  distributed storage system. In Proc.20th IEEE /
  11th NASA Goddard Conference on Mass Storage
  Systems and Technologies, page 290-298, April
  2003.
• S. A. Weil, K. T. Pollack, S. A. Brandt, and E.
  L. Miller. Dynamic metadata management for
  petabyte-scale file system. In Proc. ACM/IEEE
  Conference on supercomputing, November 2004.
• G. A. Gibson and R.V. Meter. Network attached
  storage architecture. Communications of the ACM,
  43(11)37-45, 2000.
• Robyne M. Sumpter. Whitepaper on Data Management
  v1.0. Lawrence Livermore National Laboratory,
  February 10, 1994.
• D. Roselli, J. Lorch, and T. Anderson. A
  comparison of file system workloads. In
  Proceedings of the 20th USENIX Annual Technical
  Conference, pages 41-54, June 2000.

37

• Thank You !
