1

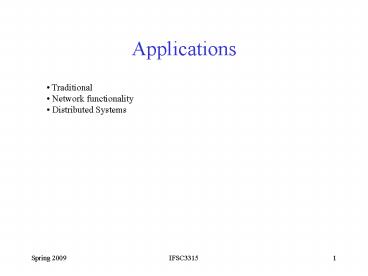

Applications
  • Traditional
  • Network functionality
  • Distributed Systems

2
Traditional Applications
  • SMTP Simple Mail Transfer Protocol
  • Electronic Mail
  • HTTP HyperText Transfer Protocol
  • Web Browser to Web Server Protocol
  • DNS Domain Name Service Translates human
    readable addresses into numeric network
    addresses
  • SNMP Simple Network Management Protocol
  • Monitor and Control network nodes

3
Electronic Mail
  • SMTP, MIME, IMAP
  • RFC822 Message Format specification
  • Header and Body (Both originally text files)
  • Header has CRLF terminated lines and ends with
    blank line
  • Body may be MIME(Multipurpose Internet Mail
    Extensions) and be multi-part and both text and
    graphic(binary)encoded ex base64

4
Message Transfer
  • Architecture client-server-gatewaygateway-server
    -client

5
Mail Reader
  • Runs on client
  • May use local files or access remote via
    IMAP(Internet Message Access Protocol) or
    POP(Post Office Protocol)
  • Client connects to server via TCP and issues
    commands to control session(LOGIN, AUTHENTICATE,
    SELECT, EXAMINE, CLOSE, LOGOUT)
  • Mail sent directly using SMTP.

6
World Wide Web (HTTP)
7
Universal Resource Locator(URL)
  • The browser is aimed using a text string
  • http//dsn name/browser path
  • The http label chooses the protocol
  • The dsn name is passed to the DNS server and
    results in a numeric IP that is used to set up a
    TCP session with the remote server
  • The browser path is passed to the remote server
    and used to locate the desired data file.

8
HTTP(cont.)
START_LINE ltCRLFgt MESSAGE_HEADER
ltCRLFgt ltCRLFgt MESSAGE_BODY ltCRLFgt
9
HTTP(cont.)
  • Evolution persistence and caching
  • HTTP/1.0 uses separate TCP connection for each
    block of returned data.
  • HTTP/1.1 allows persistent TCP connections for
    total response to a request. This connection can
    be detected as a flow and thus benefit from
    router centric congestion measures.
  • Intelligence added to interior network nodes to
    cache repetitive browser requests, from different
    requestors.

10
Naming
  • Outline
  • Terminology
  • Domain Naming System
  • Distributed File Systems

11
Domain Naming System
  • Hierarchy
  • Name
  • chinstrap.cs.princeton.edu

12
Name Servers
  • Partition hierarchy into zones

edu
com
gov
mil
org
net
uk
fr










princeton
mit
cisco
yahoo
nasa
nsf
arpa
navy
acm
ieee
cs
ee
physics
ux01
ux04
  • Each zone implemented by two or more name servers

13
Resource Records
  • Each name server maintains a collection of
    resource records
  • (Name, Value, Type, Class, TTL)
  • Name/Value not necessarily host names to IP
    addresses
  • Type
  • A Address record value gives IP address bound
    to name
  • NS Value gives domain name for host running name
    server that knows how to resolve names within
    specified domain.
  • CNAME Value gives canonical name for particlular
    host used to define aliases.
  • MX Value gives domain name for host running mail
    server that accepts messages for specified
    domain.
  • Class allow other entities to define types
  • TTL how long the resource record is valid

14
Root Server
  • (princeton.edu, cit.princeton.edu, NS, IN)
  • (cit.princeton.edu, 128.196.128.233, A, IN)
  • (cisco.com, thumper.cisco.com, NS, IN)
  • (thumper.ciscoe.com, 128.96.32.20, A, IN)

15
Princeton Server
  • (cs.princeton.edu, optima.cs.princeton.edu, NS,
    IN)
  • (optima.cs.princeton.edu, 192.12.69.5, A, IN)
  • (ee.princeton.edu, helios.ee.princeton.edu, NS,
    IN)
  • (helios.ee.princeton.edu, 128.196.28.166, A, IN)
  • (jupiter.physics.princeton.edu, 128.196.4.1, A,
    IN)
  • (saturn.physics.princeton.edu, 128.196.4.2, A,
    IN)
  • (mars.physics.princeton.edu, 128.196.4.3, A, IN)
  • (venus.physics.princeton.edu, 128.196.4.4, A, IN)

16
CS Server
  • (cs.princeton.edu, optima.cs.princeton.edu, MX,
    IN)
  • (cheltenham.cs.princeton.edu, 192.12.69.60, A,
    IN)
  • (che.cs.princeton.edu, cheltenham.cs.princeton.edu
    , CNAME, IN)
  • (optima.cs.princeton.edu, 192.12.69.5, A, IN)
  • (opt.cs.princeton.edu, optima.cs.princeton.edu,
    CNAME, IN)
  • (baskerville.cs.princeton.edu, 192.12.69.35, A,
    IN)
  • (bas.cs.princeton.edu, baskerville.cs.princeton.ed
    u, CNAME, IN)

17
Name Resolution
  • Strategies
  • forward
  • iterative
  • recursive
  • Local server
  • need to know root at only one place (not each
    host)
  • site-wide cache

18
SNMP
  • Increasing complexity and configuration needs
  • Speed of fault location/isolation
  • Pro-active monitoring
  • Capable of tiered support architecture

19
SNMP(cont.)
  • Simple request/reply protocol
  • GET to request data, SET to alter remote data,
    GET NEXT to scroll through MIB to fill a
    database. UDP used to send and receive
  • MIB II RFC specified format for template
  • MIB format specified by vendor. If a value from
    the template is supplied to the node, firmware in
    the node decodes the number string into a value
    either in the configuration memory or a real-time
    value from the operating system, such as the
    buffer state, etc.
  • Information grouped by function System,
    Interfaces, ARP table,IP values, TCP statistics,
    UDP statistics, ICMP, EGP, SNMP.

20
SNMP(cont.)
  • Request syntax is ASN.1 BER.
  • EX The string 1.3.6.1.2.4.3 points to the
    real-time value IPinReceives, The string
    1.3.6.1.2 refers to the specific hardware being
    monitored and is provided by the vendor. The 4
    refers to the IP group and the 3 refers to the
    third value in the group.
  • GET-NEXT
  • Functions as a GET but returns the string
    pointing to the next possible MIB value in
    addition to the value of the string in the
    GET-NEXT.

21
Web Services
  • Business to Business (B2B)
  • Enterprise Application Integration (EAI)
  • Web Services Description Language (WSDL)
  • SOAP vs REST

22
SOAP WSDL
  • Standards issued by World Wide Web Consortium
    Known as W3C
  • Message Exchange Patterns (MEP)
  • WS standards sponsored by the Organization for
    the Advancement of Structured Information
    Standards (OASIS)

23
SOAP cont.
  • SOAP 1.2 adds feature abstraction such as
    reliability, security, correlation, routing.
  • SOAP modules provide one or more features which
    must be declared in the headers, along with any
    known interaction with other modules

24
REST
  • Uses existing Web Architecture
  • Resources referenced by URI
  • Access via HTTP
  • Complexity is added to the payload of the message
    rather than to the access protocol
  • Applications typically use XML or JSON
    (JavaScriptObjectNotation)

25
Multimedia
  • Session Description Protocol (SDP)
  • Session Announcement Protocol (SAP)
  • Session Initiation Protocol (SIP)
  • Simple Conference Control Protocol (SCCP)
  • H.323

26
Session Description Protocol
27
Session Initiation Protocol
28
SIP cont
29
H.323
  • ITU and IETF cooperative effort
  • Website detailing specification
    http//www.protocols.com/pbook/VoIP.htm

30
  • DVB Digital Video Broadcasting
  • H225 Covers narrow-band visual telephone
    services
  • H.225 Annex G H.225E H.235 Security and
    authentication
  • H.323SET H.245 Negotiates channel usage and
    capabilities
  • H.450.1 Series defines Supplementary Services for
    H.323
  • H.450.2 Call Transfer supplementary service for
    H.323
  • H.450.3 Call diversion supplementary service for
    H.323
  • H.450.4 Call Hold supplementary service
  • H.450.5 Call Park supplementary service
  • H.450.6 Call Waiting supplementary service
  • H.450.7 Message Waiting Indication supplementary
    service
  • H.450.8 Calling Party Name Presentation
    supplementary service
  • H.450.9 Completion of Calls to Busy Subscribers
    supplementary service
  • H.450.10 Call Offer supplementary service
  • H.450.11 Call Intrusion supplementary service
  • H.450.12 ANF-CMN supplementary service
  • H.261 Video stream for transport using the
    real-time transport
  • H.263 Bitstream in the Real-time Transport
    Protocol
  • Q.931 manages call setup and termination

31
Overlay Networks
  • Packet Forwarding (Present)
  • Application processing (Future)
  • Application Functionality added to network
    devices
  • Logical network on top of Physical Network
  • Example 32Bit IPV4 network over IPV6 physical
    network

32
Ossification of the Internet
  • Commercial use dominates Internet
  • Inertia in existing standards limits progress
  • Overlay networks may help new ideas develop

33
Routing Overlays
  • Multicast Backbone ( Mbone)
  • 6-Bone
  • End System Multicast

34
Resilient Overlay Networks
35
Peer to Peer
  • Gnutella

Example Gnutella Network
36
Peer to Peer
  • BitTorrent

A BitTorrent swarm
