ArchitectureConscious Hashing

1

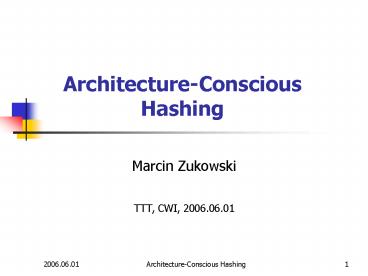

Architecture-ConsciousHashing

• Marcin Zukowski
• TTT, CWI, 2006.06.01

2
Overview

• Introduction
• Hashing application
• Basic implementation
• Hashing in MonetDB/X100
• CPU optimizations
• Cache optimizations
• Conclusions and discussion

3
Dictionary task

• Two basic functions
• insert(key,tuple) void
• lookup(key) tuple
• Example application duplicate removal
• for each tuple
• key make_key(tuple)
• if not lookup(key)
• insert(key,tuple)

4
Dictionary in DBMS

• Used almost everywhere
• Joins
• Aggregation and duplicate removal
• Set operations (intersection etc.)
• Indices
• Data compression

5
Dictionary implementations

• Arrays
• Ordered O(logN) lookup, O(N) insert
• Unordered O(N) lookup, O(1) insert
• Trees
• O(logN) lookup and insert
• Hash-tables
• O(1) lookup and insert

6
Hash-tables

• Hash function key -gt hash
• Table offset hash mod table size
• Sparse buckets and dense values
• Collisions e.g. bucket chaining

7
Bucket-chained lookup

• offset HASH(key) size
• group_id bucketsoffset
• while(group_id keysgroup_id key )
• group_id nextgroup_id

8
Hashing CPU problems

• Pipelined execution
• Control dependencies if-then-else, loops
• Data dependencies
• Bucket-chained hashing
• while(group_id keysgroup_id key )
• group_id nextgroup_id

Nested loop with complex condition
9
Hashing memory problems

• Memory hierarchy
• Fast but small (16K-1M) cache memories
• Large but slow (100s cycles) main memory
• Hashing

Random memory accesses
10
Hashing - summary

• What is hashing?
• Basic dictionary functionality
• Highly useful
• Good complexity
• But!
• Performance problems on modern CPUs
• How to use it in MonetDB/X100?

11
Hashing in MonetDB/X100

• MonetDB/X100 architecture
• Hashing
• Vectorized Cuckoo Hashing
• Best-Effort Partitioning

12
X100 Architecture
13
X100 execution layer
14
X100 vectors

• Data stored in columns
• Vector a vertical slice of a column
• Internally a simple array
• Vectors sizes tuned such that all fit in the CPU
  cache

15
X100 primitives

• Process entire vectors at a time
• Reduced interpretation overhead
• Simple, type-specific, branch-free code
• Highly efficient
• void map_add_int_col_int_col ( int n,
• int res, int col1, int col2)
• for (int i0 iltn i)
• resi col1i col2i

16
X100 hashing challenges

• CPU-friendly hashing
• Vectorized hashing functions
• Vectorized hash-table lookup
• Compound key handling
• Cache-friendly hashing

17
Vectorized hashing function

• Simple, speed optimized, for example
• for(i0 iltn i)
• h inputi
• h (h) (hltlt15)
• h h (hgtgt11)
• h h (hltlt3)
• outputi h

18
Vectorized hash lookup

• Bucket-chained hashing
• Conflict list traversal
• Inherently impossible to vectorize
• Idea
• Avoid the conflict list
• Cuckoo

19
Cuckoo Hashing

• Two hash functions, two offsets
• Inside value in one of the offsets
• If it is taken, move the old value to its second
  offset. Repeat.
• During lookup, check both offsets

20
Cuckoo lookup (naïve)

• offset1 HASH1(key) size
• offset2 HASH2(key) size
• index1 bucketsoffset1
• index2 bucketsoffset2
• if (index1 keysindex1 key)
• group_id index1
• else if (index2 keysindex2 key)
• group_id index2
• else
• group_id 0 // miss

21
Branch-free Cuckoo lookup

• offset1 HASH1(key) size
• offset2 HASH2(key) size
• index1 bucketsoffset1
• index2 bucketsoffset2
• mask1 -(keysindex1 key)
• mask2 -(keysindex2 key)
• group_id
• mask1 index1 mask2 index2

22
Compound keys

• Primitives type-optimized for a single column
• keysindex key
• Multi-column keys how?
• Pass an array of vectors and comparison functions
  SLOW!
• Exploit the hash values ?

23
Compound keys (cont.)

• Assume hash values unique
• Vectorized lookup using hash values
• Vectorized check for conflicting values
• Lookup conflicts in a slow way (rare!)

24
CPU performance
25
CPU optimizations - summary

• Fully vectorized hash-table processing
• Hash functions
• Lookup
• Compound keys
• What if the hash-table is big?
• Cache-size exceeded
• Main-memory access cost hundreds of CPU cycles

26
Cache-optimized hashing

• Idea partition a hash-table into smaller
  hash-tables and process them locally
• Outline
• Traditional hashing
• Best-Effort Partitioning
• Benchmarks

27
Traditional partitioning

• Both I/O and memory optimization
• Basic idea
• Spread the data into multiple partitions looking
  at the hash value
• Process each partition locally
• Problem
• All partitions need to be fully saved before
  processing.
• What if theres no space?

28
Best-Effort Partitioning (BEP)

• Idea Partition as much as possible, then process
• Rationale Even with fewer tuples the hash-table
  locality can be exploited
• Benefit Reduced memory requirements

29
BEP algorithm
30
BEP example

• Problem
• Find 256K unique values out of 100M 8-byte wide
  tuples
• Available memory - 70MB.
• Cache is 64KB, 64b cache lines
• BEP settings
• Hash table 4MB (512K4 256K8)
• 128 partitions 32KB sub-tables, 512 cache lines
• 66MB for partitioned data 512KB per partition,
  64K tuples
• When processing, 64K tuples are looked up in 512
  cache lines
• Each cache line touched 128 times access cost
  amortized

31
BEP performance
32
BEP memory size impact
33
BEP conclusions

• Provides cache-resident processing
• Reduces memory requirements over full
  partitioning
• Possible to use on multiple storage levels (disk,
  memory)

34
Conclusions

• Two major hashing optimizations
• CPU-friendly vectorized processing
• Cache-friendly Best Effort Partitioning
• Future work
• Applying to various relational operators (hash
  join!)
• Test in a bigger scenario (TPC-H)

35
Thank you!

• Questions?
