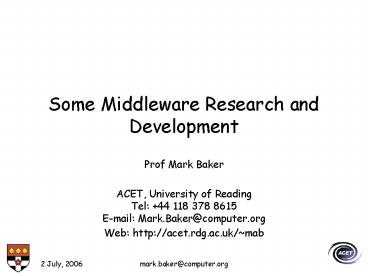

Some Middleware Research and Development

1
Some Middleware Research and Development

• Prof Mark Baker
• ACET, University of Reading Tel [phone]
  8615 E-mail Mark.Baker_at_computer.org
• Web http//acet.rdg.ac.uk/mab

2
Outline

• Java Messaging - MPJ Express
• Wide area messaging and registry Tycho.
• Resource Monitoring GridRM,
• Semantic Log Analysis Slogger
• Ongoing projects.
• Summary and conclusions.

3
MPJ Express

• A Java Messaging System
• http//dsg.port.ac.uk/projects/mpj/

4
Why Java!

• More reliable
• C has essentially no runtime error checking and
  memory allocation/retrieval is manual
• In Java, memory management is automatic, and many
  errors, such as buffer overflows, and stray
  pointers are impossible.
• Built-in exception handling, which C lacks
  completely.
• More Secure
• A robust and mature security model, which has
  been extensively tested by the community at
  large.
• Java compilers, interpreters, and runtime systems
  have come a long way in the last five years too
• The execution of well-written Java code can now
  be on a par with well written C or C code
• Java code is executed by a Java Virtual Machine
  (JVM), which can be an interpreter, a JIT
  (Just-In-Time) compiler, or an adaptive
  optimising engine such as HotSpot.

5
Why Java!

• Java development tools
• e.g. Eclipse platform, and a large number of open
  source, free software that has been made
  available by the community of programmers.
• If nothing else, this software can be a starting
  place to develop new ideas and more sophisticated
  applications.
• Portability
• Java applications can execute with little or no
  change on multiple hardware platforms where a
  compliant JVM exists.
• Compelling benefit and argument for using Java.
• Programmer productivity
• At least two times greater with Java.
• A lot can be done in a short amount of time with
  Java because it has such an extensive library of
  functions already built into the language,
  integrated development environments, and a wide
  selection of supporting tools.

6
Java Messaging

• Introduction
• As a response to the appearance of several
  prototype MPI-like libraries, the Message-Passing
  Working Group of the Java Grande Forum was formed
  in late 1998.
• This working group came up with an initial draft
  of an API, which was distributed at
  Supercomputing in 1998.
• Two APIs, mpiJava 1.2 and MPJ, have been
  proposed
• Main difference lies in the naming conventions of
  variables and functions.
• There have been various efforts over the last
  decade to develop a Java messaging system, follow
  one of three approaches
• JNI to interact with a underlying native MPI
  runtime
• Java messaging from scratch using the likes of
  RMI
• Communications using Java Sockets.
• Experience gained with these implementations
  suggests that there is no universal approach that
  satisfies, often conflicting requirements of end
  users.

7
Java Messaging

• The Paradox
• The fastest implementation is via JNI using the
  likes of mpiJava
• This introduces various issues
• Compatibility with underlying MPI,
• Breaks programming model,
• Compromises portability!
• Using 100 pure Java ensures portability
• But it might not provide the most efficient
  solution, especially in the presence of commodity
  high-performance hardware.
• It is important to address these contradictory
  requirements of portability and high performance,
  in the design of Java messaging systems.

8
MPJ Express

• To address this, MPJE (MPJ Express) has been
  developed project started early 2004.
• MPJE is an implementation of a MPI-like API for
  Java
• The higher-level concepts, such as communicators
  (inter and intra), virtual topologies, and
  derived datatypes have been implemented in pure
  Java.
• MPJE uses a unique buffering API (mpjbuf) that
  allows explicit memory management at the
  application level.
• Both Java and JNI communication devices can use
  this buffering layer, by making use of direct
  byte buffers for the actual storage.
• Currently, two communication devices have been
  implemented
• niodev based on Java NIO (New I/O),
• mxdev based on Myrinet eXpress (MX).
• MPJE includes a runtime system that permits
  boot-strapping of processes across remote nodes.

9
MPJ Express - Architecture

• The high and base levels rely on the mpjdev and
  the xdev level for actual communications and
  interaction with the underlying networking
  hardware.
• Two implementations of the mpjdev are envisaged
• JNI wrappers to native MPI implementations,
• Use of a lower level device, called xdev, to
  provide access to Java sockets or specialised
  communication libraries.

10
MPJE - Performance
Latency
Bandwidth
11
MPJ Express Meets Gadget

• To help establish the practicality of real
  scientific computing using MPJE, the parallel
  cosmological simulation code, Gadget-2, was
  ported from C to Java.
• Gadget-2 is a massively parallel structure
  formation code developed by Volker Springel at
  the Max Planck Institute of Astrophysics.
• Versions of Gadget-2 has been used in various
  research papers in astrophysics literature,
  including the noteworthy Millennium Simulation
  the largest ever model of the Universe.

12
J- Gadget

• Gadget-2 was manually translated to Java.
• The data structures were deliberately kept
  similar so that a cross-reference to the original
  source code could be made for debugging purposes.

• Gadget-2 uses the GNU Scientific Library (GSL), a
  parallel version of Fastest Fourier Transforms in
  the West (FFTW), and a MPI library.
• We used the Barnes-Hut tree algorithm for
  calculating gravitational forces and for
  communication, we used MPJE.
• The main simulation loop involves calculating
  gravitational forces for each particle in the
  simulation and updating their accelerations
• This is the most compute intensive task in the
  simulation.

13
Performance

• Java Gadget can achieve around 70 of performance
  of the C version.
• This is acceptable performance given that Java
  has many extra safety features including array
  bounds checking.
• Comparison is between a production quality C code
  against a Java code that could be optimized
  further.
• The performance of Java Gadget-2 reinforces our
  belief that Java is a viable option for HPC.

14
Summary

• MPJ Express is a MPI-like Java messaging system.
• MPJE is a pure Java system, which has an
  architecture that can also use fast proprietary
  networks too.
• The latency and bandwidth of MPJE is not far off
  that for native C.
• The performance of Java Gadget-2 reinforces our
  belief that Java is a viable option for HPC.
• With careful programming, it is possible to
  achieve performance in the same general ballpark
  as C code.
• MPJE is also being used in other projects,
  including
• MoSeS (Modelling and Simulation for e-Social
  Science) at Leeds.
• CartaBlanca (Sandia) that is simulating
  non-linear physics on unstructured grids.

15
James Gosling Says
16
Tycho

• A wide-area asynchronous messaging system with an
  integrated virtual registry
• http//dsg.port.ac.uk/projects/tycho/

17
Distributed Applications

• In a distributed environment remote entities
  (producers or consumers of services) need a means
  to publish their existence so that clients,
  needing their services, can search and find the
  appropriate ones that they can then interact with
  directly.
• The publication of information is via a registry
  service, and the interaction is via a high-level
  messaging service
• Typically, separate libraries provide these two
  services.
• Tycho is an implementation of a wide-area
  asynchronous messaging framework with an
  integrated distributed registry.
• Frees developer from the need to assemble their
  applications from a range middleware offerings
• Simplify and speed application development and
  allow developers to concentrate on their own
  domain of expertise.

18
Tycho

• Tycho is a Java-based framework based on a
  publish, subscribe and bind paradigm.
• Design Philosophy
• We believe that the system should have an
  architecture similar to the Internet, where every
  node provides reliable core services, and the
  complexity is kept, as far as possible, to the
  edges.
• The core services can be kept to the minimum, and
  endpoints can provide higher-level and more
  sophisticated services, that may fail, but will
  not cause the overall system to crash.
• We have kept Tychos core small, simple and
  efficient, so that it has a minimal memory
  foot-print, is easy to install, and is capable of
  providing robust and reliable services.
• More sophisticated services can then be built on
  this core and are provided via libraries and
  tools to applications.
• Allows Tycho to be flexible and extensible so
  that it will be possible to incorporate
  additional features and functionality.

19
Tycho

• Tycho consists of the following components
• Mediators that allow producers and consumers to
  discover each other and establish remote
  communications,
• Consumers that typically subscribe to receive
  information or events from producers,
• Producers that gather and publish information for
  consumers.
• There is an asynchronous messaging API.
• In Tycho, producers and/or consumers (clients)
  can publish their existence in a Virtual Registry
  (VR).
• A client uses the VR to locate other clients,
  which act as a source or sink for the data they
  are interested in.
• The VR is a distributed service provided by a
  network of mediators.
• When possible, clients communicate directly
• For clients that do not have direct access to
  the Internet, the mediator provides wide-area
  connectivity by acting as a gateway or proxy into
  a localised Tycho installation.

20
The Architecture of Tycho
21
Tycho Messaging Tests

• Performance Tests of Tycho against NaradaBrokering

22
Performance Tests (Messaging)

• NaradaBrokering
• The NaradaBrokering framework is a distributed
  messaging infrastructure, developed by the
  Community Grids Lab at Indiana University.
• NaradaBrokering is an asynchronous messaging
  infrastructure with a publish and subscribe based
  architecture.
• NaradaBrokering is Sun JMS compliant. This
  messaging standard allows application components
  to exchange unified messages in an asynchronous
  system.
• The JMS specification is used to develop Message
  Orientated Middleware (MOM) and defines how
  messages are to be communicated via queues or
  topics.
• Networks of collaborating brokers are arranged in
  a cluster topology, with a hierarchy of clusters,
  super-clusters, and super-super-clusters.
• It aims to provide a unified messaging
  environment that incorporates the capability to
  support Grid and Web Services, Peer-to-Peer and
  video conferencing, within a SOA.

23
NaradaBrokering
24
Tycho vs NaradaBrokering
WAN
Baseline Java
LAN
WAN
Baseline Java
LAN

• Ping-Pong tests.
• In the test the consumer is run on one host and
  the producer on
• another, they communicate over Fast Ethernet
  via sockets.
• The Tycho consumer and producer communicate
  directly using
• sockets, only using the mediator to bootstrap
  the test.
• The NaradaBrokering consumer and producer also
  use sockets to
• send the messages, but these messages are
  routed via the broker.

25
Tycho vs NaradaBrokering

• The scalability tests designed to measure the
  performance of
• Tycho and NaradaBrokering as the number of
  producers or
• consumers is increased.
• In both tests, the single consumer/producer and
  mediator/broker
• are started on separate nodes within the test
  cluster, with the
• remaining nodes used to run clients.
• Initial experiments showed us that fourteen
  clients are sufficient
• to saturate the Fast Ethernet network

26
Summary

• Latency and Throughput
• When looking at end-to-end performance, on a LAN
  for messages less than 2 Kbytes, Tycho and
  NaradaBrokering have comparable performance.
• Tycho achieves 95 bandwidth, whereas NB only
  65.3.
• Tycos performance is inhibited by the fact that
  it creates a new socket for each message sent
• NB reuses sockets instances once they have been
  created.
• Scalability Summary
• The scalability tests have shown Tycho and
  NaradaBrokering producers and consumers to be
  stable under heavy load
• Performance is weaker when there is a large ratio
  of consumers to producers.
• The heap size for NB becomes a limiting factor in
  when a broker is receiving messages faster than
  it can send them, as the internal message buffer
  fills until the heap is consumed.
• Tycho tests were performed without modifying the
  heap size, throttling used as there is limited
  buffering.

27
Tycho Registry Tests

• Performance Tests against Globuss MDS4 and
  gLites R-GMA

28
Registries

• MDS4
• The Globus Toolkits Monitoring and Discovery
  Service (MDS version 4) is a Web Services
  Resource Framework (WSRF) based implementation of
  a wide-area information and registry service.
• MDS4 provides a framework that can be used to
  collect, index and expose data about the state of
  grid resources and services.
• Typical uses for MDS4 include making resource
  data available for decision making in job
  submission services or notifying an administrator
  when storage space is running low on a cluster.

29
Registries

• R-GMA
• A Java-based implementation of the Grid
  Monitoring Architecture (GMA) for publishing
  network monitoring information over the wide-area
  and as an information service.
• R-GMA uses a relational model to search, using an
  SQL-like API, and describe the monitoring
  information it collects.
• based on a consumer/producer paradigm with client
  data being stored in a directory service, which
  presents it as a virtual database.
• R-GMA uses the term tuples for sets of data being
  published or consumed.

30
Tycho compared to R-GMA and MDS4

• For the tests we created a set of randomly
  generated strings to act as attributes for
  records to be inserted into the registries.
• A single record, with no mark up, had an average
  size of 114 bytes.
• Two tests were used to assess the performance of
  the registries
• S1 simulates a client searching the registry
  for records matching some known attributes
• Systematic queries are generated using a function
  to select a record name at random from the test
  data to guarantee the query will only match one
  record.
• S2 measures the worst-case scenario of the
  client requesting all of the records from within
  the registry.

31
Tycho compared to R-GMA and MDS4
Query Response Time Versus the Number of Records
for a Query When Selecting a Single Random Record
From the Registry (S1)
Query Response Time Versus the Number of Records
for a Query that Selects All the Records From the
Registry (S2)
32
Tycho compared to R-GMA and MDS4

• When testing the effect of the number of records
  on response time, we see that when selecting a
  single record from 100,000
• Tycho 32 seconds faster than R-GMA,
• MDS4 runs out of heap space for larger records
  sizes.
• We also ran tests where there were multiple
  client accessing the registries
• Again Tycho's VR had a lower response latency
  than R-GMA and MDS4
• With 100 clients Tycho was 94 seconds faster than
  R-GMA and 65 seconds faster than MDS4.
• The results highlight that one of the strengths
  of our implementation is its performance under
  load
• Tycho's performance is linear with regard to both
  increasing numbers of clients and response sizes.

33
Conclusions

• We designed Tycho to have a relatively small,
  simple and efficient core, so that it has a
  minimal memory footprint, is easy to install, and
  is capable of providing robust and reliable
  services.
• More sophisticated services can then be built on
  this core and be provided via libraries and tools
  to applications
• This provides us with a flexible and extensible
  framework where it is possible to incorporate
  additional feature and functionality, which are
  created as producers or consumers, which do not
  affect the core.
• Tychos functionality has all been incorporated
  within a single Java JAR and requires only Java
  1.5 JDK for building and running applications.

34
Conclusions

• Tycho performance is comparable to that of
  NaradaBrokering, a more mature system
• Certain features of NaradaBrokering are superior
  to those of Tycho, but its memory utilisation and
  indirect communications are limiting features.
• Whereas, compared to MDS4 and R-GMA, Tycho shows
  superior performance and scalability to both
  these systems
• In addition, we would argue that both MDS4 and
  R-GMA have problems with memory utilisation and
  without significant extra effort limited
  scalability.

35
GridRM

• A data gathering framework for monitoring and
  managing the distributed resources
• http//gridrm.org/

36
Background

• Lack of knowledge about the status of the
  resources in any distributed system will hamper
  strategies for optimal scheduling, allocation and
  use.
• There is a need for a framework that provides
  information about the health and status of
  distributed resources
• Gathering resource information, such as
• Compute (nodes, CPU, memory),
• Network (inter-site communications links, network
  devices),
• Sensors (specialised devices, Web cam,
  microphone),
• Software services (information services,
  schedulers).
• Need a generic system that does not need another
  local agent, but can utilise whatever exists
• SNMP, Network Weather Service, NetLogger,
  Ganglia, /proc, MDS, or other services

37
GridRM Structure

• Global layer of peer-related gateways
• Which in turn have a local layer that interacts
  with the local data sources, and/or a hierarchy
  child gateways.

38
GridRM Architecture
39
GridRM Local Layer
40
GridRM Layered View
41
GridRM Portal

• The GridRM Portal (gridrm.org) is a demonstration
  of gateways, data sources, SQL and data
  normalisation.
• An example of the use of GridRM, particularly its
  ability to discover and utilise resource data.
• An example of a GridRM client which
• Allows the use of GridRM with no knowledge of the
  underlying technologies.
• Hides details like SQL, XML, etc
• Provides an abstraction everyone can use
  clickerity click!).

42
GridRM Portal
43
GridRM
44
GridRM
45
Summary

• Heterogeneous information returned from a diverse
  range of possible data sources.
• Need to harvest data into a homogeneous form
• Hide underlying complexity from clients,
• Provide data in a format that meets a clients
  requirements,
• Combine legacy resources with modern cluster and
  Grid information servers to provide
• An over-arching grid information system,
• Independent of particular middleware and
  services.
• GridRM promotes homogeneity through
• JDBC-like data source driver,
• Standard SQL syntax,
• The GLUE naming schemas,
• Request translation and result normalisation,

46
Overall Conclusions

• We have discussed two Java-based middleware
  systems
• MPJ Express, a thread-safe implementation of
  MPI-like bindings for Java
• MPJE has all the high level MPI features,
• MPJEs performance, though not as fast as native
  C using MPICH, has been shown to be comparable
  and is improving,
• Its other features, such as portability and
  thread-safety, make up for the performance gap
  and should encourage its take-up.
• Tycho is a combined wide area-messaging framework
  with a built-in distributed registry (VR)
• The results of communication benchmarks,
  comparing Tycho to NB, shows that these systems
  have comparable performance,
• Whereas the performance of Tychos VR, compared
  to R-GMA and MDS4 demonstrates that it is
  significantly faster and more scalable,
• Tycho currently provides unique services that
  should free up application developers to
  concentrate on their own domain of expertise.

47
Overall Conclusions

• In this talk I have discussed the use of Java for
  parallel and distributed computing.
• Even though sceptics may still feel that Java is
  less than ideal, the community of middleware and
  application developers is increasingly using Java
  and its related technologies to produce quality
  software.
• Java has an extensive number of features,
  libraries and tools that provide a rich
  development environment.
• This uptake is no doubt assisted by the fact that
  Java is often the first language learnt by
  students in educational and other institutions.
• Downloads
• MPJE - http//dsg.port.ac.uk/projects/mpj/
• Tycho - http//dsg.port.ac.uk/projects/tycho/

48
Thank you for listening

• Questions!
