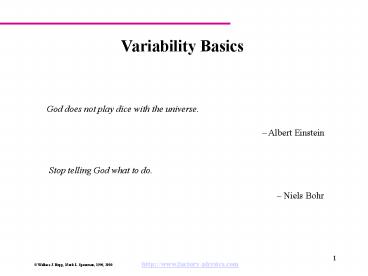

Variability Basics

1
Variability Basics
God does not play dice with the universe.
Albert Einstein
Stop telling God what to do.
Niels Bohr
2
Variability Makes a Difference!

• Littles Law TH WIP/CT, so same throughput
  can be obtained with large WIP, long CT or small
  WIP, short CT. The difference?
• Penny Fab One achieves full TH (0.5 jobs/hr) at
  WIP W0 4 jobs if it behaves like Best Case,
  but requires WIP 27 jobs to achieve 95 of
  capacity if it behaves like the Practical Worst
  Case. Why?

Variability!
Variability!
3
Tortise and Hare Example

• Two machines
• subject to same workload 69 jobs/day (2.875
  jobs/hr)
• subject to unpredictable outages (availability
  75)
• Hare X19
• long, but infrequent outages
• Tortoise 2000
• short, but more frequent outages
• Performance Hare X19 is substantially worse on
  all measures than Tortoise 2000. Why?

Variability!
4
Variability Views

• Variability
• Any departure from uniformity
• Random versus controllable variation
• Randomness
• Essential reality?
• Artifact of incomplete knowledge?
• Management implications robustness is key

5
Probabilistic Intuition

• Uses of Intuition
• driving a car
• throwing a ball
• mastering the stock market
• First Moment Effects
• Throughput increases with machine speed.
• Throughput increases with availability.
• Inventory increases with lot size.
• Our intuition is good for first moments.

g
6
Probabilistic Intuition (cont.)

• Second Moment Effects
• Which is more variable processing times of
  parts or batches?
• Which are more disruptive long, infrequent
  failures or short frequent ones?
• Our intuition is less secure for second moments
• Misinterpretation e.g., regression to the mean

7
Variability

• Definition Variability is anything that causes
  the system to depart from regular, predictable
  behavior.
• Sources of Variability
• setups work pace variation
• machine failures differential skill levels
• materials shortages engineering change orders
• yield loss customer orders
• rework product differentiation
• operator unavailability material handling

May be consequence of business strategy
May be consequence of manufacturing practices
8
Measuring Process Variability
Note we often use the squared coefficient of
variation (SCV), ce2
9
Variability Classes in Factory Physics
High variability (HV)
Moderate variability (MV)
Low variability (LV)

• Effective Process Times
• actual process times are generally LV
• effective process times include setups, failure
  outages, etc.
• HV, LV, and MV are all possible in effective
  process times
• Relation to Performance Cases For balanced
  systems
• MV Practical Worst Case
• LV between Best Case and Practical Worst Case
• HV between Practical Worst Case and Worst Case

ce
0.75
0
1.33
10
Measuring Process Variability Example
Question can we measure ce this way?
Answer No! Wont consider rare
events properly.
11
Natural Variability

• Definition variability without explicitly
  analyzed cause
• Sources
• operator pace
• material fluctuations
• product type (if not explicitly considered)
• product quality
• Observation natural process variability is
  usually in the LV category.

12
Down Time Mean Effects

• Definitions

13
Down Time Mean Effects (cont.)

• Availability Fraction of time machine is up
  (working)
• Effective Processing Time and Rate

14
Totoise and Hare - Availability

• Hare X19
• t0 15 min
• ?0 3.35 min
• c0 ?0 /t0 3.35/15 0.05
• mf 12.4 hrs (744 min)
• mr 4.133 hrs (248 min)
• cr 1.0
• Availability

• Tortoise
• t0 15 min
• ?0 3.35 min
• c0 ?0 /t0 3.35/15 0.05
• mf 1.9 hrs (114 min)
• mr 0.633 hrs (38 min)
• cr 1.0

A
A
15
Machine Failures in Effective Process Time
Notation
16
Machine Failures in Effective Process Time
Preliminaries
17
Machine Failures in Effective Process Time ET
18
Machine Failures in Effective Process Time ET2
19
Machine Failures in Effective Process Time ET2
(Cont.)
20
Machine Failures in Effective Process Time VarT

• If repair times are exponential, then cr 1, so

21
Down Time Variability Effects

• Effective Variability
• Conclusions
• Failures inflate mean, variance, and CV of
  effective process time
• Mean (te) increases proportionally with 1/A
• SCV (ce2) increases proportionally with mr
• SCV (ce2) increases proportionally in cr2
• For constant availability (A), long infrequent
  outages increase SCV more than short frequent
  ones

Variability depends on repair times in addition
to availability
22
Tortoise and Hare - Variability

• Hare X19
• te
• ce2

• Tortoise 2000
• te
• ce2

23
Impact of Variability
2.875 jobs/hr
2.875 jobs/hr
Tor- toise
Hare

• Hare X19
• CT 28 hours
• WIP 81 jobs

• Tortoise 2000
• CT 8 hours
• WIP 23 jobs

Conclusion Capacity and arrival variability are
the same, but CT and WIP are greatly inflated by
process variability due to failures.
24
Setups (and Other Non-Preemptive Outages)
Notation

• Examples of other non-preemptive outages include
  PMs, breaks, meetings, shift changes, rework, and
  failures that are based on number of runs (not
  run time).

25
Setups Analysis
X and S are independent random variables
26
Setups Mean and Variability Effects

• Effective Variability
• Conclusions
• Setups increase mean and variance of processing
  times.
• Variability reduction is one benefit of flexible
  machines.
• However, the interaction is complex.

Capacity Effect setups inflate average process
time Variability Effect setups also inflate
process time variability
27
Setups (Non-Preemptive Outages) Example

• Data
• Fast, inflexible machine (2 hr setup every 10
  jobs)
• Slower, flexible machine (no setups)
• Traditional Analysis?

No difference!
28
Setup Example (cont.)

• Factory Physics Approach Compare mean and
  variance
• Fast, inflexible machine 2 hr setup every 10
  jobs
• Slower, flexible machine no setups
• Conclusion

Flexibility can reduce variability.
29
Setup Example (cont.)

• New Machine Consider a third machine same as
  previous machine with setups, but with shorter,
  more frequent setups
• Analysis
• Conclusion

Shorter, more frequent setups induce less
variability.
30
Formulas for Effective Process Time
31
Other Process Variability Inflators

• Sources
• operator unavailability
• rework
• batching
• material unavailability
• others
• Effects
• inflate te
• inflate ce
• Consequences

Effective process variability can be LV, MV,or HV.
32
Flow Variability

• Process Variability is bad enough
• Inflates CT
• Inflates WIP
• Forces lower utilization of capacity
• But, variability also propagates
• Causes uneven arrivals downstream
• Inflates CT and WIP at other stations
• Forces lower utilization of capacity throughout
  the line

33
Illustrating Flow Variability
Low variability arrivals
t
smooth!
High variability arrivals
t
bursty!
34
Measuring Flow Variability
Do not confuse these with the number of arrivals
per unit time!
35
Propagation of Variability
departure variability depends on both arrival
variability and process variability
ce2(i)
cd2(i) ca2(i1)
ca2(i)
i
i1

• Single-Machine Station
• where u is the station utilization given by u
  ra/re rate
• Multi-Machine Station
• where m is the number of (identical) machines and

36
Propagation of Variability High Utilization
Station
Conclusion flow variability out of a high
utilization station is determined primarily by
process variability at that station.
37
Propagation of Variability Low Utilization
Station
Conclusion flow variability out of a low
utilization station is determined primarily by
flow variability into that station.
38
Variability Interactions

• Importance of Queueing
• manufacturing plants are queueing networks
• queueing and waiting time comprise majority of
  cycle time
• System Characteristics
• Arrival process
• Service process
• Number of servers
• Maximum queue size (blocking)
• Service discipline (FCFS, LCFS, EDD, SPT, etc.)
• Balking
• Routing
• Many more

39
Kendalls Classification

• A/B/C
• A arrival process
• B service process
• C number of machines
• M exponential (Markovian or memoryless)
  distribution
• G unknown (completely general) distribution
• D constant (deterministic) distribution.

B
A
C
Queue
Server
40
Queueing Parameters

• ra the rate of arrivals in customers (jobs) per
  unit time.
• ta 1/ra the average time between arrivals.
• ca the CV of inter-arrival times.
• m the number of machines.
• re the rate of the station in jobs per unit
  time m/te.
• ce the CV of effective process times.
• u utilization of station ra /re lt 1.

Note a station can be described with 5
parameters.
41
Queueing Measures

• Measures
• CTq the expected time spent waiting in the
  queue.
• CT the expected time spent at the workstation
• (waiting time plus process time).
• WIP the expected WIP level (in jobs) at the
  workstation.
• WIPq the expected WIP level (in jobs) waiting
  in the queue.
• Relationships
• CT CTq te
• WIP ra ? CT
• WIPq ra ? CTq
• Result If we know CTq, we can compute WIP, WIPq,
  CT.

Littles law
42
The M/M/1 Queue
ra
ra
ra
ra
ra
ra

0
1
2
3
4
5
re
re
re
re
re
re
43
The M/M/1 Queue (Cont.)
44
The M/M/1 Queue (Cont.)
45
The G/G/1 Queue

• Formula
• Observations
• Known as Kingmans equation (after its inventor).
• Useful model of single-machine workstations.
• Exact for M/M/1 queues (in fact, for all M/G/1
  queues).
• Separate terms for variability, utilization, and
  process time.
• CTq (and other measures) increase with ca2 and
  ce2.
• Flow variability and process variability can
  combine to inflate queue time.
• Variability causes congestion!

46
The G/G/1 Queue (Cont.)

• Other useful approximations include

47
The M/M/m Queue

• With m identical machines in the workstation

48
The M/M/m Queue (Cont.)
49
The M/M/m Queue (Cont.)
Parts waiting in queue, not in service.
50
The M/M/m Queue (Cont.)
51
The G/G/m Queue

• Formula
• Observations
• Known as Sakasegawas equation (after its
  inventor).
• Useful model of multi-machine workstations.
• Equivalent to G/G/1 formula when m 1.
• Extremely general.
• Fast and accurate.
• Easily implemented in a spreadsheet.

52
VUT Spreadsheet
basic data
failures
setups
yield
measures
53
Effects of Blocking

• VUT Equation
• characterizes stations with infinite space for
  queueing
• useful for seeing what will happen to WIP, CT
  without restrictions
• But real world systems often constrain WIP
• physical constraints (e.g., space or spoilage)
• logical constraints (e.g., kanban cards)
• Blocking Models
• estimate WIP and TH for given set of rates,
  buffer sizes
• much more complex than non-blocking (open)
  models, often require simulation to evaluate
  realistic systems

54
The M/M/1/b Queue
Model of Station 2
Note there is room for b B 2 jobs, B in
the buffer and one at each station.
Infinite raw materials
2
1
B buffer spaces
ra
ra
ra
ra
ra
ra

0
1
2
B
b1
b
re
re
re
re
re
re
Note u gt 1 is possible.
55
The M/M/1/b Queue u 1 Case
Goes to ra as b ? ?. Always lt ra TH(M/M/1).
Goes to ? as b ? ?. Always lt ? WIP(M/M/1).
Goes to ? as b ? ?. Always lt ? CT(M/M/1).
56
The M/M/1/b Queue u ? 1 Case
If u lt 1, goes to ra as b ? ?, but always lt ra
TH(M/M/1). If u gt 1, goes to re as b ? ?. Goes to
zero as u ? ?.
57
The M/M/1/b Queue u ? 1 Case (Cont.)
58
The M/M/1/b Queue u ? 1 Case (Cont.)
59
The M/M/1/b Queue u ? 1 Case (Cont.)
If u lt 1, goes to u/(1 u) as b ? ?, but always
lt u/(1 u) WIP(M/M/1). If u gt 1, goes to ? as
b ? ?. Goes to b as u ? ?.
60
The M/M/1/b Queue u ? 1 Case (Cont.)
61
The M/M/1/b Queue u ? 1 Case (Cont.)
62
The M/M/1/b Queue u ? 1 Case (Cont.)
If u lt 1, goes to te/(1 u) as b ? ?, but
always lt te/(1 u) CT(M/M/1). If u gt 1, goes
to ? as b ? ?. Goes to teb as u ? ?.
63
The M/M/1/b Queue u ? 1 Case (Cont.)
64
Blocking Example M/M/1/? vs. M/M/1/b
te(1)21
te(2)20
M/M/1/b has 18 less TH than M/M/1
B 2 so b 4
91 less WIP
88 less CT
65
The G/G/1/b Queue
WIP with no blocking
Corrected utilization
66
Seeking Out Variability

• General Strategies
• look for long queues (Little's law)
• look for blocking
• focus on high utilization resources
• consider both flow and process variability
• Specific Targets
• equipment failures
• setups
• rework
• operator pacing
• anything that prevents regular arrivals and
  process times

67
Variability Pooling

• Basic Idea the CV of a sum of independent random
  variables decreases with the number of random
  variables.
• Example (Time to process a batch of n parts)

68
Pooling Example

• PCs consist of 6 components (CPU, HD, CD ROM,
  RAM, removable storage device, keyboard)
• 3 choices of each component 36 729 different
  PCs
• Each component costs 150 (900 material cost per
  PC)
• Demand for all models is Poisson distributed with
  mean 100 per year
• Replenishment lead time is 3 months (0.25 years)
• Use base stock policy with fill rate of 99

69
Pooling Example - Stock PCs

• Base Stock Level for Each PC ? 100 ? 0.25
  25, so using Poisson formulas,
• G(R 1) ? 0.99 R 38 units
• Average On-Hand Inventory for Each PC
• I(R) R ? B(R) 38 25 0.0138
  13.0138 units
• Value of Total On-Hand Inventory
• 13.0138 ? 729 ? 900 8,538,358

70
Pooling Example - Stock Components
729 models of PC. 3 types of each component.

• Necessary Service for Each Component
• S (0.99)1/6 0.9983
• Base Stock Level for Components ? (100 ?
  729/3) ? 0.25 6075, so
• G(R 1) ? 0.9983 R 6306
• Average On-Hand Inventory Level for Each
  Component
• I(R) R ? B(R) 6306 6075 0.0363
  231.0363 units
• Value of Total On-Hand Inventory
• 231.0363 ? 18 ? 150 623,798

93 reduction!
71
Formulas for Effective Process Time
72
Basic Variability Takeaways

• Variability Measures
• CV of effective process times
• CV of interarrival times
• Components of Process Variability
• failures
• setups
• many others - deflate capacity and inflate
  variability
• long infrequent disruptions worse than short
  frequent ones
• Consequences of Variability
• variability causes congestion (i.e., WIP/CT
  inflation)
• variability propagates (bullwhip effect)
• variability and utilization interact
• pooled variability less destructive than
  individual variability
