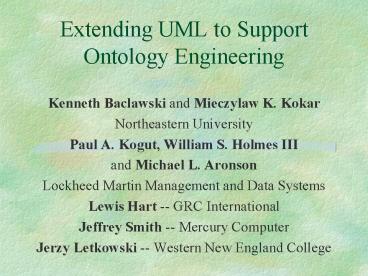

Extending UML to Support Ontology Engineering

1
Extending UML to Support Ontology Engineering

• Kenneth Baclawski and Mieczylaw K. Kokar
• Northeastern University
• Paul A. Kogut, William S. Holmes III
• and Michael L. Aronson
• Lockheed Martin Management and Data Systems
• Lewis Hart -- GRC International
• Jeffrey Smith -- Mercury Computer
• Jerzy Letkowski -- Western New England College

2
Knowledge Representation (KR)

• Data representation language for knowledge-based
  systems
• Usually based on logic or networks (directed
  graphs)
• Usually do not rigidly separate meta levels
• Enables reasoning and semantic interoperability
  of agents at run-time
• Assumes an open rather than closed world.

3
Example of a KR
Dog
Company
Person
Vehicle
type
type
type
type
type
Toyota 853
Rover
Berizon
isOwned
George
owns
Ford 243
4
Ontology

• Formal, declarative semantic model
• Data (instances) conforming to an ontology are
  called annotations.
• An ontology may include
• Vocabulary terms
• Taxonomies
• Relations
• Constraints, rules and assertions

5
Example Ontology
type
ObjectProperty
Class
Person
type
Ford 243
type
type
Company
type
type
Dog
Vehicle
isOwned
subClassOf
subClassOf
type
onProperty
OwnedByAtMostOne
Toyota 853
type
type
maxCardinality
Berizon
1
Restriction
6
UML as an ontology language

• UML class diagrams can define ontologies.
• Constraints such as cardinality constraints can
  be mapped to UML constructs or to OCL.
• Statecharts and Activity Diagrams are useful for
  service and process related ontologies.
• See UML for Ontology Development to appear in
  Knowledge Engineering Review

7
Example Ontology in UML
8
Advantages of UML for ontology

• Leverages UML tools and experience in ontology
  development.
• Provides profiles, packages and other modularity
  mechanisms currently lacking in knowledge-based
  systems.
• Supports an established mechanism for specifying
  the behavior associated with knowledge
  representations.

9
Limitations of UML

• Does not (yet) have a formal semantics.
• Not Web enabled.
• Does not support properties (associations) as
  first-class model elements.

10
RDF and DAML

• The Resource Description Framework (RDF) and
  DARPA Agent Markup Language (DAML) have been
  proposed as the basis for the Semantic Web.
• DAML supports semantic interoperability between
  Web pages, databases, programs and sensors by
  autonomous agents at run-time.

11
Mapping UML to DAML
12
Example ontology in DAML
ltClass ID"Company"/gt ltObjectProperty
ID"isOwned"gt ltinverseOfgt ltObjectProperty
ID"owns"/gt lt/inverseOfgt lt/ObjectPropertygt ltClas
s ID"Person"/gt ltRestriction ID"OwnedByAtMostOne"
gt ltmaxCardinalitygt1lt/maxCardinalitygt
ltonProperty rdfresource"isOwned"/gt lt/Restrictio
ngt ltClass ID"Vehicle"gt ltsubClassOf
rdfresource"OwnedByAtMostOne"/gt lt/Classgt ltClass
IDDog"gt ltsubClassOf rdfresource"OwnedByAtM
ostOne"/gt lt/Classgt
13
First-Class Properties

• In KR languages, properties are first-class model
  elements they can be defined independently of
  any associated classes.
• UML associations must be defined in the context
  of the associated classes.
• KR properties allow one to define aspects of the
  ontology that cut across the boundaries of
  classes.

14
Why not reify?

• Why not model KR properties as classes?
• It produces complex, unnatural ontologies.
• It puts the burden on the ontology developer to
  reconcile this limitation of UML.
• The resulting mapping from UML to DAML is
  unbounded (i.e., does not stabilize when applied
  repeatedly).

15
MOF Specification of proposal
16
Property Semantics in OCL

• A property is a grouping of Association Ends.
• Properties cross-cut Associations no property
  may have more than one Association End of an
  Association.

allConnections Set(AssociationEnd) allPropConnec
tions Set(Property) self.allConnections-gtinterse
ction(self.allPropConnectionsSet(T))Set(T) size
(T)lt1
17
Conclusion

• UML is a viable language for specifying
  ontologies and knowledge representations.
• We propose a modest extension of UML to make it
  more compatible with knowledge-based systems by
  supporting first-class properties.

18
Example of a KR
Company
TreeNode
Vehicle
type
type
type
type
type
Toyota 853
Node1
Berizon
isOwned
Node2
isOwned
Ford 243
19
Example Ontology
ObjectProperty
Class
type
Ford 243
type
type
Company
type
type
TreeNode
Vehicle
isOwned
subClassOf
subClassOf
type
onProperty
OwnedByAtMostOne
Toyota 853
type
Berizon
type
maxCardinality
1
Restriction
20
Example Ontology in UML
21
Example ontology in DAML
ltClass ID"Company"/gt ltObjectProperty
ID"isOwned"gt ltinverseOfgt ltObjectProperty
ID"owns"/gt lt/inverseOfgt lt/ObjectPropertygt ltRest
riction ID"OwnedByAtMostOne"gt
ltmaxCardinalitygt1lt/maxCardinalitygt ltonProperty
rdfresource"isOwned"/gt lt/Restrictiongt ltClass
ID"Vehicle"gt ltsubClassOf rdfresource"OwnedBy
AtMostOne"/gt lt/Classgt ltClass ID"TreeNode"gt
ltsubClassOf rdfresource"OwnedByAtMostOne"/gt lt/C
lassgt
