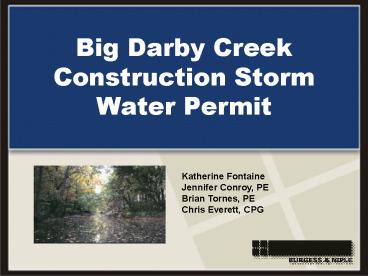

Big Darby Creek Construction Storm Water Permit

1
Big Darby Creek Construction Storm Water Permit

Katherine Fontaine Jennifer Conroy, PE Brian
Tornes, PE Chris Everett, CPG
2
AGENDA

• Introduction
• Riparian Setbacks
• Sediment Basins
• Post-Construction Controls
• Groundwater Recharge Requirements

3
INTRODUCTION
4
INTRODUCTION

• a. Geography
• b. Regulatory Context
• c. Applicability
• d. Major Differences from Statewide Permit
• e. Major Differences from Draft Darby Permit

5
Big Darby Creek Watershed

• Big Darby Hydrologic Unit Codes (HUCs)
• 05060001-190 (Headwaters to Sugar Creek)
• -010 (Headwaters to Flat Branch)
• -020 (Flat Branch)
• -030 (Flat Branch to Milford Center)
• -040 (Milford Center to Sugar Run)
• -050 (Buck Run)
• -060 (Robinson Run)
• -070 (Sugar Run)
• 05060001-200 (Sugar Creek to Little Darby Creek)
• -010 (Sugar Run to High Free Pike)
• -020 (High Free Pike to Little Darby)
• 05060001-210 (Little Darby Creek)
• -010 (Head waters to Treacle Creek)
• -020 (Upper Treacle Creek)
• -030 (Proctor Run)
• -040 (Lower Treacle Creek)
• -050 (Treacle Creek to Spring Fork)

www.epa.state.oh.us/dsw/permits/GP_ConstructionSit
eStormWater_Darby.html
6
Big Darby Creek Jurisdictions
Counties Townships

• Municipalities
• Columbus
• Darbyville
• Harrisburg
• Hilliard
• Marysville
• Milford Center
• Mechanicsburg
• North Lewisburg
• Orient
• Plain City
• Unionville Center
• West Jefferson
• Woodstock

• Champaign County
• Goshen
• Rush
• Union
• Wayne
• Clark County
• Pleasant
• Franklin County
• Norwich
• Pleasant
• Prairie
• Washington
• Logan County
• Perry
• Zone

• Madison County
• Canaan
• Darby
• Deer Creek
• Fairfield
• Jefferson
• Monroe
• Pike
• Somerford
• Pickaway County
• Darby
• Jackson
• Muhlenberg
• Scioto

• Union County
• Allen
• Darby
• Jerome
• Liberty
• Mills Creek
• Paris
• Union

7
Regulatory Context

• Big Darby Creek Storm Water Permit

• Ohio General NPDES Permit No. OHC100001
• Effective 10/27/06
• Expires 10/27/11
• Full text at www.epa.state.oh.us/dsw/permits/
  (47 pp)

8
Regulatory Context

• Big Darby Creek Total Maximum Daily Loads (TMDL)
  Document
• A watershed plan to address water quality
  impairments in the Big Darby Creek watershed
• Sedimentation identified as a major cause of
  impairment
• Identifies target concentrations, substrate,
  channel, and riparian conditions for sediment
  TMDLs
• Identifies more stringent construction stormwater
  permit as an implementing measure for achieving
  sediment TMDLs
• Full text at www.epa.state.oh.us/dsw/tmdl/ (327
  pages !)

9
Regulatory Context

• Big Darby Accord Area
• Western Franklin County only
• Sewer moratorium
• Environmentally Sensitive Development Area (ESDA)
• Land Use Master Plan
• Big Darby Accord Jurisdictions
• Columbus
• Grove City
• Harrisburg
• Hilliard
• Franklin County
• Brown Township
• Norwich Township
• Pleasant Township
• Prairie Township
• Washington Township

10
Applicability

• Geographic
• Big Darby Creek Watershed
• (HUC Units 005060001-190, 200, 210, and 220)
• Activities
• New land disturbing activities gt 1 acre (after
  10/27/06)
• Clearing, grubbing, grading, excavating, filling,
  site dewatering, staging, on-site batch
  operations
• 1 acre threshold applies to larger common plan
  of development and sale
• Discharges
• Stormwater discharges during construction
• Also addresses post-development stormwater
  discharges
• Exceptions for fire-fighting, dewatering,
  waterline flushing, irrigation, condensate

11
Major Differences From Statewide Permit

• SWPPP must be submitted with NOI
• Submit NOI/SWPPP 45 days (not 21 days) prior to
  work
• Wait for authorization letter
• No erosivity or TMDL waivers
• Mandatory Riparian Setbacks and Mitigation
  Requirements
• Silt fence allowed as primary control only lt 5
  acres
• Centralized sediment basins required for areas gt
  5 ac (not 10 ac)
• Minimum 134 cy/ac sediment storage (not 67 cy/ac)
• 45 mg/l TSS limit and sampling for sediment
  basins
• No dry detention basins (sites gt 5 acres)
• Groundwater recharge requirements

12
Major Differences From Draft Permit

• Wait for authorization letter to begin work
• One set of riparian setback criteria (no
  distinctions by county or drainage area size)
• Site specific riparian setback determinations
  allowed (10 x site-specific bankfull width)
• Stream restoration activities allowed in riparian
  setback zone.
• Post-development Water Quality Volume (WQv)
  calculation same as statewide
• Site specific WQv studies allowed
• Groundwater recharge hotspot activities
  identified
• Groundwater recharge Table 2 added (areas with
  low downward migration potential)

13
RIPARIAN SETBACKS
14
2. RIPARIAN SETBACKS

• Overview of Requirements
• Setback Determinations
• Mitigation Requirements
• Examples

15
Overview of Requirements

• Mandatory setbacks (not recommended)
• No intrusions into setback zones without
  mitigation (except restoration activities)
• No temporary or post-development stormwater
  controls sited in setbacks
• Three-zone mitigation requirements

16
Setback Determinations

• Three riparian setback alternatives
• 1. Greatest of
• 100-year FEMA floodplain
• 100 feet on each side of the stream
• W 133(DA 0.43) Where W total setback width
  (both sides)
• DA stream drainage area at project site (mi2)
• 2. W133(DA0.43) 100 feet each side OR
• 10 x site-specific bankfull width 100 feet
  each side
• 3. Attachment B design 100 feet each side
  (low gradient, modified, headwater streams or
  ditches)

17
Setback Determinations
18
Example Riparian Widths
19
Mitigation Requirements

• Three-Zone Mitigation Requirements
• Mitigate in same 14-digit Hydrologic Unit
  (watershed)

20
Example Mitigation
21
SEDIMENT BASINS
22
3. SEDIMENT BASINS

• Drainage Area Threshold
• Sizing Criteria/ Design Considerations
• Discharge and Sampling Requirements

23
Drainage Area Threshold

• For sites gt 5 acres disturbed at one time, a
  sediment settling pond is required (statewide
  permit gt 10 acres)
• Cannot rely on silt fence as primary control for
  areas gt 5 acres

• For sites lt 5 acres, smaller basins or sediment
  traps should be used with other controls

24
Sizing Criteria

• Minimum of 134 cubic yards of effective sediment
  storage per acre of drainage (statewide permit
  says 67 cy)
• Off-site and undisturbed areas must be included
  in total contributing drainage area
• Divert off-site or undisturbed areas to limit
  size of pond
• Pond lt 5 feet deep gt 21 lengthwidth ratio
• Remove sediment when capacity reduced by 40
  (roughly half the basin depth)

25
Size Basins for the Total Drainage Area
Source Ohio EPA
26
Baffle to Prevent Short-Circuiting
Source Ohio EPA
27
Sediment Pond Design Considerations

• Divert clean water away
• Install diversion ditches to convey water to
  ponds. Low maintenance, better control, dual
  purpose.
• Decrease flow velocity at inlet
• Install the pond in a location that will serve
  all phases (post-construction)
• Good erosion control will help keep sediment out
• Resource ODNR Rainwater and Land Development
  Manual

28
During Construction Sediment Erosion Controls

• BMPs for Erosion Controls are 90 to 98 percent
  effective at keeping sediment on a construction
  site
• BMPs for Sediment Controls are 50 to 80 percent
  effective at keeping sediment on a construction
  site
• Therefore, Erosion Control BMPs are preferred
  over Sediment Control BMPs
• Source Ohio EPA

29
Erosion Control
Erosion Controls must be installed within 7 days
when the site will remain idle for more than 21
days

• Examples include
• Vegetation
• Mulch (i.e., straw or wood chip mulch)
• Matting or Sod
• Ditch Checks
• Riprap
• Geotextiles

30
Discharge and Sampling Requirements

• Target of 45 mg/l Total Suspended Solids (TSS) in
  discharge if gt45 mg/l, modify SWP3 and implement
  new control practice(s) within 10 days and
  resample within 3 days or first rainfall event
  thereafter
• Sampling
• At outfall of each sediment pond
• Identify outfalls by a 3-digit number (001, 002,
  etc.)
• Rainfall event 0.25-inch to 0.75-inch rainfall
  event within a 24-hour period
• Grab sampling
• Within 14 days, or the first rainfall event,
  after disturbance
• Quarterly sampling thereafter
• Retain sampling results onsite and available for
  inspection

31
POST CONSTRUCTION CONTROLS
32
4. POST-CONSTRUCTION CONTROLS

• Water Quality Volume Requirements
• Approved Water Quality Volume Treatment Methods
• Alternative Methods

33
Water Quality Volume Requirements

• Large Construction Activities (5 acres up)
• The structural post-construction BMP must be
  sized to treat the water quality volume (WQv)
• The WQv is calculated by 2 methods
• Using hydrologic simulation with hourly
  precipitation data from local municipality
• Using the following equation
• WQv CPA/12

34
Calculating the WQv

• If using the following formula to calculate WQv
• WQv C P A/12
• where
• C Runoff Coefficient
• P Precipitation Depth of 0.75-inches
• A Total Contributing Drainage Area (Acres)
• WQv in units of acre-feet

35
Calculating the WQv

• If mixed use, must calculate C using a weighted
  average
• Calculate based on the contributing drainage area
  to the BMP you are designingnot the overall
  value for the development

36
Sediment Accumulation

• Add 20 to the WQv for storage of sediment, which
  will accumulate in the structure
• For extended detention basins, this should be
  located within forebays or micropools
• For wet basins and constructed wetlands, add 20
  to the wet pool but not the extended detention
  volume

37
How to Treat the WQv (Approved Methods)

• Retention (Wet) Ponds
• Constructed Wetlands
• Infiltration Basins
• Bioretention/Bioswales
• Vegetated Swales Filter Strips
• NO DRY DETENTION BASINS

38
Target Drain Times for Structural BMPs
Table 6
39
Exclusion of Dry Detention Basins

• Dry Detention Basins are not an alternative
  because
• Accumulated sediments can become resuspended
  during large storm events and wash out of the
  basin
• INFILTRATION basins are OK

40
Retention Pond (Wet Basin)
Extended Detention is provided above the wet pool
Extended Detention Volume 0.75 WQv
Permanent Pool (0.75 WQv) (0.20 WQv)
Source Ohio EPA
41
Wet Basin Outlet
42
Wet Retention Pond with Infiltration
WQv stored in infiltration basin
Flood control volume spills over to separate
retention pool
Source Ohio EPA
43
Constructed Wetlands
44
Vegetated Swales Filter Strips
45
Infiltration Basins
Source Ohio EPA
46
Bioretention
Runoff that exceeds the WQv bypasses into storm
drain system
Storage volume in cell below this inlet 1.2
WQv
Source Ohio EPA
47
Bioretention
48
Alternative Methods

• Demonstrate that WQv is provided within an
  existing structural post-construction BMP on-site
  or regional/local storm water management plan
• Alternative structural post-construction BMPs
• Can request approval from Ohio EPA
• Demonstrate equivalent effectiveness to those in
  Table 6

49
Post-Construction Design Considerations

• Local flood control requirements
• Maintenance (access pond drain)
• Forebays and micropools at inlets and outlets
• Low-Impact design of site
• Resources
• ODNR Rainwater and Land Development Manual
• City of Columbus Stormwater Drainage Manual
• ODOT LD Manual, Vol. II
• Stormwater Managers Resource Center
  (www.stormwatercenter.net)

50
Small Construction Activities

• Small Construction Activities (gt 1, but lt 5
  acres)
• A structural post-construction BMP must be
  installed (however, no minimum design standards
  are specified)
• Velocity dissipation devices (e.g., riprap) must
  be placed at a discharge culvert for erosion
  control

51
GROUNDWATER RECHARGE REQUIREMENTS
52
5. GROUNDWATER RECHARGE REQUIREMENTS

• Overview of Requirements
• Recharge Calculations
• Recharge Areas and Tables
• Land Use
• Hot Spot Activities
• Mitigation Requirements
• Example Calculation

53
Overview of Requirements

• Purpose ensure post-development recharge
  equals/exceeds pre-development recharge
• Must describe conservation strategies, BMPs, or
  other practices for recharge maintenance
• Protection of open space infiltration areas shall
  be by binding conservation easements
• Must be managed by 3rd party, i.e., local
  government, land trust, homeowners association

54
Recharge Calculations

• Pre- and post-development recharge calculated as
  follows
• VreX (AX DreX)/12
• Where
• X land use/hydrologic soil group pair
• VreX annual recharge volume for group X
  (acre-feet)
• DreX total recharge depth, from Tables 1
  or 2 (inches)
• Ax area of land use-soil group X (acres)

55
Recharge Areas
Use Table 1 to determine Drex for developments in
light blue areas
Use Table 2 to determine Drex for developments in
dark blue areas
56
Recharge Tables
from Part III.G.2.d.i of Ohio EPA Permit No.
OHC100001
57
Hydrologic Soil Groups
Soil data obtained from USDA - NRCS http//websoi
lsurvey.nrcs.usda.gov/app/
58
Land Use

• Land Uses
• Wood/Forest
• Brush
• Meadow
• Managed Wood
• Pasture
• Row Crop
• Urban Grasses
• Residential (low, medium, high density)
• Commercial
• http//www.epa.state.oh.us/dsw/permits/GP_Construc
  tionSiteStormWater_Darby.html

59
Hotspot Activities

• Activities expected to produce storm water runoff
  with elevated concentrations of toxic materials
• Mitigation methods must not present risk of
  groundwater contamination
• Typical land uses and activities
• Vehicle salvage yards
• Recycling facilities
• Vehicle maintenance/service
• Fleet storage
• Industrial facilities
• Bulk terminals
• Marinas
• Hazardous materials generation/storage facilities

60
Groundwater Recharge Mitigation

• Only required if post-development recharge volume
  is less than pre-development recharge volume
• Two options available for groundwater recharge
  mitigation
• Convert additional land to higher recharge
  potential land use
• Preferred method
• Must be within 14-digit HUC, 2-mile radius
• Structural and non-structural practices
• Engineered seepage to groundwater
• Structures requiring impermeable liners not
  acceptable

61
Example Calculation
Existing land use (row crop) For X
CsA, Hydrologic Soil Group C ACsA 15
acres DreCsA 9.0 inches (from Table 2) VreCsA
(15 acres)(9.0 inches)/12 11.3 acre-ft For X
Ko, Hydrologic Soil Group B/D (assumed to be
D) AKo 72.9 acres DreKo 6.2 inches (from
Table 2) VreKo (72.9 acres)(6.2 inches)/12
37.7 acre-ft Total 49 acre-ft
62
Example Calculation (cont.)
Proposed land use (Medium Density Residential, 2
units/acre) For X CsA, Hydrologic Soil Group
C ACsA 15 acres DreCsA 7.8 inches (from
Table 2) VreCsA (15 acres)(7.8 inches)/12
9.8 acre-ft For X Ko, Hydrologic Soil Group
B/D (assumed to be D) AKo 72.9 acres DreKo
7.8 inches (from Table 2) VreKo (72.9
acres)(7.8 inches)/12 47.4 acre-ft Total
57.2 acre-ft (mitigation not required)
63
Example Calculation (cont.)
Proposed land use (Medium Density Residential, 4
units/acre) For X CsA, Hydrologic Soil Group
C ACsA 15 acres DreCsA 6.5 inches (from
Table 2) VreCsA (15 acres)(6.5 inches)/12
8.1 acre-ft For X Ko, Hydrologic Soil Group
B/D (assumed to be D) AKo 72.9 acres DreKo
6.5 inches (from Table 2) VreKo (72.9
acres)(6.5 inches)/12 39.5 acre-ft Total
47.6 acre-ft (mitigation required)
64
QUESTIONS?
65
Contacts

• Burgess Niple [phone]
• Mitchel Strain mstrain_at_burnip.com
• Katherine Fontaine kfontaine_at_burnip.com
• Jennifer Conroy jconroy_at_burnip.com
• Brian Tornes btornes_at_burnip.com
• Chris Everett ceverett_at_burnip.com
