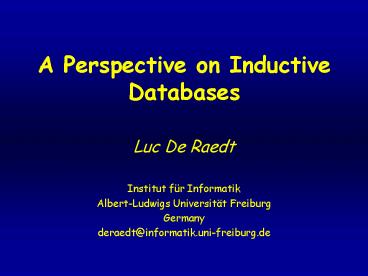

A Perspective on Inductive Databases

1
A Perspective on Inductive Databases

• Luc De Raedt
• Institut für Informatik
• Albert-Ludwigs Universität Freiburg
• Germany
• deraedt_at_informatik.uni-freiburg.de

2
Joint work with Lee Sau Dan, Johannes Fischer,
Christoph Helma, Manfred Jaeger, Stefan Kramer,
Heikki Mannilaand cInQ
3
Three Parts

• Introduction to Inductive Databases
• Inductive Database Systems
• MolFea Mining features in Molecules
• (MineSeqLog Mining logical sequences)
• Inductive databases
• Integrate data mining with databases
• Querying for patterns using constraints

4
Inductive databases

• Data mining
• search for interesting and understandable
  patterns in data
• State-of-the-art in data mining databases in
  the early days
• A theory of data mining is lacking
• View by Iemielinski and Mannila (CACM 96)
• Make first class citizens out of patterns
• Query not only the data but also the patterns
• Tightly integrate data mining and databases

5
Inductive Querying for Active Mining

• The topic of the European cInQ project
• Consortium on Inductive Querying
• Active Mining has many aspects
• One important aspect is
• interactive mining
• interaction with the user
• user-support for mining

6
Inter-active Mining

• The need to actively mine / analyze scientific
  databases in biology, chemistry
• Understandable patterns needed
• Scientist wants control of mining process
• Constraint based mining
• Constraints specify patterns of interest
• E.g. find all patterns that occur in at least 30
  the actives and at most 3 of the inactives and
  contain a benzene ring
• Mining becomes a querying process
• There is no such thing as real discovery, just a
  matter of the expressive power of the query
  languages Iemielinski Mannila, CACM 96

7
Part II

• Examples of (simple) inductive database systems
• MolFea the Molecular Feature Miner
• MineSeqLog Mining logical sequences

8
Molecular Feature Mining

• What ?
• Find fragments (substructures) of interest in
  sets of molecules
• Why ?
• Discover new knowledge
• Use in predictive models
• SAR (Structure Activity Relationship)

9
Molecules and Fragments

• 2D-structure
• essentially Graphs
• Fragments
• substructres
• We linear fragments
• Sequence of atoms and bonds
• Linear fragments
• o, c, cl, n, s,... denote elements
• - ... single bond ... double bond ...
  triple bond ... aromatic bond
• (hydrogens implicit)
• Smarts encoding

O-cccc-Cl
10
Smiles encoding

• Smiles
• Compact encoding of molecular structure
• Used by computational chemists
• Supported by many tools (e.g. Daylight)
• Very compact !
• Efficient matching

11
Smiles encoding
2
1
12
Constraint-based Data Mining

• What ?
• Use constraints to specify which
  fragments/patterns are interesting
• E.g. Frequency and syntax
• Why ?
• Declarative Querying
• Interactive Process
• Inductive database idea

13
Constraints on Fragments

• Possibility to specify constraints on the
  fragments of interest.
• Regarding their generality,regarding their
  frequency in the data
• Various constraint solvers have been implemented

14
Constraint-based data mining

• Generality
• One fragment is more general than another one if
  it is a substructure of the other one
• Notation g ? s (g is more general than s i.e.
  g will match a graph/string whenever s does)
• Graphs subgraph relationship
• Strings substring / subsequence relationship
• E.g. aabbcc is more general than ddaabbccee
  (substring)
• E.g. abc is more general than aabbcc (
  subsequence)
• (Item)sets subset relation, e.g. a,b subset
  a,b,c

15
Search Space for Strings
16
Primitives

• Generality MolFea Symmetry !
• g is equivalent to s (syntactic variants) only
  when they are a reversal of one another
• E.g. C-O-S' and S-O-C' denote the same
  substructure
• g is more general than s if and only if g is a
  subsequence of s or g is a subsequence of the
  reversal of s
• E.g. Cl-O-S' ? Cl-O-S-ccc'
• E.g., O-Cl' ? Cl-O-S'
• Frequency of a fragment f on a data set D
• The percentage of data points in D that f occurs
  in
• E.g let f be aa and let Dabaa,acc, caa
  freq(f,D) .662/3

17
Primitive Constraints

• f ? P, P ? f, not (f ? P) and not (P ? f)f ...
  unknown target fragment, P ... a specific
  fragment e.g. abbaa ? f
• freq(f, D)relative frequency of a fragment f on
  a data setD
• freq(f, D1) ? t, freq(f, D2) ? t,t ... positive
  real number between 0 and 1D1, D2 ... Data sets
  e.g. freq(f, Pos) ? 0.20

18
Example query

• Let E1 aabbcc,abbc,bb
• Let E2 abc,bc,cc
• freq(f,E1) ? 2 and freq(f,E2) 0 and a lt f
• Solutions abb and abbc

19
Example Queries

• (N-O'? f) ? (freq(f, Act) ? 0.1) ? (freq(f,
  Inact) ? 0.01)
• not(F' ? f) ? not (Cl' ? f) ? not (Br' ? f) ?
  not (I' ? f) ? (freq(f, Act) ? 0.05) ?
  (freq(f, Inact) ? 0.02)
• Queries are conjunctions of primitive constraints

20
Representing Solutions

• Traditional min. frequency constraint
• Let c be freq(f, Act) ? x
• c satisfies Anti Monotonicity property
• If we have a fragment g ? s,
• Then if s is a solution then g is a solution as
  well
• Imposes a lower border Smax(Sol) on the space of
  solutions

21
A String Example

• freq(f,D) ? 2 where D

22
Another String Example

• Let f ? ABD

23
Representing Solutions

• Traditional max frequency constraint
• Let c be freq(f, Act) lt x
• c satisfies Monotonicity property
• If we have a fragment g ? s,
• Then if g is a solution then s is a solution as
  well
• Imposes an upper border Gmin(Sol) on the space
  of solutions

24
A String Example

• Consider B ? f and freq(f,D) ? 2 with D

25
Constraints

• Anti-monotonic
• In ML

• Monotonic
• In ML

26
Mitchells Version Space

• Consider now a conjunctive query
• We want to compute

27
Mitchells Version Spaces
Is more general
Solutions
28
Some problems

• There exist conjunctive queries q such that
  Sol(q) is not boundary set representable these
  queries are not safe
• Boundary sets may be infinite
• Or may not be complete

29
Computing Borders

• Borders completely characterize the set of
  solutions for safe queries
• If solution set is finite, then query is safe
• Combination of well-known algorithms to compute
  border wrt
• Level wise algorithm by Agrawal et al., Mannila
  and Toivonen
• Mitchells and Mellishs version space algorithms
• In our level wise version space algorithm

30

Levelwise Version Spaces
Minimum frequency (or anti-monotonic constraint)
Is more general
31
Dual computation
min frequency
G
Is more general
S
Swap role of frequent and infrequent fragments
Expand infrequent ones Discard frequent ones
during search
32
Level Wise Version Space Algorithm
max frequency (or monotonic constraint)
G
Is more general
G
S
33
The HIV Data Set

• Developmental Therapeutics Programs AIDS
  Antiviral Screen Database (http//dtp.nci.nhi.gov
  )
• One of the largest public domain databases of
  this type
• Measures protection of human CEM cells from HIV-1
  infection using a soluble formazan assay
• We retained 41768 compounds (after pre-processing
  the whole data set of 43382 ones)
• 40282 Confirmed Inactive
• 1069 Confirmed Moderately Active
• 417 Confirmed Active

34
Experimental Setup

• Discover patterns that are, statistically
  significant, over-represented in the active
  compounds and under-represented in the inactive
  ones
• Minimum frequency in actives 3, i.e. 13
  compounds
• Maximum frequency on inactives computed using ?2
  (0.999) and size of classes
• For CM 8 CI 516
• Matching Smiles and Smarts using Daylight Tool !

35
Levelwise Version Space Algorithm
max frequency
G
Is more general
G
S
36
(No Transcript)
37
Discovered Fragments(Actives vs. Moderately
Actives)
38
Discovered Fragments(Actives vs. Inactives)
39
AZT (Azidothymidine)

• The majority of these fragments are derivatives
  of AZT.
• Gives insight into the structural requirements
  for anti-HIV activity.
• A rediscovery that proves the principle
• Post-processing
• Combine fragments ?

40
Use of Fragments SAR

• Use as fingerprints/descriptors for SAR model
  building
• Feed data into your favorite data
  mining/statistical package
• Neural Nets
• Decision Trees
• (Logistic) Regression
• Support Vector Machines
• Bayesian Methods
• Principal Component Analysis

41
Use of Fragments SAR

• Several experiments reported on problems from
  predictive toxicology, cf. Kramer and De Raedt,
  ICML 01
• Best results in combination with SVMs
• 2 year rodent carcinogenicity assay (NTP) 70
  500 compounds
• Mutagenicity (Ames Test) 80 800 compounds
• Method has proven its use in several benchmarks
  problems

42
Ongoing WorkMolFea

• Work with branched fragments instead of linear
  sequences
• conceptually easy, computationally more expensive
• Use abstractions, e.g. H-bond-donor/acceptor
  lipophilic center,
• Deriving 3D fragments
• Annotate fragments with 3D information
• Initial implementation works
• Goal mining for pharmacophores
• Integrate MolFea in existing chemical databases
  with GUI for interactive exploration
• Various activities on the solver side

43
Mining SeqLog

• SeqLog simple vanilla datalog like language
  for structured sequences
• MineSeqLog supports same primitives as MolFea

44
Principles of SeqLog
45
SeqLog for Mining

• It is possible to define a notion of
• Substring
• Subsequence
• Resolution and Fixpoint
• For SeqLog Programs

46
MineSeqLog

• Apply the idea of inductive databases to SeqLog,
  i.e. use constraints such as
• Minimum and maximum frequency
• Generality
• Related to subsequence / substring matching
• Background knowledge
• To specify patterns (sequences) of interest

47
Other idea

• Use SeqLog as a dedicated representation language
  for data mining (a la Inductive Logic
  Programming)
• Many interesting open (?) questions
• Distance based learning methods
• Require distance measure on sequences
• Operations on sequences required to do learning
• STRONG relation to corresponding operations on
  strings ! E.g. maximal or longest common
  subsequence/substrings
• Hidden Markov Models (Kersting et. al. PSB 03)

48
Part III

• Inductive database principles

49
An analogy with databases

• Why is the relational model so succesful?
• A general purpose query language with  nice
  properties
• simple theoretical foundations
• declarative semantics
• closure principle
• The same is needed for KDD applications
• The ultimate goal of IDBs is to find the
  equivalent of Codds relational database model
  for use in data mining

50
Inductive database principles

• What is an inductive database ?
• A set of data sets
• A set of pattern sets
• IDB languages
• A query language that generates data sets
• An inductive query language that generates
  pattern sets
• Closure principle !
• A set and logic oriented view
• Not a universal framework, though quite general

51
Boolean Inductive Queries
52
Manipulation

• create data set D as query
• create view data set D as query
• create pattern set P as query
• create pattern view P as query
• Insert / Delete / Update statements

53
Illustration

• create data set D4 as aa,ab,bb
• create pattern view P2 as freq(f,D4) ? 2
• At this point P2 a,b
• update data set D4 insert abc
• Update P2 too P2 P2 U ab
• Incremental data mining !
• Insert ab into pattern view P2
• Pattern view update problem
•

54
Query evaluation

• How to evaluate boolean inductive queries ?
• Observe
• MolFea conjunction of anti-monotonic and
  monotonic constraints
• can be answered using level wise version space
  algorithm
• solutions form a version space, can be
  represented by border sets.

55
Query Evaluation
56
Query Optimisation
57
Properties of inductive queries
58
How many version spaces do we need ?
59
Operations on solution spaces

• Logical operations on primitives have a set
  oriented counter part
• An analogy with relational algebra
• A query consists of relational operations
• Operations can be used to optimize query
  answering proces.

60
Operations on solution spaces

• Two approaches
• Develop data structures that support operations
• Develop operations that work on border sets
• Cf. Employ operations by Haym Hirsh, Gunter et
  al. for our purposes
• Combine the two approaches
• Version Space Trees

61
Version Space Intersections
62
Version space intersections
63
Version space union
64
Union on Borders
65
(No Transcript)
66
Version space tree
67
Version space trees

• Interesting properties
• Membership testing very efficient
• Size of VSTree at most
• Easy to go from VSTree to G and S, and vice versa
• Can be constructed in two phases
• Descend (Apriori-tries), Ascend
• Combines advantages of suffix trees with version
  spaces
• Operations on version space trees For now finite
  trees only.

68
Reasoning
69
Memory organisation

• Consider
• q1 freq(f,D) gt m
• q2 freq(f,D U M) gt m (q1 q2)
• q3freq(f,D) gt m OR freq(f,M) gt m (q3 q2)
• Scenarios
• q1 answered and stored q2 asked
• q2 answered and stored q1 asked
• Keep track of subset relations among pattern sets
  / data sets
• Keep track of relations among patterns
  (generality structure) within given pattern set

70
A set and logic oriented view of inductive
databases

• Key assumption
• Inductive queries are logical expressions over
  monotonic and anti-monotonic prims.
• Perspective
• Reasoning about query answering and optimisation
• (first) elements of a theory given
• Border set (Version space) representations useful
• Operations on version spaces
• A lot of opportunities for further work

71
Ongoing work

• String version space data structure
• Operations on string version spaces
• Efficient computation of string version space
• Elaborate theory and implementation

72
Where to go from here ?

• Other forms of primitives ?
• E.g. accuracy of rule / hypotheses is larger than
  x
• E.g. average cost of transaction is larger than x
• Neither monotone nor anti-monotone
• Optimization primitives ?
• Find item sets with maximum frequency
• Find rule with maximum accuracy

73
Where to go from here ?

• Other forms of tasks ?
• Clustering (some initial works exist)
• Formulate constraints on no. of desired clusters,
  and cluster membership
• Prediction
• Some approaches to decision tree learning exist
• Other forms of algorithms ?
• Instead of all solutions find best or
  plausible solutions
• Approximation/heuristic algorithms
• Cf. constraint programming

74
Conclusions

• Inductive databases and constraint based mining
• MolFea
• MineSeqLog
• Solving inductive queries
• Very general framework for query formulation
• Problems of query evaluation and optimisation
  raised
• Many remaining open problems and opportunities
  for research

75
Thanks
